triMeshEquilateral

Below is a demonstration of the features of the triMeshEquilateral function

CREATING AN EQUILATERAL TRIANGLE MESH

clear; close all; clc;

PLOT SETTINGS

font_size=20;
cmap=gray(250);
falpha=1;
patch_types={'sx','sy','sz','v'};
ptype=3;
no_slices=4;
mark_siz1=25;
mark_siz2=25;
mark_siz3=15;
line_width1=2;
F_alpha1=1;
F_alpha2=0.8;

Control parameters

%Desired mesh point spacing
pointSpacing=1;

%Mesh region extrema
maxV=[5 6];
minV=[-5 -5];

CREATING AN EQUILATERAL TRIANGLE MESH

[F,V]=triMeshEquilateral(minV,maxV,pointSpacing);

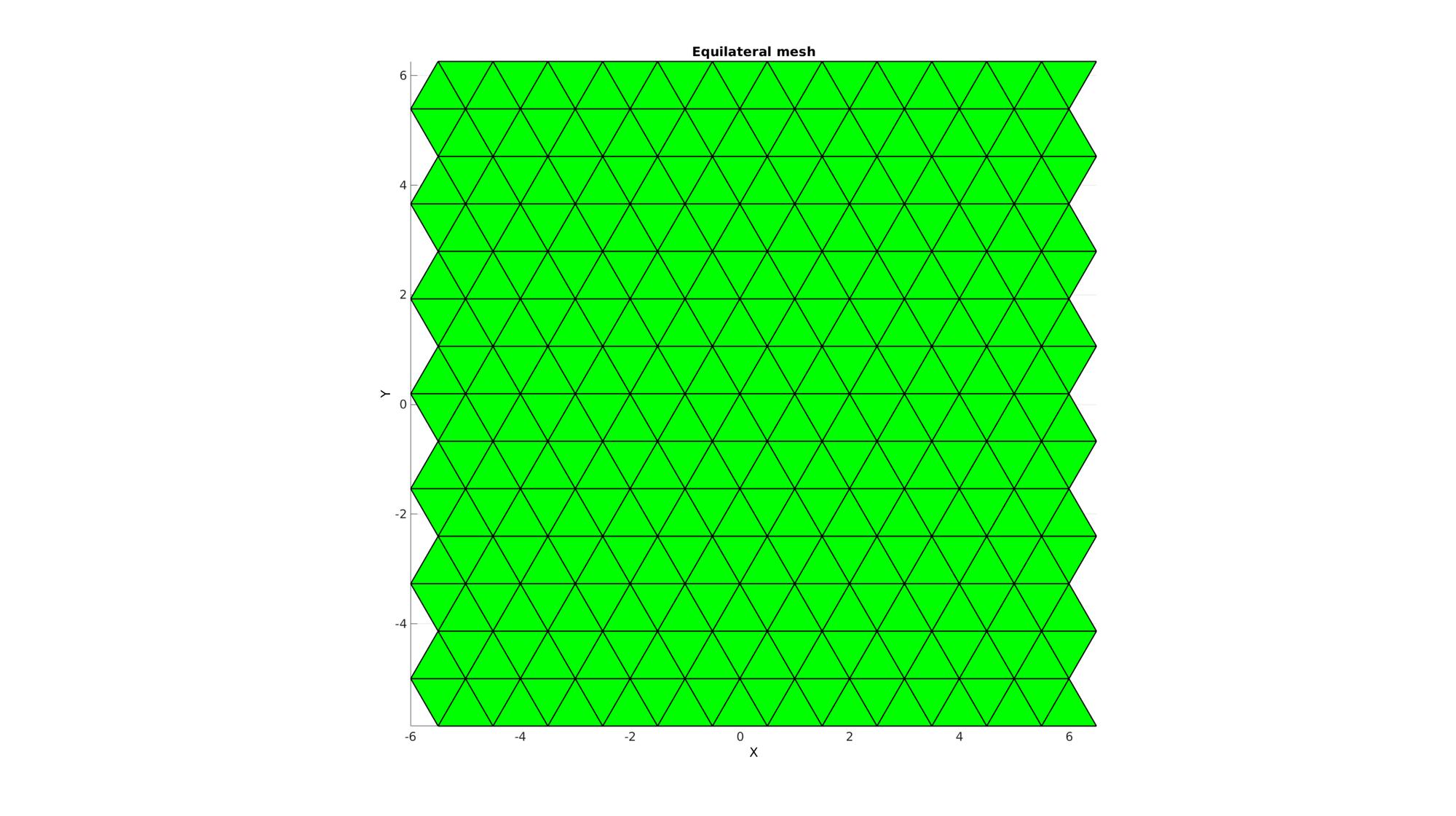

Plottting mesh

hf1=cFigure;
title('Equilateral mesh','FontSize',font_size);
xlabel('X','FontSize',font_size);ylabel('Y','FontSize',font_size); zlabel('Z','FontSize',font_size);
hold on;
hpm=patch('Faces',F,'Vertices',V,'EdgeColor','k','FaceColor','g','FaceAlpha',F_alpha1,'lineWidth',line_width1);
% [hp]=patchNormPlot(F,V,1);
colormap autumn;
axis equal; view(2); axis tight;  grid on;
set(gca,'FontSize',font_size);
drawnow;
