patchEdges

Below is a demonstration of the features of the patchEdges function

Contents

clear; close all; clc;

Syntax

| [E] = patchEdges(F,uniOpt);|

Description

Get the nx2 patch array for the input faces (F) and vertices (V). If uniOpt=1 then only unique edges are returned e.g. the edges spanning from node 1 to node 2 is the same as from node 2 to node 1. If uniOpt=0 then such non-unique edges are also inluded.

Examples

Example geometry

[F,V]=geoSphere(1,1);

uniOpt=0;
E=patchEdges(F,uniOpt);

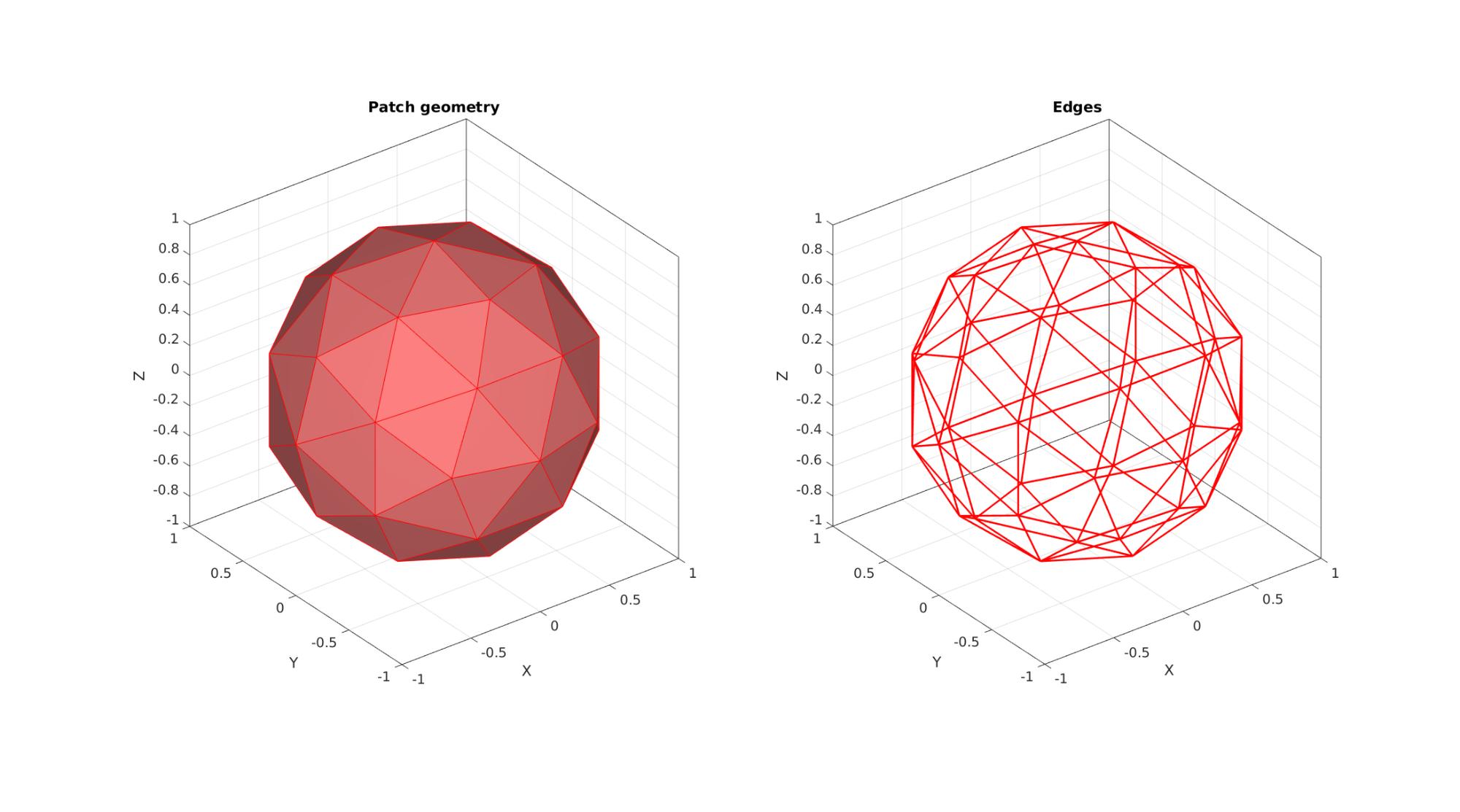

cFigure;
subplot(1,2,1);
title('Patch geometry')
gpatch(F,V,'rw','r');
axisGeom; camlight headlight;

subplot(1,2,2);
title('Edges')
gedge(E,V,'r',2);
axisGeom;

drawnow;
