isPolyClockwise

Below is a demonstration of the features of the isPolyClockwise function

Contents

clear; close all; clc;

Syntax

[L]=isPolyClockwise(V);

Description

This function uses the "signed area" of the polygon to return if its orientation is clockwise L=1 or anti-clockwise L=0.

Examples

n=25; % Number of points
t=linspace(0,2*pi,n+1)'; t=t(1:end-1); % Angles

V=[cos(t) sin(t)]; % Polygon vertices

[L]=isPolyClockwise(V)

[L]=isPolyClockwise(flipud(V))

L =

  logical

   0


L =

  logical

   1

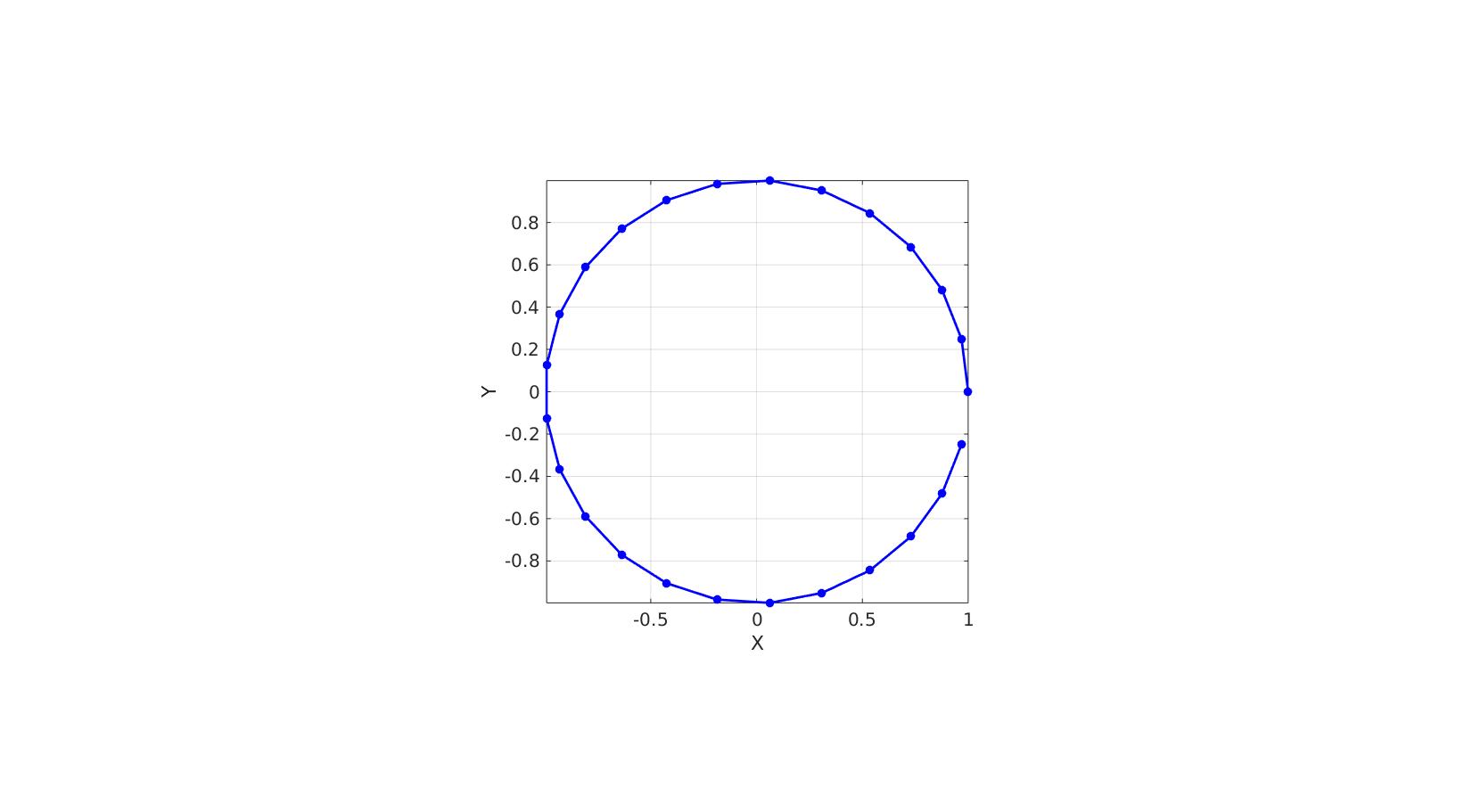

cFigure; hold on;
plotV(V,'b.-','LineWidth',2,'MarkerSize',25)
axisGeom; view(2);
drawnow;
