# im2cart

Below is a demonstration of the features of the im2cart function

## Contents

```clear; close all; clc;
```

## Syntax

[X,Y,Z]=im2cart(I,J,K,v);

[X,Y,Z]=im2cart(I,J,K);

[V_xyz]=im2cart(V_ijk,v);

[V_xyz]=im2cart(V_ijk);

[V_xyz]=im2cart(V_ij);

## Description

This function converts the image coordinates I,J,K to the cartesian coordinates X,Y,Z using the voxel dimension v.

I,J,K can be scalars, vectors or matrices. v is a vector of length 3 where v(1), v(2) and v(3) correspond to the voxel dimensions in the x,y and z direction respectively.

This function maps the row, column, slice coordinates I,J,K to "real-world" Cartesian coordinates X,Y,Z based on: X=(J-0.5).*v(2); Y=(I-0.5).*v(1); Z=(K-0.5).*v(3);

Note that the columns relate to X while rows relate to Y.

A single coordinate array may also be specified whereby the columns define the I, J, and K coordinates. If a single output is requested the output will also consist of such an array whereby columns are the X, Y, and Z coordinates

## Examples

Plot settings

```cMap=gjet(250);
faceAlpha1=1;
faceAlpha2=0.65;
fontSize=25;
```

## Example: 2D image coordinate systems

In this example a 2D image with an anisotropic voxel (pixel) size is used. It is first visualized in image coordinates which, since voxel size is not taken in to account , appears stretcged. Next it is also visualized using "real-world" Cartesian coordinates which do take the real anisotropic voxel size into account (using im2cart). This image appears unstretched.

Get example image data

```imageData=load('mandrill'); %Image data for photograph
M=double(imageData.X); %Get gray scale intensity information
M=M(1:2:end,1:6:end); %Reduce density of image and make anisotropic
v=[1 3 1]; %example voxel size
```

Create row (I) and column (J) image coordinates for all voxel centers

```[I,J]=ndgrid(1:1:size(M,1),1:1:size(M,2)); %Row and column coordinates
K=ones(size(I)); %Slice coordinates
P_IJ=[I(:) J(:) K(:)]; %The collected coordinate array
```

Use im2cart to convert to "Cartesian" or real world coordinates

```P_XY=im2cart(P_IJ,v); %Real world coordinates.
```

Create patch data for plotting

```%Get patch data
[F,V,C]=im2patch(M,true(size(M)),'sk');
```

Use im2cart to convert to "Cartesian" or real world coordinates

```V_XY=im2cart(V(:,[2 1 3]),v);
```

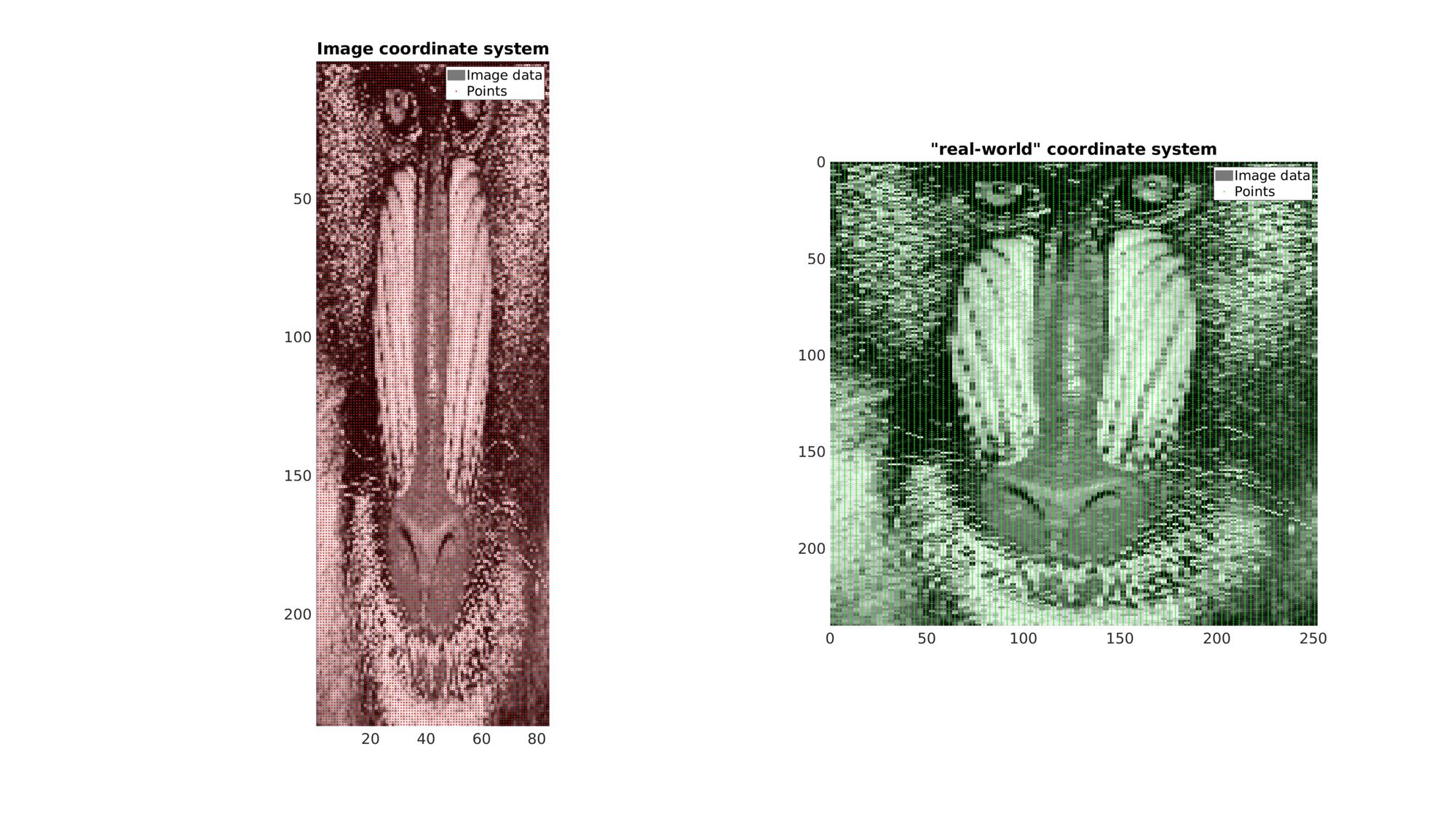

Visualize

```cFigure;
subplot(1,2,1); hold on;
title('Image coordinate system');
hp1=gpatch(F,V,C,'none');
hp2=plotV(P_IJ(:,[2 1 3]),'r.','markerSize',5);
legend([hp1,hp2],{'Image data','Points'})
axis ij; axis tight; axis equal;
set(gca,'FontSize',fontSize);
colormap gray;

subplot(1,2,2); hold on;
title('"real-world" coordinate system');
hp1=gpatch(F,V_XY,C,'none');
hp2=plotV(P_XY,'g.','markerSize',5);
legend([hp1,hp2],{'Image data','Points'})
axis ij; axis tight; axis equal;
set(gca,'FontSize',fontSize);
colormap gray;

drawnow;
``` ## Example: 3D image coordinate handling and visualization

Get example image data

```load mri;
M=squeeze(D); %example image data set
v=[2 2 5]; %example voxel size, note voxels are ellongated in slice direction
```

Use im2patch to get coordinates of voxel data for plotting

```%Defining row, column and slice indicices for slice patching
sliceIndexI=round(size(M,1)/2); %(close to) middle row
sliceIndexJ=round(size(M,2)/2); %(close to) middle column
sliceIndexK=round(size(M,3)/2); %(close to) middle slice

logicPlot=false(size(M));
logicPlot(sliceIndexI,:,:)=1;
logicPlot(:,sliceIndexJ,:)=1;
logicPlot(:,:,sliceIndexK)=1;

%Get patch data
[F,V,C]=ind2patch(logicPlot,M,'vb');
```

Use im2cart to scale coordinates based on voxel size. The patch data consists of a matrix array defining the faces, a matrix array defining the vertices and a vector for the colour data. The vertices are based on the image coordinates however they are formatted as: [X(:) Y(:) Z(:)]. X relates to columns, Y to rows and Z to slices.

```% Convert image coordinates to cartesian coordinates
[V(:,1),V(:,2),V(:,3)]=im2cart(V(:,2),V(:,1),V(:,3),v);
```

Visualize

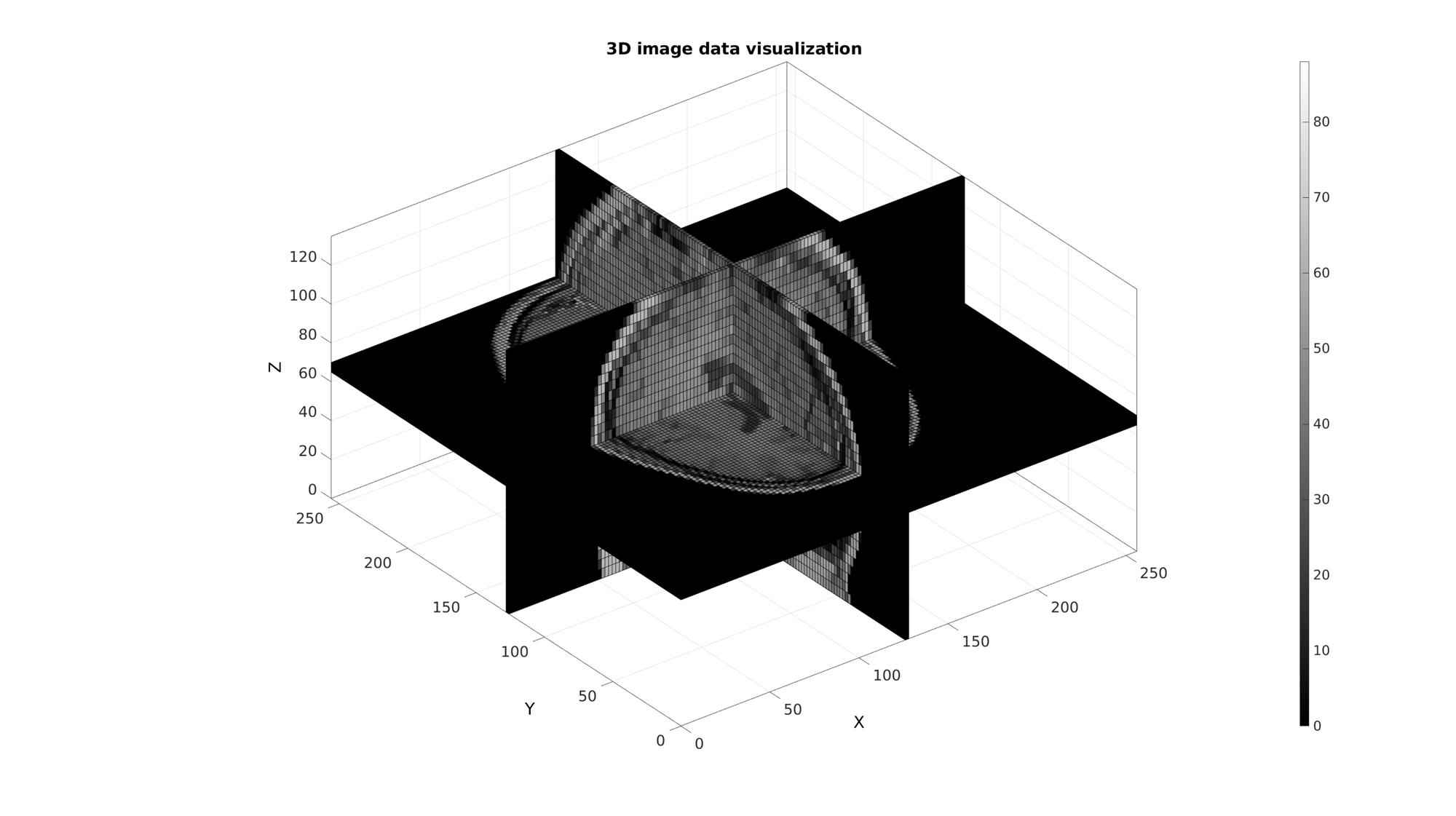

```cFigure;
title('3D image data visualization');
xlabel('X (mm)');ylabel('Y (mm)'); zlabel('Z (mm)'); hold on;
gpatch(F,V,C);
axisGeom(gca,fontSize);
colormap(gray(250)); colorbar;
drawnow;
