dcmFolder2MATobject

Below is a demonstration of the features of the dcmFolder2MATobject function

Contents

Syntax

dcmFolder2MATobject(PathName,MaxVarSize);

Description

The dcmFolder2MATobject function converts DICOM data to a MATLAB mat (object and or) file.

Examples

clear; close all; clc;

Example: CONVERTING DICOM IMAGE DATA TO A MAT OBJECT

Below some example code is shown to convert all DICOM files inside a folder (including its subfolders) to the IMDAT format. The function dcmFolder2MATobject converts the DICOM data to a matlab MAT object and saves it under the name IMDAT.mat inside a subfolder called IMDAT. A waitbar appears showing the process of the data conversion for the DICOM information and image data. Multiple types of image data (e.g. phase, real, imaginary, magnitude data) is stored seperately. Also several DICOM info fields are harvested and stored.

The IMDAT.mat object contains the following:

IMDAT_struct =

               G: [1x1 struct] %The geometry parameters
       ImageSize: [128 128 17 20] % The image size
   ImageTypesUni: {'ORIGINAL\PRIMARY\M_FFE\M\FFE'} % The image type or types
          type_1: [4-D uint16] % The image data matrix
     type_1_info: [1x340 struct] % The harvested DICOM information

The geometry set G contains: G =

    v: [3x1 double] %The voxel size
   OR: [3x1 double] %The location of the origin
    r: [3x1 double] %Direction vector for rows
    c: [3x1 double] %Direction vector for Columns

The full input set is used like this: dcmFolder2MATobject(PathName,MaxVarSize,reOrderOpt,dicomDictFactory,fileExtension)

The first input is required (the path name for the DICOM data folder), all other inputs are optional.

PathName: The path name to the folder containing the DICOM data

MaxVarSize: default=>1e12, the maximum variable size. If the image data exceeds this size e.g. as a 4D array, each 3D subarray is seperately saved

reOrderOpt: default=>0, if 1 the files are sorted based on the "InstanceNumber" DICOM field, instead of the file names.

dicomDictFactory: default=>0, If zero the best dicom dictionary is selected based on the DICOM file vendor description. If 1 then the MATLAB "factory default" is used.

fileExtension: default=>'.dcm', specifies the file extension for the DICOM files. The default is the typical .dcm extension. Alternatively an empty file extension '' or [] may be specified. In which case all files without an extension contained in the DICOM folder are deemed DICOM files.

Path name for dicom files

defaultFolder = fileparts(fileparts(mfilename('fullpath'))); %Set main folder
pathName=fullfile(defaultFolder,'data','DICOM','0001_human_calf');

Example: Convert all DICOM data in a folder to a mat-object

Converting dicom data to the IMDAT format

dcmFolder2MATobject(pathName);%Get DICOM data

Detected Philips Healthcare files
DICOM dictionary set to: gibbon_dict.txt

Loading in the entire data structure

loadName=fullfile(pathName,'IMDAT','IMDAT.mat');
IMDAT_struct=load(loadName);

M=IMDAT_struct.type_1; %The image data (note: may not be of the double class)
v=IMDAT_struct.G.v; %The voxel size

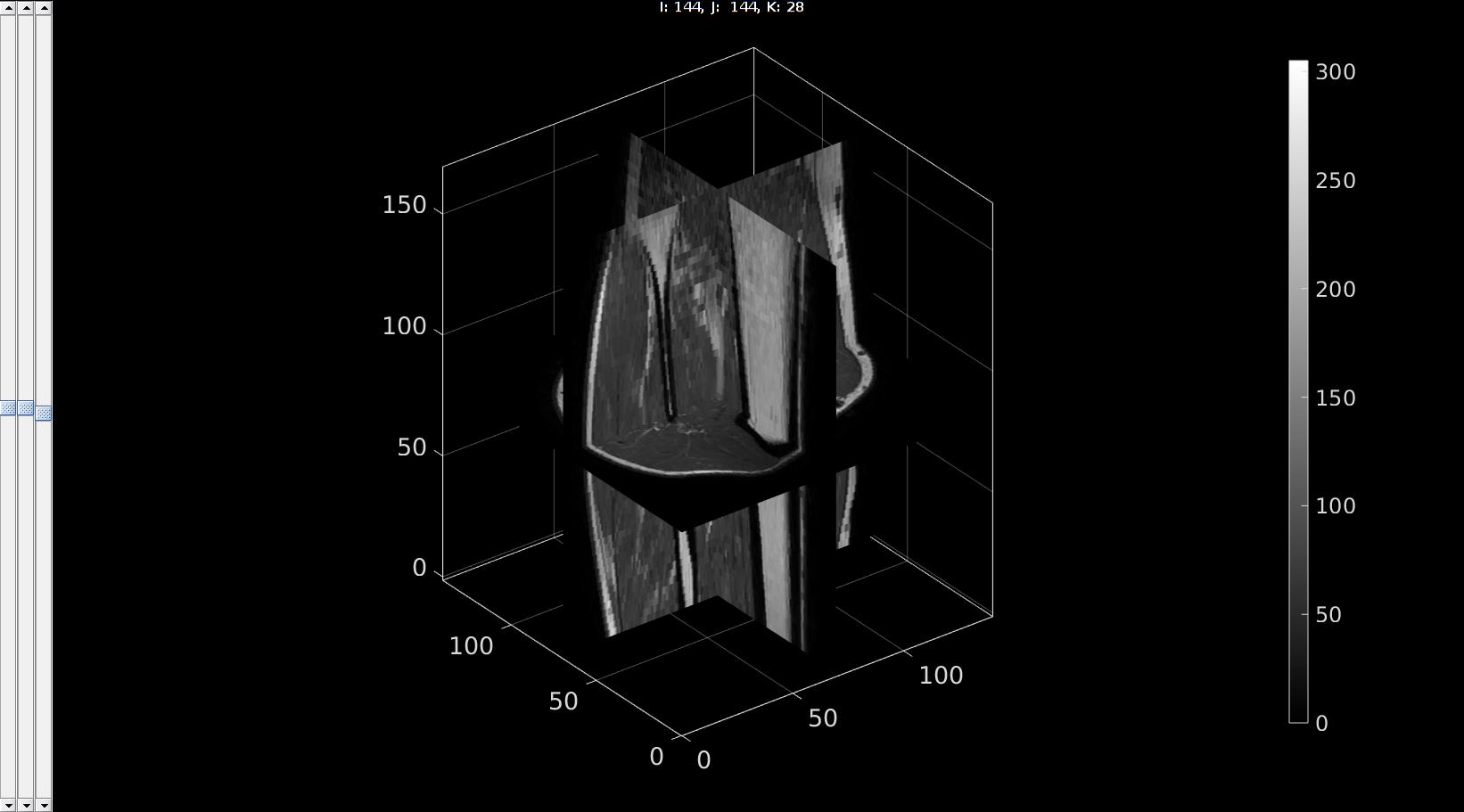

Viewing the image data

sv3(M,v);

Alternative using mat-object indexing. Indexing into the MAT object to avoid loading entire structure In somecases it is not desirable to load in the entire data set but only say a certain slice. In this case the MAT object allows for indexing as shows below. See also the help documentation for matfile Although this type of indexing can be slow it does allow one to only select a subset of the data which in some cases helps to save memory

% Load "link"/"handle" to mat-object
matObj = matfile(loadName);

% Retrieve components from matobject
G = matObj.G; %Geometry information
v=G.v; %Voxel size
m=matObj.type_1(:,:,5:10); %Only the 5th up to 10th slice
M= matObj.type_1; %The entire image for type_1

Example: Convert all DICOM data in a folder with additional options

MaxVarSize=[]; %Maximum variable size
reOrderOpt=[]; %Option to reorder slices based on the "InstanceNumber" DICOM field
dicomDictFactory=0; %Force to use factory default DICOM dictionary
fileExtension='.dcm'; %File extension for DICOM files, can also be empty

%Additional options are provided in an option structure
optionStruct.nDownSample=[3 3 3]; %Under sample the image by these factors in row, column, slice directions
optionStruct.skipInfo=1; %If 1 loading all DICOM info is skipped. Only the information from the first slice is used

dcmFolder2MATobject(pathName,MaxVarSize,reOrderOpt,dicomDictFactory,fileExtension,optionStruct);%Get DICOM data

Detected Philips Healthcare files
DICOM dictionary set to: gibbon_dict.txt

Loading in the entire data structure

loadName=fullfile(pathName,'IMDAT','IMDAT.mat');
IMDAT_struct=load(loadName);

M=IMDAT_struct.type_1; %The image data (note: may not be of the double class)
v=IMDAT_struct.G.v; %The voxel size

Viewing the image data

sv3(M,v);

Viewing the image data using ind2patch Alternatively the image data can be viewed using the ind2patch function. See the associated help for more information.
