DEMO_stent_design_sigmoid_01

Below is a demonstration for:

Contents

Keywords

clear; close all; clc;

Plot settings

fontSize=25;
markerSize1=15;
markerSize2=10;
lineWidth1=2;
lineWidth2=0.5;

stentRadius=3;
numRadialSegments=5;
numAxialSegments=8;
nSubQuad=0;

stentSectionWidth=0.1;
pointSpacing=stentSectionWidth*0.5;
segmentSeperation=stentSectionWidth/4;

wb=((pi*stentRadius)/numRadialSegments)/3-stentSectionWidth;%(pi/numRadialSegments)/;
h=2;
f=2;

Create sigmoid curve

n=1000;
y=linspace(-1,1,n);
if f==0
    x=y;
else
    x(y>=0) =(exp(-f*abs(y(y>=0)))-1)./(exp(-f)-1);
    x(y<0)  =-(exp(-f*abs(y(y<0)))-1)./(exp(-f)-1);
end
x=wb/2.*x; %Scale width
x=x+wb/2; %Shift
y=y+h/2; %shift;
V=[x(:) y(:)];

%Resample based on point spacing
numPointsResample=round(max(pathLength(V))/pointSpacing);
[V] = evenlySampleCurve(V,numPointsResample,'pchip',0);
x=V(:,1)-min(V(:,1));
y=V(:,2);

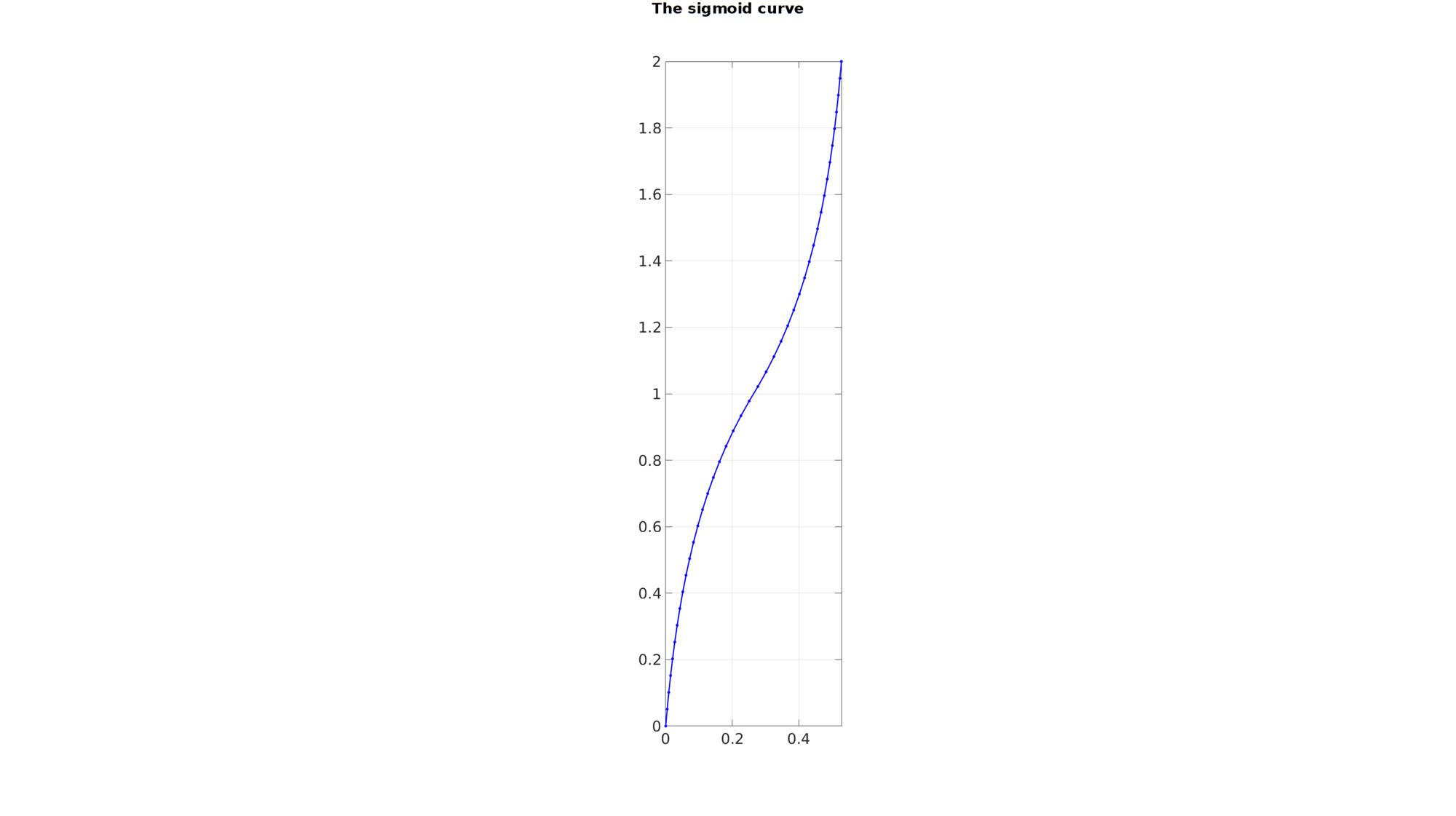

Visualize sigmoid curve

cFigure; hold on
gtitle('The sigmoid curve',fontSize);
plotV(V,'b.-','MarkerSize',markerSize1,'LineWidth',lineWidth1);
axis equal; axis tight; grid on; box on;
set(gca,'FontSize',fontSize);
drawnow;

Create curves for a single stent segment

offsetTotal=segmentSeperation+stentSectionWidth;

n1=floor(offsetTotal/pointSpacing)+1;
V1=[zeros(n1,1) linspace(-offsetTotal,0,n1)'];

V2=[x(:) y(:)];
V2(:,1)=V2(:,1)-min(V2(1,1));
V2(:,2)=V2(:,2)-min(V2(1,2));

numStepsRadial=round((pi*stentSectionWidth)./pointSpacing);
t=linspace(-pi/2,pi/2,numStepsRadial);
xc=stentSectionWidth*sin(t);
yc=stentSectionWidth*cos(t);
V3=[xc(:) yc(:)];
V3(:,1)=V3(:,1)-V3(1,1)+V2(end,1);
V3(:,2)=V3(:,2)-V3(1,2)+V2(end,2);

x4=-x;
V4=flipud([x4(:) y(:)]);
V4(:,1)=V4(:,1)-V4(1,1)+V3(end,1);
V4(:,2)=V4(:,2)-V4(1,2)+V3(end,2);

V5=flipud([-V4(:,1) V4(:,2)]);
V5(:,1)=V5(:,1)-V5(1,1)+V4(end,1);
V5(:,2)=V5(:,2)-V5(1,2)+V4(end,2);

V6=V1;
V6(:,1)=V6(:,1)-V6(1,1)+V5(end,1);
V6(:,2)=V6(:,2)-V6(1,2)+V5(end,2);

V7=V1;
V7(:,1)=V7(:,1)+stentSectionWidth;

v=[V2(2:end,:)-V2(1:end-1,:); V2(2,:)-V2(1,:)];
v=vecnormalize(v);
v(:,3)=0;
z=[0 0 1];
v2=cross(v,z(ones(size(v,1),1),:),2);
v2(1,:)=[1 0 0];
v2(end,:)=[1 0 0];
v2=v2(:,[1 2]);
V8=V2+v2*stentSectionWidth;
[V8] = evenlySampleCurve(V8,size(V8,1),'pchip',0);

V9=flipud(V8);
V9(:,1)=-V9(:,1);
V9(:,1)=V9(:,1)-V9(1,1)+V8(end,1);

V10=(V3);
V10(:,2)=-V10(:,2);
V10(:,1)=V10(:,1)-V10(1,1)+V9(end,1);
V10(:,2)=V10(:,2)-V10(1,2)+V9(end,2);

V11=V8;
V11(:,1)=V11(:,1)-V11(1,1)+V10(end,1);

V12=V1;
V12(:,1)=V12(:,1)-V12(1,1)+V11(end,1);
V12(:,2)=V12(:,2)-V12(1,2)+V11(end,2);

V_curve_part1=[V1; V2; V3; V4; V5; V6;  ];
V_curve_part2=[V7; V8; V9; V10; V11; V12];
V_curve=[V_curve_part1; flipud(V_curve_part2) ];

[~,ind1,ind2]=unique(pround(V_curve,5),'rows');
L=false(size(V,1),1);
L(ind1)=1;
V_curve=V_curve(L,:);

nPlot=12;
plotColors=hsv(nPlot);

cFigure; hold on;

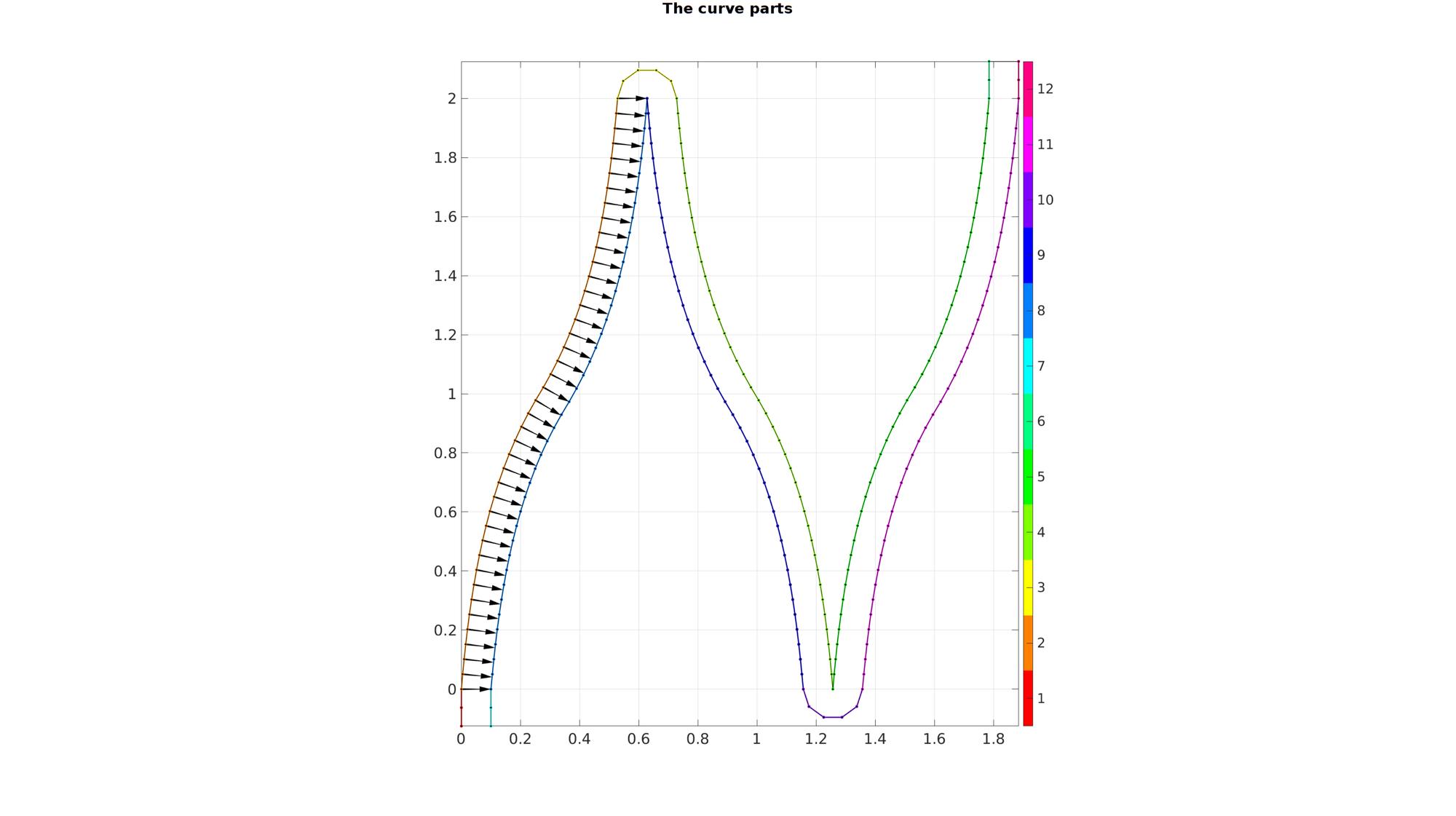

gtitle('The curve parts',fontSize);
hp=plotV(V1,'k.-','MarkerSize',markerSize1,'LineWidth',lineWidth1); hp.Color=plotColors(1,:);
hp=plotV(V2,'k.-','MarkerSize',markerSize1,'LineWidth',lineWidth1); hp.Color=plotColors(2,:);
hp=plotV(V3,'k.-','MarkerSize',markerSize1,'LineWidth',lineWidth1); hp.Color=plotColors(3,:);
hp=plotV(V4,'k.-','MarkerSize',markerSize1,'LineWidth',lineWidth1); hp.Color=plotColors(4,:);
hp=plotV(V5,'k.-','MarkerSize',markerSize1,'LineWidth',lineWidth1); hp.Color=plotColors(5,:);
hp=plotV(V6,'k.-','MarkerSize',markerSize1,'LineWidth',lineWidth1); hp.Color=plotColors(6,:);
hp=plotV(V7,'k.-','MarkerSize',markerSize1,'LineWidth',lineWidth1); hp.Color=plotColors(7,:);
hp=plotV(V8,'k.-','MarkerSize',markerSize1,'LineWidth',lineWidth1); hp.Color=plotColors(8,:);
hp=plotV(V9,'k.-','MarkerSize',markerSize1,'LineWidth',lineWidth1); hp.Color=plotColors(9,:);
hp=plotV(V10,'k.-','MarkerSize',markerSize1,'LineWidth',lineWidth1); hp.Color=plotColors(10,:);
hp=plotV(V11,'k.-','MarkerSize',markerSize1,'LineWidth',lineWidth1); hp.Color=plotColors(11,:);
hp=plotV(V12,'k.-','MarkerSize',markerSize1,'LineWidth',lineWidth1); hp.Color=plotColors(12,:);
plotV(V_curve,'k.-','MarkerSize',markerSize2,'LineWidth',lineWidth2);
quiverVec(V2,v2,stentSectionWidth,'k');
colormap(plotColors); caxis([1 nPlot]); icolorbar;
axis equal; axis tight; grid on; box on;
set(gca,'FontSize',fontSize);
drawnow;

%Initial Delaunay triangulation
ns= size(V_curve,1);
Cs=[(1:ns)' [2:ns 1]'];
DT = delaunayTriangulation(V_curve(:,1),V_curve(:,2),Cs);
Vs=DT.Points;
Fs=DT.ConnectivityList;

%Remove faces not inside region
L = isInterior(DT);
Fs=Fs(L,:);

optionStruct.maxAngleDeviation=60*(pi/180);
[F_quad,V_quad]=tri2quadGroupSplit(Fs,Vs,optionStruct);

np=size(V_quad,1);
V_quad=[V_quad; V_quad];
V_quad(np+1:end,1)=-V_quad(np+1:end,1)+2*max(V_quad(:,1));
F_quad=[F_quad; fliplr(F_quad)+np];
V_quad(:,2)=V_quad(:,2)-min(V_quad(:,2)); %Shift so bottom is at zero

Warning: Not all vertex sets are of equal dimensionality (e.g. mixed 2D, 3D
data). Zeros were added for added dimensions

if nSubQuad>0
    [F_quad,V_quad]=subQuad(F_quad,V_quad,nSubQuad);
end

[Eb,E,indBoundary]=patchBoundary(F_quad,V_quad);

smoothPar.LambdaSmooth=0.5;
smoothPar.n=250;
smoothPar.Tolerance=0.01;
smoothPar.RigidConstraints=unique(Eb(:));
[V_quad]=tesSmooth(F_quad,V_quad,[],smoothPar);

cFigure;
hold on;

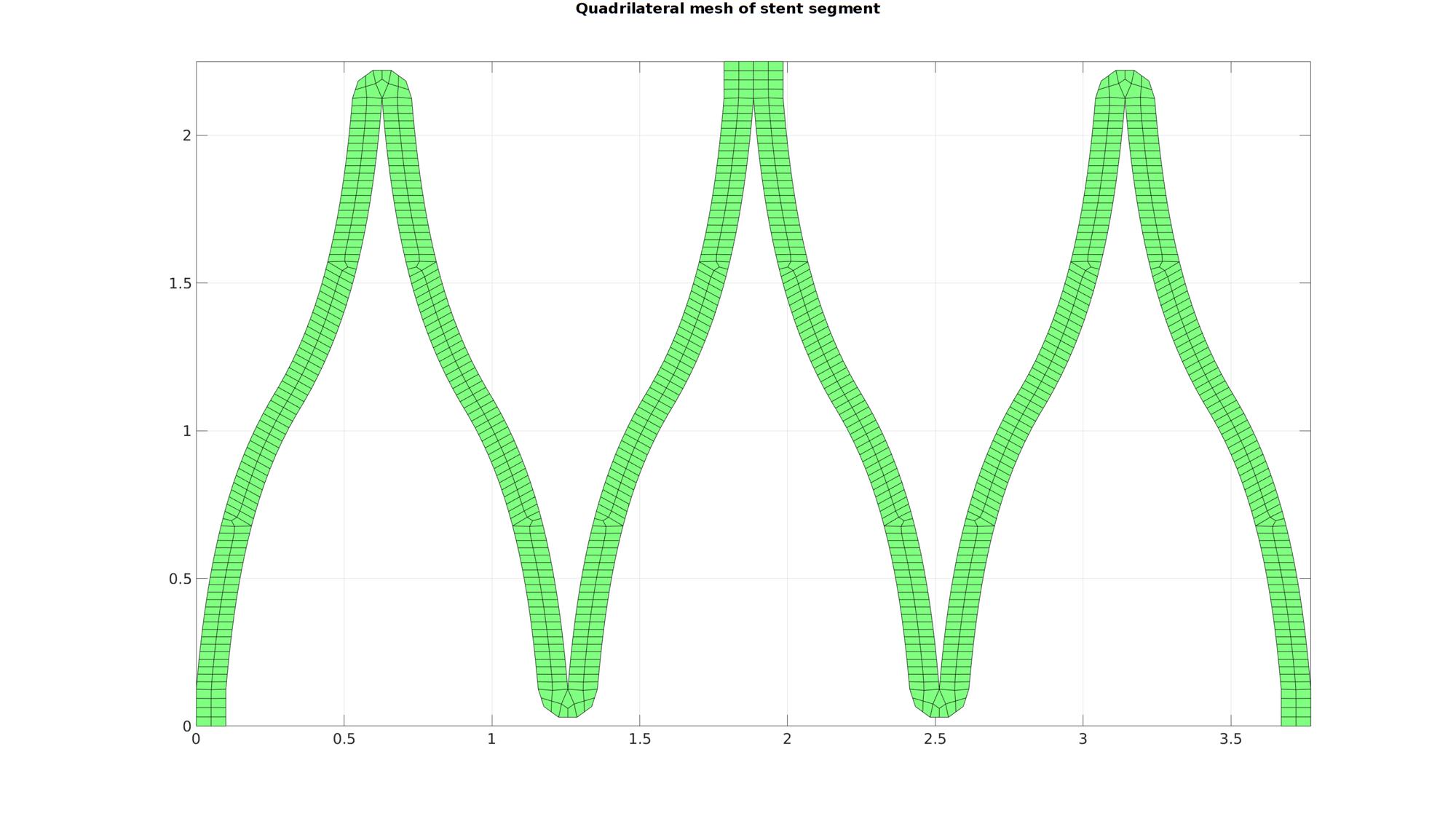

gtitle('Quadrilateral mesh of stent segment',fontSize);
gpatch(F_quad,V_quad,'gw','k');
axis equal; axis tight; grid on; box on;
set(gca,'FontSize',fontSize);
drawnow;

Offset in the angular direction

V_quad_cell=repmat({V_quad},1,numRadialSegments);
F_quad_cell=repmat({F_quad},1,numRadialSegments);
for q=1:1:numRadialSegments
    V_quad_cell{q}(:,1)=V_quad_cell{q}(:,1)+q*max(V_quad(:,1));
end

[F_quad,V_quad]=joinElementSets(F_quad_cell,V_quad_cell);
[F_quad,V_quad]=mergeVertices(F_quad,V_quad);

Offset in the axial direction

h=max(V_quad(:,2))-min(V_quad(:,2));
V_quad_cell=repmat({V_quad},1,numAxialSegments);
F_quad_cell=repmat({F_quad},1,numAxialSegments);
for q=2:1:numAxialSegments
    V_now=V_quad_cell{q};
    if iseven(q)
        F_quad_cell{q}=fliplr(F_quad_cell{q});
        V_now(:,2)=-V_now(:,2);
        V_now(:,2)=V_now(:,2)-min(V_now(:,2));
        V_quad_cell{q}(:,2)=V_now(:,2)-(q-1)*h;
    else
        V_quad_cell{q}(:,2)=V_now(:,2)-(q-1)*h;
    end

end

[F_quad,V_quad]=joinElementSets(F_quad_cell,V_quad_cell);
[F_quad,V_quad]=mergeVertices(F_quad,V_quad);

cFigure; hold on;

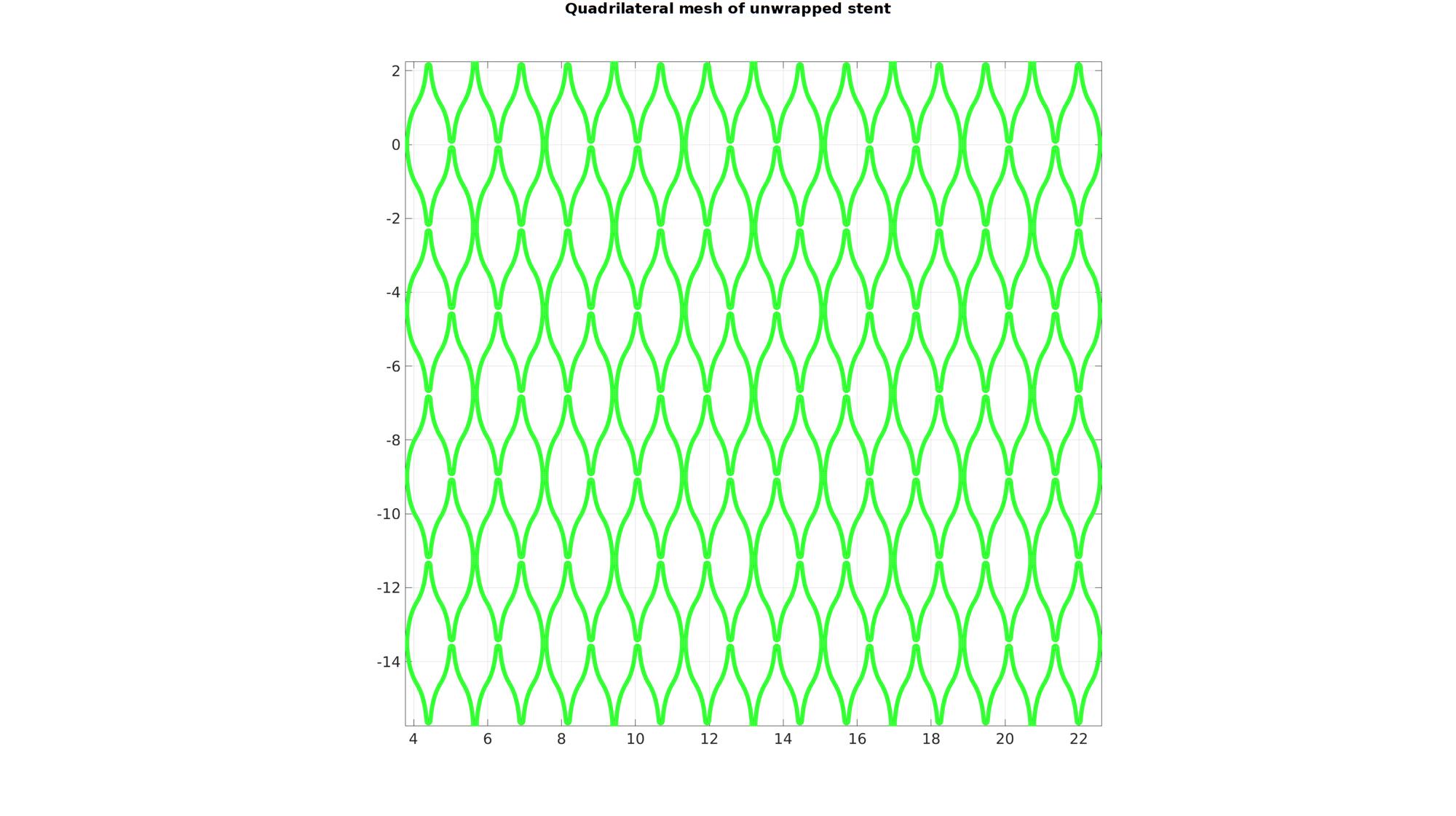

gtitle('Quadrilateral mesh of unwrapped stent',fontSize);
gpatch(F_quad,V_quad,'gw','g');
axis equal; axis tight; grid on; box on;
set(gca,'FontSize',fontSize);
drawnow;

Wrap stent to create cylinder

T=V_quad(:,1)/stentRadius;
[V_quad(:,1),V_quad(:,2),V_quad(:,3)]=pol2cart(T,stentRadius.*ones(size(V_quad(:,3),1),1),V_quad(:,2));
[F_quad,V_quad,ind1]=mergeVertices(F_quad,V_quad);

cFigure; hold on;

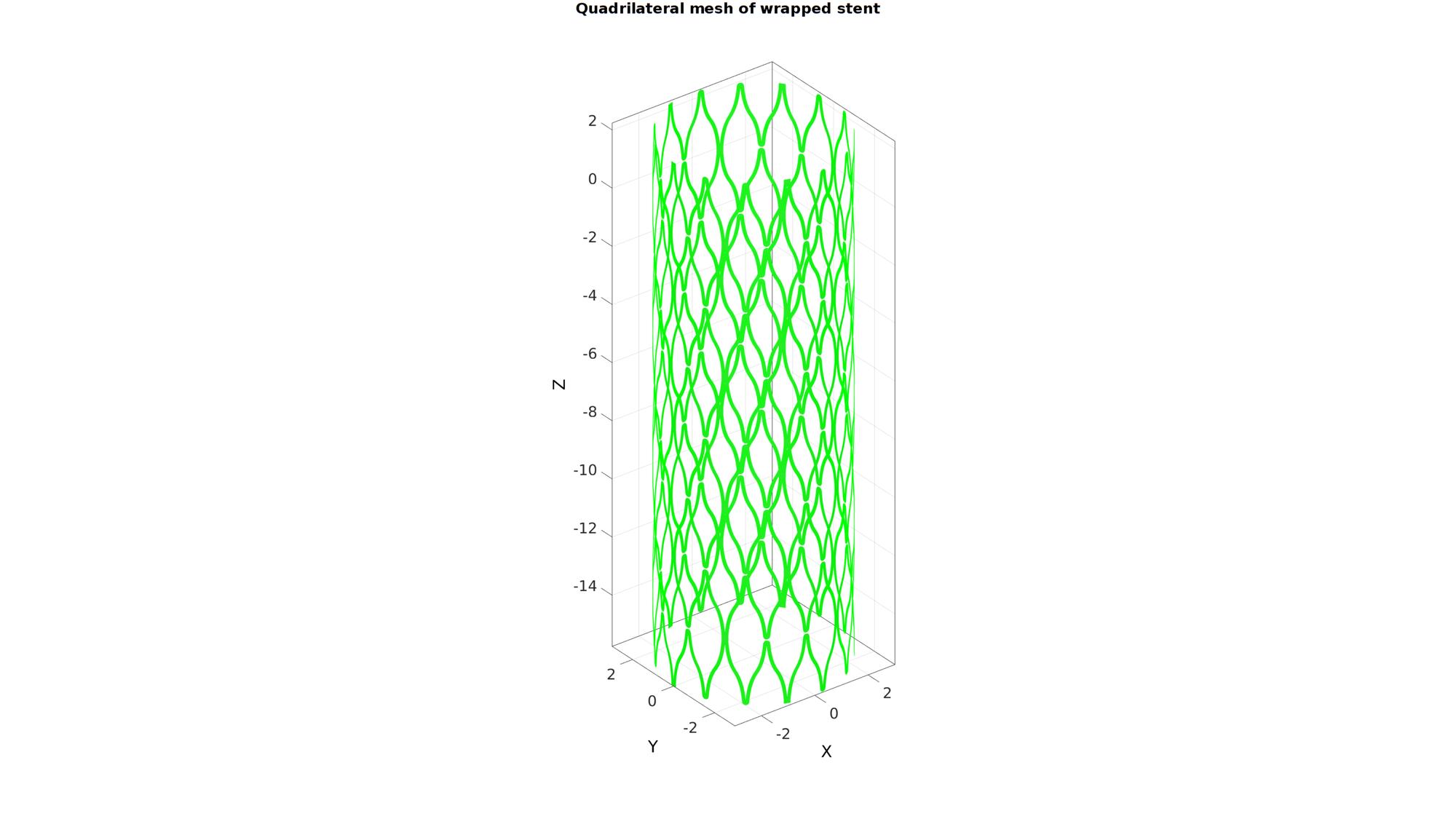

gtitle('Quadrilateral mesh of wrapped stent',fontSize);
gpatch(F_quad,V_quad,'gw','g');
% patchNormPlot(F_quad,V_quad);
% plotV(V_quad(Eb(:),:),'r.','MarkerSize',15);
axisGeom(gca,fontSize);
camlight headlight;
drawnow;

Thicken quadrilateral elements to build hexahedral elements

[E,V,Fq1,Fq2]=quadThick(F_quad,V_quad,1,stentSectionWidth,round(stentSectionWidth./pointSpacing));

Visualize mesh

[F,CFs]=element2patch(E,Cs); %Create face data for plotting

cFigure; hold on;

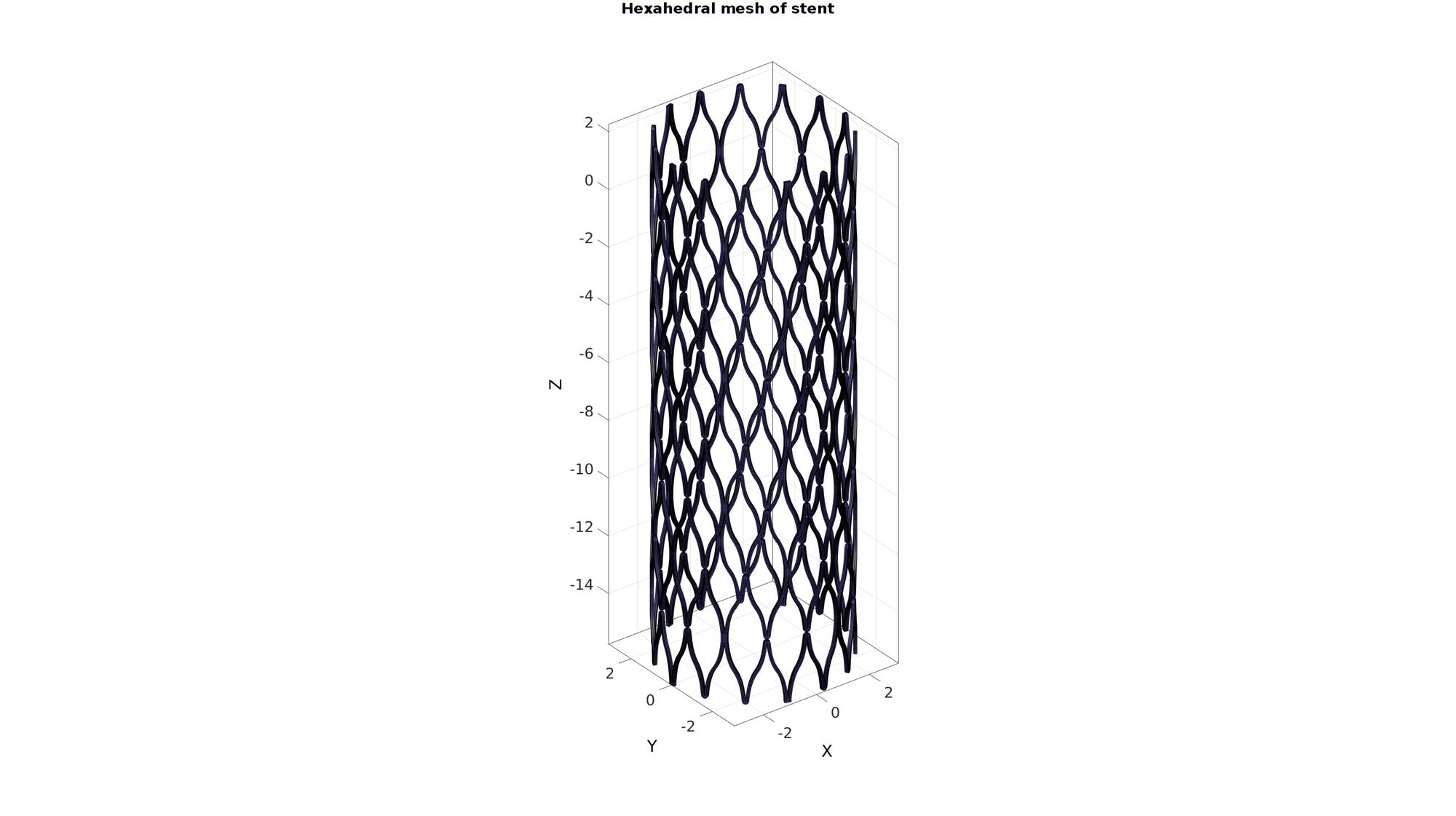

gtitle('Hexahedral mesh of stent',fontSize);
hp=gpatch(F,V,'bw','k');
hp.LineWidth=0.5;
axisGeom(gca,fontSize);
camlight headlight;
drawnow;

% %% Export inp file
% %
% elementStruct.E=ET;
% elementStruct.E_ind=(1:size(ET,1))';
% elementStruct.E_type='*ELEMENT, TYPE=C3D8, ELSET=PART-STENT';
% nodeStruct.N=VT;
% nodeStruct.N_ind=(1:size(VT,1))';
%
% pathName = fileparts(fileparts(mfilename('fullpath')));
% fileName=fullfile(pathName,'data','INP','stentMesh.inp');
% export_INP(elementStruct,nodeStruct,fileName);
