DEMO_febio_0067_hip_implant_regional_stiffness_optimize_01.m

Below is a demonstration for:

Contents

Keywords

clear; close all; clc;

Plot settings

fontSize=20;
faceAlpha1=0.8;
markerSize=40;
markerSize2=20;
lineWidth=3;

Control parameters

% Path names
defaultFolder = fileparts(fileparts(mfilename('fullpath')));
savePath=fullfile(defaultFolder,'data','temp');
pathNameSTL=fullfile(defaultFolder,'data','STL');
loadName_SED=fullfile(savePath,'SED_no_implant.mat');

if exist(loadName_SED,'file')
    disp('Using data from: DEMO_febio_0062_femur_load_01');
else
    warning('This demo requires that you run this demo first: DEMO_febio_0062_femur_load_01. Running DEMO_febio_0062_femur_load_01 now... ')
    DEMO_febio_0062_femur_load_01
end

% Defining file names
febioFebFileNamePart='tempModel';
febioFebFileName=fullfile(savePath,[febioFebFileNamePart,'.feb']); %FEB file name
febioLogFileName=fullfile(savePath,[febioFebFileNamePart,'.txt']); %FEBio log file name
febioLogFileName_disp=[febioFebFileNamePart,'_disp_out.txt']; %Log file name for exporting displacancellousBone
febioLogFileName_force=[febioFebFileNamePart,'_force_out.txt']; %Log file name for exporting force
febioLogFileName_strainEnergy=[febioFebFileNamePart,'_energy_out.txt']; %Log file name for exporting strain energy density
febioLogFileName_stress=[febioFebFileNamePart,'_stress_out.txt']; %Log file name for exporting stress

%Optimisation settings
maxNumberIterations=100; %Maximum number of optimization iterations
maxNumberFunctionEvaluations=maxNumberIterations*10; %Maximum number of function evaluations, N.B. multiple evaluations are used per iteration
functionTolerance=1e-6; %Tolerance on objective function value
parameterTolerance=1e-6; %Tolerance on parameter variation
displayTypeIterations='iter';
optimMethod=2; %1=NelderMead, 2=Levenberg-Marquardt
evalMode=2; %1=test run, 2=optimization
optimType=1; %1=homogenous, 2=spat.var

%Geometric parameters
distanceCut=250; %Distance from femur to cut bone at
corticalThickness=3; %Thickness used for cortical material definition
volumeFactors=[2 2]; %Factor to scale desired volume for interior elements w.r.t. boundary elements
implantLayerThickness=6; %Thickness used for implant region definition
distanceExclude=10;

stemCut=32;
numSmoothStepsCutBottom=5;
numSmoothStepsCutFemur=25;
implantOffset=5;
implantOffsetCollar=2;
implantHeadRadius=20;
implantStickRadius=10;
implantCollarThickness=3;
implantShaftLengthFraction=1/4;

numLoftGuideSlicesShaft=8;
numSmoothStepsShaft=20;

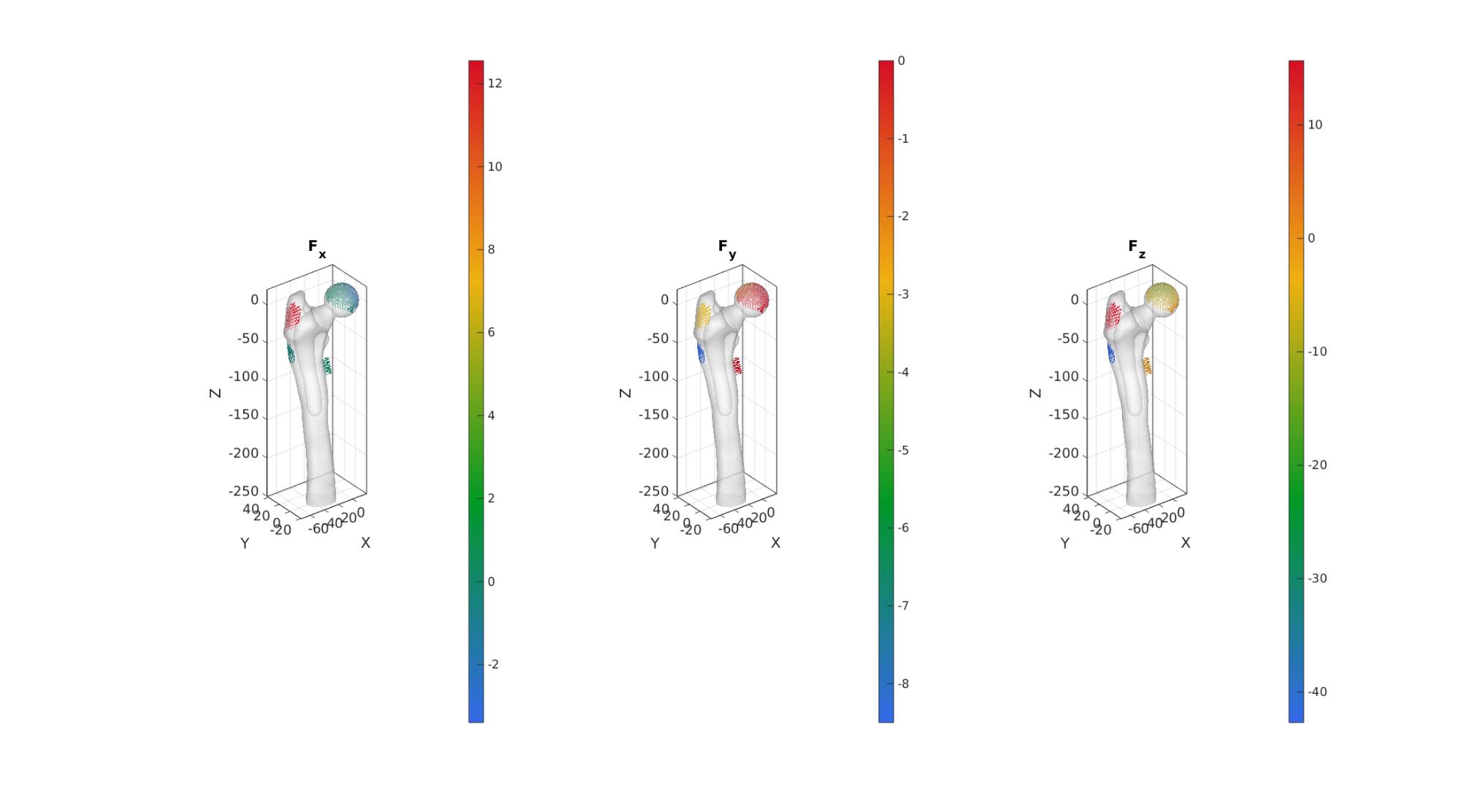

%Define applied force
forceTotal=[-405 -246 -1717.5]; %x,y,z force in Newton

forceAbductor=[564.831 -132.696 704.511];
forceVastusLateralis_Walking=[-7.857 -161.505 -811.017];
forceVastusLateralis_StairClimbing=[-19.206 -195.552 -1,179.423];
forceVastusMedialis_StairClimbing=[-76.824 -345.708 -2,331.783];
forceVM_inactive=[0 0 0];

n=1;
switch n
    case 1
        forceVastusLateralis=forceVastusLateralis_Walking;
        forceVastusMedialis=forceVM_inactive;
    case 2
        forceVastusLateralis=forceVastusLateralis_StairClimbing;
        forceVastusMedialis=forceVastusMedialis_StairClimbing;
    otherwise
        forceVastusLateralis=forceVastusLateralis_StairClimbing;
        forceVastusMedialis=forceVastusMedialis_StairClimbing;
end

% Distance markers and scaling factor
zLevelWidthMeasure = -75;
zLevelFCML = -395;
scaleFactorSize=1;
distanceMuscleAttachAbductor=15;
distanceMuscleVastusLateralis=10;
distanceMuscleAttachVastusMedialis=10;

%Material parameters (MPa if spatial units are mm)
% Cortical bone
E_youngs1=17000; %Youngs modulus
nu1=0.3; %Poissons ratio

% Cancellous bone
E_youngs2=1500; %Youngs modulus
nu2=0.25; %Poissons ratio

%Youngs moduli for implant
E_youngs_min=15000;
E_youngs_max=110000;
nu_implant=0.3; %Poissons ratio

switch optimType
    case 1 %homogeneous (no spatial variation)
        paramContraints=[E_youngs_min E_youngs_max];
        paramInitial=mean([E_youngs_min E_youngs_max]); %Initial parameters
    case 2 %Spatially varying according to map
        paramContraints=[E_youngs_min E_youngs_max; E_youngs_min E_youngs_max];
        paramInitial=mean([E_youngs_min E_youngs_max])*ones(1,2); %Initial parameters
end

% FEA control settings
numTimeSteps=5; %Number of time steps desired
max_refs=25; %Max reforms
max_ups=0; %Set to zero to use full-Newton iterations
opt_iter=6; %Optimum number of iterations
max_retries=5; %Maximum number of retires
dtmin=(1/numTimeSteps)/100; %Minimum time step size
dtmax=1/numTimeSteps; %Maximum time step size
runMode='external'; %'external' or 'internal'

Using data from: DEMO_febio_0062_femur_load_01

Import bone model

[stlStruct] = import_STL(fullfile(pathNameSTL,'femur_iso.stl'));
F_bone=stlStruct.solidFaces{1}; %Faces
V_bone=stlStruct.solidVertices{1}; %Vertices
V_bone=V_bone.*1000;
[F_bone,V_bone]=mergeVertices(F_bone,V_bone); % Merging nodes
Q1=euler2DCM([0 0 0.065*pi]);
V_bone=V_bone*Q1;
Q2=euler2DCM([-0.5*pi 0 0]);
V_bone=V_bone*Q2;
Q3=euler2DCM([0 0 0.36*pi]);
V_bone=V_bone*Q3;

Compute derived control parameters

pointSpacing=mean(patchEdgeLengths(F_bone,V_bone)); %Points spacing of bone surface
snapTolerance=mean(patchEdgeLengths(F_bone,V_bone))/100; %Tolerance for surface slicing
femurHeight=max(V_bone(:,3))-min(V_bone(:,3)); %Height of the femur
shaftDepthFromHead=femurHeight.*implantShaftLengthFraction;

Cut bone end off

%Cut bone
[F_bone,V_bone,~,logicSide,~]=triSurfSlice(F_bone,V_bone,[],[0 0 -distanceCut],[0 0 1]);
F_bone=F_bone(logicSide==0,:);
[F_bone,V_bone]=patchCleanUnused(F_bone,V_bone);

%Get boundary curve
Eb=patchBoundary(F_bone);
indCurve=edgeListToCurve(Eb);
indCurve=indCurve(1:end-1);

%Smooth curve edges
cparSmooth.n=numSmoothStepsCutBottom;
cparSmooth.Method='HC';
[V_Eb_smooth]=patchSmooth(Eb,V_bone(:,[1 2]),[],cparSmooth);
V_bone(indCurve,[1 2])=V_Eb_smooth(indCurve,:);

%Smooth mesh at curve
clear cparSmooth
cparSmooth.n=numSmoothStepsCutBottom;
cparSmooth.Method='HC';
cparSmooth.RigidConstraints=indCurve;
[V_bone]=patchSmooth(F_bone,V_bone,[],cparSmooth);

%Mesh the bottom curfaces
[F_bone2,V_bone2]=regionTriMesh3D({V_bone(indCurve,:)},pointSpacing,0,'linear');
if dot(mean(patchNormal(F_bone2,V_bone2)),[0 0 1])>0
    F_bone2=fliplr(F_bone2);
end

%Join cut bone with bottom to created a single node shared closed surface
[F_bone,V_bone,C_bone]=joinElementSets({F_bone,F_bone2},{V_bone,V_bone2});
[F_bone,V_bone]=mergeVertices(F_bone,V_bone);

Visualize cut surface

cFigure; hold on;
title('The bone surface');
gpatch(F_bone,V_bone,'bw','k',1);
axisGeom;
camlight headlight;
gdrawnow;

Cut femoral head off

%Set-up orientation and location of cutting plane
n=vecnormalize([0 0 1]); %Normal direction to plane
Q1=euler2DCM([0 -(63/180)*pi 0]);
Q2=euler2DCM([0 0 (32/180)*pi]);
Q=Q1*Q2;
n=n*Q;
P_cut=[0 0 0]-n*stemCut; %Point on plane

%Slicing surface
[Fc,Vc,Cc,logicSide,~]=triSurfSlice(F_bone,V_bone,C_bone,P_cut,n,snapTolerance);

%Compose isolated cut geometry and boundary curves
[F_bone_cut,V_bone_cut]=patchCleanUnused(Fc(logicSide,:),Vc);
C_bone_cut=Cc(logicSide);

Eb=patchBoundary(F_bone_cut);
indCutCurve=edgeListToCurve(Eb);
indCutCurve=indCutCurve(1:end-1);

%Smoothing cut
logicTouch=any(ismember(F_bone_cut,indCutCurve),2);
indTouch=unique(F_bone_cut(logicTouch,:));
logicTouch=any(ismember(F_bone_cut,indTouch),2);
indRigid=unique(F_bone_cut(~logicTouch,:));
indRigid=unique([indRigid(:);indCutCurve(:)]);

clear cparSmooth
cparSmooth.n=numSmoothStepsCutFemur;
cparSmooth.RigidConstraints=indRigid;
[V_bone_cut]=patchSmooth(F_bone_cut,V_bone_cut,[],cparSmooth);

clear cparSmooth
cparSmooth.n=numSmoothStepsCutFemur;
[VEb]=patchSmooth(Eb,V_bone_cut,[],cparSmooth);
V_bone_cut(indCutCurve,:)=VEb(indCutCurve,:);

%Get curve points and centre coordinate
V_bone_cut_curve=V_bone_cut(indCutCurve,:);
PA=mean(V_bone_cut_curve,1); %Mean of cut curve (middle of cut)

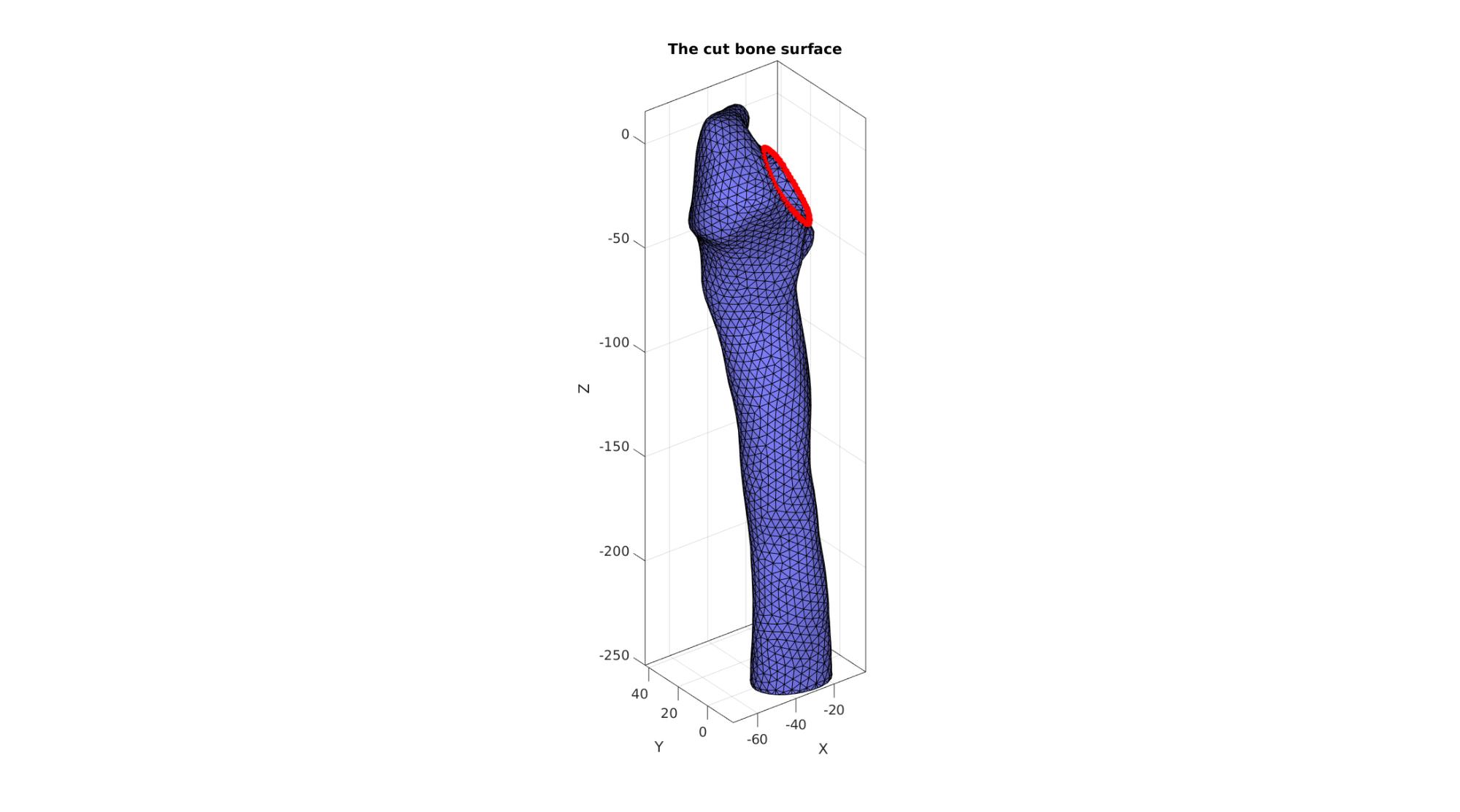

Visualize cut surface

cFigure; hold on;
title('The cut bone surface');
gpatch(F_bone_cut,V_bone_cut,'bw','k',1);
plotV(V_bone_cut_curve,'r.-','MarkerSize',25,'LineWidth',3)
axisGeom;
camlight headlight;
gdrawnow;

Add inner bone surface for implant to rest on (will attach to collar)

%Define collar curve
V_collar_1=V_bone_cut_curve;
V_collar_1=V_collar_1-PA;

d=sqrt(sum(V_collar_1.^2,2));
shrinkFactor=(min(d(:))-implantOffsetCollar)./min(d(:));
V_collar_1=V_collar_1.*shrinkFactor;
V_collar_1=V_collar_1+PA;
V_collar_1=evenlySpaceCurve(V_collar_1,pointSpacing,'pchip',1);

% Mesh cut bone top (space between collar curve and bone cut curve)
[F_bone_top,V_bone_top]=regionTriMesh3D({V_bone_cut_curve,V_collar_1},[],0,'linear');
nTop=mean(patchNormal(F_bone_top,V_bone_top),1);
if dot(nTop,n)<0
    F_bone_top=fliplr(F_bone_top);
end

% Join and merge geometry
[F_bone_cut,V_bone_cut,C_bone_cut]=joinElementSets({F_bone_cut,F_bone_top},{V_bone_cut,V_bone_top},{C_bone_cut,max(C_bone_cut(:))+ones(size(F_bone_top,1),1)});
[F_bone_cut,V_bone_cut]=mergeVertices(F_bone_cut,V_bone_cut);

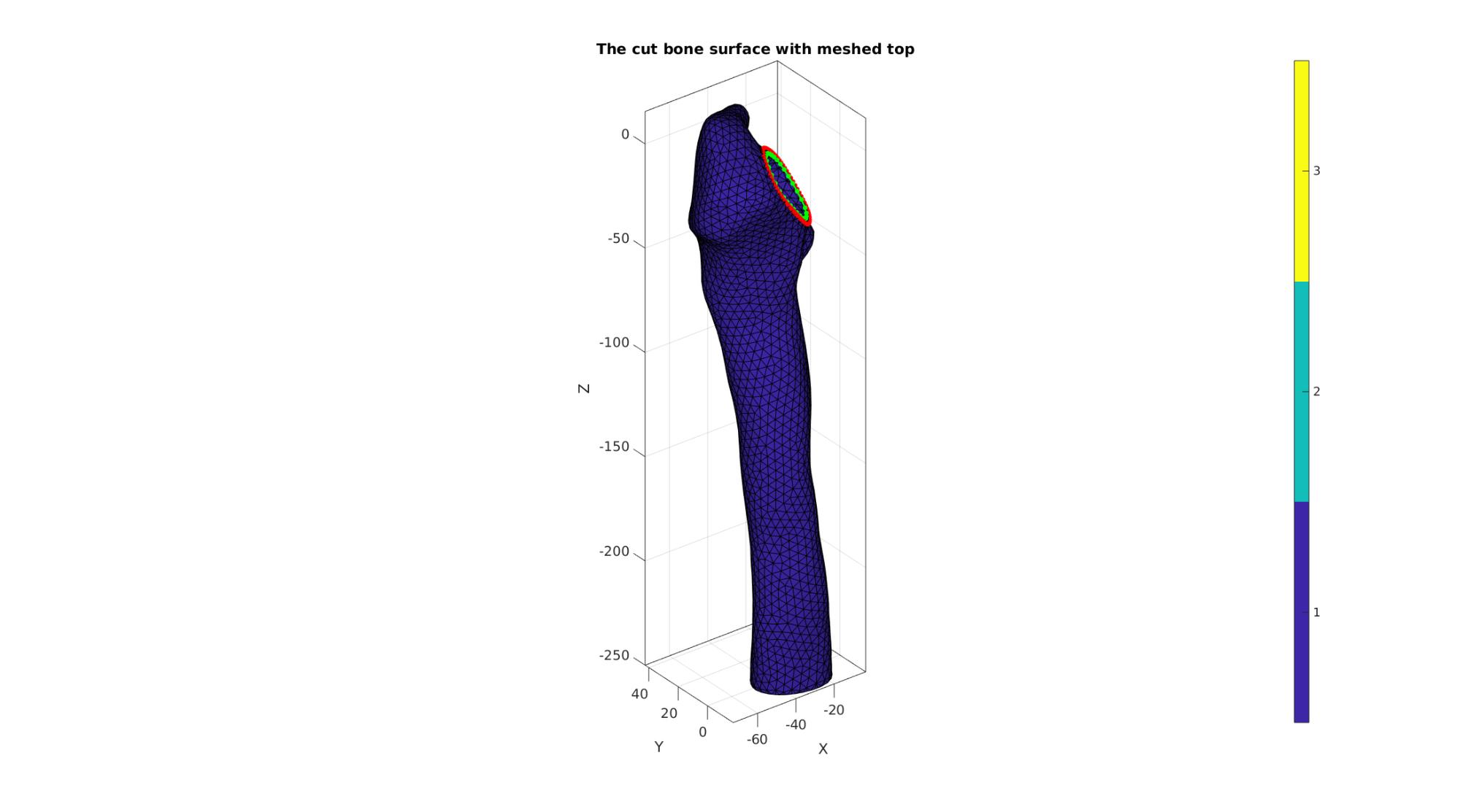

Visualize bone with meshed top

cFigure; hold on;
title('The cut bone surface with meshed top');
gpatch(F_bone_cut,V_bone_cut,C_bone_cut,'k',1);

plotV(V_bone_cut_curve,'r.-','MarkerSize',15,'LineWidth',2)
plotV(V_collar_1,'g.-','MarkerSize',15,'LineWidth',2)
axisGeom; icolorbar;
camlight headlight;
gdrawnow;

Create implant spherical head

% Create sphere use will loop to define increasingly fine sphere
% triangulations untill the point spacing of the sphere is smaller or equal
% to the bone point spacing.

nRef=1;
while 1
    [F_head,V_head]=geoSphere(nRef,implantHeadRadius);
    pointSpacingNow=mean(patchEdgeLengths(F_head,V_head));
    if pointSpacingNow<=pointSpacing
        break
    else
        nRef=nRef+1;
    end
end

Cutting the sphere

% Define ball cutting coordinate
xc=cos(asin(implantStickRadius/implantHeadRadius))*implantHeadRadius;

logicRight=V_head(:,1)>xc;
logicCut=any(logicRight(F_head),2);
logicCut=triSurfLogicSharpFix(F_head,logicCut,3);
F_head=F_head(~logicCut,:);
[F_head,V_head]=patchCleanUnused(F_head,V_head);
Eb_head=patchBoundary(F_head);
indB=unique(Eb_head(:));
[T,P,R] = cart2sph(V_head(:,2),V_head(:,3),V_head(:,1));
P(indB)=atan2(xc,implantHeadRadius*sin(acos(xc./implantHeadRadius)));
[V_head(:,2),V_head(:,3),V_head(:,1)] = sph2cart(T,P,R);

indHeadHole=edgeListToCurve(Eb_head);
indHeadHole=indHeadHole(1:end-1);

pointSpacingHead=mean(sqrt(sum(diff(V_head(indHeadHole,:),1,1).^2,2)));

%Reorient ball
nd=vecnormalize(-PA); %Vector pointing to mean of cut curve
Q=vecPair2Rot(nd,[0 0 1]); %Rotation matrix for ball
Q3=euler2DCM([0 -0.5*pi 0]);
V_head=V_head*Q3;
V_head=V_head*Q;

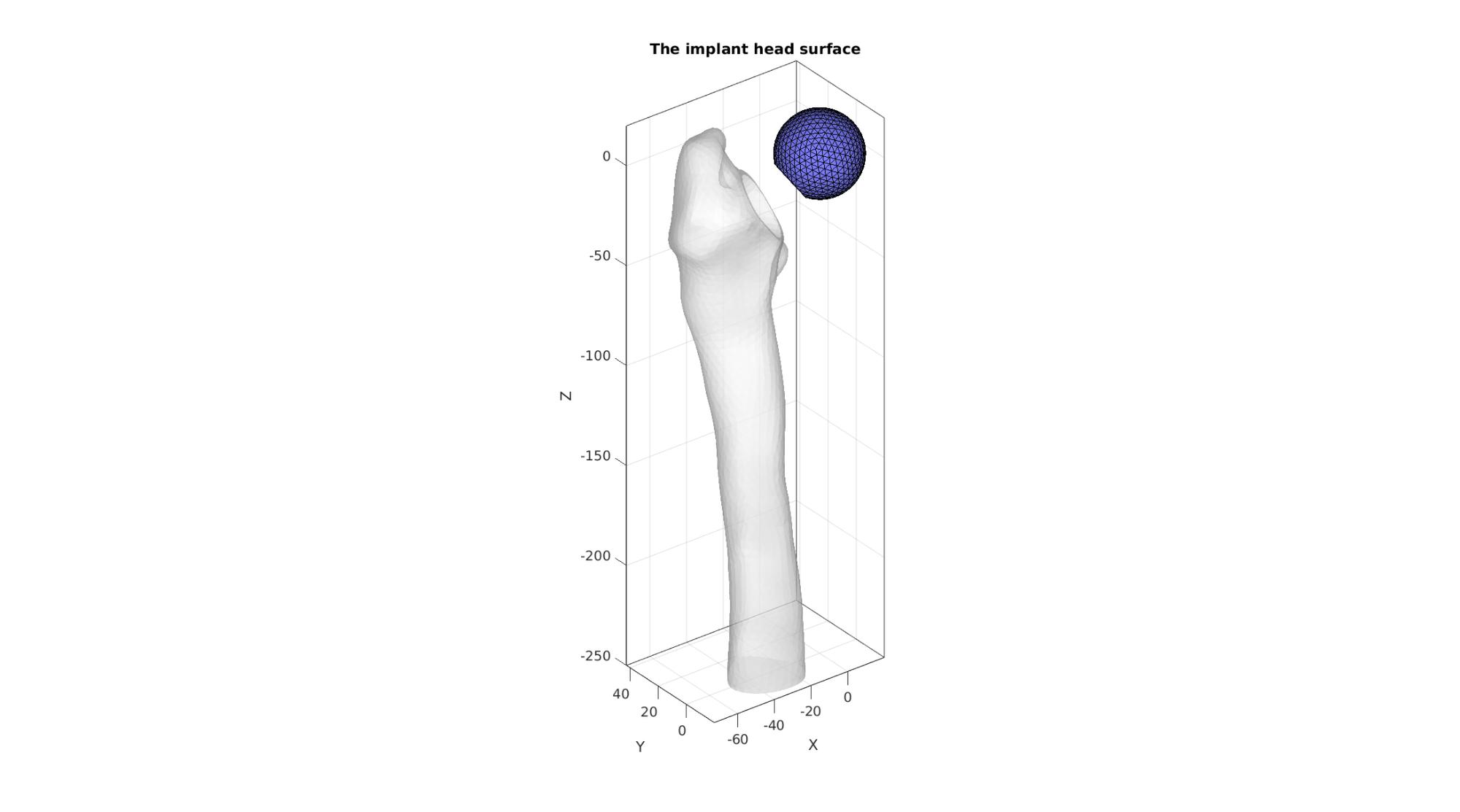

Visualize head

cFigure; hold on;
title('The implant head surface');
gpatch(F_bone_cut,V_bone_cut,'w','none',0.5);
gpatch(F_head,V_head,'bw','k',1);
axisGeom; camlight headlight;
gdrawnow;

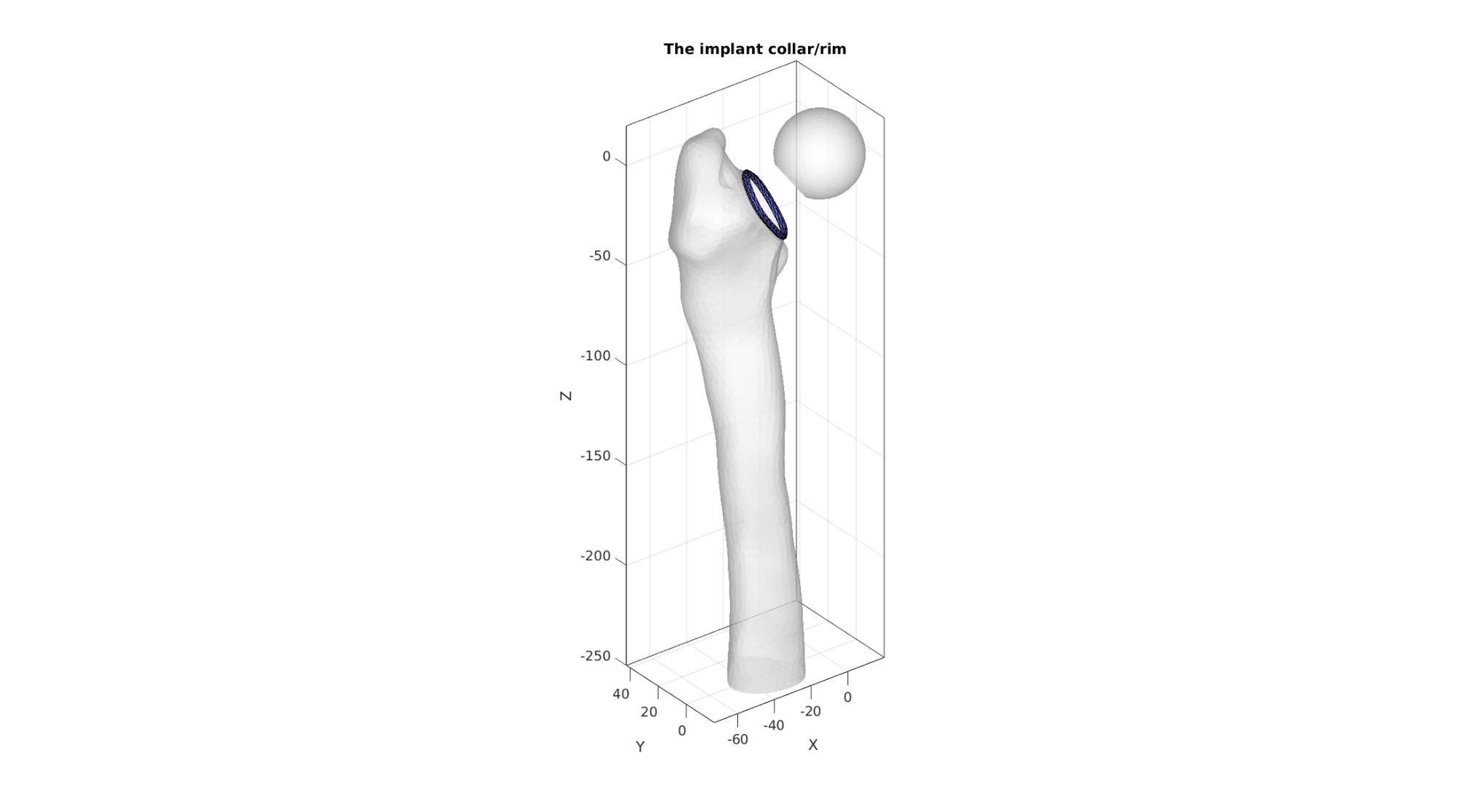

Build colar

%Create color offset curve
V_colarTop=V_collar_1;
ve=[V_colarTop(2:end,:); V_colarTop(1,:)]-V_colarTop;

vd=vecnormalize(cross(n(ones(size(ve,1),1),:),ve));
% vn2(:,1)=vn2(:,1)+collarThickness.*n;
V_colarTop=V_colarTop+implantCollarThickness.*n;

nc=ceil((pi*implantCollarThickness/2)/pointSpacingHead);
if nc<4
    nc=4;
end
vc=linspacen(V_collar_1,V_colarTop,nc);
X=squeeze(vc(:,1,:));
Y=squeeze(vc(:,2,:));
Z=squeeze(vc(:,3,:));
t=repmat(linspace(-1,1,nc),size(Z,1),1);
a=acos(t);
X=X+implantCollarThickness/2.*sin(a).*repmat(vd(:,1),1,nc);
Y=Y+implantCollarThickness/2.*sin(a).*repmat(vd(:,2),1,nc);
Z=Z+implantCollarThickness/2.*sin(a).*repmat(vd(:,3),1,nc);

[F_collar,V_collar]=grid2patch(X,Y,Z,[],[1 0 0]);
[F_collar,V_collar]=quad2tri(F_collar,V_collar,'a');

indTopCollar=size(V_collar,1)+1-size(V_collar_1,1):size(V_collar,1);
Eb_collar=[indTopCollar(:) [indTopCollar(2:end)'; indTopCollar(1)]];

Visualize collar

cFigure; hold on;
title('The implant collar/rim');
gpatch(F_bone_cut,V_bone_cut,'w','none',0.5);
gpatch(F_head,V_head,'w','none',0.5);
gpatch(F_collar,V_collar,'bw','k',1);
axisGeom; camlight headlight;
gdrawnow;

Build neck

if size(Eb_head,1)<size(Eb_collar,1)
    numEdgesNeeded=size(Eb_collar,1);
    [F_head,V_head,Eb_head,~]=triSurfSplitBoundary(F_head,V_head,Eb_head,numEdgesNeeded,[]);
elseif size(Eb_collar,1)<size(Eb_head,1)
    numEdgesNeeded=size(Eb_head,1);
    [F_collar,V_collar,Eb_collar,~]=triSurfSplitBoundary(F_collar,V_collar,Eb_collar,numEdgesNeeded,[]);
end
indTopCollar=edgeListToCurve(Eb_collar); indTopCollar=indTopCollar(1:end-1);
indHeadHole=edgeListToCurve(Eb_head); indHeadHole=indHeadHole(1:end-1);

[~,indStart]=minDist(V_collar(indTopCollar(1),:),V_head(indHeadHole,:));

if indStart>1
    indHeadHole=[indHeadHole(indStart:end) indHeadHole(1:indStart-1)];
end

d1=sum((V_head(indHeadHole,:)-V_collar(indTopCollar,:)).^2,2);
d2=sum((V_head(indHeadHole,:)-V_collar(flip(indTopCollar),:)).^2,2);
if max(d2(:))<max(d1(:))
    indTopCollar=flip(indTopCollar);
end

cParLoft.closeLoopOpt=1;
cParLoft.patchType='tri_slash';
[F_neck,V_neck,indNeckStart,indNeckEnd]=polyLoftLinear(V_collar(indTopCollar,:),V_head(indHeadHole,:),cParLoft);

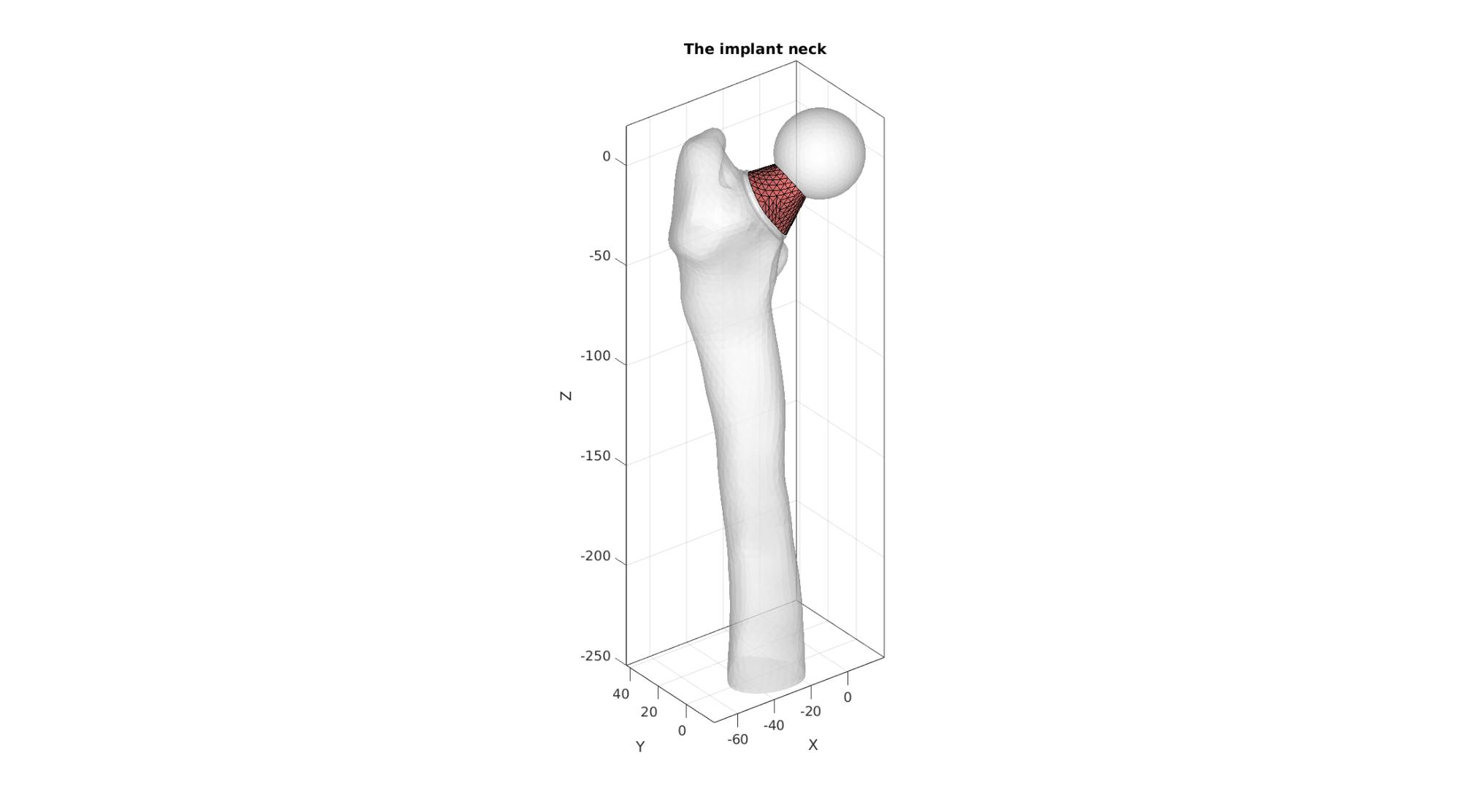

Visualize collar

cFigure; hold on;
title('The implant neck');
gpatch(F_bone_cut,V_bone_cut,'w','none',0.5);
gpatch(F_head,V_head,'w','none',0.5);
gpatch(F_collar,V_collar,'w','none',0.5);
gpatch(F_neck,V_neck,'rw','k',1);
axisGeom; camlight headlight;
gdrawnow;

Define shaft

%Find lowest point on collar curve
[~,indMin]=min(V_collar_1(:,3));
PB=V_collar_1(indMin,:);

%Define a normalized vector pointing from PA to PB
m=vecnormalize(PB-PA);

%Define based point for slicing
f=shaftDepthFromHead./abs(m(3));
P=PA+f*m;

%Define normal directions for slicing (go linearly from n to z-dir)
nn=linspacen(n,[0 0 1],numLoftGuideSlicesShaft)';


numPointsRadial=size(V_collar_1,1);
Vp=V_collar_1;
FL=[];
VL=Vp;
[~,indStart]=max(VL(:,1));
if indStart>1
    VL=[VL(indStart:end,:); VL(1:indStart-1,:)];
end
R1=vecPair2Rot(n,[0 0 1]);
e=[(1:numPointsRadial)' [(2:numPointsRadial)';1]];
V_start=VL(1,:);
t=linspace(0,2*pi,numPointsRadial+1); t=t(1:end-1);
VC=cell(numLoftGuideSlicesShaft,1);
VC{1}=V_collar_1;
for q=2:1:numLoftGuideSlicesShaft

    Rn=vecPair2Rot(nn(q,:),[0 0 1]);

    [~,Vqc,~,~,Ebc]=triSurfSlice(F_bone,V_bone,[],P,nn(q,:),snapTolerance);
    indCutCurveNow=edgeListToCurve(Ebc);
    indCutCurveNow=indCutCurveNow(1:end-1);
    P2=mean(Vqc(indCutCurveNow,:),1);

    if P2(3)>-50
        Vp=V_collar_1-PA;
        Vp=Vp*R1';
        Vp=Vp*Rn;
    else
        Vp=Vqc(indCutCurveNow,:);
        Vp=Vp-P2;
        d=sqrt(sum(Vp.^2,2));
        shrinkFactor=(min(d(:))-implantOffset)./min(d(:));
        Vp=Vp.*shrinkFactor;
    end

    Vp=Vp+P2;
    Vp=evenlySampleCurve(Vp,numPointsRadial,0.01,1);

    [~,indStart]=max(Vp(:,1));
    if indStart>1
        Vp=[Vp(indStart:end,:); Vp(1:indStart-1,:)];
    end

    f=[e+(q-2)*numPointsRadial fliplr(e)+(q-1)*numPointsRadial];

    FL=[FL;f];
    VL=[VL;Vp];

    V_start=Vp(1,:);
    VC{q}=Vqc(indCutCurveNow,:);
end

[Fe,Ve]=regionTriMesh3D({Vp},[],0,'linear');
ne=mean(patchNormal(Fe,Ve),1);
if dot(ne,[0 0 1])>0
    Fe=fliplr(Fe);
end
d=minDist(Ve,Vp);
r=max(d(:));
d=d./max(d(:));
a=acos(1-d);
Ve(:,3)=Ve(:,3)-r*sin(a);
[FL,VL]=subQuad(FL,VL,3,3);
[FL,VL]=quad2tri(FL,VL,'a');

[FL,VL]=joinElementSets({FL,Fe},{VL,Ve});
[FL,VL]=mergeVertices(FL,VL);
Eb=patchBoundary(FL);

cparSmooth.n=numSmoothStepsShaft;
% cPar.Method='HC';
cparSmooth.RigidConstraints=unique(Eb(:));
VL=patchSmooth(FL,VL,[],cparSmooth);

% Join and merge surfaces
[F_implant,V_implant,C_implant]=joinElementSets({F_head,F_neck,F_collar,FL},{V_head,V_neck,V_collar,VL});
[F_implant,V_implant]=mergeVertices(F_implant,V_implant);

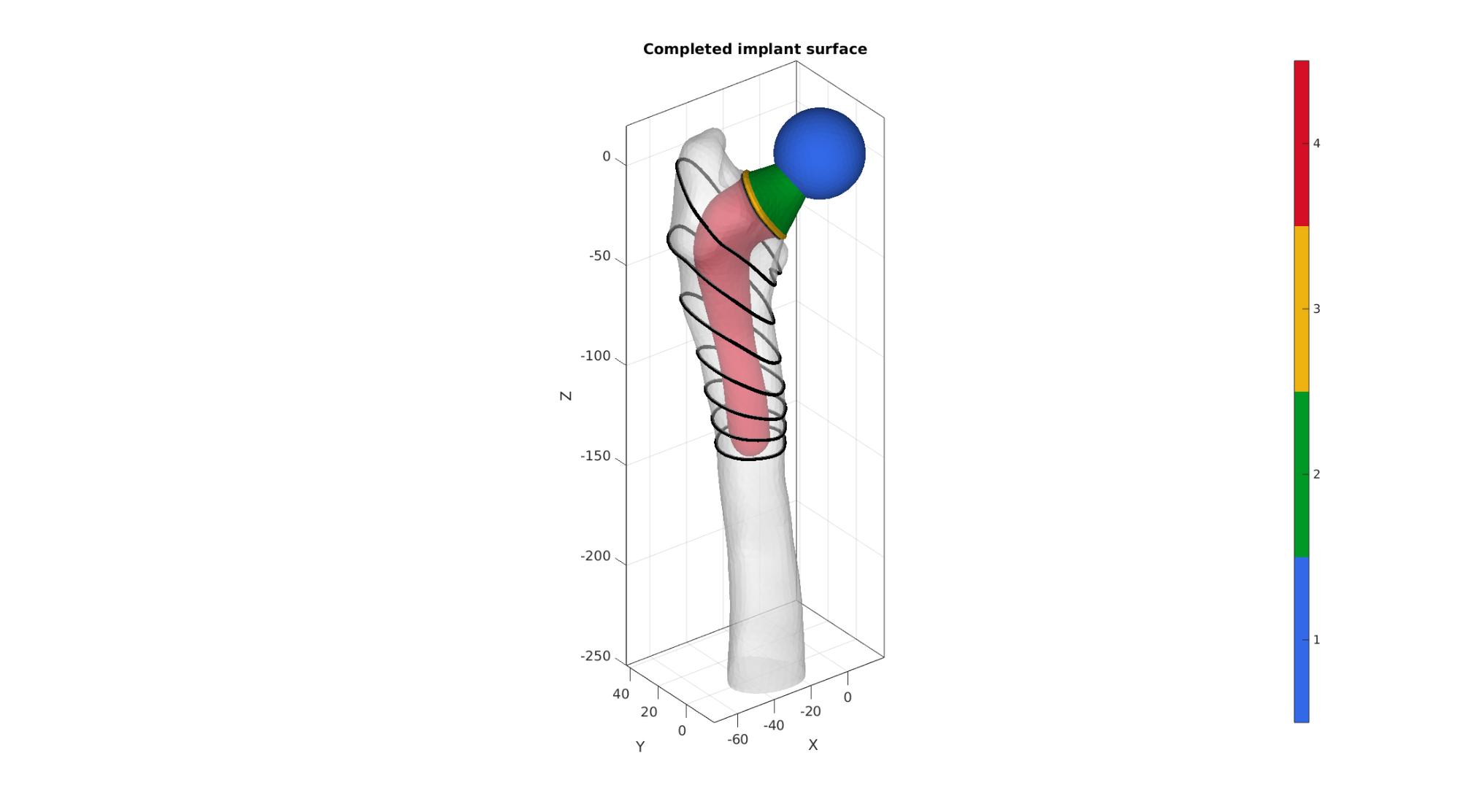

Visualize implant

cFigure; hold on;
title('Completed implant surface');
gpatch(F_bone_cut,V_bone_cut,'w','none',0.5);
gpatch(F_implant,V_implant,C_implant,'none',1);

for q=1:1:numLoftGuideSlicesShaft
    Vpp=VC{q};
    plotV(Vpp([1:size(Vpp,1) 1],:),'k-','LineWidth',4);
end

axisGeom; camlight headlight;
colormap(gjet(250)); icolorbar;
gdrawnow;

Join bone and implant surfaces

[F,V,C]=joinElementSets({F_bone_cut,F_implant},{V_bone_cut,V_implant},{C_bone_cut,C_implant+max(C_bone_cut(:))});
[F,V]=mergeVertices(F,V);

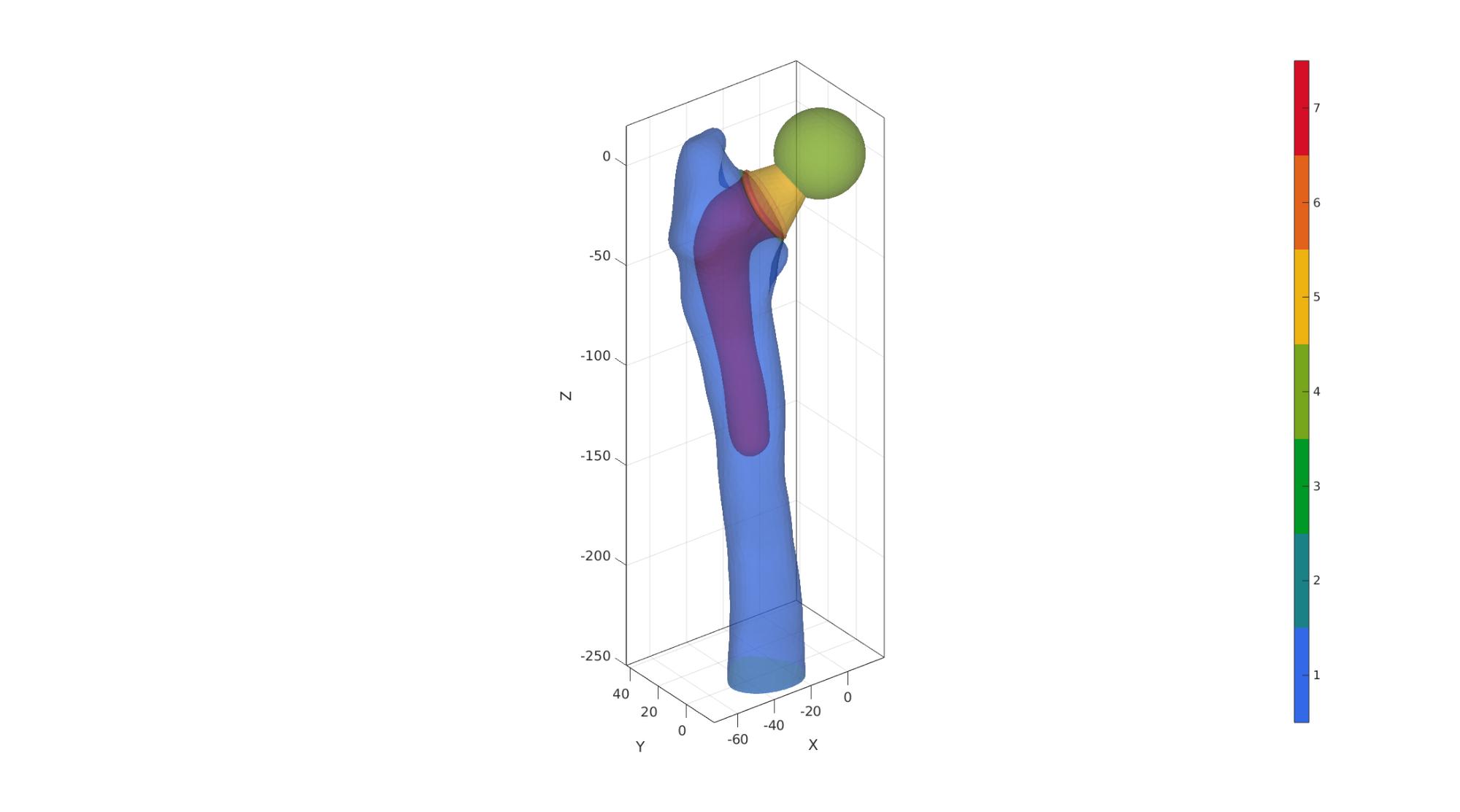

Visualized merged set

cFigure; hold on;
gpatch(F,V,C,'none',0.5);
axisGeom; camlight headlight;
colormap(gjet(250)); icolorbar;
gdrawnow;

Create tetrahedral elements for both regions

Define interior points

logicRegion1=ismember(C,[1 2 3 7]); %Bone region is defined by bone+shaft surfaces
V_region1=getInnerPoint(F(logicRegion1,:),V);

logicRegion2=ismember(C,4:7); %Logic for implant faces
V_region2=getInnerPoint(F(logicRegion2,:),V);

V_regions=[V_region1; V_region2];

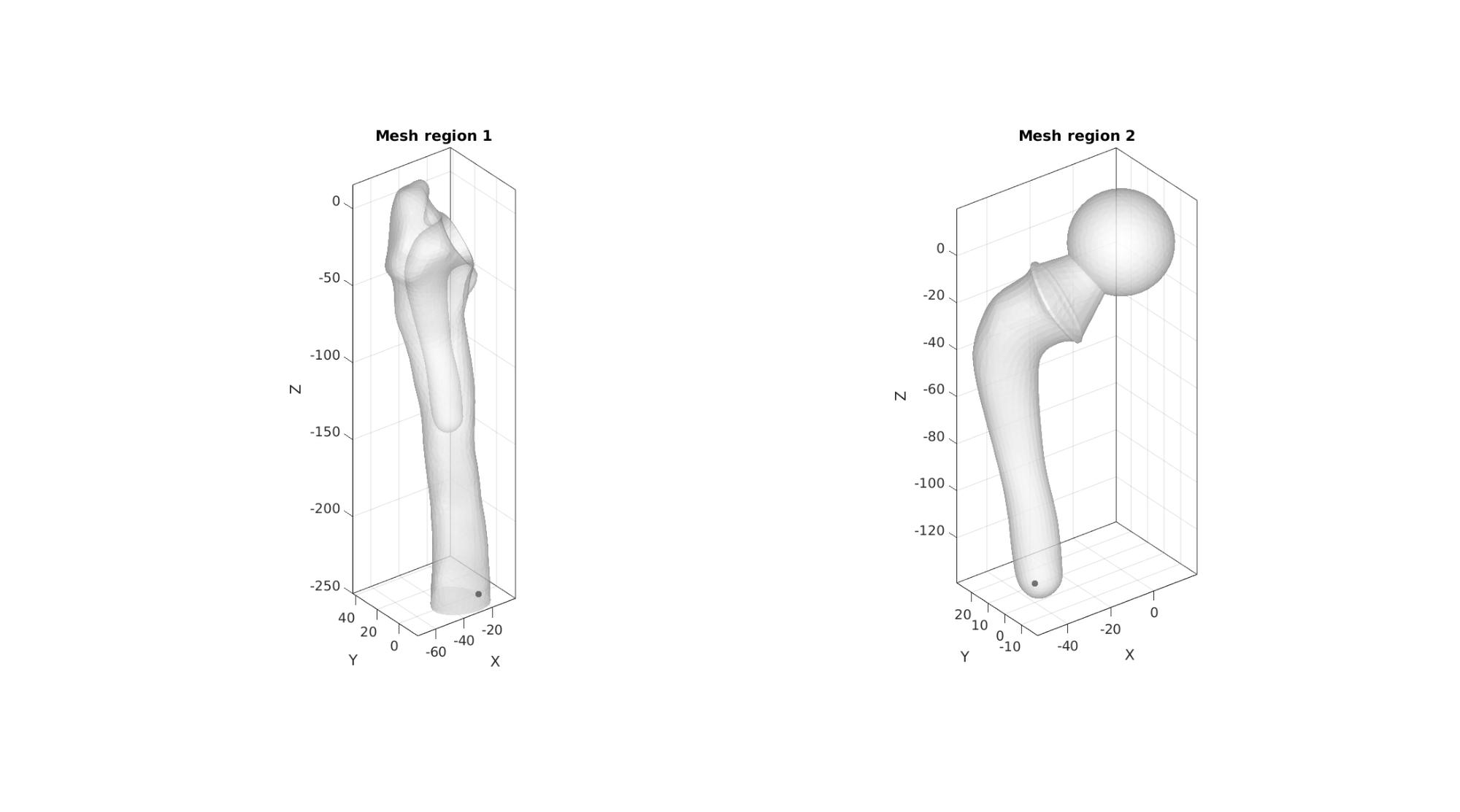

Visualize mesh regions and interior points

cFigure;
subplot(1,2,1); hold on;
title('Mesh region 1');
gpatch(F(logicRegion1,:),V,'w','none',0.5);
plotV(V_region1,'k.','MarkerSize',25);
axisGeom; camlight headlight;

subplot(1,2,2); hold on;
title('Mesh region 2');
gpatch(F(logicRegion2,:),V,'w','none',0.5);
plotV(V_region2,'k.','MarkerSize',25);
axisGeom; camlight headlight;

gdrawnow;

Mesh using TetGen

regionTetVolumes=volumeFactors.*tetVolMeanEst(F,V);

%Create tetgen input structure
inputStruct.stringOpt='-pq1.2AaY'; %Options for tetgen
inputStruct.Faces=F; %Boundary faces
inputStruct.Nodes=V; %Nodes of boundary
inputStruct.faceBoundaryMarker=C;
inputStruct.regionPoints=V_regions; %Interior points for regions
inputStruct.holePoints=[]; %Interior points for holes
inputStruct.regionA=regionTetVolumes; %Desired tetrahedral volume for each region

% Mesh model using tetrahedral elements using tetGen
[meshOutput]=runTetGen(inputStruct); %Run tetGen


%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
--- TETGEN Tetrahedral meshing --- 29-May-2023 10:41:55

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
--- Writing SMESH file --- 29-May-2023 10:41:55
----> Adding node field
----> Adding facet field
----> Adding holes specification
----> Adding region specification
--- Done --- 29-May-2023 10:41:55
--- Running TetGen to mesh input boundary--- 29-May-2023 10:41:55
Opening /home/kevin/DATA/Code/matlab/GIBBON/data/temp/temp.smesh.
Delaunizing vertices...
Delaunay seconds:  0.020846
Creating surface mesh ...
Surface mesh seconds:  0.00465
Recovering boundaries...
Boundary recovery seconds:  0.008862
Removing exterior tetrahedra ...
Spreading region attributes.
Exterior tets removal seconds:  0.004045
Recovering Delaunayness...
Delaunay recovery seconds:  0.006719
Refining mesh...
  6679 insertions, added 5728 points, 197840 tetrahedra in queue.
  2224 insertions, added 1564 points, 211485 tetrahedra in queue.
  2964 insertions, added 1320 points, 85537 tetrahedra in queue.
Refinement seconds:  0.149878
Smoothing vertices...
Mesh smoothing seconds:  0.2545
Improving mesh...
Mesh improvement seconds:  0.008903

Writing /home/kevin/DATA/Code/matlab/GIBBON/data/temp/temp.1.node.
Writing /home/kevin/DATA/Code/matlab/GIBBON/data/temp/temp.1.ele.
Writing /home/kevin/DATA/Code/matlab/GIBBON/data/temp/temp.1.face.
Writing /home/kevin/DATA/Code/matlab/GIBBON/data/temp/temp.1.edge.

Output seconds:  0.034009
Total running seconds:  0.492737

Statistics:

  Input points: 5011
  Input facets: 10046
  Input segments: 15054
  Input holes: 0
  Input regions: 2

  Mesh points: 13953
  Mesh tetrahedra: 75470
  Mesh faces: 154199
  Mesh faces on exterior boundary: 6518
  Mesh faces on input facets: 10046
  Mesh edges on input segments: 15054
  Steiner points inside domain: 8942

--- Done --- 29-May-2023 10:41:55

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
--- Importing TetGen files --- 29-May-2023 10:41:55
--- Done --- 29-May-2023 10:41:55

Access mesh output structure

E=meshOutput.elements; %The elements
V=meshOutput.nodes; %The vertices or nodes
CE=meshOutput.elementMaterialID; %Element material or region id
Fb=meshOutput.facesBoundary; %The boundary faces
Cb=meshOutput.boundaryMarker; %The boundary markers

Define material regions

logicImplantElements = (CE==-3);

%Bone Element Regions
indBoundary=unique(Fb(Cb==1,:));
DE=minDist(V,V(indBoundary,:));
logicCorticalNodes=DE<=corticalThickness;
logicCorticalElements=any(logicCorticalNodes(E),2) & ~logicImplantElements ;
logicCancellousElements=~logicCorticalElements & ~logicImplantElements;

E1=E(logicCorticalElements,:);
E2=E(logicCancellousElements,:);
E3=E(logicImplantElements,:);
E=[E1;E2;E3]; %Recollect set in this order

logicBoneElements = false(size(E,1),1);
logicBoneElements (1:size(E1,1)+size(E2,1))=1;

Define implant spatialy varying parameters

E_12=[E1;E2]; %Element collection for both bone types
VE_12=patchCentre(E_12,V); %Centre coordinates for bone elements

%Compute distance to boundary
VE_implant=patchCentre(E3,V);

%Get list for nodes at the head/shaft/neck
excludeLabels=[4 5 6];
logicExcludeImplant=ismember(Cb,excludeLabels);
indExcludeImplant=unique(Fb(logicExcludeImplant,:));
D_exclude=minDist(V,V(indExcludeImplant,:));
indExclude=find(D_exclude<=distanceExclude);

%Find implant shaft boundary nodes
boundaryLabels=7;%[4 5 6 7];
logicShaftBoundaryImplant=ismember(Cb,boundaryLabels);
indShaftBoundaryImplant=unique(Fb(logicShaftBoundaryImplant,:));

% Remove indices too close to exclude set
indShaftBoundaryImplant=indShaftBoundaryImplant(~ismember(indShaftBoundaryImplant,indExclude));

%Use distance to define Youngs moduli map
[indUni,ind1,ind2]=unique(E3); %Get unique
WU=minDist(V(indUni,:),V(indShaftBoundaryImplant,:)); %Distance to shaft boundary
WU=WU./implantLayerThickness; %At thickness level it is 1 now
WU(WU>1)=1; %Range is now [0 1] %At or further than thickness level it is now 1
WV=zeros(size(V,1),1);
WV(indUni)=WU;
W=min(WV(E3),[],2); %Take min. distance so boundary elements become zero

% Define initial Youngs moduli variation
E_youngs_implant=(W.*(E_youngs_max-E_youngs_min))+E_youngs_min;

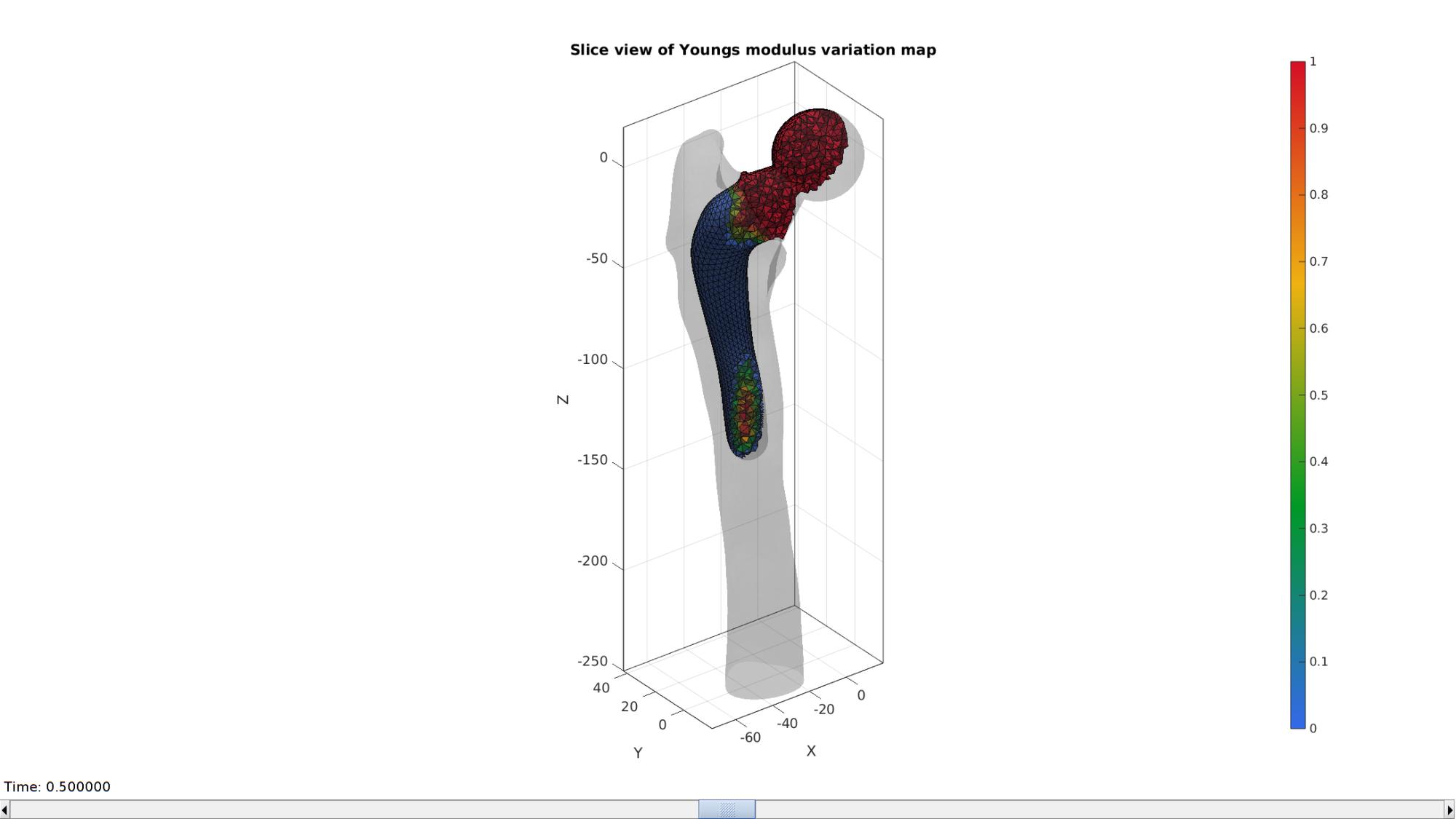

Visualizing solid mesh

% Alter structure for visualization
meshOutput.elements=E3;
meshOutput.elementData=W;

hFig=cFigure; hold on;
title('Slice view of Youngs modulus variation map')

optionStruct.hFig=hFig;
meshView(meshOutput,optionStruct);
caxis([0 1]);
axisGeom;
drawnow;

Load SED data from non-implant model and form interpolation function

outputStruct=load(loadName_SED);

%Data without implant
Fb_p = outputStruct.boundaryFaces;
V_p  = outputStruct.nodes;
VE_p = outputStruct.elementCenters;
E_energy_p = outputStruct.SED;
W_p=E_energy_p(:,:,end);

% Construct interpolation function
interpFuncMetric=scatteredInterpolant(VE_p,W_p,'natural','linear');

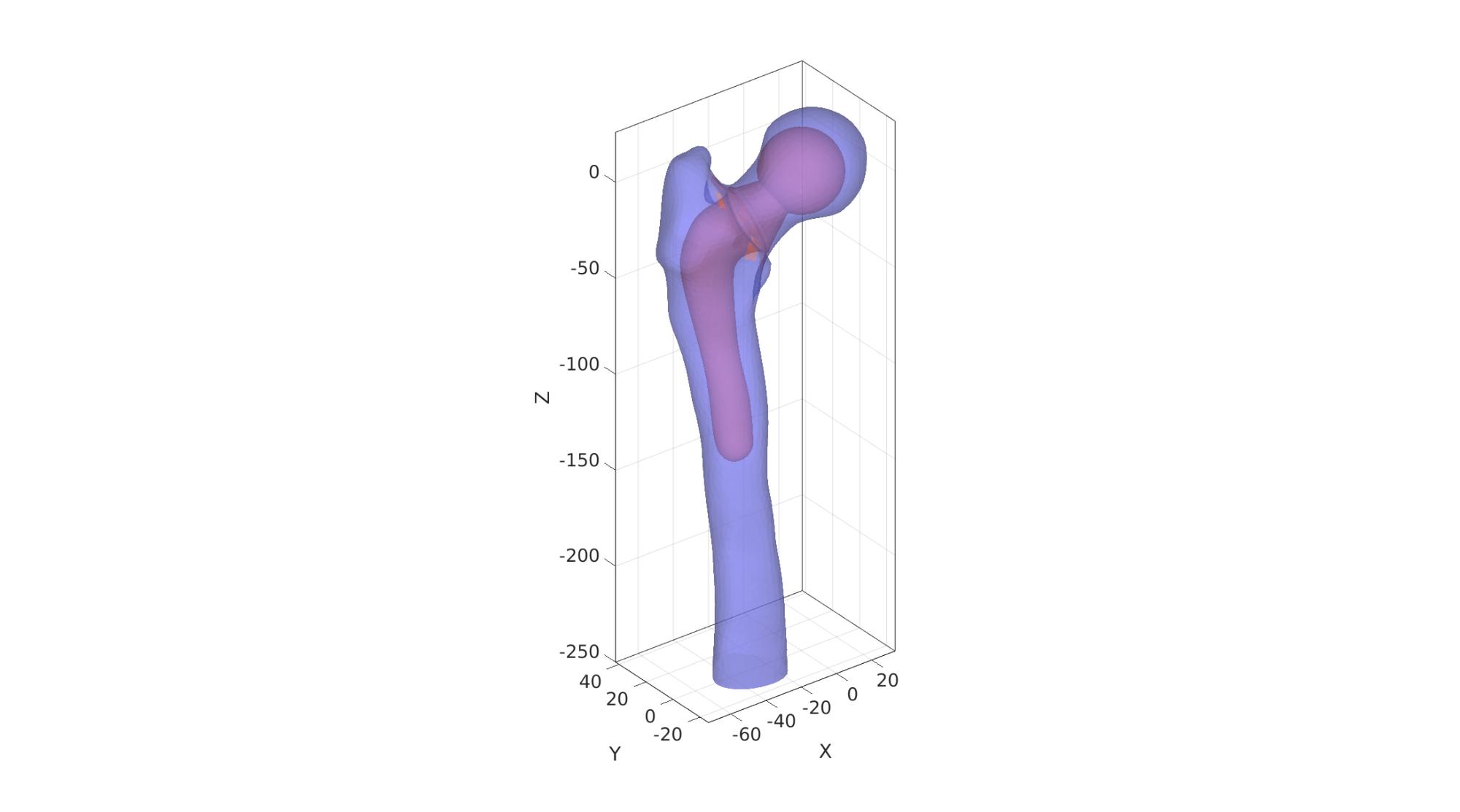

cFigure; hold on;
gpatch(Fb,V,'rw','none',0.5); %Add graphics object to animate
gpatch(Fb_p,V_p,'bw','none',0.5); %Add graphics object to animate
axisGeom(gca,fontSize);
camlight headlight;
drawnow;

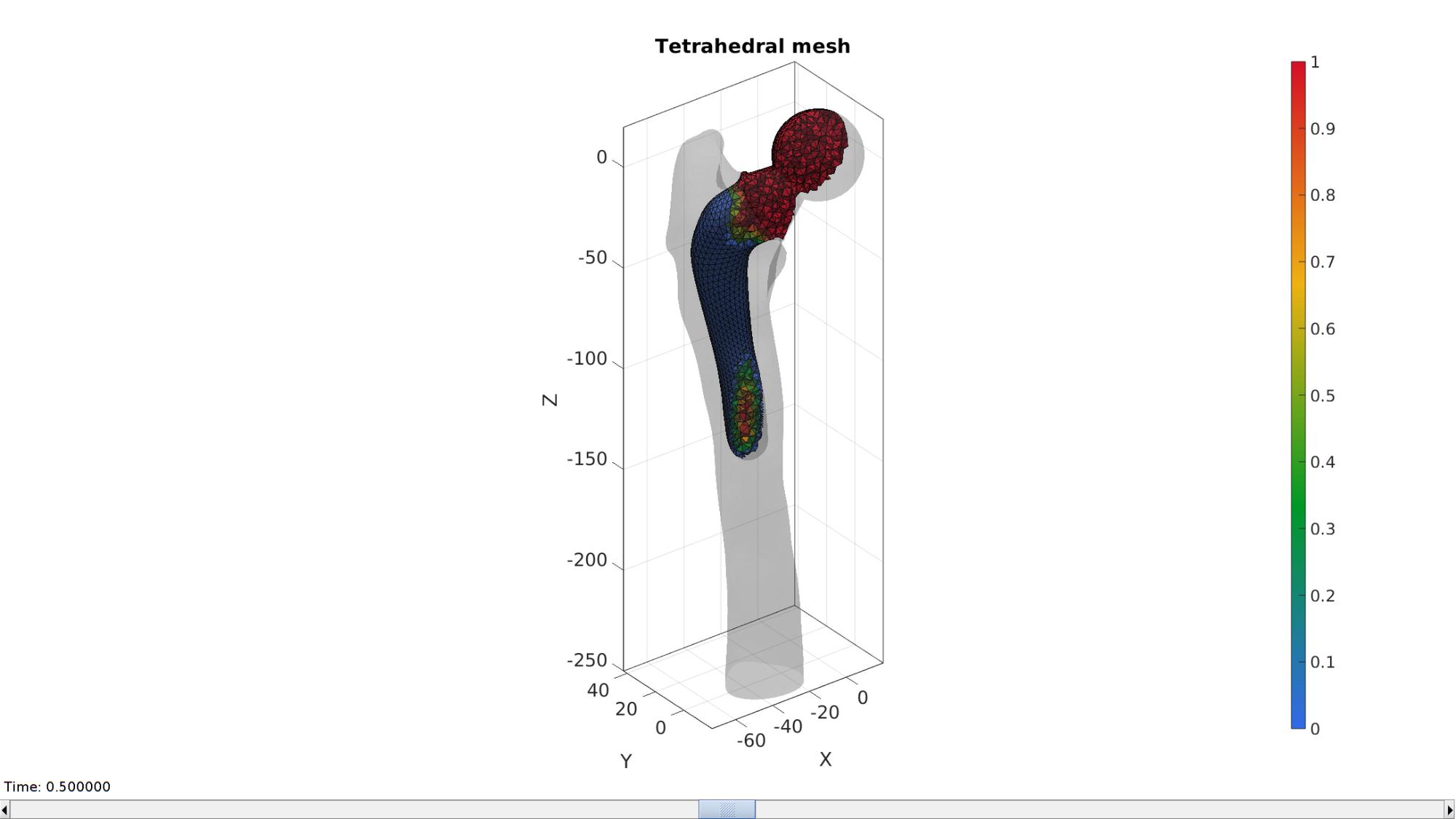

Visualize solid mesh

hf=cFigure; hold on;
title('Tetrahedral mesh','FontSize',fontSize);
% Visualizing using |meshView|
optionStruct.hFig=hf;
meshView(meshOutput,optionStruct);

axisGeom(gca,fontSize);
gdrawnow;

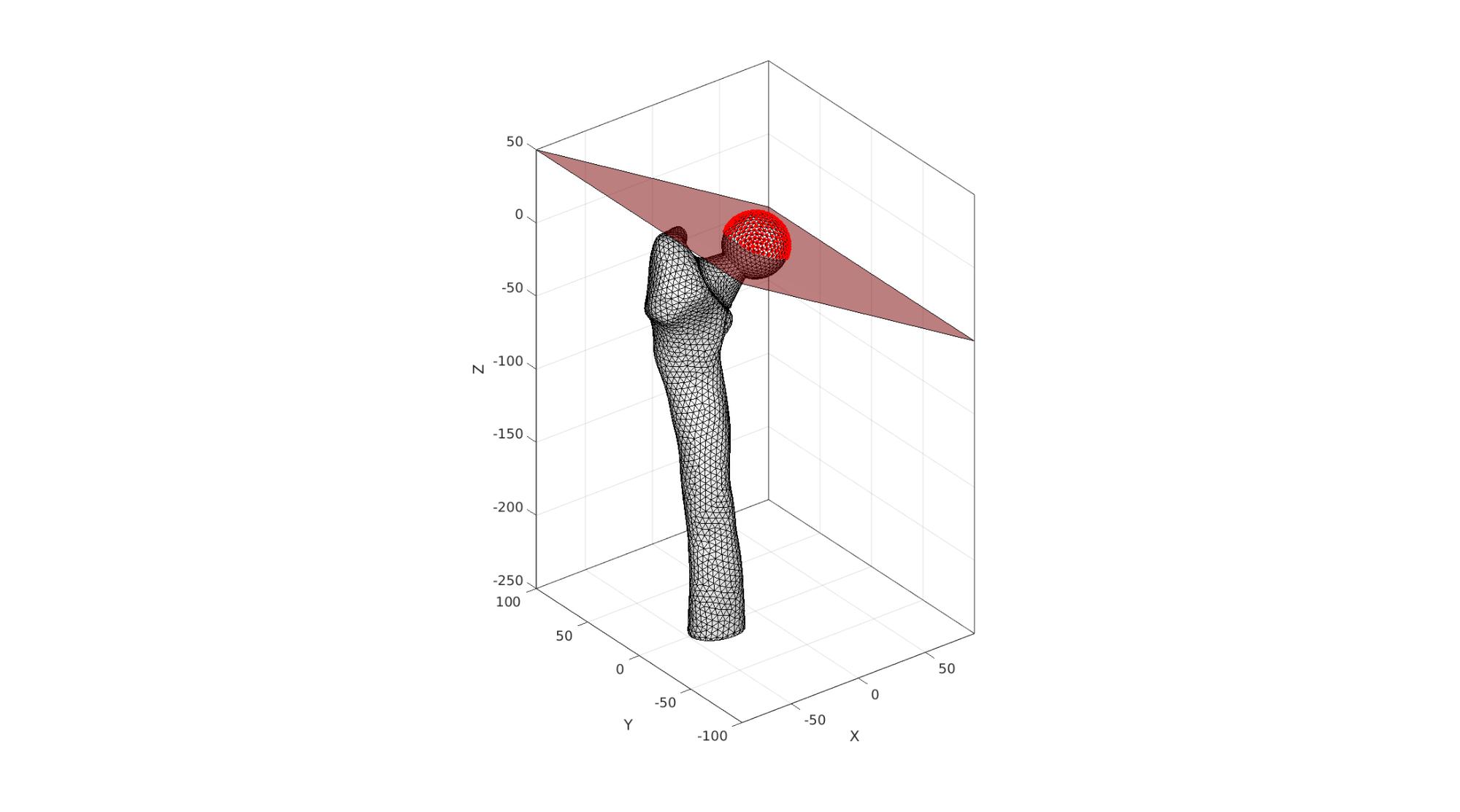

Find femoral head

w=100;
f=[1 2 3 4];
v=w*[-1 -1 0; -1 1 0; 1 1 0; 1 -1 0];

p=[0 0 0];
Q=euler2DCM([0 (150/180)*pi 0]);
v=v*Q;
v=v+p;

Vr=V*Q';
Vr=Vr+p;
logicHeadNodes=Vr(:,3)<0;
logicHeadFaces=all(logicHeadNodes(Fb),2);
bcPrescribeList_head=unique(Fb(logicHeadFaces,:));

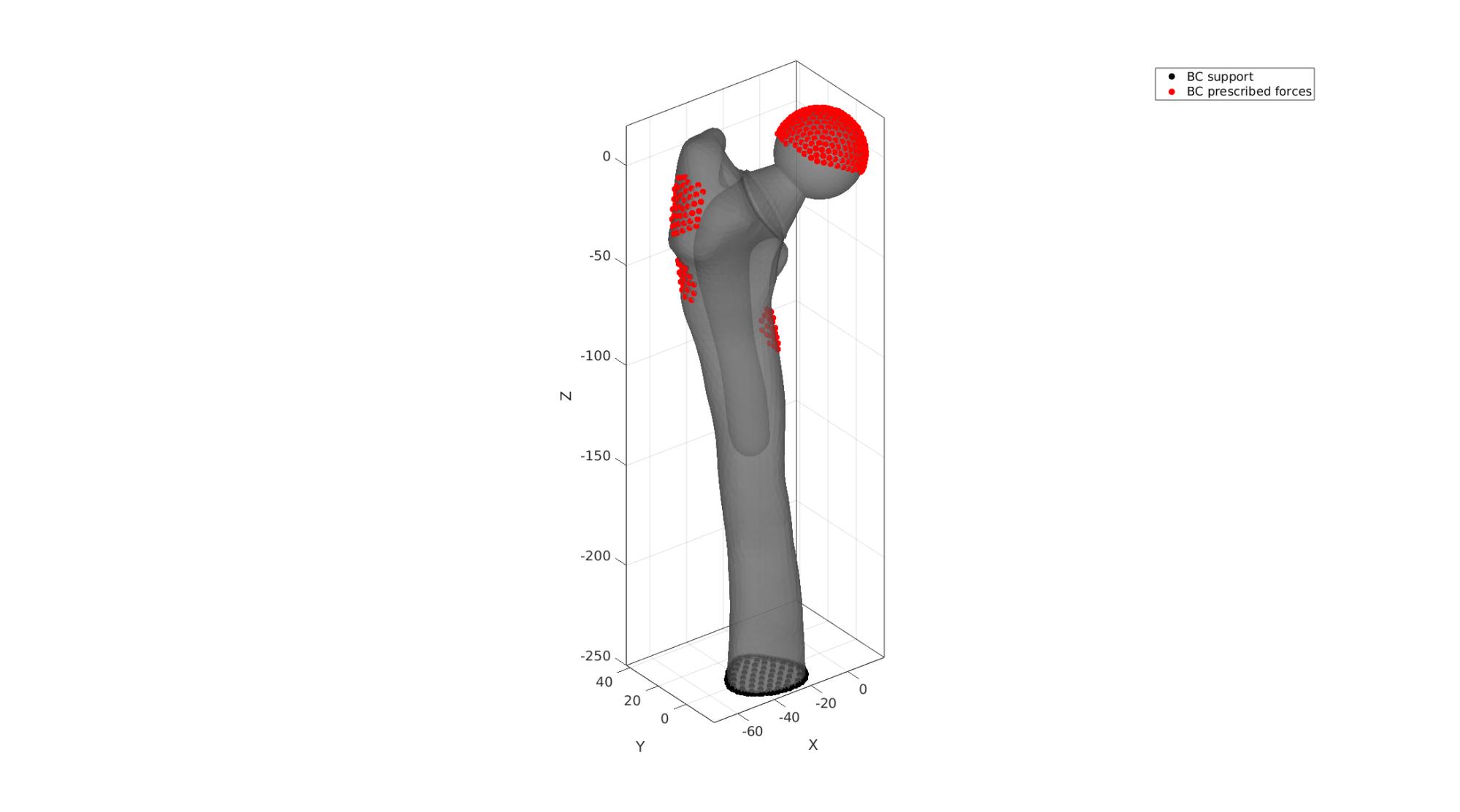

Visualize femoral head nodes for prescribed force boundary conditions

cFigure;
hold on;
gpatch(Fb,V,'w','k',1);
gpatch(f,v,'r','k',0.5);
plotV(V(bcPrescribeList_head,:),'r.','markerSize',15)
axisGeom; camlight headlight;
drawnow;

Work out force distribution on femoral head surface nodes

This is based on surface normal directions. Forces are assumed to only be able to act in a compressive sense on the bone.

[~,~,N]=patchNormal(fliplr(Fb),V); %Nodal normal directions

FX=[forceTotal(1) 0 0]; %X force vector
FY=[0 forceTotal(2) 0]; %Y force vector
FZ=[0 0 forceTotal(3)]; %Z force vector

wx=dot(N(bcPrescribeList_head,:),FX(ones(numel(bcPrescribeList_head),1),:),2);
wy=dot(N(bcPrescribeList_head,:),FY(ones(numel(bcPrescribeList_head),1),:),2);
wz=dot(N(bcPrescribeList_head,:),FZ(ones(numel(bcPrescribeList_head),1),:),2);

%Force zero
wx(wx>0)=0; wy(wy>0)=0; wz(wz>0)=0;

force_X=forceTotal(1).*ones(numel(bcPrescribeList_head),1).*wx;
force_Y=forceTotal(2).*ones(numel(bcPrescribeList_head),1).*wy;
force_Z=forceTotal(3).*ones(numel(bcPrescribeList_head),1).*wz;

force_X=force_X./sum(force_X(:)); %sum now equal to 1
force_X=force_X.*forceTotal(1); %sum now equal to desired

force_Y=force_Y./sum(force_Y(:)); %sum now equal to 1
force_Y=force_Y.*forceTotal(2); %sum now equal to desired

force_Z=force_Z./sum(force_Z(:)); %sum now equal to 1
force_Z=force_Z.*forceTotal(3); %sum now equal to desired

force_head=[force_X(:) force_Y(:) force_Z(:)];

cFigure;
subplot(1,3,1);hold on;
title('F_x');
gpatch(Fb,V,'w','none',0.5);
quiverVec([0 0 0],FX,100,'k');
% scatterV(V(indicesHeadNodes,:),15)
quiverVec(V(bcPrescribeList_head,:),N(bcPrescribeList_head,:),10,force_X);
axisGeom; camlight headlight;
colormap(gca,gjet(250)); colorbar;

subplot(1,3,2);hold on;
title('F_y');
gpatch(Fb,V,'w','none',0.5);
quiverVec([0 0 0],FY,100,'k');
% scatterV(V(indicesHeadNodes,:),15)
quiverVec(V(bcPrescribeList_head,:),N(bcPrescribeList_head,:),10,force_Y);
axisGeom; camlight headlight;
colormap(gca,gjet(250)); colorbar;

subplot(1,3,3);hold on;
title('F_z');
gpatch(Fb,V,'w','none',0.5);
quiverVec([0 0 0],FZ,100,'k');
% scatterV(V(indicesHeadNodes,:),15)
quiverVec(V(bcPrescribeList_head,:),N(bcPrescribeList_head,:),10,force_Z);
axisGeom; camlight headlight;
colormap(gca,gjet(250)); colorbar;

drawnow;

Marking muscle locations

P_abductor_find = [-69.771045288206111 8.185179717034659 -5.575329878303917]; %Coordinate at centre of muscle attachment
[~,indAbductor]=minDist(P_abductor_find,V); %Node number of point at centre of attachment
dAbductor=meshDistMarch(Fb,V,indAbductor); %Distance (on mesh) from attachement centre
bcPrescibeList_abductor=find(dAbductor<=distanceMuscleAttachAbductor); %Node numbers for attachment site

P_VastusLateralis_find = [-58.763839901506827 19.145444610053566 -51.005278396808819]; %Coordinate at centre of muscle attachment
[~,indVastusLateralis]=minDist(P_VastusLateralis_find,V); %Node number of point at centre of attachment
dVastusLateralis=meshDistMarch(Fb,V,indVastusLateralis); %Distance (on mesh) from attachement centre
bcPrescibeList_VastusLateralis=find(dVastusLateralis<=distanceMuscleVastusLateralis); %Node numbers for attachment site


P_VastusMedialis_find = [-18.533631492778085 9.501312355952791 -85.666499329588035]; %Coordinate at centre of muscle attachment
[~,indVastusMedialis]=minDist(P_VastusMedialis_find,V); %Node number of point at centre of attachment
dVastusMedialis=meshDistMarch(Fb,V,indVastusMedialis); %Distance (on mesh) from attachement centre
bcPrescibeList_VastusMedialis=find(dVastusMedialis<=distanceMuscleAttachVastusMedialis); %Node numbers for attachment site

Muscle force definition

forceAbductor_distributed=forceAbductor.*ones(numel(bcPrescibeList_abductor),1)./numel(bcPrescibeList_abductor);

forceVastusLateralis_distributed=forceVastusLateralis.*ones(numel(bcPrescibeList_VastusLateralis),1)./numel(bcPrescibeList_VastusLateralis);

forceVastusMedialis_distributed=forceVastusMedialis.*ones(numel(bcPrescibeList_VastusMedialis),1)./numel(bcPrescibeList_VastusMedialis);

Defining prescribed forces

bcPrescribeList=[bcPrescribeList_head(:);...
                 bcPrescibeList_abductor(:);...
                 bcPrescibeList_VastusLateralis(:);...
                 bcPrescibeList_VastusMedialis(:)];

forceData=[force_head;...
           forceAbductor_distributed;...
           forceVastusLateralis_distributed;...
           forceVastusMedialis_distributed];

cFigure;
subplot(1,3,1);hold on;
title('F_x');
gpatch(Fb,V,'w','none',0.5);
quiverVec(V(bcPrescribeList,:),forceData,10,forceData(:,1));
axisGeom; camlight headlight;
colormap(gca,gjet(250)); colorbar;

subplot(1,3,2);hold on;
title('F_y');
gpatch(Fb,V,'w','none',0.5);
quiverVec(V(bcPrescribeList,:),forceData,10,forceData(:,2));
axisGeom; camlight headlight;
colormap(gca,gjet(250)); colorbar;

subplot(1,3,3);hold on;
title('F_z');
gpatch(Fb,V,'w','none',0.5);

quiverVec(V(bcPrescribeList,:),forceData,10,forceData(:,3));
axisGeom; camlight headlight;
colormap(gca,gjet(250)); colorbar;

Visualizing boundary conditions

F_bottomSupport=Fb(Cb==2,:);
bcSupportList=unique(F_bottomSupport(:));

cFigure; hold on;
gpatch(Fb,V,'kw','none',0.7);
hl(1)=plotV(V(bcSupportList,:),'k.','MarkerSize',25);
hl(2)=plotV(V(bcPrescribeList,:),'r.','MarkerSize',25);

legend(hl,{'BC support','BC prescribed forces'});
axisGeom;
camlight headlight;
drawnow;

Defining the FEBio input structure

See also febioStructTemplate and febioStruct2xml and the FEBio user manual.

%Get a template with default settings
[febio_spec]=febioStructTemplate;

%febio_spec version
febio_spec.ATTR.version='4.0';

%Module section
febio_spec.Module.ATTR.type='solid';

%Control section
febio_spec.Control.analysis='STATIC';
febio_spec.Control.time_steps=numTimeSteps;
febio_spec.Control.step_size=1/numTimeSteps;
febio_spec.Control.solver.max_refs=max_refs;
febio_spec.Control.solver.qn_method.max_ups=max_ups;
febio_spec.Control.time_stepper.dtmin=dtmin;
febio_spec.Control.time_stepper.dtmax=dtmax;
febio_spec.Control.time_stepper.max_retries=max_retries;
febio_spec.Control.time_stepper.opt_iter=opt_iter;

%Material section
materialName1='Material1';
febio_spec.Material.material{1}.ATTR.name=materialName1;
febio_spec.Material.material{1}.ATTR.type='neo-Hookean';
febio_spec.Material.material{1}.ATTR.id=1;
febio_spec.Material.material{1}.E=E_youngs1;
febio_spec.Material.material{1}.v=nu1;

materialName2='Material2';
febio_spec.Material.material{2}.ATTR.name=materialName2;
febio_spec.Material.material{2}.ATTR.type='neo-Hookean';
febio_spec.Material.material{2}.ATTR.id=2;
febio_spec.Material.material{2}.E=E_youngs2;
febio_spec.Material.material{2}.v=nu2;

materialName3='Material3';
dataMapName1='MaterialParameterMap1';
febio_spec.Material.material{3}.ATTR.name=materialName3;
febio_spec.Material.material{3}.ATTR.type='neo-Hookean';
febio_spec.Material.material{3}.ATTR.id=3;
febio_spec.Material.material{3}.E.ATTR.type='map'; %Calls for mapping of parameter
febio_spec.Material.material{3}.E.VAL=dataMapName1; %Calls for mapping of parameter
febio_spec.Material.material{3}.v=nu_implant;

% Mesh section
% -> Nodes
febio_spec.Mesh.Nodes{1}.ATTR.name='Object1'; %The node set name
febio_spec.Mesh.Nodes{1}.node.ATTR.id=(1:size(V,1))'; %The node id's
febio_spec.Mesh.Nodes{1}.node.VAL=V; %The nodel coordinates

% -> Elements
partName1='CorticalBone';
febio_spec.Mesh.Elements{1}.ATTR.name=partName1; %Name of this part
febio_spec.Mesh.Elements{1}.ATTR.type='tet4'; %Element type
febio_spec.Mesh.Elements{1}.elem.ATTR.id=(1:1:size(E1,1))'; %Element id's
febio_spec.Mesh.Elements{1}.elem.VAL=E1; %The element matrix

partName2='CancellousBone';
febio_spec.Mesh.Elements{2}.ATTR.name=partName2; %Name of this part
febio_spec.Mesh.Elements{2}.ATTR.type='tet4'; %Element type
febio_spec.Mesh.Elements{2}.elem.ATTR.id=size(E1,1)+(1:1:size(E2,1))'; %Element id's
febio_spec.Mesh.Elements{2}.elem.VAL=E2; %The element matrix

partName3='Implant';
febio_spec.Mesh.Elements{3}.ATTR.name=partName3; %Name of this part
febio_spec.Mesh.Elements{3}.ATTR.type='tet4'; %Element type
febio_spec.Mesh.Elements{3}.elem.ATTR.id=size(E1,1)+size(E2,1)+(1:1:size(E3,1))'; %Element id's
febio_spec.Mesh.Elements{3}.elem.VAL=E3; %The element matrix

%MeshData secion
%-> Element data
febio_spec.MeshData.ElementData{1}.ATTR.name=dataMapName1;
febio_spec.MeshData.ElementData{1}.ATTR.elem_set=partName3;
febio_spec.MeshData.ElementData{1}.elem.ATTR.lid=(1:1:size(E3,1))';
febio_spec.MeshData.ElementData{1}.elem.VAL=E_youngs_implant;

% -> NodeSets
nodeSetName1='bcSupportList';
febio_spec.Mesh.NodeSet{1}.ATTR.name=nodeSetName1;
febio_spec.Mesh.NodeSet{1}.VAL=mrow(bcSupportList);

nodeSetName2='bcPrescribeList';
febio_spec.Mesh.NodeSet{2}.ATTR.name=nodeSetName2;
febio_spec.Mesh.NodeSet{2}.VAL=mrow(bcPrescribeList);

%MeshDomains section
febio_spec.MeshDomains.SolidDomain{1}.ATTR.name=partName1;
febio_spec.MeshDomains.SolidDomain{1}.ATTR.mat=materialName1;

febio_spec.MeshDomains.SolidDomain{2}.ATTR.name=partName2;
febio_spec.MeshDomains.SolidDomain{2}.ATTR.mat=materialName2;

febio_spec.MeshDomains.SolidDomain{3}.ATTR.name=partName3;
febio_spec.MeshDomains.SolidDomain{3}.ATTR.mat=materialName3;

%Boundary condition section
% -> Fix boundary conditions
febio_spec.Boundary.bc{1}.ATTR.name='zero_displacement_xyz';
febio_spec.Boundary.bc{1}.ATTR.type='zero displacement';
febio_spec.Boundary.bc{1}.ATTR.node_set=nodeSetName1;
febio_spec.Boundary.bc{1}.x_dof=1;
febio_spec.Boundary.bc{1}.y_dof=1;
febio_spec.Boundary.bc{1}.z_dof=1;

%MeshData secion
%-> Node data
loadDataName1='nodal_forces';
febio_spec.MeshData.NodeData{1}.ATTR.name=loadDataName1;
febio_spec.MeshData.NodeData{1}.ATTR.node_set=nodeSetName2;
febio_spec.MeshData.NodeData{1}.ATTR.data_type='vec3';
febio_spec.MeshData.NodeData{1}.node.ATTR.lid=(1:1:numel(bcPrescribeList))';
febio_spec.MeshData.NodeData{1}.node.VAL=forceData;

%Loads section
% -> Prescribed nodal forces
febio_spec.Loads.nodal_load{1}.ATTR.name='PrescribedForce';
febio_spec.Loads.nodal_load{1}.ATTR.type='nodal_force';
febio_spec.Loads.nodal_load{1}.ATTR.node_set=nodeSetName2;
febio_spec.Loads.nodal_load{1}.value.ATTR.lc=1;
febio_spec.Loads.nodal_load{1}.value.ATTR.type='map';
febio_spec.Loads.nodal_load{1}.value.VAL=loadDataName1;

%LoadData section
% -> load_controller
febio_spec.LoadData.load_controller{1}.ATTR.name='LC_1';
febio_spec.LoadData.load_controller{1}.ATTR.id=1;
febio_spec.LoadData.load_controller{1}.ATTR.type='loadcurve';
febio_spec.LoadData.load_controller{1}.interpolate='LINEAR';
%febio_spec.LoadData.load_controller{1}.extend='CONSTANT';
febio_spec.LoadData.load_controller{1}.points.pt.VAL=[0 0; 1 1];

%Output section
% -> log file
febio_spec.Output.logfile.ATTR.file=febioLogFileName;
febio_spec.Output.logfile.node_data{1}.ATTR.file=febioLogFileName_disp;
febio_spec.Output.logfile.node_data{1}.ATTR.data='ux;uy;uz';
febio_spec.Output.logfile.node_data{1}.ATTR.delim=',';

febio_spec.Output.logfile.element_data{1}.ATTR.file=febioLogFileName_stress;
febio_spec.Output.logfile.element_data{1}.ATTR.data='s1;s2;s3';
febio_spec.Output.logfile.element_data{1}.ATTR.delim=',';

febio_spec.Output.logfile.element_data{2}.ATTR.file=febioLogFileName_strainEnergy;
febio_spec.Output.logfile.element_data{2}.ATTR.data='sed';
febio_spec.Output.logfile.element_data{2}.ATTR.delim=',';

% Plotfile section
febio_spec.Output.plotfile.compression=0;

Create structures for optimization

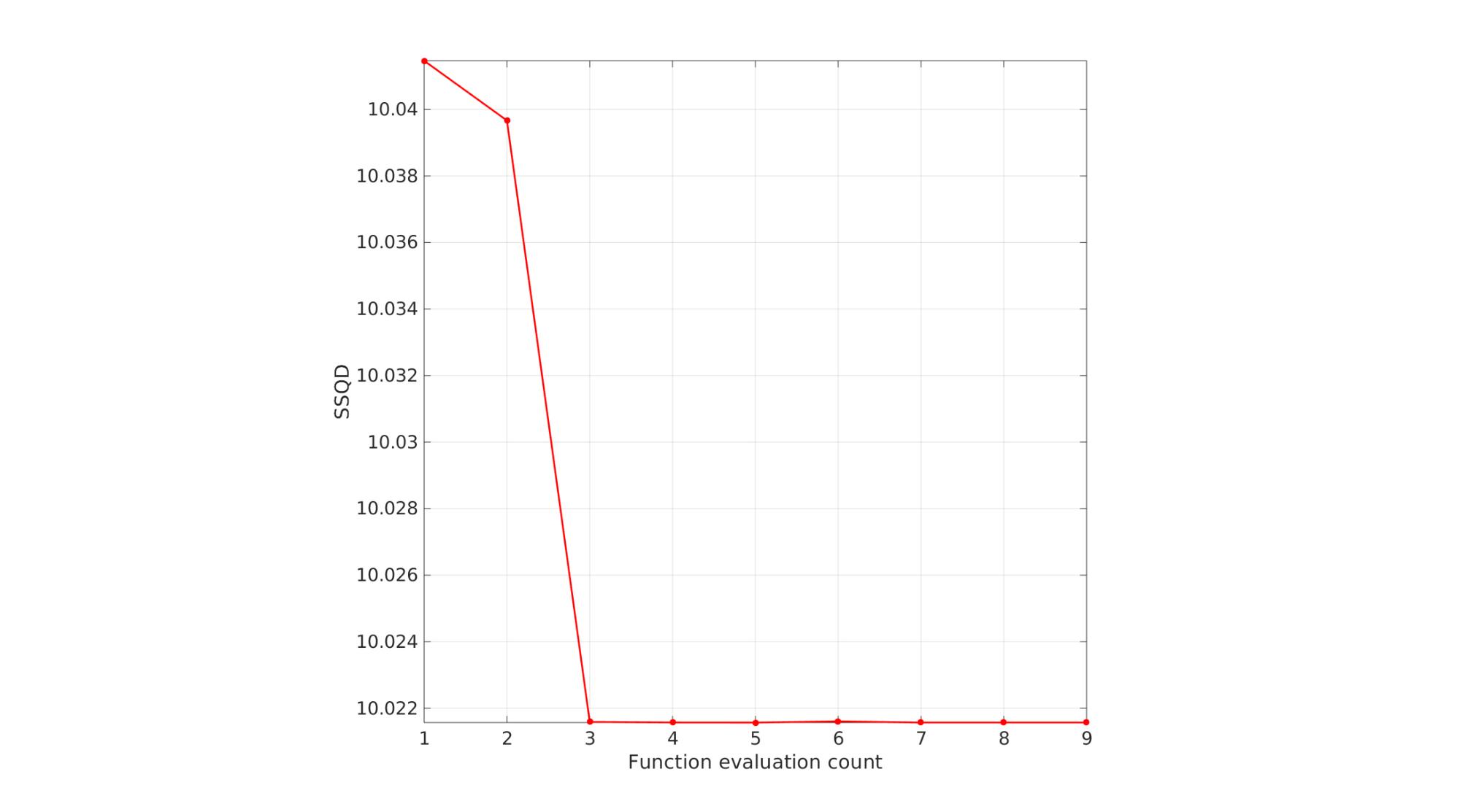

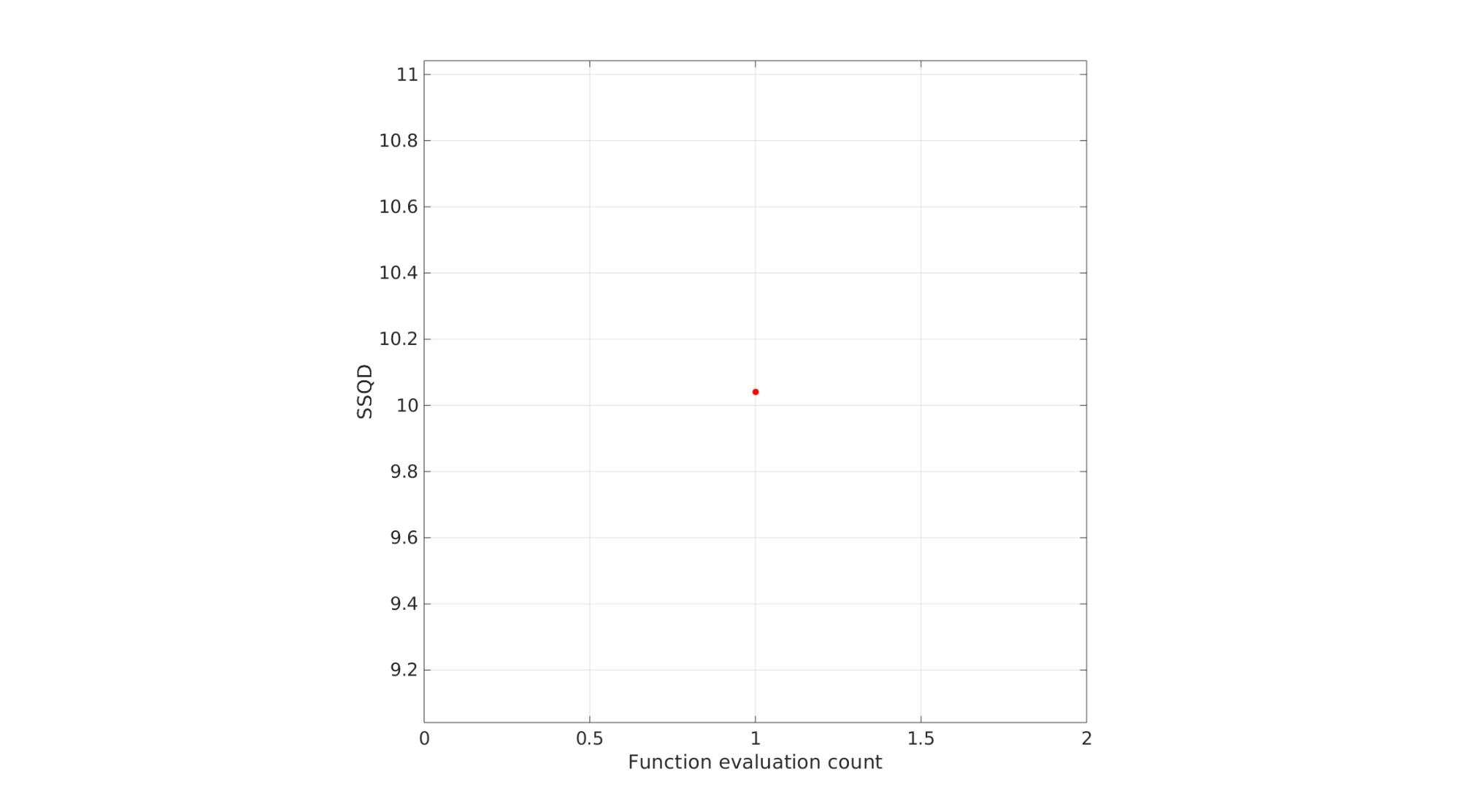

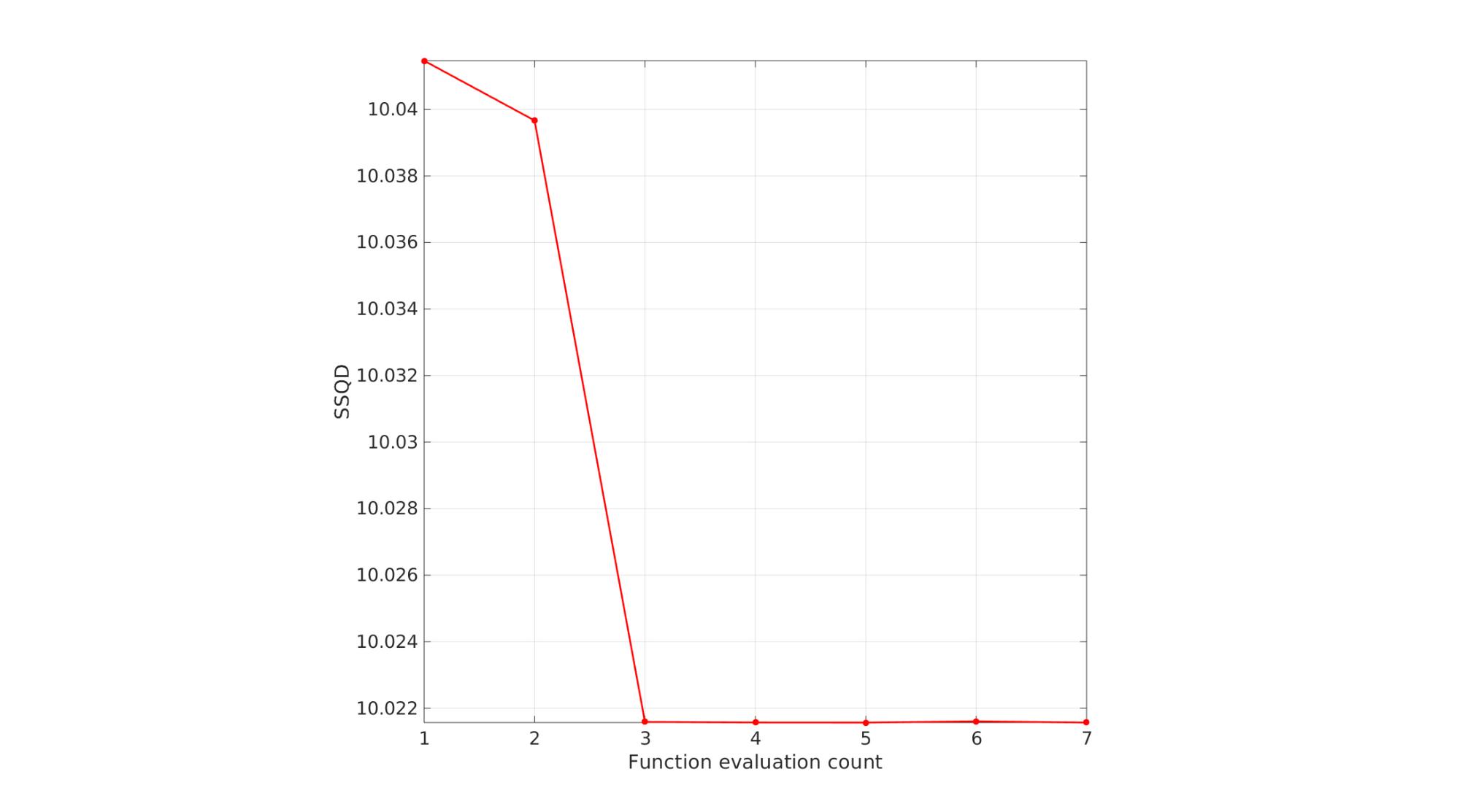

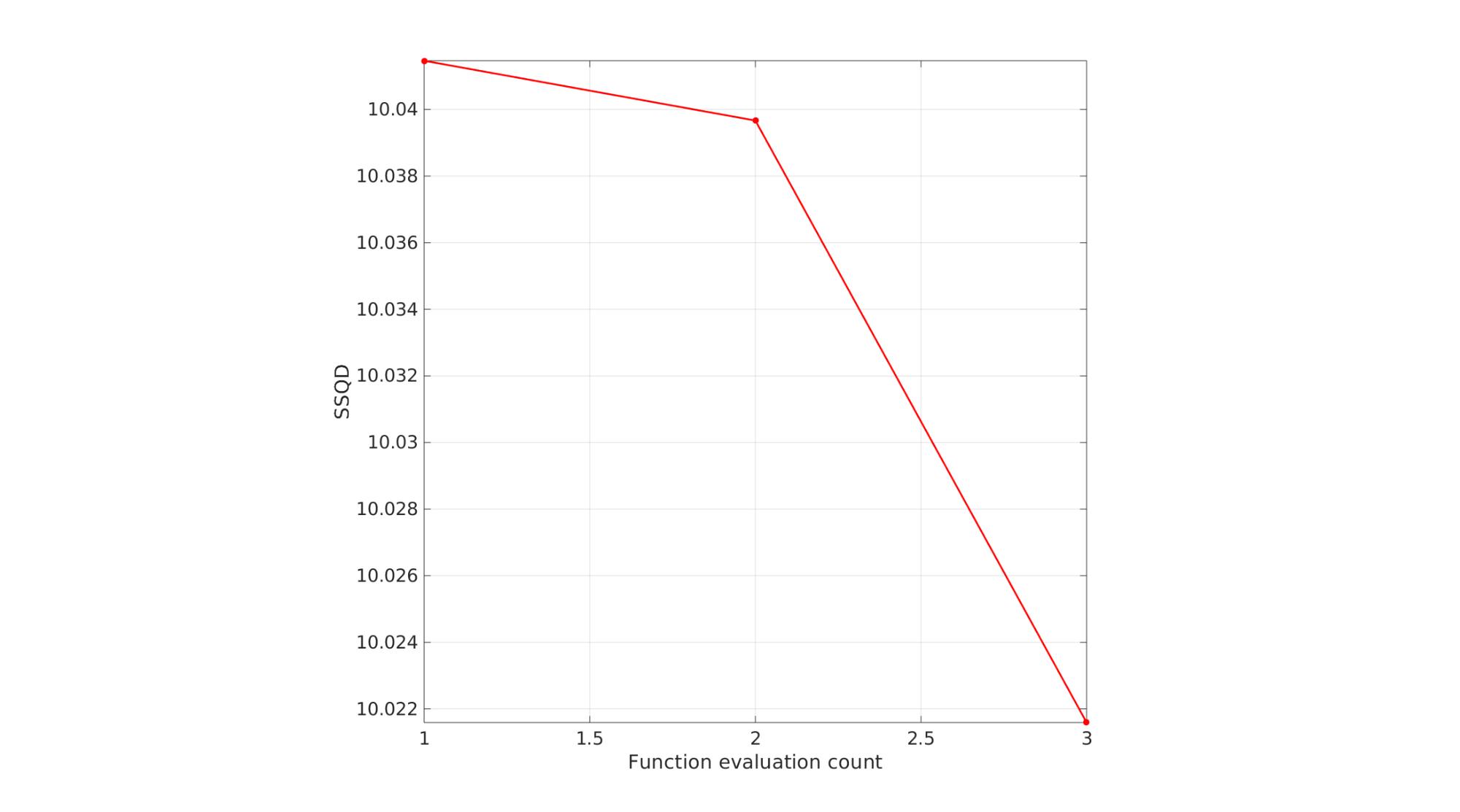

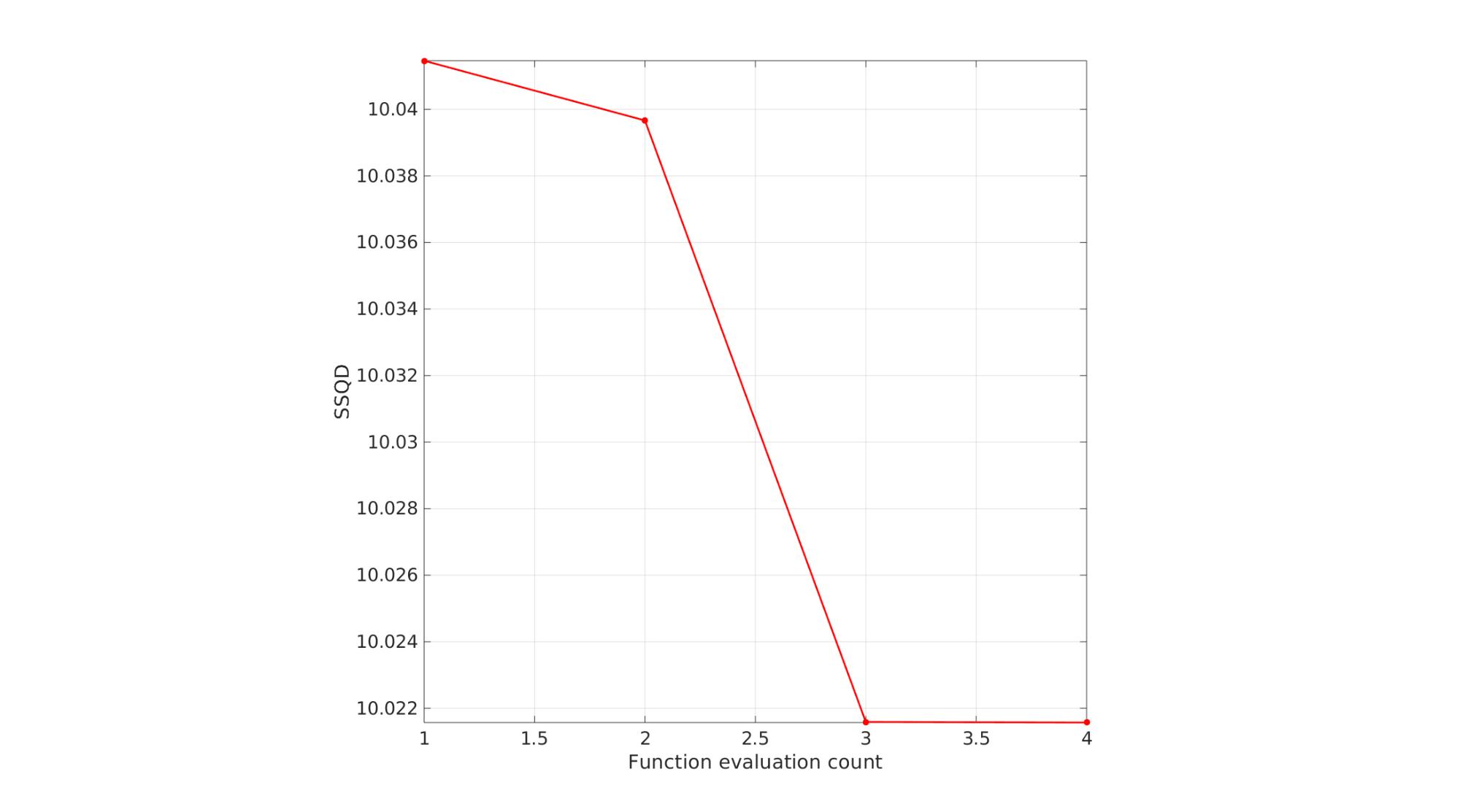

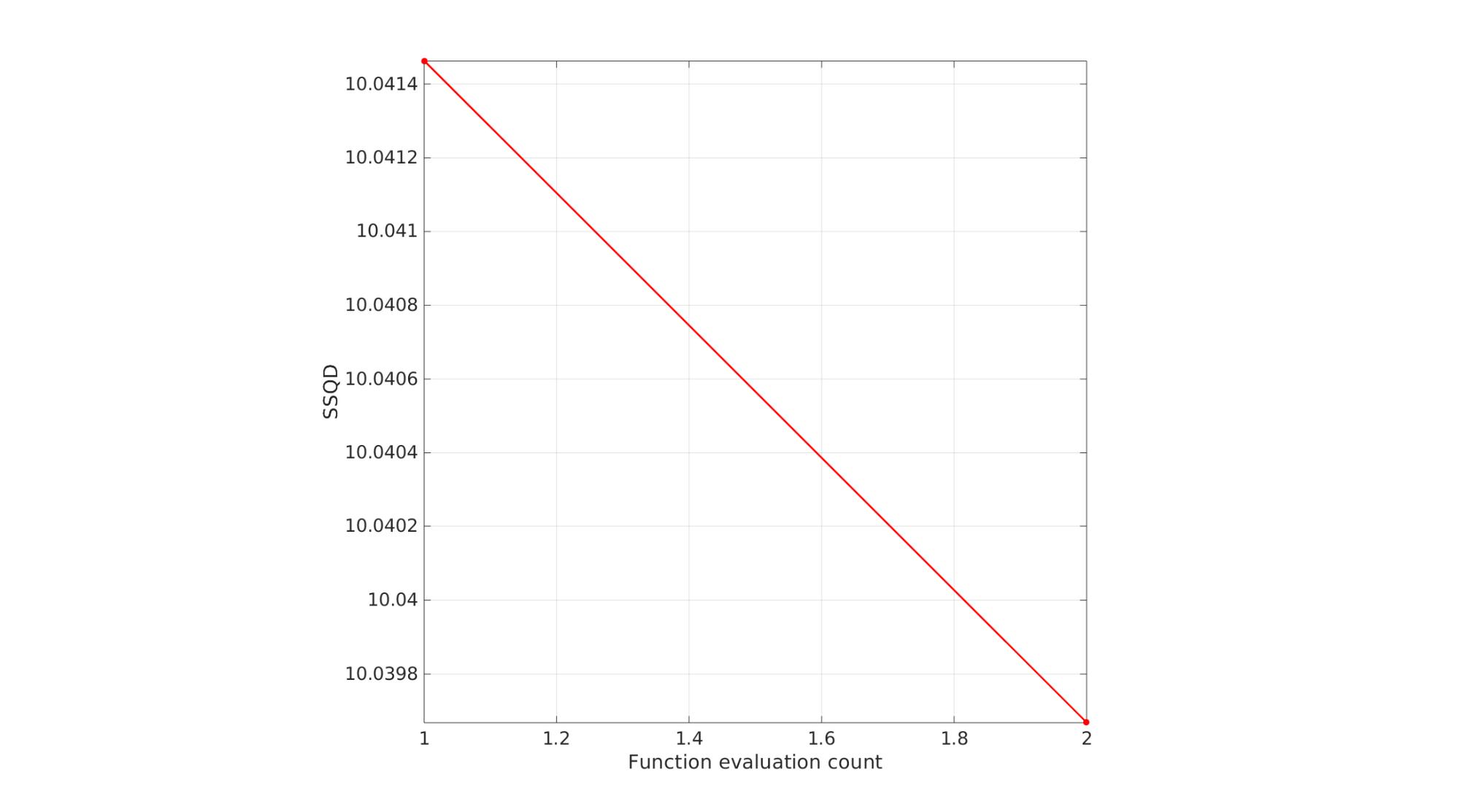

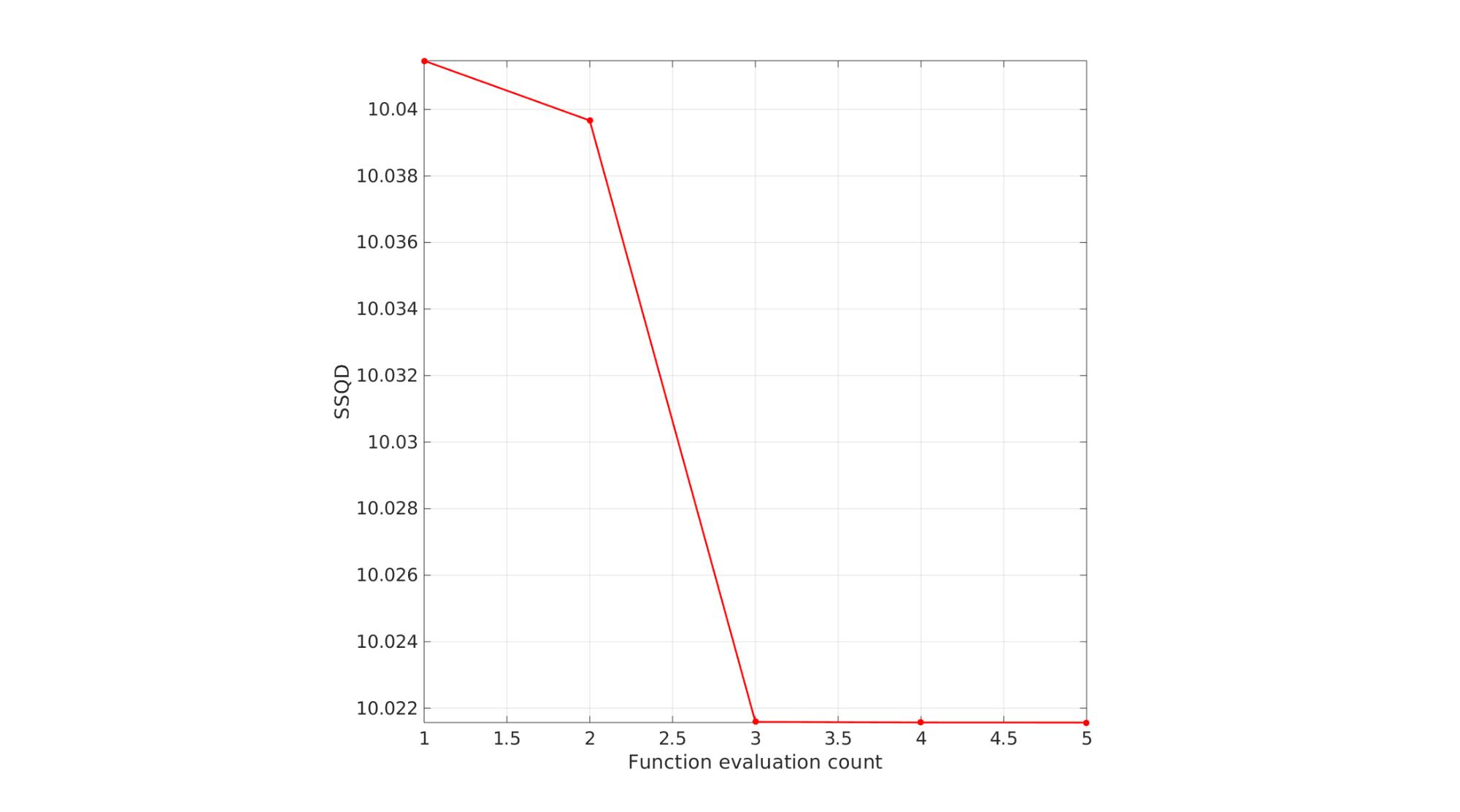

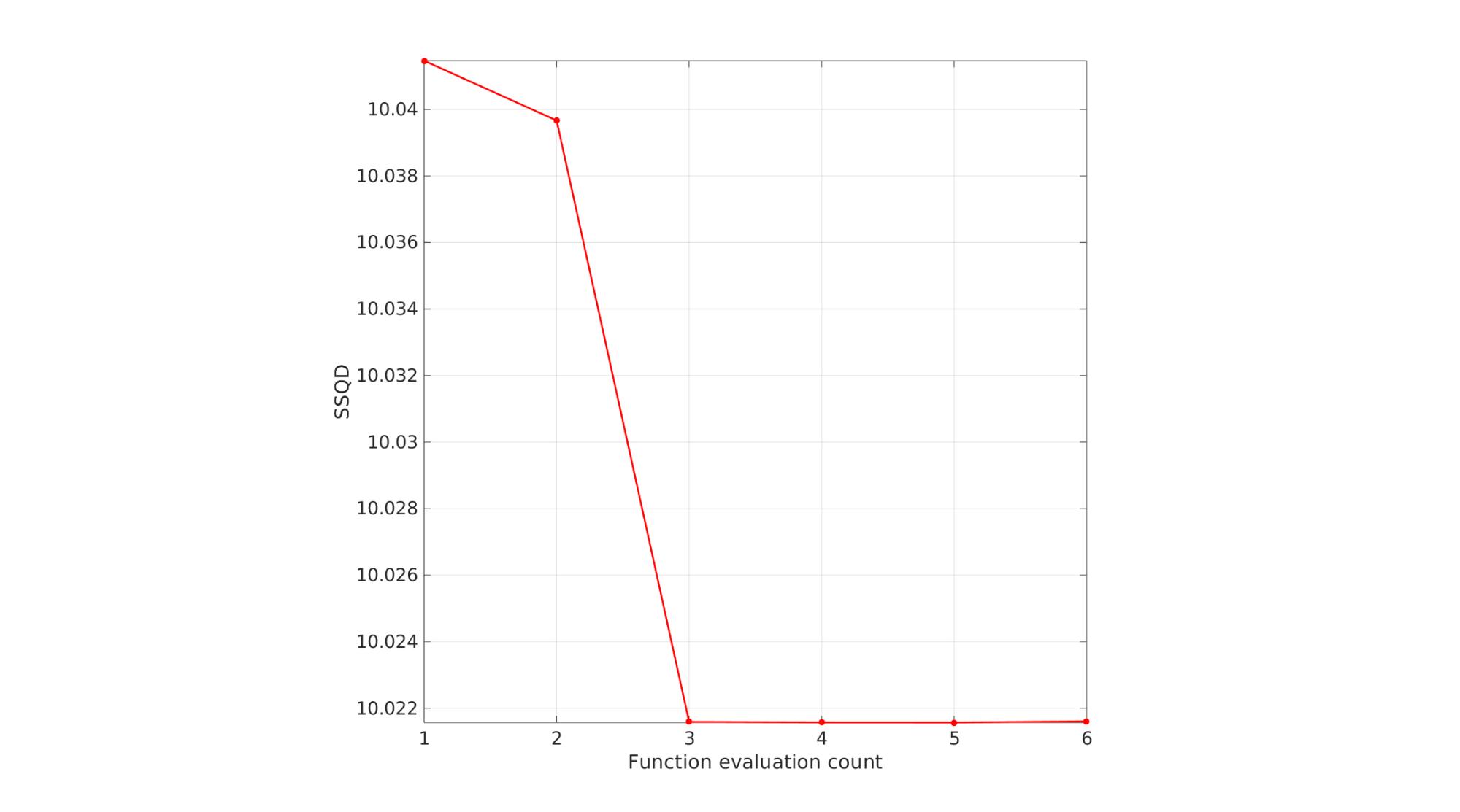

%Initialize progress figure
cFigure; hold on;
xlabel('Function evaluation count'); ylabel('SSQD');
hp=plot(0,nan,'r.-','MarkerSize',25,'LineWidth',2);
axis tight; axis square; grid on; box;
set(gca,'FontSize',fontSize);
drawnow

%Febio analysis information
febioAnalysis.run_filename=febioFebFileName; %The input file name
febioAnalysis.run_logname=febioLogFileName; %The name for the log file
febioAnalysis.disp_on=1; %Display information on the command window
febioAnalysis.runMode=runMode;
febioAnalysis.maxLogCheckTime=120; %Max log file checking time

%Compute comparison metric
objCompareMetric=interpFuncMetric(VE_12);

%What should be known to the objective function:
objectiveStruct.febioAnalysis=febioAnalysis;
objectiveStruct.febio_spec=febio_spec;
objectiveStruct.febioFebFileName=febioFebFileName;
objectiveStruct.parNormFactors=paramInitial; %This will normalize the parameters to ones(size(P))
objectiveStruct.Pb_struct.xx_c=paramInitial; %Parameter constraining centre
objectiveStruct.Pb_struct.xxlim=paramContraints; %Parameter bounds
objectiveStruct.method=optimMethod;
objectiveStruct.objCompareMetric=objCompareMetric;
objectiveStruct.logFileImportName=fullfile(savePath,febioLogFileName_strainEnergy);
objectiveStruct.W=W; %Material variation map
objectiveStruct.logicBoneElements=logicBoneElements;
objectiveStruct.optimType=optimType;
objectiveStruct.hp=hp;

paramNow=paramInitial;
Pn=paramNow./objectiveStruct.parNormFactors;

switch evalMode
    case 1 %Run once using initial
        [Fopt,outputStructure]=objectiveFunction(Pn,objectiveStruct);
        Pn_opt=Pn;
    case 2 %optimization

        switch objectiveStruct.method
            case 1 %fminsearch and Nelder-Mead
                OPT_options=optimset('fminsearch'); % 'Nelder-Mead simplex direct search'
                OPT_options = optimset(OPT_options,'MaxFunEvals',maxNumberFunctionEvaluations,...
                    'MaxIter',maxNumberIterations,...
                    'TolFun',functionTolerance,...
                    'TolX',parameterTolerance,...
                    'Display',displayTypeIterations,...
                    'FinDiffRelStep',1e-2,...
                    'DiffMaxChange',0.5);
                [Pn_opt,OPT_out.fval,OPT_out.exitflag,OPT_out.output]= fminsearch(@(Pn) objectiveFunction(Pn,objectiveStruct),Pn,OPT_options);
            case 2 %lsqnonlin and Levenberg-Marquardt
                OPT_options = optimoptions(@lsqnonlin,'Algorithm','levenberg-marquardt');
                OPT_options = optimoptions(OPT_options,'MaxFunEvals',maxNumberFunctionEvaluations,...
                    'MaxIter',maxNumberIterations,...
                    'TolFun',functionTolerance,...
                    'TolX',parameterTolerance,...
                    'Display',displayTypeIterations,...
                    'FinDiffRelStep',1e-2,...
                    'DiffMaxChange',0.5);
                [Pn_opt,OPT_out.resnorm,OPT_out.residual]= lsqnonlin(@(Pn) objectiveFunction(Pn,objectiveStruct),Pn,[],[],OPT_options);
        end

        %Run one more time for optimal parameters
        [Fopt,outputStructure]=objectiveFunction(Pn_opt,objectiveStruct);

Unnormalize and constrain parameters

        paramFinal=Pn_opt.*objectiveStruct.parNormFactors; %Scale back, undo normalization

        %Constraining parameters
        for q=1:1:numel(paramFinal)
            [paramFinal(q)]=boxconstrain(paramFinal(q),objectiveStruct.Pb_struct.xxlim(q,1),objectiveStruct.Pb_struct.xxlim(q,2),objectiveStruct.Pb_struct.xx_c(q));
        end

        disp_text=sprintf('%6.16e,',paramFinal); disp_text=disp_text(1:end-1);
        disp(['paramFinal=',disp_text]);

paramFinal=7.7467227201276095e+04

end

Access ouput data from optimization run

differenceData=outputStructure.differenceData;
differenceData_SSQD=outputStructure.differenceData_SSQD;
E_metric=outputStructure.E_metric;

Import FEBio results

Importing nodal displacements from a log file

dataStruct=importFEBio_logfile(fullfile(savePath,febioLogFileName_disp),0,1);

%Access data
N_disp_mat=dataStruct.data; %Displacement
timeVec=dataStruct.time; %Time

%Create deformed coordinate set
V_DEF=N_disp_mat+repmat(V,[1 1 size(N_disp_mat,3)]);

Importing element strain energies from a log file

dataStruct=importFEBio_logfile(fullfile(savePath,febioLogFileName_strainEnergy),0,1);

%Access data
E_energy=dataStruct.data;

Importing element stress from a log file

dataStruct=importFEBio_logfile(fullfile(savePath,febioLogFileName_stress),0,1);

%Access data
E_stress_mat=dataStruct.data;

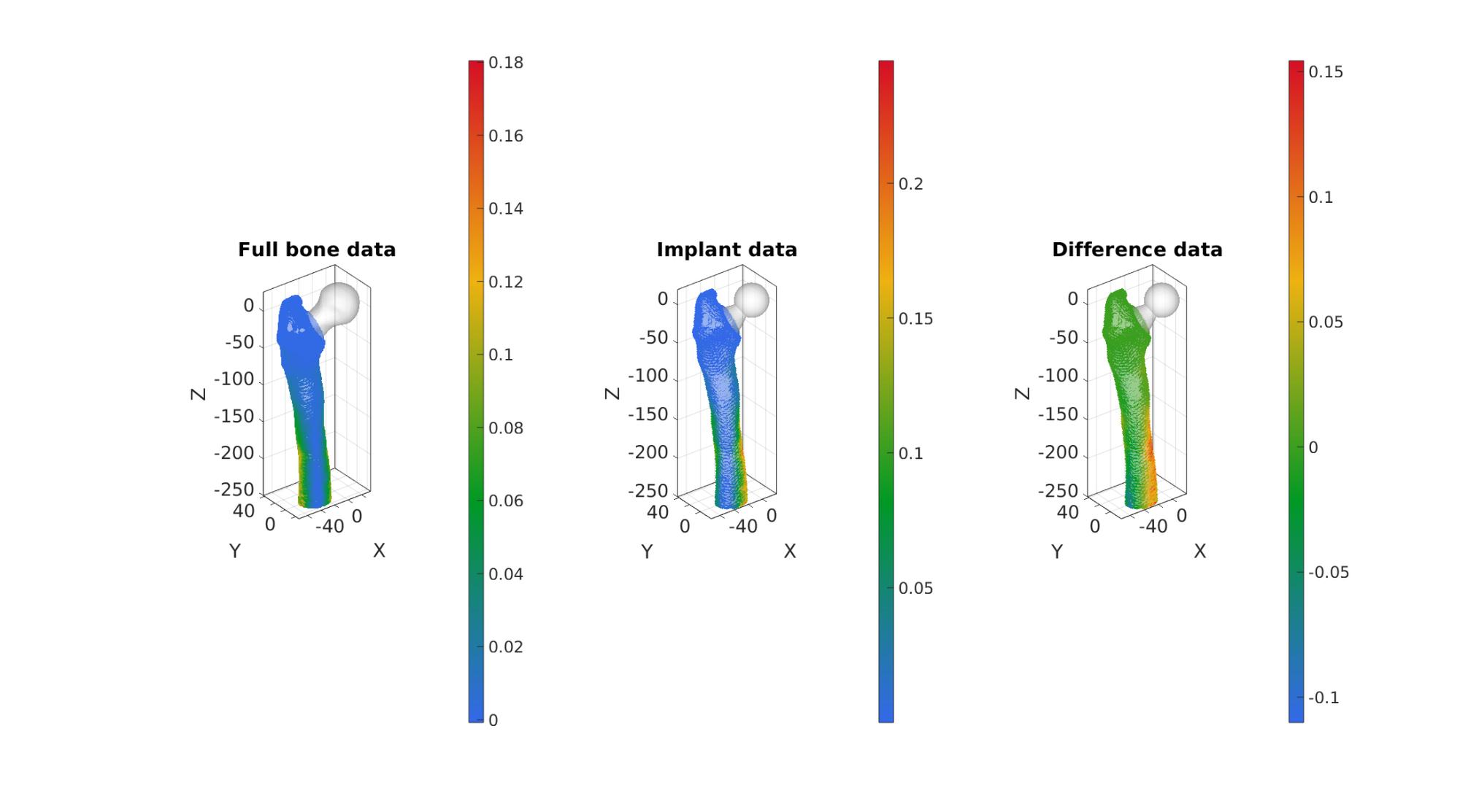

cFigure;

subplot(1,3,1); hold on;
title('Full bone data');
gpatch(Fb_p,V_p,'w','none',0.5); %Add graphics object to animate
scatterV(VE_12,50,objCompareMetric,'filled');
axisGeom(gca,fontSize); colormap(gjet(250)); colorbar;
camlight headlight;

subplot(1,3,2); hold on;
title('Implant data');
gpatch(Fb,V,'w','none',0.5); %Add graphics object to animate
scatterV(VE_12,25,E_metric,'filled');
axisGeom(gca,fontSize); colormap(gjet(250)); colorbar;
camlight headlight;

subplot(1,3,3); hold on;
title('Difference data');
gpatch(Fb,V,'w','none',0.5); %Add graphics object to animate
%     gpatch(Fb_p,V_p,'w','none',0.5); %Add graphics object to animate

scatterV(VE_12,25,differenceData,'filled');

axisGeom(gca,fontSize); colormap(gjet(250)); colorbar;
camlight headlight;
drawnow;

C_data=differenceData;

n=[0 1 0]; %Normal direction to plane
P=mean(V,1); %Point on plane
[logicAt,logicAbove,logicBelow]=meshCleave(E_12,V,P,n);

% Get faces and matching color data for visualization
[F_cleave,CF_cleave]=element2patch(E_12(logicAbove,:),C_data(logicAbove));

hf=cFigure; hold on;

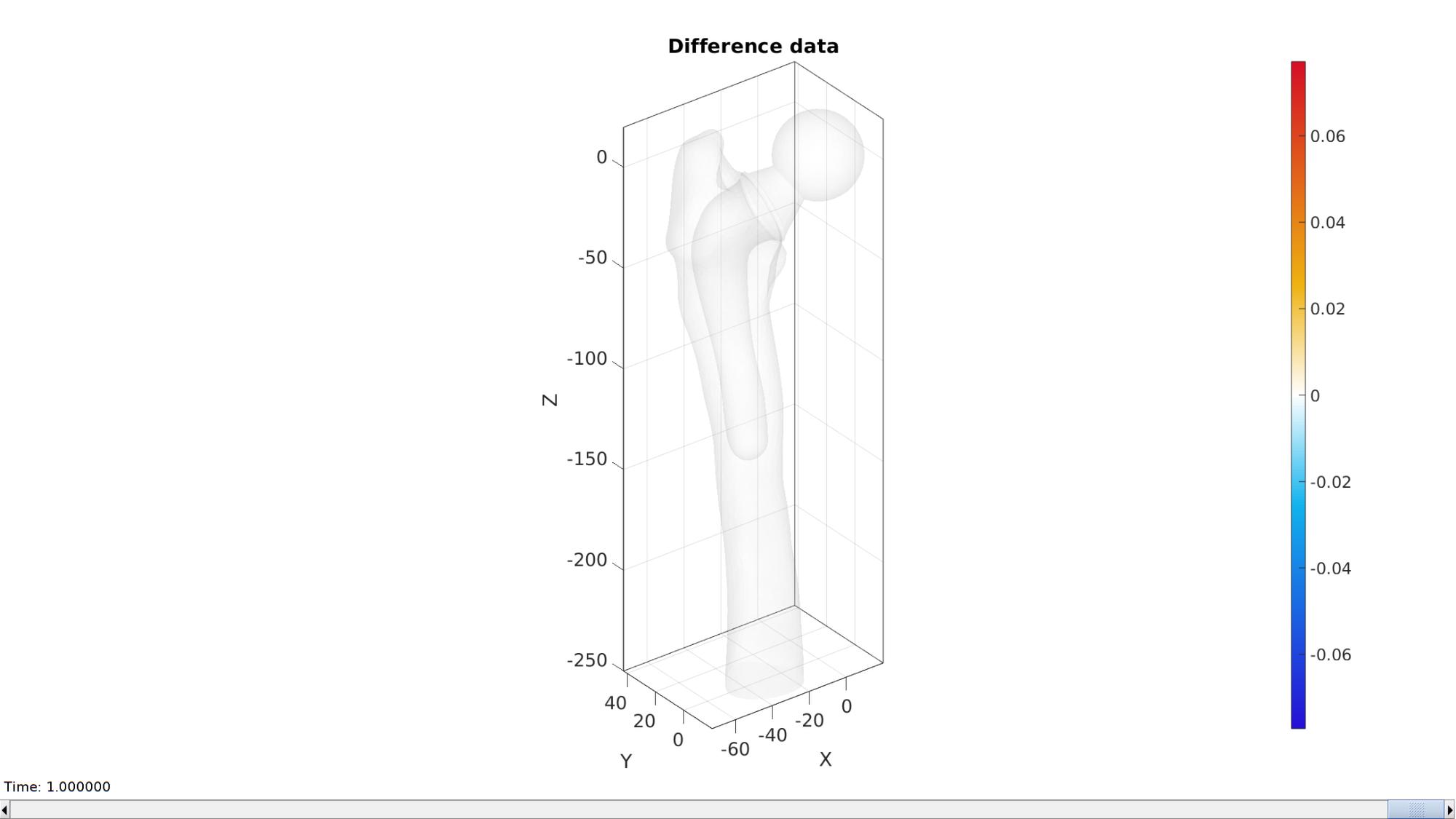

title('Difference data');
gpatch(Fb,V,'w','none',0.1); %Add graphics object to animate

hp1=gpatch(F_cleave,V,CF_cleave,'k',1);
axisGeom(gca,fontSize);
colormap(warmcold(250));
caxis([-(max(abs(C_data))) (max(abs(C_data)))]/2);
colorbar; axis manual;
camlight headligth;
gdrawnow;

nSteps=25; %Number of animation steps

%Create the time vector
animStruct.Time=linspace(0,1,nSteps);

%The vector lengths
y=linspace(min(V(:,2)),max(V(:,2)),nSteps);
for q=1:1:nSteps

    [logicAt,logicAbove,logicBelow]=meshCleave(E_12,V,[0 y(q) 0],n,[1 0]);

    % Get faces and matching color data for cleaves elements
    [F_cleave,CF_cleave]=element2patch(E_12(logicAbove,:),C_data(logicAbove));

    %Set entries in animation structure
    animStruct.Handles{q}=[hp1 hp1]; %Handles of objects to animate
    animStruct.Props{q}={'Faces','CData'}; %Properties of objects to animate
    animStruct.Set{q}={F_cleave,CF_cleave}; %Property values for to set in order to animate
end
anim8(hf,animStruct);

C_data=E_stress_mat(logicBoneElements,1,end);

n=[0 1 0]; %Normal direction to plane
P=mean(V,1); %Point on plane
[logicAt,logicAbove,logicBelow]=meshCleave(E_12,V,P,n);

% Get faces and matching color data for visualization
[F_cleave,CF_cleave]=element2patch(E_12(logicAbove,:),C_data(logicAbove));

hf=cFigure; hold on;

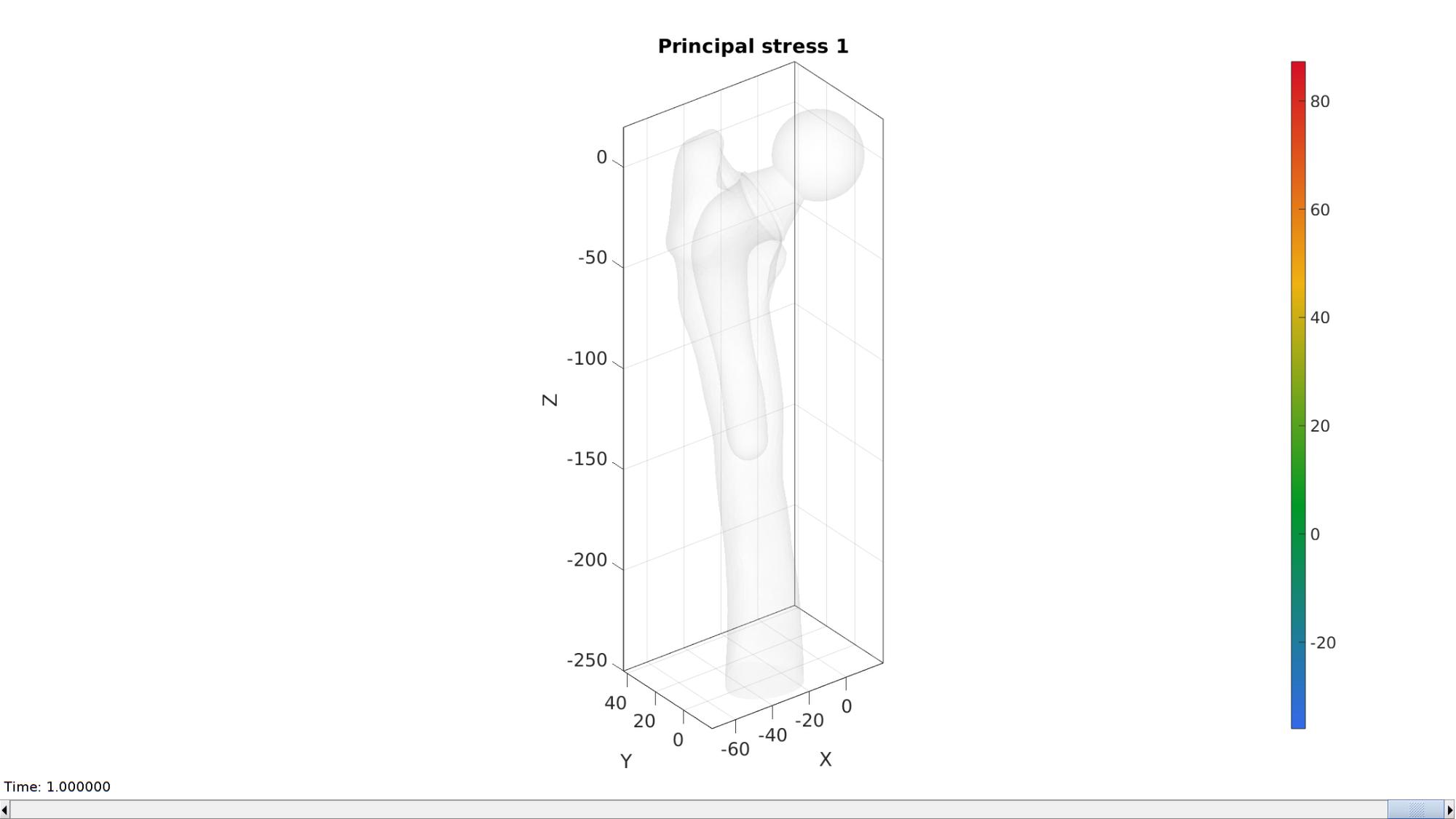

title('Principal stress 1');
gpatch(Fb,V,'w','none',0.1); %Add graphics object to animate

hp1=gpatch(F_cleave,V,CF_cleave,'k',1);
axisGeom(gca,fontSize);
colormap(gjet(250));
caxis([min(C_data) max(C_data)]);
colorbar; axis manual;
camlight headligth;
gdrawnow;

nSteps=25; %Number of animation steps

%Create the time vector
animStruct.Time=linspace(0,1,nSteps);

%The vector lengths
y=linspace(min(V(:,2)),max(V(:,2)),nSteps);
for q=1:1:nSteps

    [logicAt,logicAbove,logicBelow]=meshCleave(E_12,V,[0 y(q) 0],n,[1 0]);

    % Get faces and matching color data for cleaves elements
    [F_cleave,CF_cleave]=element2patch(E_12(logicAbove,:),C_data(logicAbove));

    %Set entries in animation structure
    animStruct.Handles{q}=[hp1 hp1]; %Handles of objects to animate
    animStruct.Props{q}={'Faces','CData'}; %Properties of objects to animate
    animStruct.Set{q}={F_cleave,CF_cleave}; %Property values for to set in order to animate
end
anim8(hf,animStruct);

C_data=E_stress_mat(logicBoneElements,3,end);

n=[0 1 0]; %Normal direction to plane
P=mean(V,1); %Point on plane
[logicAt,logicAbove,logicBelow]=meshCleave(E_12,V,P,n);

% Get faces and matching color data for visualization
[F_cleave,CF_cleave]=element2patch(E_12(logicAbove,:),C_data(logicAbove));

hf=cFigure; hold on;

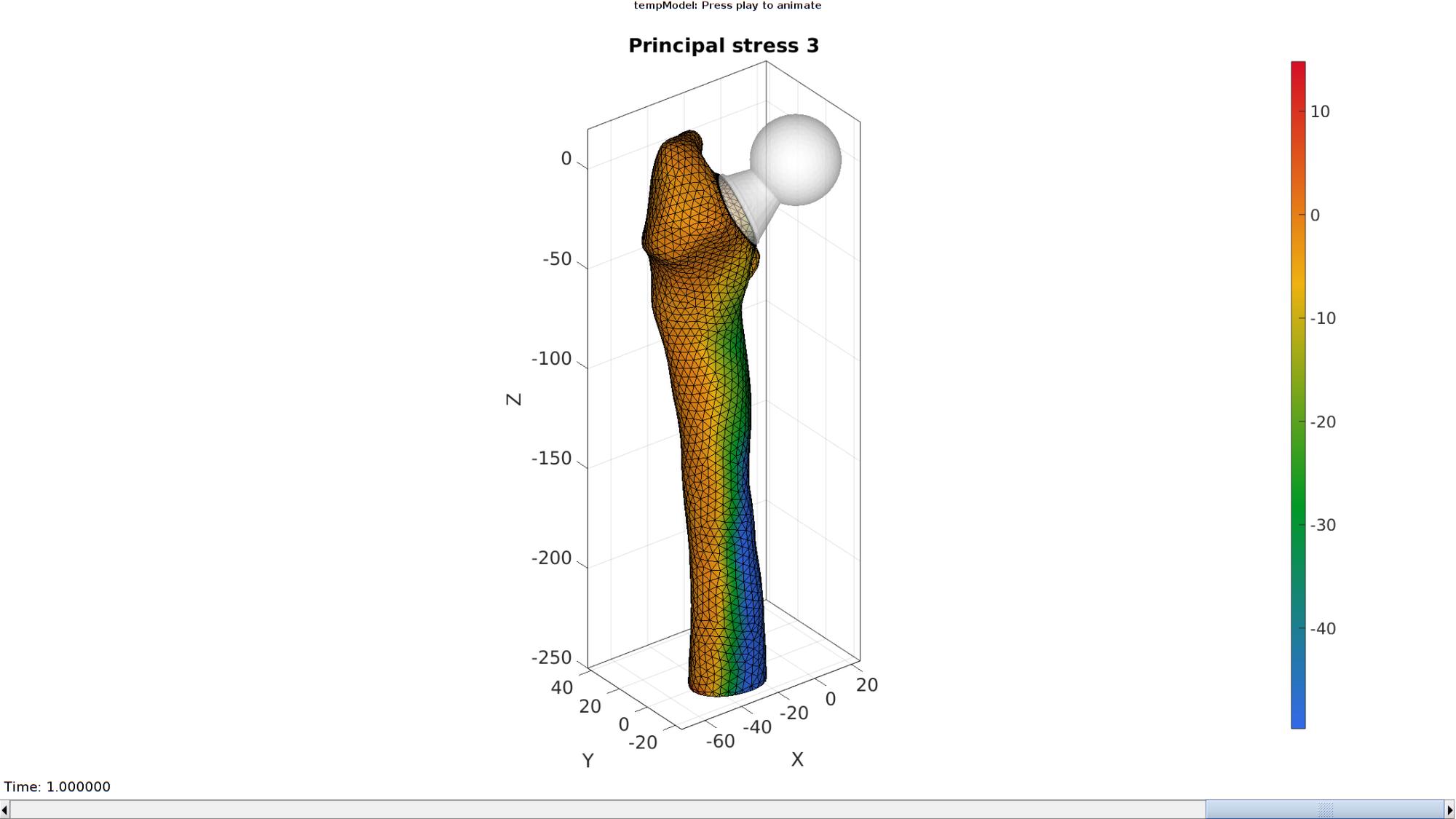

title('Principal stress 3');
gpatch(Fb,V,'w','none',0.1); %Add graphics object to animate

hp1=gpatch(F_cleave,V,CF_cleave,'k',1);
axisGeom(gca,fontSize);
colormap(gjet(250));
caxis([min(C_data) max(C_data)]);
colorbar; axis manual;
camlight headligth;
gdrawnow;

nSteps=25; %Number of animation steps

%Create the time vector
animStruct.Time=linspace(0,1,nSteps);

%The vector lengths
y=linspace(min(V(:,2)),max(V(:,2)),nSteps);
for q=1:1:nSteps

    [logicAt,logicAbove,logicBelow]=meshCleave(E_12,V,[0 y(q) 0],n,[1 0]);

    % Get faces and matching color data for cleaves elements
    [F_cleave,CF_cleave]=element2patch(E_12(logicAbove,:),C_data(logicAbove));

    %Set entries in animation structure
    animStruct.Handles{q}=[hp1 hp1]; %Handles of objects to animate
    animStruct.Props{q}={'Faces','CData'}; %Properties of objects to animate
    animStruct.Set{q}={F_cleave,CF_cleave}; %Property values for to set in order to animate
end
anim8(hf,animStruct);

simulated results using anim8 to visualize and animate

deformations

[FE_face,C_energy_face]=element2patch(E_12,E_energy(logicBoneElements,:,end),'tet4');
[CV]=faceToVertexMeasure(FE_face,V,C_energy_face);
[indBoundary]=tesBoundary(FE_face,V);
Fb_energy=FE_face(indBoundary,:);

axLim=[min(min(V_DEF,[],3),[],1); max(max(V_DEF,[],3),[],1)];

% Create basic view and store graphics handle to initiate animation
hf=cFigure; %Open figure

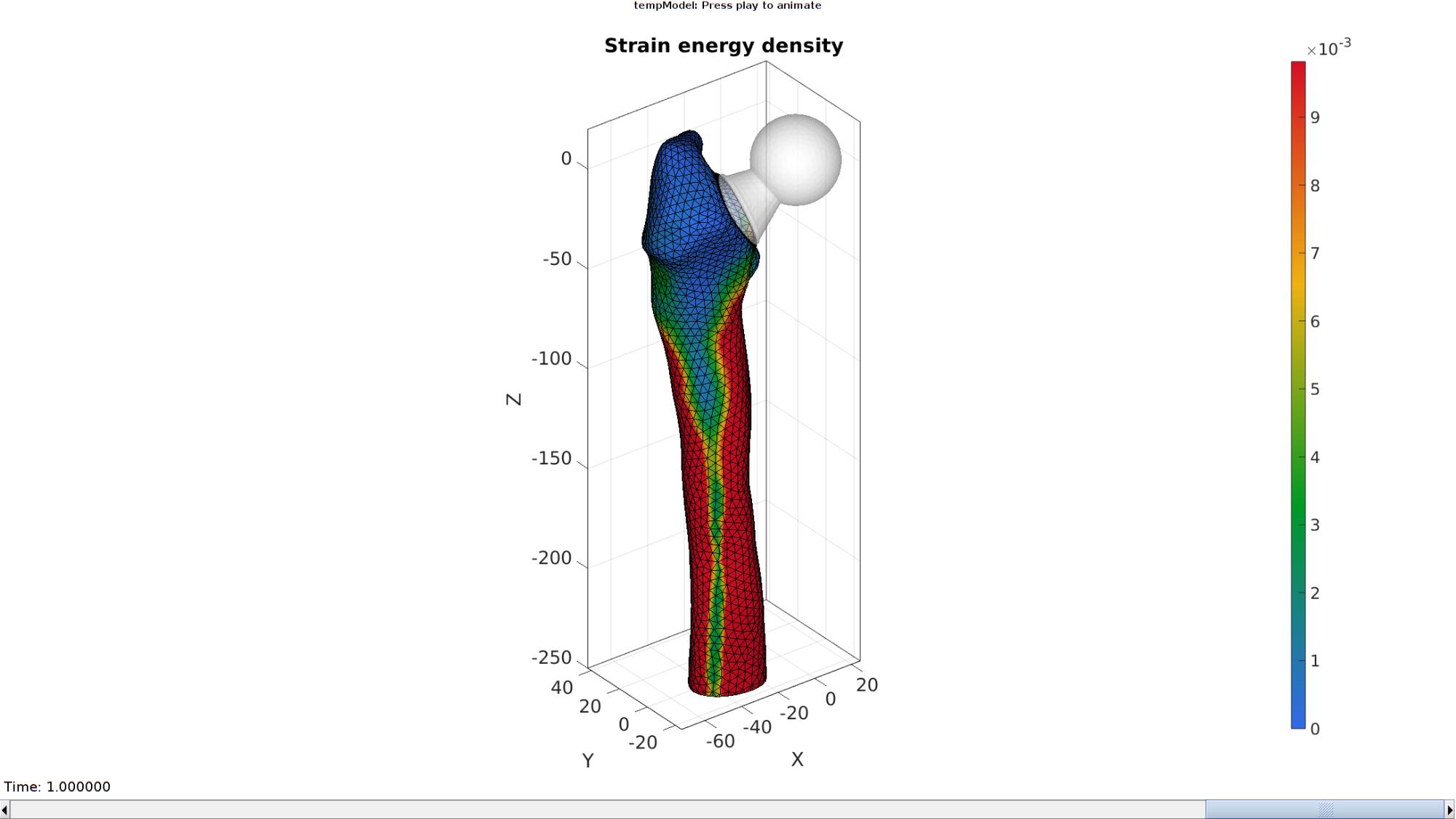

title('Strain energy density')
gtitle([febioFebFileNamePart,': Press play to animate']);

hp1=gpatch(Fb(Cb>3,:),V_DEF(:,:,end),'w','none',0.5); %Add graphics object to animate
hp2=gpatch(Fb_energy,V_DEF(:,:,end),CV,'k',1); %Add graphics object to animate
hp2.FaceColor='Interp';

axisGeom(gca,fontSize);
colormap(gjet(250)); colorbar;
caxis([0 max(E_energy(:))/25]);
axis(axLim(:)'); %Set axis limits statically
camlight headlight;

% Set up animation features
animStruct.Time=timeVec; %The time vector
for qt=1:1:size(N_disp_mat,3) %Loop over time increments
    DN=N_disp_mat(:,:,qt); %Current disp

    [FE_face,C_energy_face]=element2patch(E_12,E_energy(logicBoneElements,:,qt),'tet4');
    [CV]=faceToVertexMeasure(FE_face,V,C_energy_face);

    %Set entries in animation structure
    animStruct.Handles{qt}=[hp1 hp2 hp2]; %Handles of objects to animate
    animStruct.Props{qt}={'Vertices','Vertices','CData'}; %Properties of objects to animate
    animStruct.Set{qt}={V_DEF(:,:,qt),V_DEF(:,:,qt),CV}; %Property values for to set in order to animate
end
anim8(hf,animStruct); %Initiate animation feature
drawnow;

Warning: Second input (vertices) no longer required. Update code to avoid future
error.

simulated results using anim8 to visualize and animate

deformations

prinComp=3;

[FE_face,C_stress_face]=element2patch(E_12,E_stress_mat(logicBoneElements,prinComp,end),'tet4');
[CV]=faceToVertexMeasure(FE_face,V,C_stress_face);
[indBoundary]=tesBoundary(FE_face,V);
Fb_stress=FE_face(indBoundary,:);

axLim=[min(min(V_DEF,[],3),[],1); max(max(V_DEF,[],3),[],1)];

% Create basic view and store graphics handle to initiate animation
hf=cFigure; %Open figure
title(['Principal stress ',num2str(prinComp)])
gtitle([febioFebFileNamePart,': Press play to animate']);
hp1=gpatch(Fb(Cb>3,:),V_DEF(:,:,end),'w','none',0.5); %Add graphics object to animate
hp2=gpatch(Fb_stress,V_DEF(:,:,end),CV,'k',1); %Add graphics object to animate
hp2.FaceColor='Interp';

axisGeom(gca,fontSize);
colormap(gjet(250)); colorbar;
caxis([min(E_stress_mat(:,prinComp,end)) max(E_stress_mat(:,prinComp,end))]/2);

axis(axLim(:)'); %Set axis limits statically
camlight headlight;

% Set up animation features
animStruct.Time=timeVec; %The time vector
for qt=1:1:size(N_disp_mat,3) %Loop over time increments
    DN=N_disp_mat(:,:,qt); %Current disp

    [FE_face,C_stress_face]=element2patch(E_12,E_stress_mat(logicBoneElements,prinComp,qt),'tet4');
    [CV]=faceToVertexMeasure(FE_face,V,C_stress_face);

    %Set entries in animation structure
    animStruct.Handles{qt}=[hp1 hp2 hp2]; %Handles of objects to animate
    animStruct.Props{qt}={'Vertices','Vertices','CData'}; %Properties of objects to animate
    animStruct.Set{qt}={V_DEF(:,:,qt),V_DEF(:,:,qt),CV}; %Property values for to set in order to animate
end
anim8(hf,animStruct); %Initiate animation feature
drawnow;

Warning: Second input (vertices) no longer required. Update code to avoid future
error.

function [Fopt,outputStructure]=objectiveFunction(Pn,objectiveStruct)

Process input

febioFebFileName=objectiveStruct.febioFebFileName;
febio_spec=objectiveStruct.febio_spec;
febioAnalysis=objectiveStruct.febioAnalysis;
logFileImportName=objectiveStruct.logFileImportName;
objCompareMetric=objectiveStruct.objCompareMetric;
logicBoneElements=objectiveStruct.logicBoneElements;
W=objectiveStruct.W;
hp=objectiveStruct.hp;
optimType=objectiveStruct.optimType;

Unnormalize and constrain parameters

P=Pn.*objectiveStruct.parNormFactors; %Scale back, undo normalization
P_in=P; %Proposed P

%Constraining parameters
for q=1:1:numel(P)
    [P(q)]=boxconstrain(P(q),objectiveStruct.Pb_struct.xxlim(q,1),objectiveStruct.Pb_struct.xxlim(q,2),objectiveStruct.Pb_struct.xx_c(q));
end

Setting material parameters

disp('SETTING MATERIAL PARAMETERS...');
disp(['Proposed (norm.): ',sprintf(repmat('%6.16e ',[1,numel(Pn)]),Pn)]);
disp(['Proposed        : ',sprintf(repmat('%6.16e ',[1,numel(P_in)]),P_in)]);
disp(['Set (constr.)   : ',sprintf(repmat('%6.16e ',[1,numel(P)]),P)]);

% Define Youngs moduli variation
switch optimType
    case 1 %homogeneous
        E_youngs_implant=P(1)*ones(numel(W),1);
    case 2 %Spat. var.
       E_youngs_implant=(W.*(E_youngs_max-E_youngs_min))+E_youngs_min;
end

%Adjust material parameter map
febio_spec.MeshData.ElementData{1}.elem.VAL=E_youngs_implant;

%Export changes to feb file
febioStruct2xml(febio_spec,febioFebFileName); %Exporting to file and domNode

disp('Done')

SETTING MATERIAL PARAMETERS...
Proposed (norm.): 1.0000000000000000e+00
Proposed        : 6.2500000000000000e+04
Set (constr.)   : 6.2500000000000000e+04
Done

SETTING MATERIAL PARAMETERS...
Proposed (norm.): 1.0100000000000000e+00
Proposed        : 6.3125000000000000e+04
Set (constr.)   : 6.3124963933707266e+04
Done

SETTING MATERIAL PARAMETERS...
Proposed (norm.): 1.2383346017999650e+00
Proposed        : 7.7395912612497807e+04
Set (constr.)   : 7.6926079164734634e+04
Done

SETTING MATERIAL PARAMETERS...
Proposed (norm.): 1.2507179478179646e+00
Proposed        : 7.8169871738622795e+04
Set (constr.)   : 7.7625128773302131e+04
Done

SETTING MATERIAL PARAMETERS...
Proposed (norm.): 1.2481334418691081e+00
Proposed        : 7.8008340116819265e+04
Set (constr.)   : 7.7479818649887253e+04
Done

SETTING MATERIAL PARAMETERS...
Proposed (norm.): 1.2606147762877993e+00
Proposed        : 7.8788423517987452e+04
Set (constr.)   : 7.8178636862041662e+04
Done

SETTING MATERIAL PARAMETERS...
Proposed (norm.): 1.2467706276771602e+00
Proposed        : 7.7923164229822505e+04
Set (constr.)   : 7.7403070597398852e+04
Done

SETTING MATERIAL PARAMETERS...
Proposed (norm.): 1.2467768457678536e+00
Proposed        : 7.7923552860490847e+04
Set (constr.)   : 7.7403420971008425e+04
Done

SETTING MATERIAL PARAMETERS...
Proposed (norm.): 1.2468360420247255e+00
Proposed        : 7.7927252626545349e+04
Set (constr.)   : 7.7406756439574761e+04
Done

SETTING MATERIAL PARAMETERS...
Proposed (norm.): 1.2472301857353481e+00
Proposed        : 7.7951886608459259e+04
Set (constr.)   : 7.7428960677677882e+04
Done

SETTING MATERIAL PARAMETERS...
Proposed (norm.): 1.2479097501645513e+00
Proposed        : 7.7994359385284450e+04
Set (constr.)   : 7.7467227201276095e+04
Done

SETTING MATERIAL PARAMETERS...
Proposed (norm.): 1.2603888476661969e+00
Proposed        : 7.8774302979137297e+04
Set (constr.)   : 7.8166053529163604e+04
Done

SETTING MATERIAL PARAMETERS...
Proposed (norm.): 1.2479097501645513e+00
Proposed        : 7.7994359385284450e+04
Set (constr.)   : 7.7467227201276095e+04
Done

START FEBio

[runFlag]=runMonitorFEBio(febioAnalysis);

if runFlag==1
    % import optimization metric
    dataStruct=importFEBio_logfile(logFileImportName,0,1);

    %Access data for last time step
    E_metric=dataStruct.data(logicBoneElements,:,end);

    %Difference between cases
    differenceData=E_metric-objCompareMetric;
else %Output NaN
    differenceData=nan(size(objCompareMetric));
end

differenceData_SSQD=sum(differenceData(:).^2); %Sum of squared differences

switch objectiveStruct.method
    case 1
        Fopt=differenceData_SSQD; %Use sum of squared differences
    case 2
        Fopt=differenceData(:); %Differences
end


%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
-------->    RUNNING/MONITORING FEBIO JOB    <-------- 29-May-2023 10:42:11
FEBio path: /home/kevin/FEBioStudio/bin/febio4
# Attempt removal of existing log files                29-May-2023 10:42:11
 * Removal succesful                                   29-May-2023 10:42:11
# Attempt removal of existing .xplt files              29-May-2023 10:42:11
 * Removal succesful                                   29-May-2023 10:42:11
# Starting FEBio...                                    29-May-2023 10:42:11
  Max. total analysis time is: Inf s
 * Waiting for log file creation                       29-May-2023 10:42:11
   Max. wait time: 120 s
 * Log file found.                                     29-May-2023 10:42:11
# Parsing log file...                                  29-May-2023 10:42:11
    number of iterations   : 4                         29-May-2023 10:42:14
    number of reformations : 4                         29-May-2023 10:42:14
------- converged at time : 0.2                        29-May-2023 10:42:14
    number of iterations   : 4                         29-May-2023 10:42:16
    number of reformations : 4                         29-May-2023 10:42:16
------- converged at time : 0.4                        29-May-2023 10:42:16
    number of iterations   : 4                         29-May-2023 10:42:16
    number of reformations : 4                         29-May-2023 10:42:16
------- converged at time : 0.6                        29-May-2023 10:42:16
    number of iterations   : 4                         29-May-2023 10:42:18
    number of reformations : 4                         29-May-2023 10:42:18
------- converged at time : 0.8                        29-May-2023 10:42:18
    number of iterations   : 4                         29-May-2023 10:42:19
    number of reformations : 4                         29-May-2023 10:42:19
------- converged at time : 1                          29-May-2023 10:42:19
 Elapsed time : 0:00:08                                29-May-2023 10:42:19
 N O R M A L   T E R M I N A T I O N
# Done                                                 29-May-2023 10:42:19
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%


%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
-------->    RUNNING/MONITORING FEBIO JOB    <-------- 29-May-2023 10:42:22
FEBio path: /home/kevin/FEBioStudio/bin/febio4
# Attempt removal of existing log files                29-May-2023 10:42:22
 * Removal succesful                                   29-May-2023 10:42:22
# Attempt removal of existing .xplt files              29-May-2023 10:42:22
 * Removal succesful                                   29-May-2023 10:42:22
# Starting FEBio...                                    29-May-2023 10:42:22
  Max. total analysis time is: Inf s
 * Waiting for log file creation                       29-May-2023 10:42:23
   Max. wait time: 120 s
 * Log file found.                                     29-May-2023 10:42:23
# Parsing log file...                                  29-May-2023 10:42:23
    number of iterations   : 4                         29-May-2023 10:42:26
    number of reformations : 4                         29-May-2023 10:42:26
------- converged at time : 0.2                        29-May-2023 10:42:26
    number of iterations   : 4                         29-May-2023 10:42:28
    number of reformations : 4                         29-May-2023 10:42:28
------- converged at time : 0.4                        29-May-2023 10:42:28
    number of iterations   : 4                         29-May-2023 10:42:28
    number of reformations : 4                         29-May-2023 10:42:28
------- converged at time : 0.6                        29-May-2023 10:42:28
    number of iterations   : 4                         29-May-2023 10:42:30
    number of reformations : 4                         29-May-2023 10:42:30
------- converged at time : 0.8                        29-May-2023 10:42:30
    number of iterations   : 4                         29-May-2023 10:42:31
    number of reformations : 4                         29-May-2023 10:42:31
------- converged at time : 1                          29-May-2023 10:42:31
 Elapsed time : 0:00:08                                29-May-2023 10:42:31
 N O R M A L   T E R M I N A T I O N
# Done                                                 29-May-2023 10:42:31
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%


%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
-------->    RUNNING/MONITORING FEBIO JOB    <-------- 29-May-2023 10:42:34
FEBio path: /home/kevin/FEBioStudio/bin/febio4
# Attempt removal of existing log files                29-May-2023 10:42:34
 * Removal succesful                                   29-May-2023 10:42:34
# Attempt removal of existing .xplt files              29-May-2023 10:42:34
 * Removal succesful                                   29-May-2023 10:42:34
# Starting FEBio...                                    29-May-2023 10:42:34
  Max. total analysis time is: Inf s
 * Waiting for log file creation                       29-May-2023 10:42:34
   Max. wait time: 120 s
 * Log file found.                                     29-May-2023 10:42:35
# Parsing log file...                                  29-May-2023 10:42:35
    number of iterations   : 4                         29-May-2023 10:42:37
    number of reformations : 4                         29-May-2023 10:42:37
------- converged at time : 0.2                        29-May-2023 10:42:37
    number of iterations   : 4                         29-May-2023 10:42:40
    number of reformations : 4                         29-May-2023 10:42:40
------- converged at time : 0.4                        29-May-2023 10:42:40
    number of iterations   : 4                         29-May-2023 10:42:40
    number of reformations : 4                         29-May-2023 10:42:40
------- converged at time : 0.6                        29-May-2023 10:42:40
    number of iterations   : 4                         29-May-2023 10:42:42
    number of reformations : 4                         29-May-2023 10:42:42
------- converged at time : 0.8                        29-May-2023 10:42:42
    number of iterations   : 4                         29-May-2023 10:42:43
    number of reformations : 4                         29-May-2023 10:42:43
------- converged at time : 1                          29-May-2023 10:42:43
 Elapsed time : 0:00:09                                29-May-2023 10:42:43
 N O R M A L   T E R M I N A T I O N
# Done                                                 29-May-2023 10:42:43
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%


%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
-------->    RUNNING/MONITORING FEBIO JOB    <-------- 29-May-2023 10:42:46
FEBio path: /home/kevin/FEBioStudio/bin/febio4
# Attempt removal of existing log files                29-May-2023 10:42:46
 * Removal succesful                                   29-May-2023 10:42:46
# Attempt removal of existing .xplt files              29-May-2023 10:42:47
 * Removal succesful                                   29-May-2023 10:42:47
# Starting FEBio...                                    29-May-2023 10:42:47
  Max. total analysis time is: Inf s
 * Waiting for log file creation                       29-May-2023 10:42:47
   Max. wait time: 120 s
 * Log file found.                                     29-May-2023 10:42:47
# Parsing log file...                                  29-May-2023 10:42:47
    number of iterations   : 4                         29-May-2023 10:42:50
    number of reformations : 4                         29-May-2023 10:42:50
------- converged at time : 0.2                        29-May-2023 10:42:50
    number of iterations   : 4                         29-May-2023 10:42:52
    number of reformations : 4                         29-May-2023 10:42:52
------- converged at time : 0.4                        29-May-2023 10:42:52
    number of iterations   : 4                         29-May-2023 10:42:52
    number of reformations : 4                         29-May-2023 10:42:52
------- converged at time : 0.6                        29-May-2023 10:42:52
    number of iterations   : 4                         29-May-2023 10:42:54
    number of reformations : 4                         29-May-2023 10:42:54
------- converged at time : 0.8                        29-May-2023 10:42:54
    number of iterations   : 4                         29-May-2023 10:42:55
    number of reformations : 4                         29-May-2023 10:42:55
------- converged at time : 1                          29-May-2023 10:42:55
 Elapsed time : 0:00:08                                29-May-2023 10:42:55
 N O R M A L   T E R M I N A T I O N
# Done                                                 29-May-2023 10:42:55
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%


%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
-------->    RUNNING/MONITORING FEBIO JOB    <-------- 29-May-2023 10:42:58
FEBio path: /home/kevin/FEBioStudio/bin/febio4
# Attempt removal of existing log files                29-May-2023 10:42:58
 * Removal succesful                                   29-May-2023 10:42:58
# Attempt removal of existing .xplt files              29-May-2023 10:42:58
 * Removal succesful                                   29-May-2023 10:42:58
# Starting FEBio...                                    29-May-2023 10:42:58
  Max. total analysis time is: Inf s
 * Waiting for log file creation                       29-May-2023 10:42:58
   Max. wait time: 120 s
 * Log file found.                                     29-May-2023 10:42:59
# Parsing log file...                                  29-May-2023 10:42:59
    number of iterations   : 4                         29-May-2023 10:43:02
    number of reformations : 4                         29-May-2023 10:43:02
------- converged at time : 0.2                        29-May-2023 10:43:02
    number of iterations   : 4                         29-May-2023 10:43:04
    number of reformations : 4                         29-May-2023 10:43:04
------- converged at time : 0.4                        29-May-2023 10:43:04
    number of iterations   : 4                         29-May-2023 10:43:04
    number of reformations : 4                         29-May-2023 10:43:04
------- converged at time : 0.6                        29-May-2023 10:43:04
    number of iterations   : 4                         29-May-2023 10:43:07
    number of reformations : 4                         29-May-2023 10:43:07
------- converged at time : 0.8                        29-May-2023 10:43:07
    number of iterations   : 4                         29-May-2023 10:43:08
    number of reformations : 4                         29-May-2023 10:43:08
------- converged at time : 1                          29-May-2023 10:43:08
 Elapsed time : 0:00:09                                29-May-2023 10:43:08
 N O R M A L   T E R M I N A T I O N
# Done                                                 29-May-2023 10:43:08
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%


%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
-------->    RUNNING/MONITORING FEBIO JOB    <-------- 29-May-2023 10:43:11
FEBio path: /home/kevin/FEBioStudio/bin/febio4
# Attempt removal of existing log files                29-May-2023 10:43:11
 * Removal succesful                                   29-May-2023 10:43:11
# Attempt removal of existing .xplt files              29-May-2023 10:43:11
 * Removal succesful                                   29-May-2023 10:43:11
# Starting FEBio...                                    29-May-2023 10:43:11
  Max. total analysis time is: Inf s
 * Waiting for log file creation                       29-May-2023 10:43:11
   Max. wait time: 120 s
 * Log file found.                                     29-May-2023 10:43:12
# Parsing log file...                                  29-May-2023 10:43:12
    number of iterations   : 4                         29-May-2023 10:43:15
    number of reformations : 4                         29-May-2023 10:43:15
------- converged at time : 0.2                        29-May-2023 10:43:15
    number of iterations   : 4                         29-May-2023 10:43:17
    number of reformations : 4                         29-May-2023 10:43:17
------- converged at time : 0.4                        29-May-2023 10:43:17
    number of iterations   : 4                         29-May-2023 10:43:17
    number of reformations : 4                         29-May-2023 10:43:17
------- converged at time : 0.6                        29-May-2023 10:43:17
    number of iterations   : 4                         29-May-2023 10:43:20
    number of reformations : 4                         29-May-2023 10:43:20
------- converged at time : 0.8                        29-May-2023 10:43:20
    number of iterations   : 4                         29-May-2023 10:43:21
    number of reformations : 4                         29-May-2023 10:43:21
------- converged at time : 1                          29-May-2023 10:43:21
 Elapsed time : 0:00:09                                29-May-2023 10:43:21
 N O R M A L   T E R M I N A T I O N
# Done                                                 29-May-2023 10:43:21
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%


%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
-------->    RUNNING/MONITORING FEBIO JOB    <-------- 29-May-2023 10:43:23
FEBio path: /home/kevin/FEBioStudio/bin/febio4
# Attempt removal of existing log files                29-May-2023 10:43:23
 * Removal succesful                                   29-May-2023 10:43:24
# Attempt removal of existing .xplt files              29-May-2023 10:43:24
 * Removal succesful                                   29-May-2023 10:43:24
# Starting FEBio...                                    29-May-2023 10:43:24
  Max. total analysis time is: Inf s
 * Waiting for log file creation                       29-May-2023 10:43:24
   Max. wait time: 120 s
 * Log file found.                                     29-May-2023 10:43:24
# Parsing log file...                                  29-May-2023 10:43:24
    number of iterations   : 4                         29-May-2023 10:43:27
    number of reformations : 4                         29-May-2023 10:43:27
------- converged at time : 0.2                        29-May-2023 10:43:27
    number of iterations   : 4                         29-May-2023 10:43:29
    number of reformations : 4                         29-May-2023 10:43:29
------- converged at time : 0.4                        29-May-2023 10:43:29
    number of iterations   : 4                         29-May-2023 10:43:29
    number of reformations : 4                         29-May-2023 10:43:29
------- converged at time : 0.6                        29-May-2023 10:43:29
    number of iterations   : 4                         29-May-2023 10:43:32
    number of reformations : 4                         29-May-2023 10:43:32
------- converged at time : 0.8                        29-May-2023 10:43:32
    number of iterations   : 4                         29-May-2023 10:43:33
    number of reformations : 4                         29-May-2023 10:43:33
------- converged at time : 1                          29-May-2023 10:43:33
 Elapsed time : 0:00:09                                29-May-2023 10:43:33
 N O R M A L   T E R M I N A T I O N
# Done                                                 29-May-2023 10:43:33
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%


%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
-------->    RUNNING/MONITORING FEBIO JOB    <-------- 29-May-2023 10:43:36
FEBio path: /home/kevin/FEBioStudio/bin/febio4
# Attempt removal of existing log files                29-May-2023 10:43:36
 * Removal succesful                                   29-May-2023 10:43:36
# Attempt removal of existing .xplt files              29-May-2023 10:43:36
 * Removal succesful                                   29-May-2023 10:43:36
# Starting FEBio...                                    29-May-2023 10:43:36
  Max. total analysis time is: Inf s
 * Waiting for log file creation                       29-May-2023 10:43:36
   Max. wait time: 120 s
 * Log file found.                                     29-May-2023 10:43:37
# Parsing log file...                                  29-May-2023 10:43:37
    number of iterations   : 4                         29-May-2023 10:43:39
    number of reformations : 4                         29-May-2023 10:43:39
------- converged at time : 0.2                        29-May-2023 10:43:39
    number of iterations   : 4                         29-May-2023 10:43:41
    number of reformations : 4                         29-May-2023 10:43:41
------- converged at time : 0.4                        29-May-2023 10:43:41
    number of iterations   : 4                         29-May-2023 10:43:41
    number of reformations : 4                         29-May-2023 10:43:41
------- converged at time : 0.6                        29-May-2023 10:43:41
    number of iterations   : 4                         29-May-2023 10:43:44
    number of reformations : 4                         29-May-2023 10:43:44
------- converged at time : 0.8                        29-May-2023 10:43:44
    number of iterations   : 4                         29-May-2023 10:43:45
    number of reformations : 4                         29-May-2023 10:43:45
------- converged at time : 1                          29-May-2023 10:43:45
 Elapsed time : 0:00:09                                29-May-2023 10:43:45
 N O R M A L   T E R M I N A T I O N
# Done                                                 29-May-2023 10:43:45
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%


%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
-------->    RUNNING/MONITORING FEBIO JOB    <-------- 29-May-2023 10:43:48
FEBio path: /home/kevin/FEBioStudio/bin/febio4
# Attempt removal of existing log files                29-May-2023 10:43:48
 * Removal succesful                                   29-May-2023 10:43:48
# Attempt removal of existing .xplt files              29-May-2023 10:43:48
 * Removal succesful                                   29-May-2023 10:43:48
# Starting FEBio...                                    29-May-2023 10:43:48
  Max. total analysis time is: Inf s
 * Waiting for log file creation                       29-May-2023 10:43:49
   Max. wait time: 120 s
 * Log file found.                                     29-May-2023 10:43:49
# Parsing log file...                                  29-May-2023 10:43:49
    number of iterations   : 4                         29-May-2023 10:43:53
    number of reformations : 4                         29-May-2023 10:43:53
------- converged at time : 0.2                        29-May-2023 10:43:53
    number of iterations   : 4                         29-May-2023 10:43:55
    number of reformations : 4                         29-May-2023 10:43:55
------- converged at time : 0.4                        29-May-2023 10:43:55
    number of iterations   : 4                         29-May-2023 10:43:55
    number of reformations : 4                         29-May-2023 10:43:55
------- converged at time : 0.6                        29-May-2023 10:43:55
    number of iterations   : 4                         29-May-2023 10:43:57
    number of reformations : 4                         29-May-2023 10:43:57
------- converged at time : 0.8                        29-May-2023 10:43:57
    number of iterations   : 4                         29-May-2023 10:43:58
    number of reformations : 4                         29-May-2023 10:43:58
------- converged at time : 1                          29-May-2023 10:43:58
 Elapsed time : 0:00:09                                29-May-2023 10:43:58
 N O R M A L   T E R M I N A T I O N
# Done                                                 29-May-2023 10:43:58
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%


%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
-------->    RUNNING/MONITORING FEBIO JOB    <-------- 29-May-2023 10:44:01
FEBio path: /home/kevin/FEBioStudio/bin/febio4
# Attempt removal of existing log files                29-May-2023 10:44:01
 * Removal succesful                                   29-May-2023 10:44:01
# Attempt removal of existing .xplt files              29-May-2023 10:44:01
 * Removal succesful                                   29-May-2023 10:44:01
# Starting FEBio...                                    29-May-2023 10:44:01
  Max. total analysis time is: Inf s
 * Waiting for log file creation                       29-May-2023 10:44:01
   Max. wait time: 120 s
 * Log file found.                                     29-May-2023 10:44:02
# Parsing log file...                                  29-May-2023 10:44:02
    number of iterations   : 4                         29-May-2023 10:44:05
    number of reformations : 4                         29-May-2023 10:44:05
------- converged at time : 0.2                        29-May-2023 10:44:05
    number of iterations   : 4                         29-May-2023 10:44:07
    number of reformations : 4                         29-May-2023 10:44:07
------- converged at time : 0.4                        29-May-2023 10:44:07
    number of iterations   : 4                         29-May-2023 10:44:07
    number of reformations : 4                         29-May-2023 10:44:07
------- converged at time : 0.6                        29-May-2023 10:44:07
    number of iterations   : 4                         29-May-2023 10:44:10
    number of reformations : 4                         29-May-2023 10:44:10
------- converged at time : 0.8                        29-May-2023 10:44:10
    number of iterations   : 4                         29-May-2023 10:44:11
    number of reformations : 4                         29-May-2023 10:44:11
------- converged at time : 1                          29-May-2023 10:44:11
 Elapsed time : 0:00:09                                29-May-2023 10:44:11
 N O R M A L   T E R M I N A T I O N
# Done                                                 29-May-2023 10:44:11
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%


%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
-------->    RUNNING/MONITORING FEBIO JOB    <-------- 29-May-2023 10:44:14
FEBio path: /home/kevin/FEBioStudio/bin/febio4
# Attempt removal of existing log files                29-May-2023 10:44:14
 * Removal succesful                                   29-May-2023 10:44:14
# Attempt removal of existing .xplt files              29-May-2023 10:44:14
 * Removal succesful                                   29-May-2023 10:44:14
# Starting FEBio...                                    29-May-2023 10:44:14
  Max. total analysis time is: Inf s
 * Waiting for log file creation                       29-May-2023 10:44:14
   Max. wait time: 120 s
 * Log file found.                                     29-May-2023 10:44:14
# Parsing log file...                                  29-May-2023 10:44:14
    number of iterations   : 4                         29-May-2023 10:44:17
    number of reformations : 4                         29-May-2023 10:44:17
------- converged at time : 0.2                        29-May-2023 10:44:17
    number of iterations   : 4                         29-May-2023 10:44:19
    number of reformations : 4                         29-May-2023 10:44:19
------- converged at time : 0.4                        29-May-2023 10:44:19
    number of iterations   : 4                         29-May-2023 10:44:19
    number of reformations : 4                         29-May-2023 10:44:19
------- converged at time : 0.6                        29-May-2023 10:44:19
    number of iterations   : 4                         29-May-2023 10:44:22
    number of reformations : 4                         29-May-2023 10:44:22
------- converged at time : 0.8                        29-May-2023 10:44:22
    number of iterations   : 4                         29-May-2023 10:44:24
    number of reformations : 4                         29-May-2023 10:44:24
------- converged at time : 1                          29-May-2023 10:44:24
 Elapsed time : 0:00:09                                29-May-2023 10:44:24
 N O R M A L   T E R M I N A T I O N
# Done                                                 29-May-2023 10:44:24
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%


%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
-------->    RUNNING/MONITORING FEBIO JOB    <-------- 29-May-2023 10:44:27
FEBio path: /home/kevin/FEBioStudio/bin/febio4
# Attempt removal of existing log files                29-May-2023 10:44:27
 * Removal succesful                                   29-May-2023 10:44:27
# Attempt removal of existing .xplt files              29-May-2023 10:44:27
 * Removal succesful                                   29-May-2023 10:44:27
# Starting FEBio...                                    29-May-2023 10:44:27
  Max. total analysis time is: Inf s
 * Waiting for log file creation                       29-May-2023 10:44:27
   Max. wait time: 120 s
 * Log file found.                                     29-May-2023 10:44:28
# Parsing log file...                                  29-May-2023 10:44:28
    number of iterations   : 4                         29-May-2023 10:44:31
    number of reformations : 4                         29-May-2023 10:44:31
------- converged at time : 0.2                        29-May-2023 10:44:31
    number of iterations   : 4                         29-May-2023 10:44:33
    number of reformations : 4                         29-May-2023 10:44:33
------- converged at time : 0.4                        29-May-2023 10:44:33
    number of iterations   : 4                         29-May-2023 10:44:33
    number of reformations : 4                         29-May-2023 10:44:33
------- converged at time : 0.6                        29-May-2023 10:44:33
    number of iterations   : 4                         29-May-2023 10:44:36
    number of reformations : 4                         29-May-2023 10:44:36
------- converged at time : 0.8                        29-May-2023 10:44:36
    number of iterations   : 4                         29-May-2023 10:44:37
    number of reformations : 4                         29-May-2023 10:44:37
------- converged at time : 1                          29-May-2023 10:44:37
 Elapsed time : 0:00:09                                29-May-2023 10:44:37
 N O R M A L   T E R M I N A T I O N
# Done                                                 29-May-2023 10:44:37
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%


%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
-------->    RUNNING/MONITORING FEBIO JOB    <-------- 29-May-2023 10:44:40
FEBio path: /home/kevin/FEBioStudio/bin/febio4
# Attempt removal of existing log files                29-May-2023 10:44:40
 * Removal succesful                                   29-May-2023 10:44:40
# Attempt removal of existing .xplt files              29-May-2023 10:44:40
 * Removal succesful                                   29-May-2023 10:44:40
# Starting FEBio...                                    29-May-2023 10:44:40
  Max. total analysis time is: Inf s
 * Waiting for log file creation                       29-May-2023 10:44:41
   Max. wait time: 120 s
 * Log file found.                                     29-May-2023 10:44:41
# Parsing log file...                                  29-May-2023 10:44:41
    number of iterations   : 4                         29-May-2023 10:44:44
    number of reformations : 4                         29-May-2023 10:44:44
------- converged at time : 0.2                        29-May-2023 10:44:44
    number of iterations   : 4                         29-May-2023 10:44:46
    number of reformations : 4                         29-May-2023 10:44:46
------- converged at time : 0.4                        29-May-2023 10:44:46
    number of iterations   : 4                         29-May-2023 10:44:46
    number of reformations : 4                         29-May-2023 10:44:46
------- converged at time : 0.6                        29-May-2023 10:44:46
    number of iterations   : 4                         29-May-2023 10:44:49
    number of reformations : 4                         29-May-2023 10:44:49
------- converged at time : 0.8                        29-May-2023 10:44:49
    number of iterations   : 4                         29-May-2023 10:44:50
    number of reformations : 4                         29-May-2023 10:44:50
------- converged at time : 1                          29-May-2023 10:44:50
 Elapsed time : 0:00:08                                29-May-2023 10:44:50
 N O R M A L   T E R M I N A T I O N
# Done                                                 29-May-2023 10:44:50
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

Update plot

hp.XData=[hp.XData hp.XData(end)+1];
hp.YData=[hp.YData differenceData_SSQD];
drawnow;

Collect output

outputStructure.differenceData=differenceData;
outputStructure.differenceData_SSQD=differenceData_SSQD;
outputStructure.E_metric=E_metric;

end

                                        First-order                     Norm of
 Iteration  Func-count      Resnorm      optimality       Lambda           step
     0           2          10.0415          0.0917         0.01
     1           4          10.0216         0.00199        0.001       0.238335
     2           6          10.0216        0.000268       0.0001     0.00979884
     3          12          10.0216        0.000217            1    0.000223692

Local minimum possible.

lsqnonlin stopped because the final change in the sum of squares relative to
its initial value is less than the value of the function tolerance.

GIBBON footer text

License: https://github.com/gibbonCode/GIBBON/blob/master/LICENSE

GIBBON: The Geometry and Image-based Bioengineering add-On. A toolbox for image segmentation, image-based modeling, meshing, and finite element analysis.

Copyright (C) 2006-2023 Kevin Mattheus Moerman and the GIBBON contributors

This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program. If not, see http://www.gnu.org/licenses/.

Published with MATLAB® R2023a
