DEMO_febio_0039_nut_bolt_ring
Below is a demonstration for:
- Building geometry for a slab with hexahedral elements, and a triangulated sphere.
- Defining the boundary conditions
- Coding the febio structure
- Running the model
- Importing and visualizing the displacement results
Contents
Keywords
- febio_spec version 2.5
- febio, FEBio
- indentation
- contact, sliding, sticky, friction
- rigid body constraints
- hexahedral elements, hex8
- triangular elements, tri3
- slab, block, rectangular
- sphere
- static, solid
- hyperelastic, Ogden
- displacement logfile
- stress logfile
clear; close all; clc;
Plot settings
fontSize=15; faceAlpha1=0.8; faceAlpha2=0.3; markerSize=40; lineWidth=3;
Control parameters
% Path names defaultFolder = fileparts(fileparts(mfilename('fullpath'))); savePath=fullfile(defaultFolder,'data','temp'); stlPath=fullfile(defaultFolder,'data','STL'); % STL files for parts fileName_1=fullfile(stlPath,'M3_nut.stl'); fileName_2=fullfile(stlPath,'M3_bolt.stl'); % Defining file names febioFebFileNamePart='tempModel'; febioFebFileName=fullfile(savePath,[febioFebFileNamePart,'.feb']); %FEB file name febioLogFileName=fullfile(savePath,[febioFebFileNamePart,'.txt']); %FEBio log file name febioLogFileName_disp=[febioFebFileNamePart,'_disp_out.txt']; %Log file name for exporting displacement %Define prescribed rotation prescribedRotation_Z=-(pi/4); prescribedDisplacement_Z=-0.25; %Material parameter set c1=1e-3; %Shear-modulus-like parameter m1=2; %Material parameter setting degree of non-linearity k_factor=1e2; %Bulk modulus factor k=c1*k_factor; %Bulk modulus d=1e-9; %Density % FEA control settings numTimeSteps=15; %Number of time steps desired max_refs=25; %Max reforms max_ups=0; %Set to zero to use full-Newton iterations opt_iter=20; %Optimum number of iterations max_retries=5; %Maximum number of retires dtmin=(1/numTimeSteps)/100; %Minimum time step size dtmax=1/numTimeSteps; %Maximum time step size symmetric_stiffness=0; min_residual=1e-20; %Contact parameters contactPenalty=30; laugon=0; minaug=1; maxaug=10; fric_coeff=1;
Import STL file as patch data
[stlStruct] = import_STL(fileName_1);
F_nut=stlStruct.solidFaces{1}; %Faces
V_nut=stlStruct.solidVertices{1}; %Vertices
[F_nut,V_nut]=mergeVertices(F_nut,V_nut); % Merging nodes
V_nut=V_nut*10;
meanV1=mean(V_nut,1);
V_nut=V_nut-meanV1;
% V_nut(:,[1 2])=V_nut(:,[1 2]).*1.01;
V_nut=V_nut+meanV1;
[stlStruct] = import_STL(fileName_2);
F_bolt=stlStruct.solidFaces{1}; %Faces
V_bolt=stlStruct.solidVertices{1}; %Vertices
[F_bolt,V_bolt]=mergeVertices(F_bolt,V_bolt); % Merging nodes
V_bolt=V_bolt*10;
V_nut(:,3)=V_nut(:,3)+4.31-0.25;
pointSpacing=0.3;
r1=3;
n=round((2*pi*r1)/pointSpacing);
t=linspace(0,2*pi,n);t=t(1:end-1);
x=r1*cos(t);
y=r1*sin(t);
V1c=[x(:) y(:)];
r2=3.2/2;
n=round((2*pi*r2)/pointSpacing);
t=linspace(0,2*pi,n);t=t(1:end-1);
x=r2*cos(t);
y=r2*sin(t);
V2c=[x(:) y(:)];
[F1,V1]=regionTriMesh2D({V1c,V2c},pointSpacing,0,0);
F1=fliplr(F1);
V1(:,3)=0;
V1c(:,3)=0;
V2c(:,3)=0;
F2=F1;
F2=fliplr(F2);
V2=V1;
V2(:,3)=V2(:,3)+2;
V1c2=V1c;
V1c2(:,3)=V1c2(:,3)+2;
V2c2=V2c;
V2c2(:,3)=V2c2(:,3)+2;
cPar.closeLoopOpt=1;
cPar.patchType='tri';
[F3,V3]=polyLoftLinear(V1c,V1c2,cPar);
[F4,V4]=polyLoftLinear(V2c,V2c2,cPar);
F4=fliplr(F4);
[Fw,Vw,Cw]=joinElementSets({F1,F2,F3,F4},{V1,V2,V3,V4});
[Fw,Vw]=mergeVertices(Fw,Vw);
Mesh ring
[V_regions]=getInnerPoint(Fw,Vw); % Define region points V_holes=[]; % Define hole points [regionA]=tetVolMeanEst(Fw,Vw); %Volume for regular tets stringOpt='-pq1.2AaY'; inputStruct.stringOpt=stringOpt; inputStruct.Faces=Fw; inputStruct.Nodes=Vw; inputStruct.holePoints=V_holes; inputStruct.faceBoundaryMarker=Cw; %Face boundary markers inputStruct.regionPoints=V_regions; %region points inputStruct.regionA=regionA*10; inputStruct.minRegionMarker=2; %Minimum region marker % Mesh model using tetrahedral elements using tetGen [meshOutput]=runTetGen(inputStruct); %Run tetGen % Access model element and patch data Fwb=fliplr(meshOutput.facesBoundary); Vw=meshOutput.nodes; Cwb=meshOutput.boundaryMarker; CE=meshOutput.elementMaterialID; E=meshOutput.elements; Vw(:,3)=Vw(:,3)+2;
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%% --- TETGEN Tetrahedral meshing --- 04-Jun-2019 14:38:04 %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%% --- Writing SMESH file --- 04-Jun-2019 14:38:04 ----> Adding node field ----> Adding facet field ----> Adding holes specification ----> Adding region specification --- Done --- 04-Jun-2019 14:38:04 --- Running TetGen to mesh input boundary--- 04-Jun-2019 14:38:04 Opening /mnt/data/MATLAB/GIBBON/data/temp/temp.smesh. Delaunizing vertices... Delaunay seconds: 0.032816 Creating surface mesh ... Surface mesh seconds: 0.002649 Recovering boundaries... Boundary recovery seconds: 0.004669 Removing exterior tetrahedra ... Spreading region attributes. Exterior tets removal seconds: 0.000971 Recovering Delaunayness... Delaunay recovery seconds: 0.001212 Refining mesh... Refinement seconds: 0.009255 Optimizing mesh... Optimization seconds: 0.000881 Writing /mnt/data/MATLAB/GIBBON/data/temp/temp.1.node. Writing /mnt/data/MATLAB/GIBBON/data/temp/temp.1.ele. Writing /mnt/data/MATLAB/GIBBON/data/temp/temp.1.face. Writing /mnt/data/MATLAB/GIBBON/data/temp/temp.1.edge. Output seconds: 0.010624 Total running seconds: 0.063192 Statistics: Input points: 1093 Input facets: 2186 Input segments: 3279 Input holes: 0 Input regions: 1 Mesh points: 1406 Mesh tetrahedra: 5050 Mesh faces: 11193 Mesh faces on exterior boundary: 2186 Mesh faces on input facets: 2186 Mesh edges on input segments: 3279 Steiner points inside domain: 313 --- Done --- 04-Jun-2019 14:38:04 %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%% --- Importing TetGen files --- 04-Jun-2019 14:38:04 --- Done --- 04-Jun-2019 14:38:04

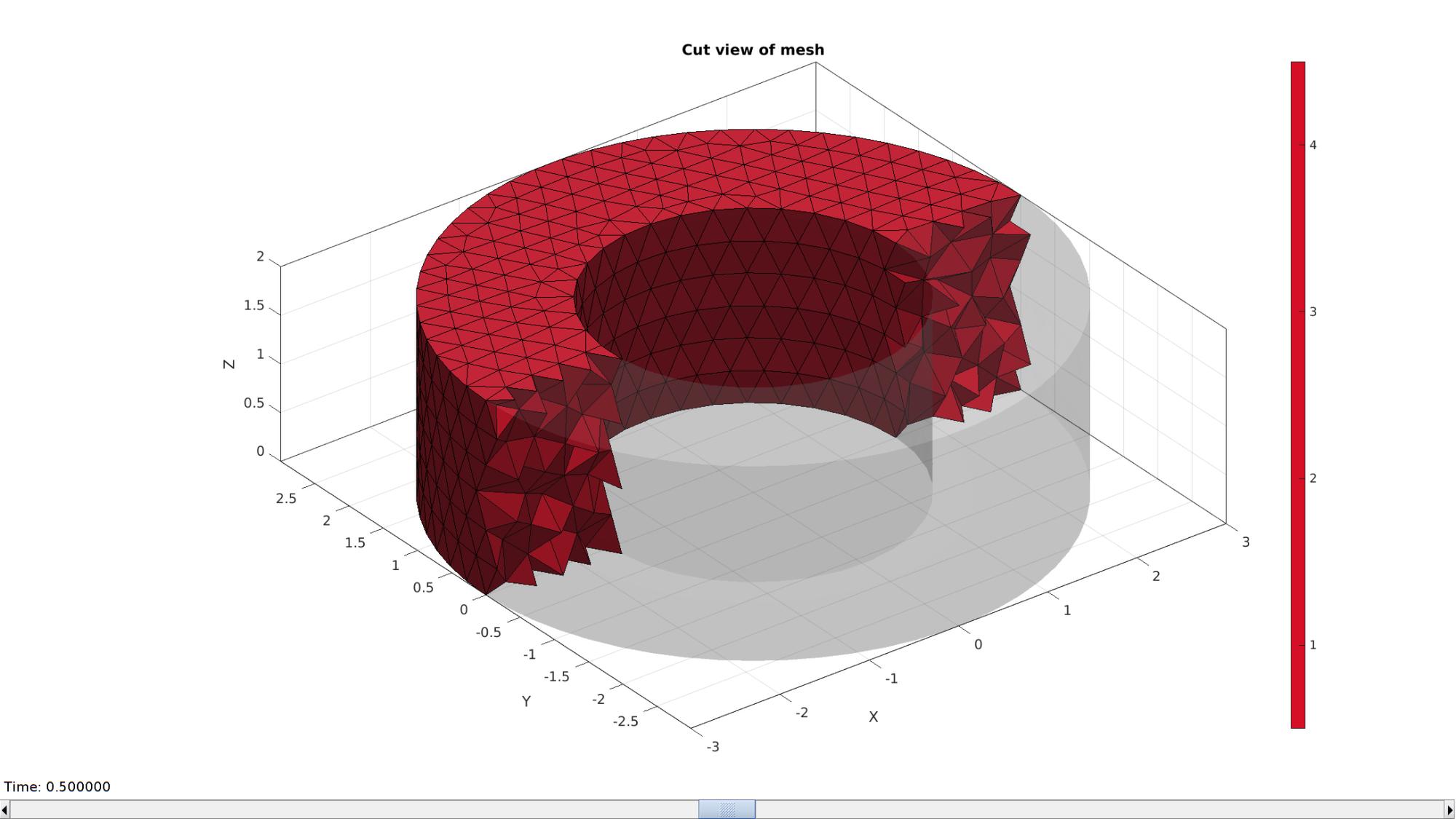

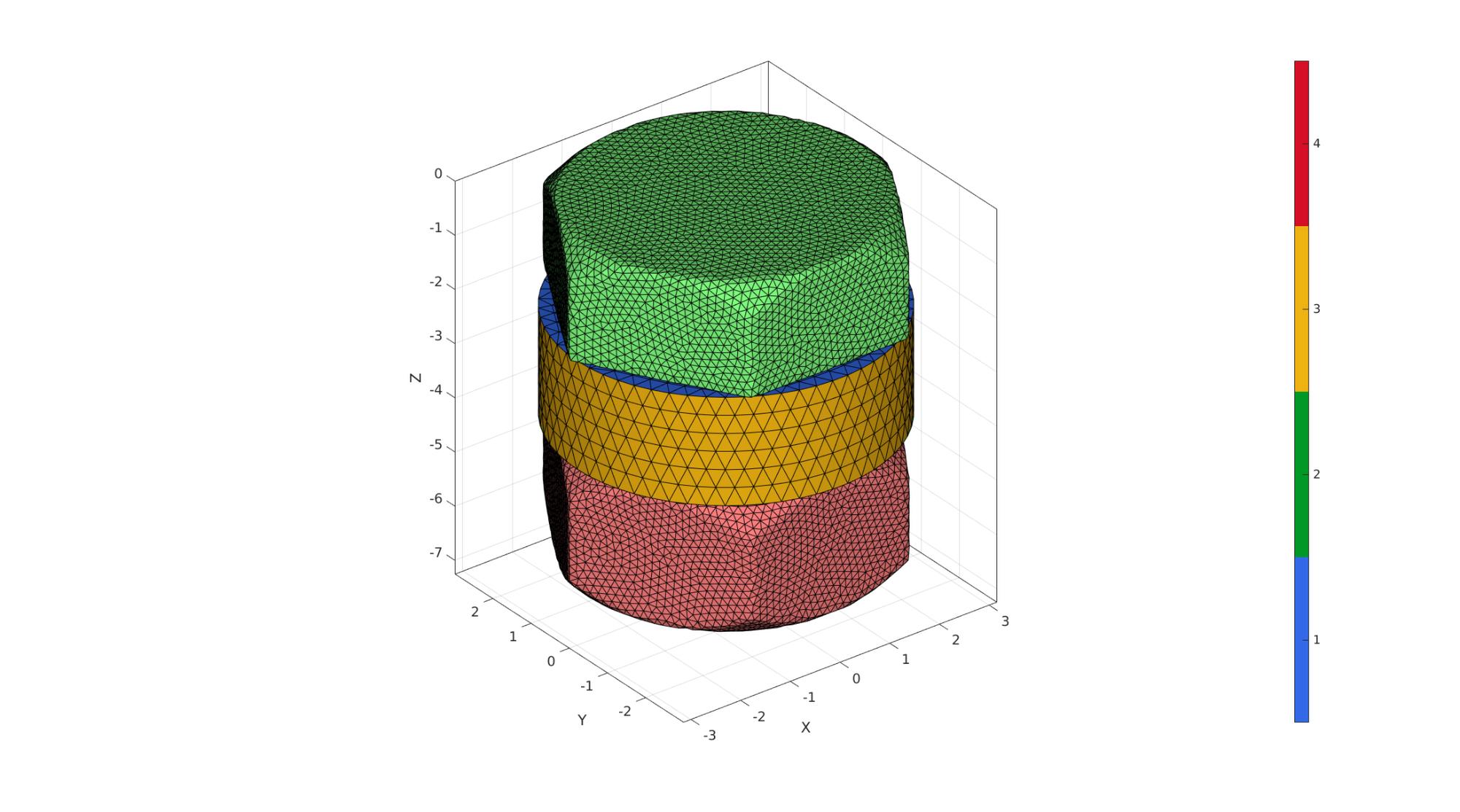

Visualizing mesh using meshView, see also anim8
meshView(meshOutput);
Join geometries
V=[Vw; V_nut; V_bolt]; F_nut=F_nut+size(Vw,1); F_bolt=F_bolt+size(Vw,1)+size(V_nut,1);
R=euler2DCM([pi 0 0]); V=V*R;
Visualize
cFigure; hold on; gpatch(F_nut,V,'rw','k',1); gpatch(F_bolt,V,'gw','k',1); gpatch(Fwb,V,Cwb,'k',1); patchNormPlot(F_bolt,V); patchNormPlot(F_nut,V); patchNormPlot(Fwb,V); colormap(gjet(4)); icolorbar; axisGeom; camlight headlight; drawnow;

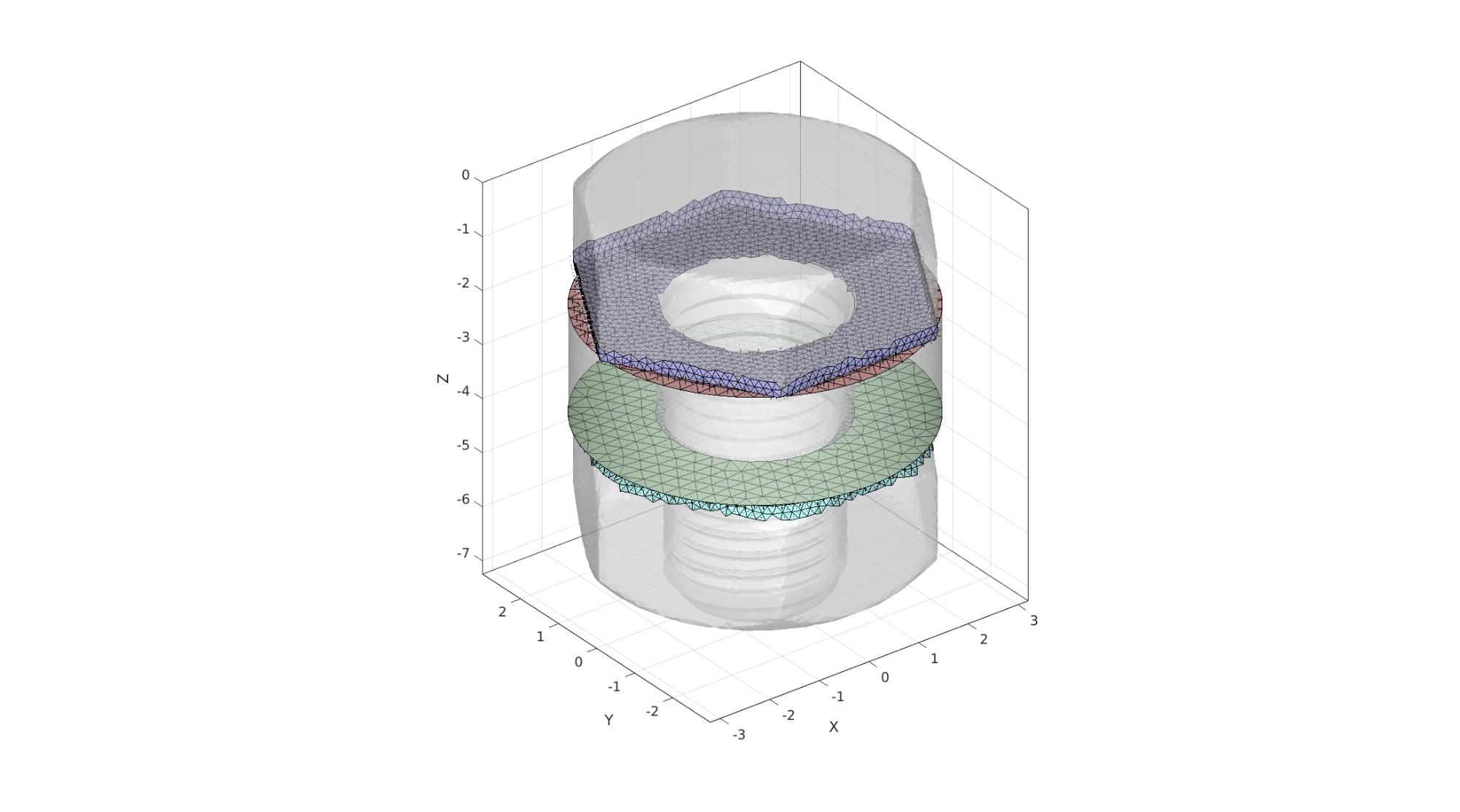

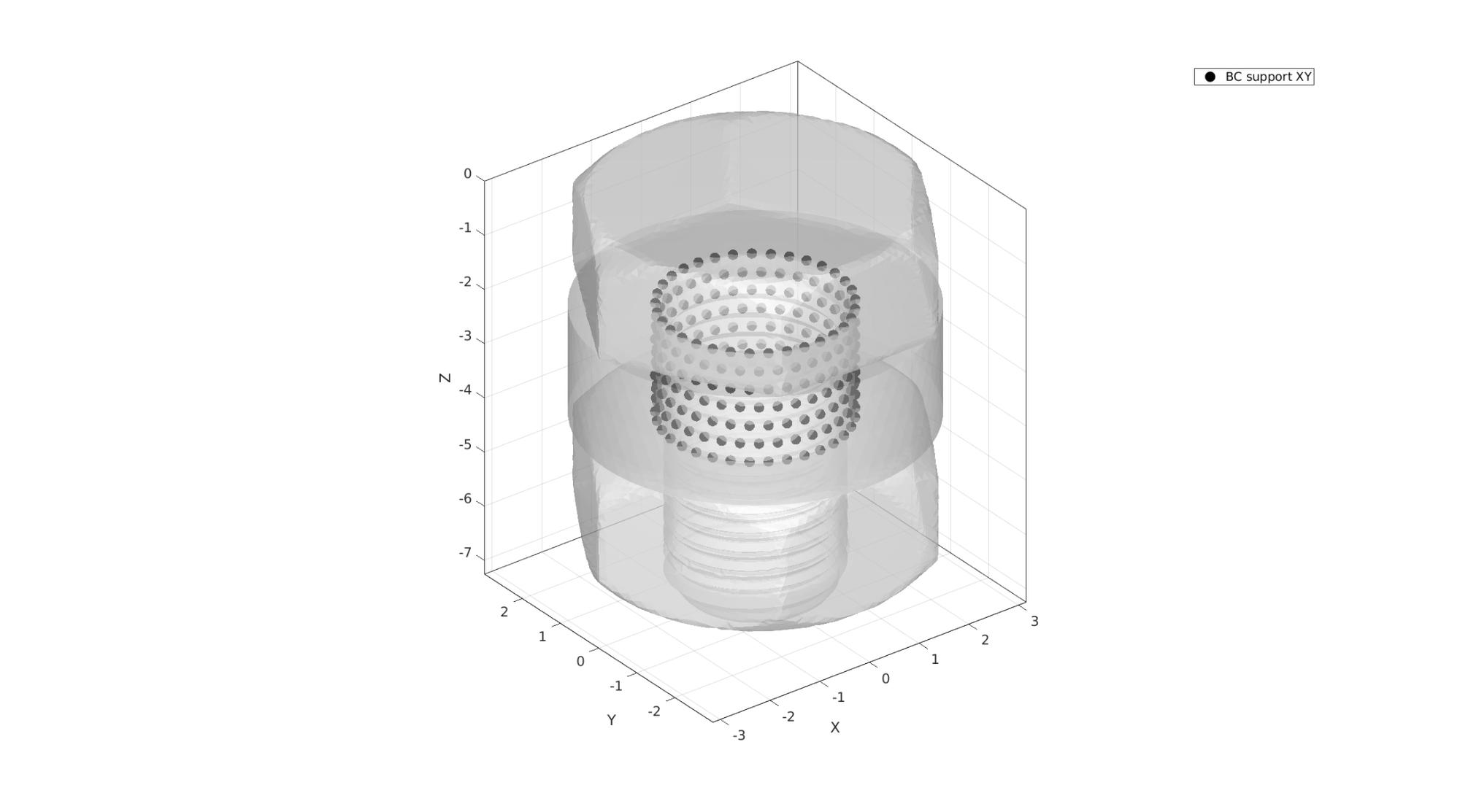

Defining the FEBio input structure
See also febioStructTemplate and febioStruct2xml and the FEBio user manual.
%Get a template with default settings [febio_spec]=febioStructTemplate; %febio_spec version febio_spec.ATTR.version='2.5'; %Module section febio_spec.Module.ATTR.type='solid'; %Control section febio_spec.Control.analysis.ATTR.type='static'; febio_spec.Control.time_steps=numTimeSteps; febio_spec.Control.step_size=1/numTimeSteps; febio_spec.Control.time_stepper.dtmin=dtmin; febio_spec.Control.time_stepper.dtmax=dtmax; febio_spec.Control.time_stepper.max_retries=max_retries; febio_spec.Control.time_stepper.opt_iter=opt_iter; febio_spec.Control.max_refs=max_refs; febio_spec.Control.max_ups=max_ups; febio_spec.Control.symmetric_stiffness=symmetric_stiffness; febio_spec.Control.min_residual=min_residual; %Material section febio_spec.Material.material{1}.ATTR.type='Ogden'; febio_spec.Material.material{1}.ATTR.id=1; febio_spec.Material.material{1}.c1=c1; febio_spec.Material.material{1}.m1=m1; febio_spec.Material.material{1}.c2=c1; febio_spec.Material.material{1}.m2=-m1; febio_spec.Material.material{1}.k=k; febio_spec.Material.material{2}.ATTR.type='rigid body'; febio_spec.Material.material{2}.ATTR.id=2; febio_spec.Material.material{2}.density=1e-9; febio_spec.Material.material{2}.center_of_mass=mean(V_nut,1); febio_spec.Material.material{3}.ATTR.type='rigid body'; febio_spec.Material.material{3}.ATTR.id=3; febio_spec.Material.material{3}.density=1e-9; febio_spec.Material.material{3}.center_of_mass=mean(V_bolt,1); %Geometry section % -> Nodes febio_spec.Geometry.Nodes{1}.ATTR.name='nodeSet_all'; %The node set name febio_spec.Geometry.Nodes{1}.node.ATTR.id=(1:size(V,1))'; %The node id's febio_spec.Geometry.Nodes{1}.node.VAL=V; %The nodel coordinates % -> Elements febio_spec.Geometry.Elements{1}.ATTR.type='tet4'; %Element type of this set febio_spec.Geometry.Elements{1}.ATTR.mat=1; %material index for this set febio_spec.Geometry.Elements{1}.ATTR.name='Washer'; %Name of the element set febio_spec.Geometry.Elements{1}.elem.ATTR.id=(1:1:size(E,1))'; %Element id's febio_spec.Geometry.Elements{1}.elem.VAL=E; febio_spec.Geometry.Elements{2}.ATTR.type='tri3'; %Element type of this set febio_spec.Geometry.Elements{2}.ATTR.mat=2; %material index for this set febio_spec.Geometry.Elements{2}.ATTR.name='Nut'; %Name of the element set febio_spec.Geometry.Elements{2}.elem.ATTR.id=((size(E,1)+1):1:(size(E,1)+size(F_nut,1)))'; %Element id's febio_spec.Geometry.Elements{2}.elem.VAL=F_nut; febio_spec.Geometry.Elements{3}.ATTR.type='tri3'; %Element type of this set febio_spec.Geometry.Elements{3}.ATTR.mat=3; %material index for this set febio_spec.Geometry.Elements{3}.ATTR.name='Bolt'; %Name of the element set febio_spec.Geometry.Elements{3}.elem.ATTR.id=((size(E,1)+size(F_nut,1)+1):1:(size(E,1)+size(F_nut,1)+size(F_bolt,1)))'; %Element id's febio_spec.Geometry.Elements{3}.elem.VAL=F_bolt; % % -> NodeSets % febio_spec.Geometry.NodeSet{1}.ATTR.name='bcSupportList'; % febio_spec.Geometry.NodeSet{1}.node.ATTR.id=bcSupportList(:); % -> Surfaces febio_spec.Geometry.Surface{1}.ATTR.name='contact1_master'; febio_spec.Geometry.Surface{1}.tri3.ATTR.lid=(1:1:size(F_bolt,1))'; febio_spec.Geometry.Surface{1}.tri3.VAL=F_bolt; febio_spec.Geometry.Surface{2}.ATTR.name='contact_slave'; febio_spec.Geometry.Surface{2}.tri3.ATTR.lid=(1:1:size(Fwb,1))'; febio_spec.Geometry.Surface{2}.tri3.VAL=Fwb; febio_spec.Geometry.Surface{3}.ATTR.name='contact2_master'; febio_spec.Geometry.Surface{3}.tri3.ATTR.lid=(1:1:size(F_nut,1))'; febio_spec.Geometry.Surface{3}.tri3.VAL=F_nut; % -> Surface pairs febio_spec.Geometry.SurfacePair{1}.ATTR.name='Contact1'; febio_spec.Geometry.SurfacePair{1}.master.ATTR.surface=febio_spec.Geometry.Surface{1}.ATTR.name; febio_spec.Geometry.SurfacePair{1}.slave.ATTR.surface=febio_spec.Geometry.Surface{2}.ATTR.name; febio_spec.Geometry.SurfacePair{2}.ATTR.name='Contact2'; febio_spec.Geometry.SurfacePair{2}.master.ATTR.surface=febio_spec.Geometry.Surface{3}.ATTR.name; febio_spec.Geometry.SurfacePair{2}.slave.ATTR.surface=febio_spec.Geometry.Surface{2}.ATTR.name; % %Boundary condition section % % -> Fix boundary conditions % febio_spec.Boundary.fix{1}.ATTR.bc='x'; % febio_spec.Boundary.fix{1}.ATTR.node_set=febio_spec.Geometry.NodeSet{1}.ATTR.name; % febio_spec.Boundary.fix{2}.ATTR.bc='y'; % febio_spec.Boundary.fix{2}.ATTR.node_set=febio_spec.Geometry.NodeSet{1}.ATTR.name; % febio_spec.Boundary.fix{3}.ATTR.bc='z'; % febio_spec.Boundary.fix{3}.ATTR.node_set=febio_spec.Geometry.NodeSet{1}.ATTR.name; % -> Prescribed boundary conditions on the rigid body febio_spec.Boundary.rigid_body{1}.ATTR.mat=2; febio_spec.Boundary.rigid_body{1}.fixed{1}.ATTR.bc='x'; febio_spec.Boundary.rigid_body{1}.fixed{2}.ATTR.bc='y'; febio_spec.Boundary.rigid_body{1}.fixed{3}.ATTR.bc='z'; febio_spec.Boundary.rigid_body{1}.fixed{4}.ATTR.bc='Rx'; febio_spec.Boundary.rigid_body{1}.fixed{5}.ATTR.bc='Ry'; febio_spec.Boundary.rigid_body{1}.fixed{6}.ATTR.bc='Rz'; febio_spec.Boundary.rigid_body{2}.ATTR.mat=3; febio_spec.Boundary.rigid_body{2}.fixed{1}.ATTR.bc='x'; febio_spec.Boundary.rigid_body{2}.fixed{2}.ATTR.bc='y'; febio_spec.Boundary.rigid_body{2}.fixed{3}.ATTR.bc='z'; febio_spec.Boundary.rigid_body{2}.fixed{4}.ATTR.bc='Rx'; febio_spec.Boundary.rigid_body{2}.fixed{5}.ATTR.bc='Ry'; febio_spec.Boundary.rigid_body{2}.prescribed{1}.ATTR.bc='Rz'; febio_spec.Boundary.rigid_body{2}.prescribed{1}.ATTR.lc=1; febio_spec.Boundary.rigid_body{2}.prescribed{1}.VAL=prescribedRotation_Z; febio_spec.Boundary.rigid_body{2}.prescribed{2}.ATTR.bc='z'; febio_spec.Boundary.rigid_body{2}.prescribed{2}.ATTR.lc=1; febio_spec.Boundary.rigid_body{2}.prescribed{2}.VAL=prescribedDisplacement_Z; %Contact section febio_spec.Contact.contact{1}.ATTR.surface_pair=febio_spec.Geometry.SurfacePair{1}.ATTR.name; febio_spec.Contact.contact{1}.ATTR.type='sliding-elastic'; febio_spec.Contact.contact{1}.two_pass=1; febio_spec.Contact.contact{1}.laugon=laugon; febio_spec.Contact.contact{1}.tolerance=0.2; febio_spec.Contact.contact{1}.gaptol=0; febio_spec.Contact.contact{1}.minaug=minaug; febio_spec.Contact.contact{1}.maxaug=maxaug; febio_spec.Contact.contact{1}.search_tol=0.01; febio_spec.Contact.contact{1}.search_radius=0.1; febio_spec.Contact.contact{1}.symmetric_stiffness=0; febio_spec.Contact.contact{1}.auto_penalty=1; febio_spec.Contact.contact{1}.penalty=contactPenalty; febio_spec.Contact.contact{1}.fric_coeff=fric_coeff; febio_spec.Contact.contact{2}.ATTR.surface_pair=febio_spec.Geometry.SurfacePair{2}.ATTR.name; febio_spec.Contact.contact{2}.ATTR.type='sliding-elastic'; febio_spec.Contact.contact{2}.two_pass=1; febio_spec.Contact.contact{2}.laugon=laugon; febio_spec.Contact.contact{2}.tolerance=0.2; febio_spec.Contact.contact{2}.gaptol=0; febio_spec.Contact.contact{2}.minaug=minaug; febio_spec.Contact.contact{2}.maxaug=maxaug; febio_spec.Contact.contact{2}.search_tol=0.01; febio_spec.Contact.contact{2}.search_radius=0.1; febio_spec.Contact.contact{2}.symmetric_stiffness=0; febio_spec.Contact.contact{2}.auto_penalty=1; febio_spec.Contact.contact{2}.penalty=contactPenalty; febio_spec.Contact.contact{2}.fric_coeff=fric_coeff; %LoadData section febio_spec.LoadData.loadcurve{1}.ATTR.id=1; febio_spec.LoadData.loadcurve{1}.ATTR.type='linear'; febio_spec.LoadData.loadcurve{1}.point.VAL=[0 0; 1 1]; %Output section % -> log file febio_spec.Output.logfile.ATTR.file=febioLogFileName; febio_spec.Output.logfile.node_data{1}.ATTR.file=febioLogFileName_disp; febio_spec.Output.logfile.node_data{1}.ATTR.data='ux;uy;uz'; febio_spec.Output.logfile.node_data{1}.ATTR.delim=','; febio_spec.Output.logfile.node_data{1}.VAL=1:size(V,1);
Quick viewing of the FEBio input file structure
The febView function can be used to view the xml structure in a MATLAB figure window.
febView(febio_spec); %Viewing the febio file
Exporting the FEBio input file
Exporting the febio_spec structure to an FEBio input file is done using the febioStruct2xml function.
febioStruct2xml(febio_spec,febioFebFileName); %Exporting to file and domNode
Running the FEBio analysis
To run the analysis defined by the created FEBio input file the runMonitorFEBio function is used. The input for this function is a structure defining job settings e.g. the FEBio input file name. The optional output runFlag informs the user if the analysis was run succesfully.
febioAnalysis.run_filename=febioFebFileName; %The input file name febioAnalysis.run_logname=febioLogFileName; %The name for the log file febioAnalysis.disp_on=1; %Display information on the command window febioAnalysis.disp_log_on=1; %Display convergence information in the command window febioAnalysis.runMode='internal';%'internal'; febioAnalysis.t_check=0.25; %Time for checking log file (dont set too small) febioAnalysis.maxtpi=1e99; %Max analysis time febioAnalysis.maxLogCheckTime=3; %Max log file checking time [runFlag]=runMonitorFEBio(febioAnalysis);%START FEBio NOW!!!!!!!!
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
--- STARTING FEBIO JOB --- 04-Jun-2019 14:38:09
===========================================================================
________ _________ _________ __ _________
| |\ | |\ | |\ | |\ / \\
| ____|| | ____|| | __ || |__|| | ___ ||
| |\___\| | |\___\| | |\_| || \_\| | // \ ||
| || | || | || | || __ | || | ||
| ||__ | ||__ | ||_| || | |\ | || | ||
| |\ | |\ | \\ | || | || | ||
| ___|| | ___|| | ___ || | || | || | ||
| |\__\| | |\__\| | |\__| || | || | || | ||
| || | || | || | || | || | || | ||
| || | ||___ | ||__| || | || | \\__/ ||
| || | |\ | || | || | ||
|___|| |________|| |__________|| |__|| \_________//
F I N I T E E L E M E N T S F O R B I O M E C H A N I C S
--- v e r s i o n - 2 . 9 . 0 ---
http://febio.org
FEBio is a registered trademark.
copyright (c) 2006-2019 - All rights reserved
===========================================================================
Success loading plugin NeoHookeanPi.so (version 0.0.0)
Reading file /mnt/data/MATLAB/GIBBON/data/temp/tempModel.feb ...SUCCESS!
]0;(0%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 1 : 0.0666667 =====
Reforming stiffness matrix: reformation #1
===== reforming stiffness matrix:
Nr of equations ........................... : 4220
Nr of nonzeroes in stiffness matrix ....... : 157816
1
Nonlinear solution status: time= 0.0666667
stiffness updates = 0
right hand side evaluations = 2
stiffness matrix reformations = 1
step from line search = 1.000000
convergence norms : INITIAL CURRENT REQUIRED
residual 2.311235e-31 3.962328e-31 0.000000e+00
energy 3.228459e-30 1.062221e-30 3.228459e-32
displacement 8.392902e-28 8.392902e-28 8.392902e-34
*************************************************************************
* WARNING *
* *
* No force acting on the system. *
*************************************************************************
------- converged at time : 0.0666667
