DEMO_febio_0031_blob_shear_contact

Below is a demonstration for:

Contents

Keywords

clear; close all; clc;

Plot settings

fontSize=15;
faceAlpha1=0.8;
faceAlpha2=0.3;
markerSize=40;
lineWidth=3;

Control parameters

% Path names
defaultFolder = fileparts(fileparts(mfilename('fullpath')));
savePath=fullfile(defaultFolder,'data','temp');

% Defining file names
febioFebFileNamePart='tempModel';
febioFebFileName=fullfile(savePath,[febioFebFileNamePart,'.feb']); %FEB file name
febioLogFileName=fullfile(savePath,[febioFebFileNamePart,'.txt']); %FEBio log file name
febioLogFileName_disp=[febioFebFileNamePart,'_disp_out.txt']; %Log file name for exporting displacement
% febioLogFileName_force=[febioFebFileNamePart,'_force_out.txt']; %Log file name for exporting force

% Hemi-sphere parameters
hemiSphereRadius=1;
nRefine=2;
closeOption=1;
smoothEdge=1;

% Ground plate parameters
plateRadius=2*hemiSphereRadius;

% Probe parameters
probeWidth=3*hemiSphereRadius;
filletProbe=0.25; %Fillet radius

% Define probe displacement
probeDisplacement=hemiSphereRadius*2;
probeOverlapFactor=0.4;

% Material parameter set
c1=1e-3; %Shear-modulus-like parameter
m1=2; %Material parameter setting degree of non-linearity
k_factor=10; %Bulk modulus factor
k=c1*k_factor; %Bulk modulus

% FEA control settings
numTimeSteps=30;
max_refs=25; %Max reforms
max_ups=0; %Set to zero to use full-Newton iterations
opt_iter=10; %Optimum number of iterations
max_retries=25; %Maximum number of retires
symmetric_stiffness=0;
min_residual=1e-20;
step_size=1/numTimeSteps;
dtmin=(1/numTimeSteps)/100; %Minimum time step size
dtmax=(1/(numTimeSteps)); %Maximum time step size

%Contact parameters
contactPenalty=1;
laugon=0;
minaug=1;
maxaug=10;
fric_coeff=0.01;
max_traction=0;

Creating model geometry and mesh

% Create hemi-sphere mesh
[F_blob,V_blob,C_blob]=hemiSphereMesh(nRefine,hemiSphereRadius,1);
pointSpacingBlob=mean(patchEdgeLengths(F_blob,V_blob));

%Smoothen edges
if smoothEdge==1
    %Get rigid region
    ind=1:1:size(V_blob,1); %Indices for all nodes
    indRigid=find(ismember(ind,F_blob(C_blob==2,:)) & ~ismember(ind,F_blob(C_blob==1,:))); %Indices for new bottom surface nodes

    %Smoothing
    cPar.Method='HC';
    cPar.n=250;
    cPar.RigidConstraints=indRigid;
    [V_blob]=patchSmooth(F_blob,V_blob,[],cPar);

    %Fix color data with new bottom surface
    C_blob=ones(size(C_blob));
    C_blob(all(ismember(F_blob,indRigid),2))=2;

end

Visualize hemi-sphere surface

cFigure; hold on;

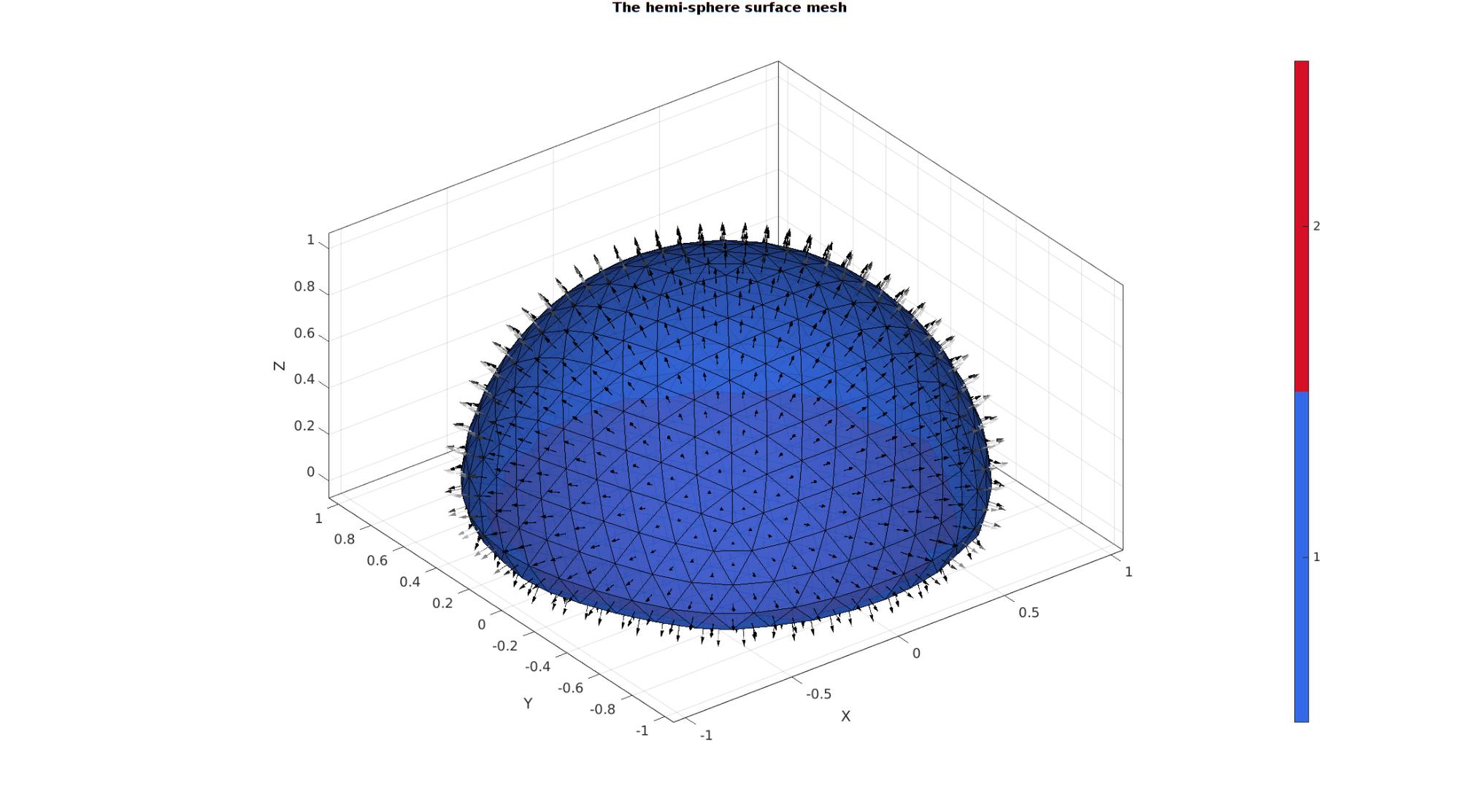

gtitle('The hemi-sphere surface mesh',fontSize);
gpatch(F_blob,V_blob,C_blob,'k',0.85);
patchNormPlot(F_blob,V_blob);
axisGeom(gca,fontSize);
colormap(gjet); icolorbar;
camlight headlight;
drawnow;

Using tetgen to create a tetrahedral mesh

% Tetgen input structure
inputStruct.stringOpt='-pq1.2AaY';
inputStruct.Faces=F_blob;
inputStruct.Nodes=V_blob;
inputStruct.holePoints=[];
inputStruct.faceBoundaryMarker=C_blob; %Face boundary markers
inputStruct.regionPoints=getInnerPoint(F_blob,V_blob); %region points
inputStruct.regionA=tetVolMeanEst(F_blob,V_blob);
inputStruct.minRegionMarker=2; %Minimum region marker

% Create tetrahedral mesh using tetGen
[meshOutput]=runTetGen(inputStruct); %Run tetGen

% Access model element and patch data
Fb_blob=fliplr(meshOutput.facesBoundary);
Cb_blob=meshOutput.boundaryMarker;
V_blob=meshOutput.nodes;
E_blob=meshOutput.elements;

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
--- TETGEN Tetrahedral meshing --- 04-Jun-2019 12:56:20

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
--- Writing SMESH file --- 04-Jun-2019 12:56:20
----> Adding node field
----> Adding facet field
----> Adding holes specification
----> Adding region specification
--- Done --- 04-Jun-2019 12:56:20
--- Running TetGen to mesh input boundary--- 04-Jun-2019 12:56:20
Opening /mnt/data/MATLAB/GIBBON/data/temp/temp.smesh.
Delaunizing vertices...
Delaunay seconds:  0.003041
Creating surface mesh ...
Surface mesh seconds:  0.00113
Recovering boundaries...
Boundary recovery seconds:  0.001054
Removing exterior tetrahedra ...
Spreading region attributes.
Exterior tets removal seconds:  0.000344
Recovering Delaunayness...
Delaunay recovery seconds:  0.000705
Refining mesh...
Refinement seconds:  0.020761
Optimizing mesh...
Optimization seconds:  0.001469

Writing /mnt/data/MATLAB/GIBBON/data/temp/temp.1.node.
Writing /mnt/data/MATLAB/GIBBON/data/temp/temp.1.ele.
Writing /mnt/data/MATLAB/GIBBON/data/temp/temp.1.face.
Writing /mnt/data/MATLAB/GIBBON/data/temp/temp.1.edge.

Output seconds:  0.012755
Total running seconds:  0.04137

Statistics:

  Input points: 476
  Input facets: 948
  Input segments: 1422
  Input holes: 0
  Input regions: 1

  Mesh points: 1646
  Mesh tetrahedra: 8835
  Mesh faces: 18144
  Mesh faces on exterior boundary: 948
  Mesh faces on input facets: 948
  Mesh edges on input segments: 1422
  Steiner points inside domain: 1170

--- Done --- 04-Jun-2019 12:56:20

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
--- Importing TetGen files --- 04-Jun-2019 12:56:20
--- Done --- 04-Jun-2019 12:56:20

Visualize blob mesh

hFig=cFigure;
subplot(1,2,1); hold on;
gpatch(Fb_blob,V_blob,Cb_blob,'k',1);
patchNormPlot(Fb_blob,V_blob);
axisGeom(gca,fontSize);
colormap(gjet); icolorbar;
camlight headlight;

hs=subplot(1,2,2); hold on;

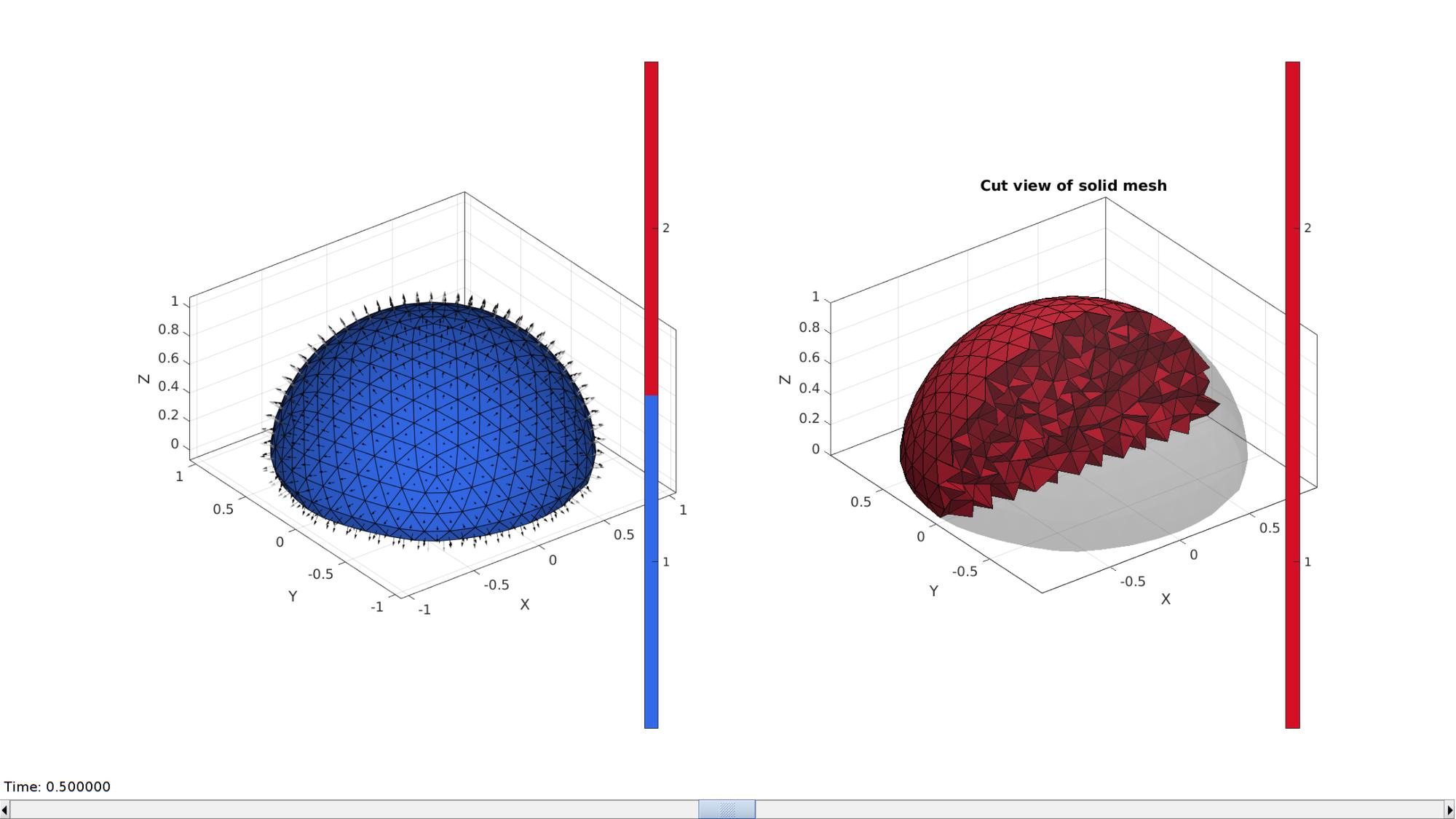

title('Cut view of solid mesh','FontSize',fontSize);
optionStruct.hFig=[hFig hs];
gpatch(Fb_blob,V_blob,'kw','none',0.25);
meshView(meshOutput,optionStruct);
axisGeom(gca,fontSize);
drawnow;

Creating rigid body ground plate

%Get outer surve of ground surface
[Eb]=patchBoundary(Fb_blob(Cb_blob==2,:),V_blob);
indCurveBottom=edgeListToCurve(Eb);
indCurveBottom=indCurveBottom(1:end-1);

% Derive point spacing for plate
pointSpacingPlate=pointSpacingBlob;

% Compose outer curve of the plate
nPlateCurve=ceil((2*pi*plateRadius)/pointSpacingPlate);
t=linspace(0,2*pi,nPlateCurve);
t=t(1:end-1);
x=plateRadius.*sin(t);
y=plateRadius.*cos(t);
Vp_outer_curve=[x(:) y(:)];

% Copy inner curve from the hemi-sphere
Vp_inner_curve=V_blob(indCurveBottom,[1 2]);

% Create mesh out outer region
regionCell={Vp_outer_curve,Vp_inner_curve};
[F_plate,V_plate]=regionTriMesh2D(regionCell,pointSpacingPlate,0,0);
V_plate(:,3)=0; %Add z-direction

% Copy mesh for inner region
[F_plate_inner,V_plate_inner]=patchCleanUnused(fliplr(Fb_blob(Cb_blob==2,:)),V_blob);
[F_plate,V_plate,C_plate]=joinElementSets({F_plate,F_plate_inner},{V_plate,V_plate_inner});
[F_plate,V_plate]=mergeVertices(F_plate,V_plate);

center_of_mass_plate=mean(V_plate,1);

Visualizing plate mesh

cFigure; hold on;

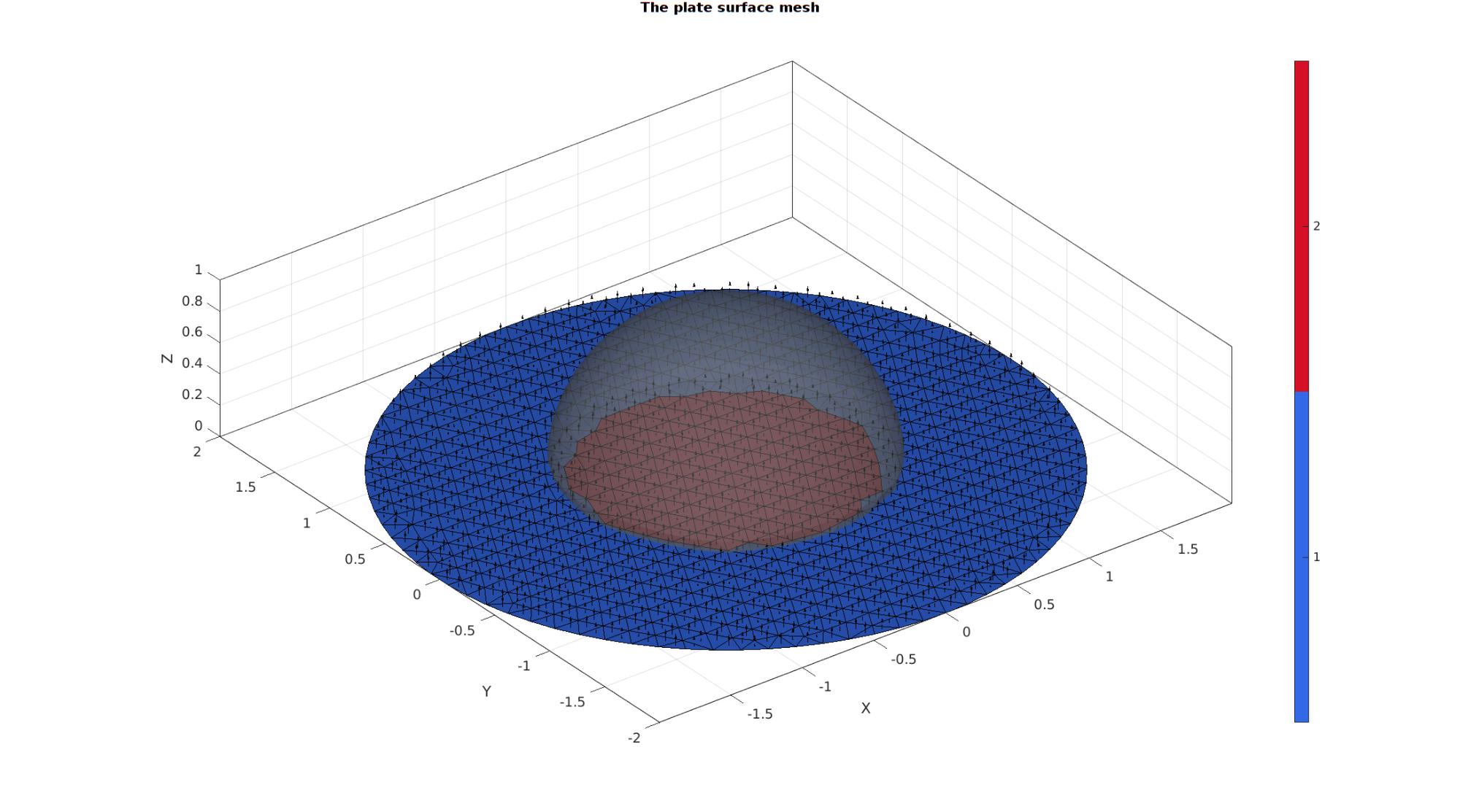

gtitle('The plate surface mesh',fontSize);
gpatch(Fb_blob,V_blob,'kw','none',0.5);
gpatch(F_plate,V_plate,C_plate,'k',1);
patchNormPlot(F_plate,V_plate);
axisGeom(gca,fontSize);
colormap(gjet); icolorbar;
camlight headlight;
drawnow;

Creating rigid body shear surface

pointSpacingProbe=pointSpacingBlob/2;

%Sketching side profile
x=[-hemiSphereRadius hemiSphereRadius hemiSphereRadius]-hemiSphereRadius*2;
y=[0 0 0];
z=[hemiSphereRadius*(1-probeOverlapFactor) hemiSphereRadius*(1-probeOverlapFactor) hemiSphereRadius*1.5];
V_probe_curve_sketch=[x(:) y(:) z(:)];

%Fillet sketch
np=100; %Number of points used to construct each fillet edge
[V_probe_curve]=filletCurve(V_probe_curve_sketch,filletProbe,np,0);
numPointsProbeCurve=ceil(max(pathLength(V_probe_curve))/pointSpacingProbe);
[V_probe_curve] = evenlySampleCurve(V_probe_curve,numPointsProbeCurve,'pchip',0);

% Extruding curve
% controlParametersExtrude.pointSpacing=pointSpacingProbe;
controlParametersExtrude.depth=hemiSphereRadius*2.5;
controlParametersExtrude.numSteps=ceil(controlParametersExtrude.depth/pointSpacingProbe);
controlParametersExtrude.numSteps=controlParametersExtrude.numSteps+iseven(controlParametersExtrude.numSteps); %Force uneven
controlParametersExtrude.patchType='tri';
controlParametersExtrude.dir=0;
controlParametersExtrude.n=[0 1 0];
controlParametersExtrude.closeLoopOpt=0;

[F_probe,V_probe]=polyExtrude(V_probe_curve,controlParametersExtrude);
F_probe=fliplr(F_probe); %Invert face orientation so normals point to blob

center_of_mass_probe=mean(V_probe,1);

Visualizing probe mesh

cFigure; hold on;

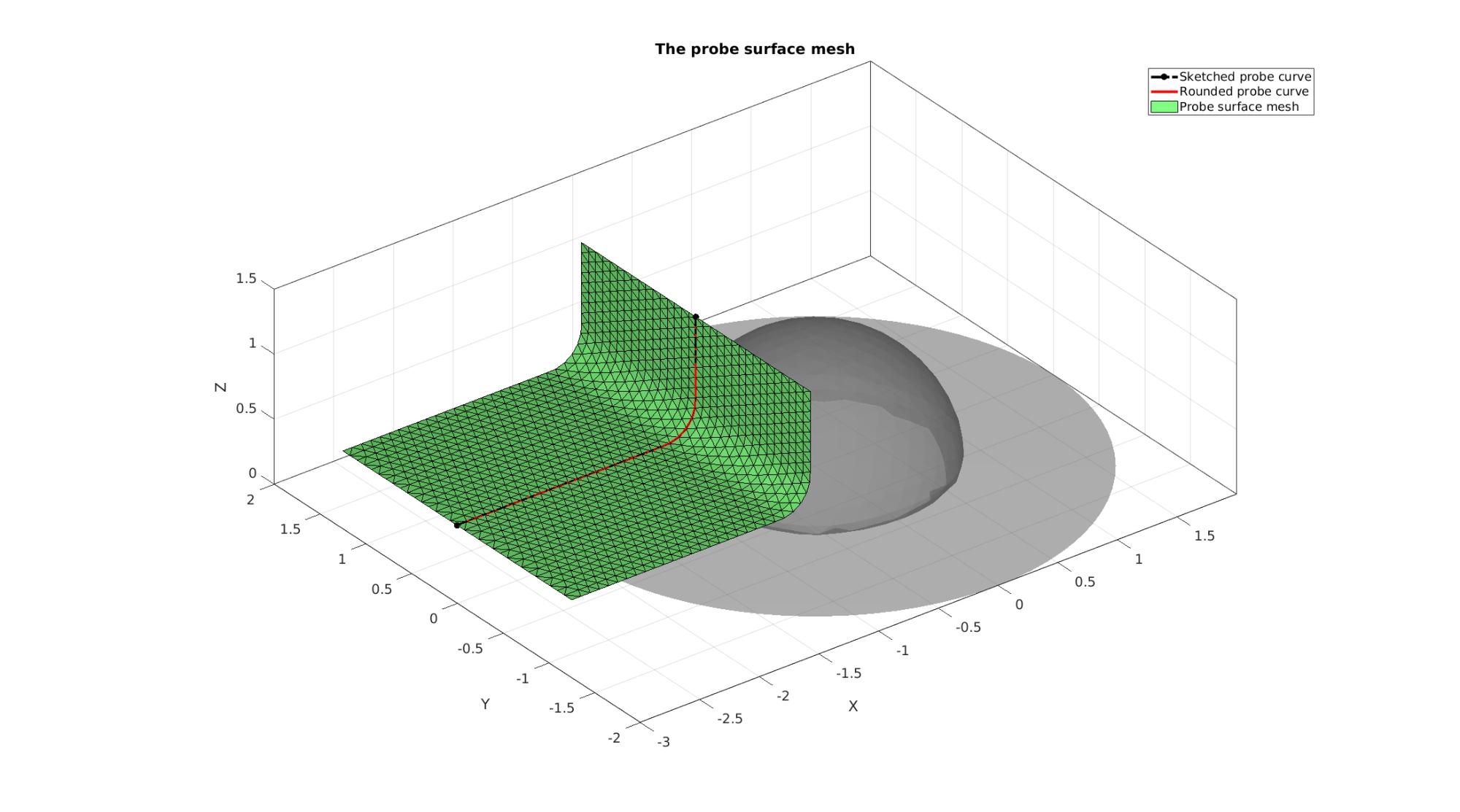

title('The probe surface mesh','fontSize',fontSize);
gpatch(Fb_blob,V_blob,'kw','none',0.5);
gpatch(F_plate,V_plate,'kw','none',0.5);
hl(1)=plotV(V_probe_curve_sketch,'k.-.','lineWidth',3,'MarkerSize',25);
hl(2)=plotV(V_probe_curve,'r-','lineWidth',3,'MarkerSize',25);
hl(3)=gpatch(F_probe,V_probe,'gw','k',1);
legend(hl,{'Sketched probe curve','Rounded probe curve','Probe surface mesh'}); clear hl;
axisGeom(gca,fontSize);
camlight headlight;
drawnow;

Join model node sets

V=[V_blob; V_plate; V_probe];
F_plate=F_plate+size(V_blob,1);
F_probe=F_probe+size(V_blob,1)+size(V_plate,1);
Fb_all=[Fb_blob;F_plate;F_probe];

Visualizing model

cFigure; hold on;

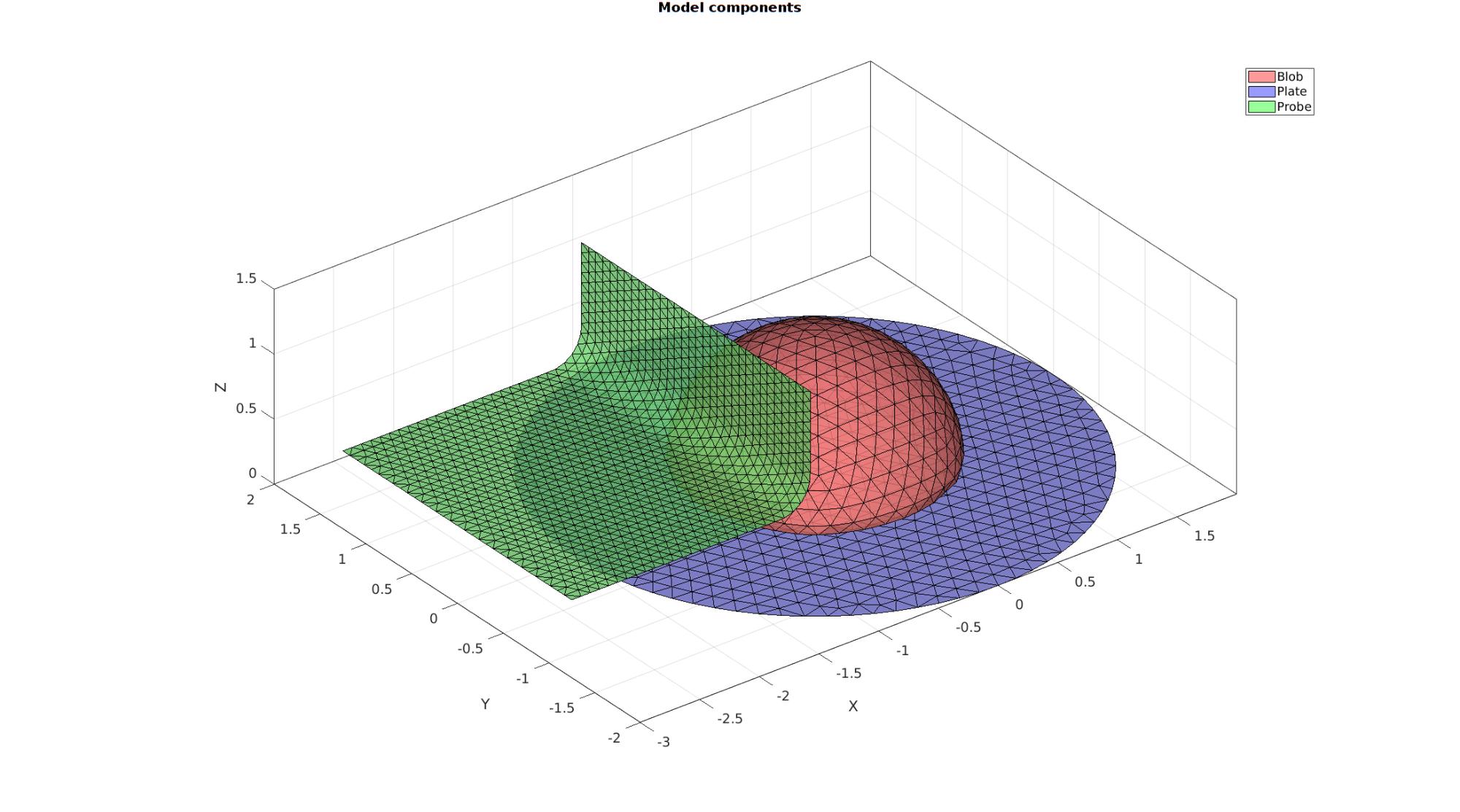

gtitle('Model components',fontSize);
hl(1)=gpatch(Fb_blob,V,'rw','k',0.8);
hl(2)=gpatch(F_plate,V,'bw','k',0.8);
hl(3)=gpatch(F_probe,V,'gw','k',0.8);
legend(hl,{'Blob','Plate','Probe'}); clear hl;
axisGeom(gca,fontSize);
camlight headlight;
drawnow;

Get contact surfaces

% F_contact_blob1=Fb_blob(Cb_blob==1,:);
% F_contact_blob2=Fb_blob(Cb_blob==2,:);

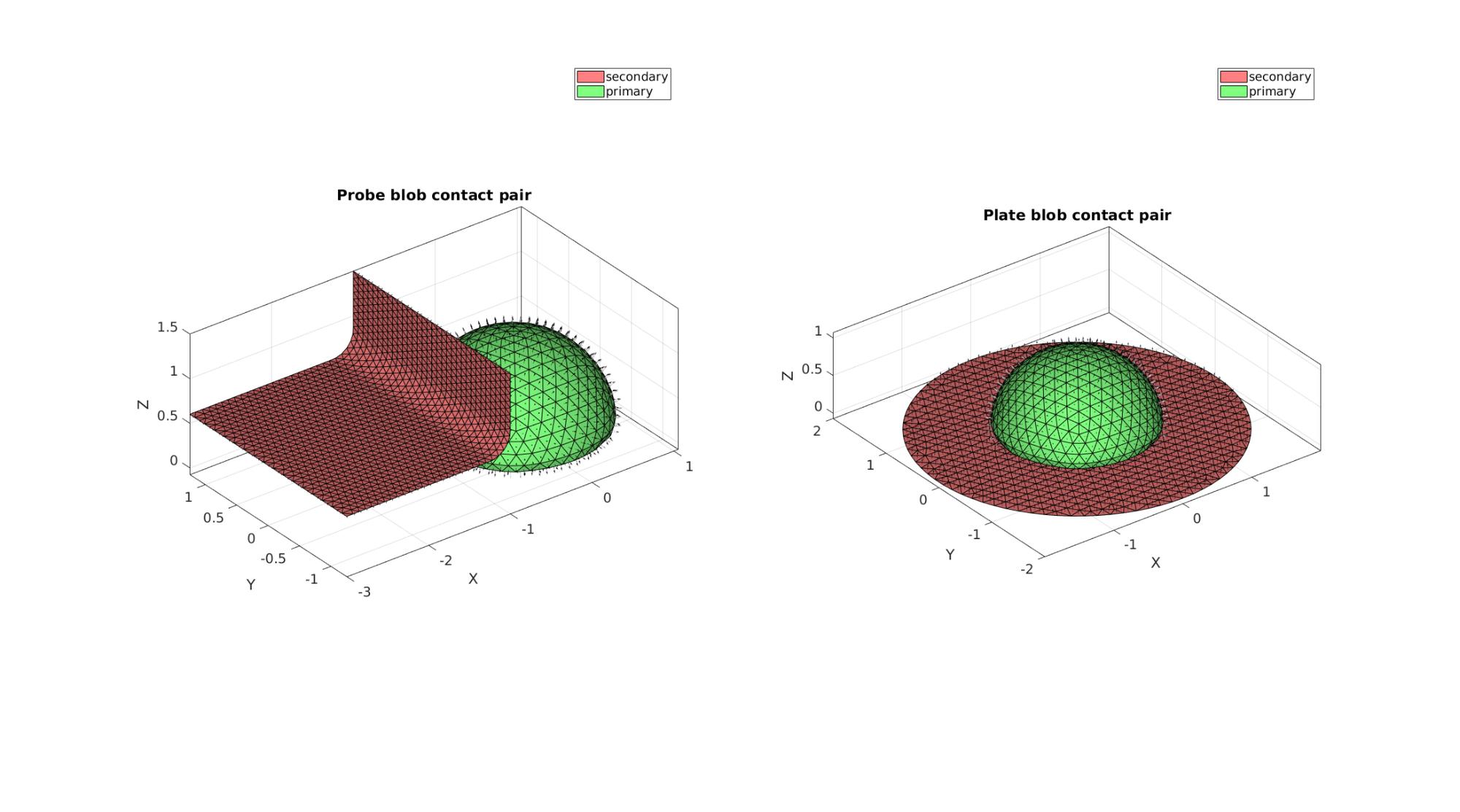

Visualize contact surfaces

cFigure;
subplot(1,2,1); hold on;
title('Probe blob contact pair','fontsize',fontSize);
hl(1)=gpatch(F_probe,V,'rw','k',1);
patchNormPlot(F_probe,V);
hl(2)=gpatch(Fb_blob,V,'gw','k',1);
patchNormPlot(Fb_blob,V);
legend(hl,{'Master','Slave'}); clear hl;
axisGeom(gca,fontSize);
camlight headlight;

subplot(1,2,2); hold on;
title('Plate blob contact pair','fontsize',fontSize);
hl(1)=gpatch(F_plate,V,'rw','k',1);
patchNormPlot(F_plate,V);
hl(2)=gpatch(Fb_blob,V,'gw','k',1);
patchNormPlot(Fb_blob,V);
legend(hl,{'Master','Slave'}); clear hl;
axisGeom(gca,fontSize);
camlight headlight;

drawnow;

Defining the FEBio input structure

See also febioStructTemplate and febioStruct2xml and the FEBio user manual.

%Get a template with default settings
[febio_spec]=febioStructTemplate;

%febio_spec version
febio_spec.ATTR.version='2.5';

%Module section
febio_spec.Module.ATTR.type='solid';

%Control section
febio_spec.Control.analysis.ATTR.type='static';
febio_spec.Control.time_steps=numTimeSteps;
febio_spec.Control.step_size=step_size;
febio_spec.Control.time_stepper.dtmin=dtmin;
febio_spec.Control.time_stepper.dtmax=dtmax;
febio_spec.Control.time_stepper.max_retries=max_retries;
febio_spec.Control.time_stepper.opt_iter=opt_iter;
febio_spec.Control.max_refs=max_refs;
febio_spec.Control.max_ups=max_ups;
febio_spec.Control.symmetric_stiffness=symmetric_stiffness;
febio_spec.Control.min_residual=min_residual;

%Material section
febio_spec.Material.material{1}.ATTR.type='Ogden';
febio_spec.Material.material{1}.ATTR.id=1;
febio_spec.Material.material{1}.c1=c1;
febio_spec.Material.material{1}.m1=m1;
febio_spec.Material.material{1}.c2=c1;
febio_spec.Material.material{1}.m2=-m1;
febio_spec.Material.material{1}.k=k;

febio_spec.Material.material{2}.ATTR.type='rigid body';
febio_spec.Material.material{2}.ATTR.id=2;
febio_spec.Material.material{2}.density=1;
febio_spec.Material.material{2}.center_of_mass=center_of_mass_plate;

febio_spec.Material.material{3}.ATTR.type='rigid body';
febio_spec.Material.material{3}.ATTR.id=3;
febio_spec.Material.material{3}.density=1;
febio_spec.Material.material{3}.center_of_mass=center_of_mass_probe;

%Geometry section
% -> Nodes
febio_spec.Geometry.Nodes{1}.ATTR.name='nodeSet_all'; %The node set name
febio_spec.Geometry.Nodes{1}.node.ATTR.id=(1:size(V,1))'; %The node id's
febio_spec.Geometry.Nodes{1}.node.VAL=V; %The nodel coordinates

% -> Elements
febio_spec.Geometry.Elements{1}.ATTR.type='tet4'; %Element type of this set
febio_spec.Geometry.Elements{1}.ATTR.mat=1; %material index for this set
febio_spec.Geometry.Elements{1}.ATTR.name='Blob'; %Name of the element set
febio_spec.Geometry.Elements{1}.elem.ATTR.id=(1:1:size(E_blob,1))'; %Element id's
febio_spec.Geometry.Elements{1}.elem.VAL=E_blob;

febio_spec.Geometry.Elements{2}.ATTR.type='tri3'; %Element type of this set
febio_spec.Geometry.Elements{2}.ATTR.mat=2; %material index for this set
febio_spec.Geometry.Elements{2}.ATTR.name='Plate'; %Name of the element set
febio_spec.Geometry.Elements{2}.elem.ATTR.id=size(E_blob,1)+(1:1:size(F_plate,1))'; %Element id's
febio_spec.Geometry.Elements{2}.elem.VAL=F_plate;

febio_spec.Geometry.Elements{2}.ATTR.type='tri3'; %Element type of this set
febio_spec.Geometry.Elements{2}.ATTR.mat=3; %material index for this set
febio_spec.Geometry.Elements{2}.ATTR.name='Probe'; %Name of the element set
febio_spec.Geometry.Elements{2}.elem.ATTR.id=size(E_blob,1)+size(F_plate,1)+(1:1:size(F_probe,1))'; %Element id's
febio_spec.Geometry.Elements{2}.elem.VAL=F_probe;

% -> NodeSets


% % -> Surfaces
febio_spec.Geometry.Surface{1}.ATTR.name='contact_master1';
febio_spec.Geometry.Surface{1}.tri3.ATTR.lid=(1:1:size(F_plate,1))';
febio_spec.Geometry.Surface{1}.tri3.VAL=F_plate;

febio_spec.Geometry.Surface{2}.ATTR.name='contact_slave1';
febio_spec.Geometry.Surface{2}.tri3.ATTR.lid=(1:1:size(Fb_blob,1))';
febio_spec.Geometry.Surface{2}.tri3.VAL=Fb_blob;

febio_spec.Geometry.Surface{3}.ATTR.name='contact_master2';
febio_spec.Geometry.Surface{3}.tri3.ATTR.lid=(1:1:size(F_probe,1))';
febio_spec.Geometry.Surface{3}.tri3.VAL=F_probe;

febio_spec.Geometry.Surface{4}.ATTR.name='contact_slave2';
febio_spec.Geometry.Surface{4}.tri3.ATTR.lid=(1:1:size(Fb_blob(Cb_blob==1,:),1))';
febio_spec.Geometry.Surface{4}.tri3.VAL=Fb_blob(Cb_blob==1,:);

% -> Surface pairs
febio_spec.Geometry.SurfacePair{1}.ATTR.name='Contact1_plate_blob';
febio_spec.Geometry.SurfacePair{1}.master.ATTR.surface=febio_spec.Geometry.Surface{1}.ATTR.name;
febio_spec.Geometry.SurfacePair{1}.slave.ATTR.surface=febio_spec.Geometry.Surface{2}.ATTR.name;

febio_spec.Geometry.SurfacePair{2}.ATTR.name='Contact2_probe_blob';
febio_spec.Geometry.SurfacePair{2}.master.ATTR.surface=febio_spec.Geometry.Surface{3}.ATTR.name;
febio_spec.Geometry.SurfacePair{2}.slave.ATTR.surface=febio_spec.Geometry.Surface{4}.ATTR.name;

%Boundary condition section
% -> Fix boundary conditions

% -> Prescribed boundary conditions on the rigid body
febio_spec.Boundary.rigid_body{1}.ATTR.mat=2;
febio_spec.Boundary.rigid_body{1}.fixed{1}.ATTR.bc='x';
febio_spec.Boundary.rigid_body{1}.fixed{2}.ATTR.bc='y';
febio_spec.Boundary.rigid_body{1}.fixed{3}.ATTR.bc='z';
febio_spec.Boundary.rigid_body{1}.fixed{4}.ATTR.bc='Rx';
febio_spec.Boundary.rigid_body{1}.fixed{5}.ATTR.bc='Ry';
febio_spec.Boundary.rigid_body{1}.fixed{6}.ATTR.bc='Rz';

febio_spec.Boundary.rigid_body{2}.ATTR.mat=3;
febio_spec.Boundary.rigid_body{2}.fixed{1}.ATTR.bc='y';
febio_spec.Boundary.rigid_body{2}.fixed{2}.ATTR.bc='z';
febio_spec.Boundary.rigid_body{2}.fixed{3}.ATTR.bc='Rx';
febio_spec.Boundary.rigid_body{2}.fixed{4}.ATTR.bc='Ry';
febio_spec.Boundary.rigid_body{2}.fixed{5}.ATTR.bc='Rz';
febio_spec.Boundary.rigid_body{2}.prescribed.ATTR.bc='x';
febio_spec.Boundary.rigid_body{2}.prescribed.ATTR.lc=1;
febio_spec.Boundary.rigid_body{2}.prescribed.VAL=probeDisplacement;

%Contact section
% -> Contact 1
febio_spec.Contact.contact{1}.ATTR.surface_pair=febio_spec.Geometry.SurfacePair{1}.ATTR.name;
febio_spec.Contact.contact{1}.ATTR.type='sticky';
febio_spec.Contact.contact{1}.penalty=10;
febio_spec.Contact.contact{1}.laugon=0;
febio_spec.Contact.contact{1}.tolerance=0.1;
febio_spec.Contact.contact{1}.minaug=1;
febio_spec.Contact.contact{1}.maxaug=10;
febio_spec.Contact.contact{1}.snap_tol=0;
febio_spec.Contact.contact{1}.max_traction=max_traction;
febio_spec.Contact.contact{1}.search_tolerance=0.1;

febio_spec.Contact.contact{2}.ATTR.surface_pair=febio_spec.Geometry.SurfacePair{2}.ATTR.name;
febio_spec.Contact.contact{2}.ATTR.type='sliding-elastic';
febio_spec.Contact.contact{2}.two_pass=1;
febio_spec.Contact.contact{2}.laugon=laugon;
febio_spec.Contact.contact{2}.tolerance=0.2;
febio_spec.Contact.contact{2}.gaptol=0;
febio_spec.Contact.contact{2}.minaug=minaug;
febio_spec.Contact.contact{2}.maxaug=maxaug;
febio_spec.Contact.contact{2}.search_tol=0.01;
febio_spec.Contact.contact{2}.search_radius=0.1;
febio_spec.Contact.contact{2}.symmetric_stiffness=0;
febio_spec.Contact.contact{2}.auto_penalty=1;
febio_spec.Contact.contact{2}.penalty=contactPenalty;
febio_spec.Contact.contact{2}.fric_coeff=fric_coeff;

%Output section
% -> log file
febio_spec.Output.logfile.ATTR.file=febioLogFileName;
febio_spec.Output.logfile.node_data{1}.ATTR.file=febioLogFileName_disp;
febio_spec.Output.logfile.node_data{1}.ATTR.data='ux;uy;uz';
febio_spec.Output.logfile.node_data{1}.ATTR.delim=',';
febio_spec.Output.logfile.node_data{1}.VAL=1:size(V,1);

Quick viewing of the FEBio input file structure

The febView function can be used to view the xml structure in a MATLAB figure window.

febView(febio_spec); %Viewing the febio file

Exporting the FEBio input file

Exporting the febio_spec structure to an FEBio input file is done using the febioStruct2xml function.

febioStruct2xml(febio_spec,febioFebFileName); %Exporting to file and domNode

Running the FEBio analysis

To run the analysis defined by the created FEBio input file the runMonitorFEBio function is used. The input for this function is a structure defining job settings e.g. the FEBio input file name. The optional output runFlag informs the user if the analysis was run succesfully.

febioAnalysis.run_filename=febioFebFileName; %The input file name
febioAnalysis.run_logname=febioLogFileName; %The name for the log file
febioAnalysis.disp_on=1; %Display information on the command window
febioAnalysis.disp_log_on=1; %Display convergence information in the command window
febioAnalysis.runMode='internal';%'internal';
febioAnalysis.t_check=0.25; %Time for checking log file (dont set too small)
febioAnalysis.maxtpi=1e99; %Max analysis time
febioAnalysis.maxLogCheckTime=3; %Max log file checking time

[runFlag]=runMonitorFEBio(febioAnalysis);%START FEBio NOW!!!!!!!!

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
--- STARTING FEBIO JOB --- 04-Jun-2019 12:56:32
===========================================================================
         ________    _________   _________     __     _________
        |        |\ |        |\ |        |\   |  |\  /         \\
        |    ____|| |    ____|| |    __  ||   |__|| |    ___    ||
        |   |\___\| |   |\___\| |   |\_| ||    \_\| |   //  \   ||
        |   ||      |   ||      |   || | ||    __   |  ||    |  ||
        |   ||__    |   ||__    |   ||_| ||   |  |\ |  ||    |  ||
        |       |\  |       |\  |         \\  |  || |  ||    |  ||
        |    ___||  |    ___||  |    ___   || |  || |  ||    |  ||
        |   |\__\|  |   |\__\|  |   |\__|  || |  || |  ||    |  ||
        |   ||      |   ||      |   ||  |  || |  || |  ||    |  ||
        |   ||      |   ||___   |   ||__|  || |  || |   \\__/   ||
        |   ||      |        |\ |          || |  || |           ||
        |___||      |________|| |__________|| |__||  \_________//

      F I N I T E   E L E M E N T S   F O R   B I O M E C H A N I C S

                 --- v e r s i o n - 2 . 9 . 0 ---


  http://febio.org
  FEBio is a registered trademark.
  copyright (c) 2006-2019 - All rights reserved

===========================================================================


Success loading plugin NeoHookeanPi.so (version 0.0.0)
Reading file /mnt/data/MATLAB/GIBBON/data/temp/tempModel.feb ...SUCCESS!
 *************************************************************************
 *                               WARNING                                 *
 *                                                                       *
 * 701 isolated vertices removed.                                        *
 *************************************************************************
 ]0;(0%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 1 : 0.0333333 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213025

 1
 Nonlinear solution status: time= 0.0333333
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            5.496083e-33    2.094456e-34    0.000000e+00
	   energy              3.375829e-32    4.743988e-34    3.375829e-34
	   displacement        5.580050e-30    5.580050e-30    5.580050e-36
 *************************************************************************
 *                               WARNING                                 *
 *                                                                       *
 * No force acting on the system.                                        *
 *************************************************************************

------- converged at time : 0.0333333

 ]0;(3%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 2 : 0.0666667 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213013

 1
 Nonlinear solution status: time= 0.0666667
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            3.300476e-33    7.218254e-35    0.000000e+00
	   energy              2.022474e-32    3.575787e-33    2.022474e-34
	   displacement        3.102377e-30    3.102377e-30    3.102377e-36
 *************************************************************************
 *                               WARNING                                 *
 *                                                                       *
 * No force acting on the system.                                        *
 *************************************************************************

------- converged at time : 0.0666667

 ]0;(7%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 3 : 0.1 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212953

 1
 Nonlinear solution status: time= 0.1
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            9.417971e-34    9.014884e-35    0.000000e+00
	   energy              1.374942e-32    4.430192e-33    1.374942e-34
	   displacement        3.525895e-30    3.525895e-30    3.525895e-36
 *************************************************************************
 *                               WARNING                                 *
 *                                                                       *
 * No force acting on the system.                                        *
 *************************************************************************

------- converged at time : 0.1

 ]0;(10%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 4 : 0.133333 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212977

 1
 Nonlinear solution status: time= 0.133333
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            7.143773e-34    5.387393e-35    0.000000e+00
	   energy              1.226592e-32    4.276520e-33    1.226592e-34
	   displacement        3.504374e-30    3.504374e-30    3.504374e-36
 *************************************************************************
 *                               WARNING                                 *
 *                                                                       *
 * No force acting on the system.                                        *
 *************************************************************************

------- converged at time : 0.133333

 ]0;(13%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 5 : 0.166667 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212935

 1
 Nonlinear solution status: time= 0.166667
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.983460e-34    4.492381e-35    0.000000e+00
	   energy              9.677800e-33    4.696375e-33    9.677800e-35
	   displacement        3.503661e-30    3.503661e-30    3.503661e-36
 *************************************************************************
 *                               WARNING                                 *
 *                                                                       *
 * No force acting on the system.                                        *
 *************************************************************************

------- converged at time : 0.166667

 ]0;(17%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 6 : 0.2 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212947

 1
 Nonlinear solution status: time= 0.2
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.196687e-34    7.152228e-09    0.000000e+00
	   energy              9.266522e-33    5.268018e-21    9.266522e-35
	   displacement        3.327866e-30    3.327866e-30    3.327866e-36
 *************************************************************************
 *                               WARNING                                 *
 *                                                                       *
 * Problem is diverging. Stiffness matrix will now be reformed           *
 *************************************************************************
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212923

 2
 Nonlinear solution status: time= 0.2
	stiffness updates             = 0
	right hand side evaluations   = 4
	stiffness matrix reformations = 2
	step from line search         = 0.408591
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            7.152228e-09    1.542458e-06    0.000000e+00
	   energy              5.268018e-21    1.631978e-06    5.268018e-23
	   displacement        3.327866e-30    3.794059e-03    3.794059e-09
 *************************************************************************
 *                               WARNING                                 *
 *                                                                       *
 * Problem is diverging. Stiffness matrix will now be reformed           *
 *************************************************************************
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212923

 3
 Nonlinear solution status: time= 0.2
	stiffness updates             = 0
	right hand side evaluations   = 5
	stiffness matrix reformations = 3
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.542458e-06    1.718185e-11    0.000000e+00
	   energy              1.631978e-06    5.131903e-08    1.631978e-08
	   displacement        3.327866e-30    1.849284e-02    3.729381e-08
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212923

 4
 Nonlinear solution status: time= 0.2
	stiffness updates             = 0
	right hand side evaluations   = 6
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.542458e-06    2.642182e-14    0.000000e+00
	   energy              1.631978e-06    2.772352e-10    1.631978e-08
	   displacement        3.327866e-30    5.087148e-04    4.332425e-08
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212923

 5
 Nonlinear solution status: time= 0.2
	stiffness updates             = 0
	right hand side evaluations   = 7
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.542458e-06    1.528491e-20    0.000000e+00
	   energy              1.631978e-06    1.263187e-15    1.631978e-08
	   displacement        3.327866e-30    1.097936e-06    4.364145e-08
Reforming stiffness matrix: reformation #6

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212923

 6
 Nonlinear solution status: time= 0.2
	stiffness updates             = 0
	right hand side evaluations   = 8
	stiffness matrix reformations = 6
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.542458e-06    1.115927e-32    0.000000e+00
	   energy              1.631978e-06    2.372904e-24    1.631978e-08
	   displacement        3.327866e-30    6.823374e-14    4.364139e-08

------- converged at time : 0.2

 ]0;(20%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 7 : 0.233333 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212923

 1
 Nonlinear solution status: time= 0.233333
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            2.190853e-08    6.147706e-10    0.000000e+00
	   energy              1.998534e-05    1.178270e-07    1.998534e-07
	   displacement        3.164579e-01    3.164579e-01    3.164579e-07
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212965

 2
 Nonlinear solution status: time= 0.233333
	stiffness updates             = 0
	right hand side evaluations   = 3
	stiffness matrix reformations = 2
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            2.190853e-08    1.101424e-10    0.000000e+00
	   energy              1.998534e-05    1.009305e-07    1.998534e-07
	   displacement        3.164579e-01    2.805898e-03    3.625026e-07
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212959

 3
 Nonlinear solution status: time= 0.233333
	stiffness updates             = 0
	right hand side evaluations   = 4
	stiffness matrix reformations = 3
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            2.190853e-08    7.277877e-11    0.000000e+00
	   energy              1.998534e-05    4.251750e-08    1.998534e-07
	   displacement        3.164579e-01    6.595505e-02    1.670902e-07
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212953

 4
 Nonlinear solution status: time= 0.233333
	stiffness updates             = 0
	right hand side evaluations   = 5
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            2.190853e-08    2.046828e-14    0.000000e+00
	   energy              1.998534e-05    2.812336e-10    1.998534e-07
	   displacement        3.164579e-01    1.135998e-04    1.604508e-07
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212953

 5
 Nonlinear solution status: time= 0.233333
	stiffness updates             = 0
	right hand side evaluations   = 6
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            2.190853e-08    7.847401e-21    0.000000e+00
	   energy              1.998534e-05    2.385286e-15    1.998534e-07
	   displacement        3.164579e-01    7.683763e-08    1.605363e-07

------- converged at time : 0.233333

 ]0;(23%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 8 : 0.266667 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212953

 1
 Nonlinear solution status: time= 0.266667
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            5.516688e-08    6.175136e-10    0.000000e+00
	   energy              4.303727e-05    1.087059e-06    4.303727e-07
	   displacement        5.466062e-01    5.466062e-01    5.466062e-07
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212965

 2
 Nonlinear solution status: time= 0.266667
	stiffness updates             = 0
	right hand side evaluations   = 3
	stiffness matrix reformations = 2
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            5.516688e-08    1.450062e-10    0.000000e+00
	   energy              4.303727e-05    1.209029e-07    4.303727e-07
	   displacement        5.466062e-01    1.754364e-03    5.838983e-07
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212965

 3
 Nonlinear solution status: time= 0.266667
	stiffness updates             = 0
	right hand side evaluations   = 4
	stiffness matrix reformations = 3
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            5.516688e-08    2.037844e-10    0.000000e+00
	   energy              4.303727e-05    1.522904e-07    4.303727e-07
	   displacement        5.466062e-01    1.393220e-01    2.340170e-07
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212977

 4
 Nonlinear solution status: time= 0.266667
	stiffness updates             = 0
	right hand side evaluations   = 5
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            5.516688e-08    3.183223e-14    0.000000e+00
	   energy              4.303727e-05    2.059109e-10    4.303727e-07
	   displacement        5.466062e-01    1.403482e-04    2.297693e-07
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212977

 5
 Nonlinear solution status: time= 0.266667
	stiffness updates             = 0
	right hand side evaluations   = 6
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            5.516688e-08    4.921781e-20    0.000000e+00
	   energy              4.303727e-05    6.043650e-15    4.303727e-07
	   displacement        5.466062e-01    1.593377e-07    2.299120e-07

------- converged at time : 0.266667

 ]0;(27%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 9 : 0.3 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212977

 1
 Nonlinear solution status: time= 0.3
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            8.969485e-08    6.095703e-10    0.000000e+00
	   energy              6.396447e-05    1.670688e-06    6.396447e-07
	   displacement        7.224825e-01    7.224825e-01    7.224825e-07
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212965

 2
 Nonlinear solution status: time= 0.3
	stiffness updates             = 0
	right hand side evaluations   = 3
	stiffness matrix reformations = 2
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            8.969485e-08    1.743299e-10    0.000000e+00
	   energy              6.396447e-05    1.398260e-07    6.396447e-07
	   displacement        7.224825e-01    1.712427e-03    7.586550e-07
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212971

 3
 Nonlinear solution status: time= 0.3
	stiffness updates             = 0
	right hand side evaluations   = 4
	stiffness matrix reformations = 3
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            8.969485e-08    5.388826e-10    0.000000e+00
	   energy              6.396447e-05    2.956197e-07    6.396447e-07
	   displacement        7.224825e-01    1.856826e-01    3.111559e-07
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212995

 4
 Nonlinear solution status: time= 0.3
	stiffness updates             = 0
	right hand side evaluations   = 5
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            8.969485e-08    1.160910e-13    0.000000e+00
	   energy              6.396447e-05    6.429966e-11    6.396447e-07
	   displacement        7.224825e-01    4.635149e-04    2.930696e-07
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212995

 5
 Nonlinear solution status: time= 0.3
	stiffness updates             = 0
	right hand side evaluations   = 6
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            8.969485e-08    2.584998e-19    0.000000e+00
	   energy              6.396447e-05    1.429941e-14    6.396447e-07
	   displacement        7.224825e-01    1.210636e-06    2.931104e-07
Reforming stiffness matrix: reformation #6

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212995

 6
 Nonlinear solution status: time= 0.3
	stiffness updates             = 0
	right hand side evaluations   = 7
	stiffness matrix reformations = 6
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            8.969485e-08    2.256431e-31    0.000000e+00
	   energy              6.396447e-05    5.963003e-23    6.396447e-07
	   displacement        7.224825e-01    1.543011e-12    2.931100e-07

------- converged at time : 0.3

 ]0;(30%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 10 : 0.333333 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212995

 1
 Nonlinear solution status: time= 0.333333
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.393650e-07    5.330513e-10    0.000000e+00
	   energy              9.415479e-05    3.307940e-06    9.415479e-07
	   displacement        9.484929e-01    9.484929e-01    9.484929e-07
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212995

 2
 Nonlinear solution status: time= 0.333333
	stiffness updates             = 0
	right hand side evaluations   = 3
	stiffness matrix reformations = 2
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.393650e-07    2.029046e-10    0.000000e+00
	   energy              9.415479e-05    1.625802e-07    9.415479e-07
	   displacement        9.484929e-01    7.168550e-04    9.448339e-07
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212995

 3
 Nonlinear solution status: time= 0.333333
	stiffness updates             = 0
	right hand side evaluations   = 4
	stiffness matrix reformations = 3
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.393650e-07    9.511141e-10    0.000000e+00
	   energy              9.415479e-05    4.700149e-07    9.415479e-07
	   displacement        9.484929e-01    3.119043e-01    3.188612e-07
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212983

 4
 Nonlinear solution status: time= 0.333333
	stiffness updates             = 0
	right hand side evaluations   = 5
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.393650e-07    3.464237e-13    0.000000e+00
	   energy              9.415479e-05    1.421604e-09    9.415479e-07
	   displacement        9.484929e-01    8.318805e-04    3.004185e-07
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212983

 5
 Nonlinear solution status: time= 0.333333
	stiffness updates             = 0
	right hand side evaluations   = 6
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.393650e-07    3.070768e-15    0.000000e+00
	   energy              9.415479e-05    3.433609e-12    9.415479e-07
	   displacement        9.484929e-01    3.055611e-05    2.980588e-07
Reforming stiffness matrix: reformation #6

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212983

 6
 Nonlinear solution status: time= 0.333333
	stiffness updates             = 0
	right hand side evaluations   = 7
	stiffness matrix reformations = 6
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.393650e-07    7.225241e-23    0.000000e+00
	   energy              9.415479e-05    1.216283e-16    9.415479e-07
	   displacement        9.484929e-01    5.765642e-09    2.980695e-07

------- converged at time : 0.333333

 ]0;(33%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 11 : 0.366667 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 212983

 1
 Nonlinear solution status: time= 0.366667
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.707866e-07    6.435633e-10    0.000000e+00
	   energy              1.122529e-04    4.039228e-06    1.122529e-06
	   displacement        1.074287e+00    1.074287e+00    1.074287e-06
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213025

 2
 Nonlinear solution status: time= 0.366667
	stiffness updates             = 0
	right hand side evaluations   = 3
	stiffness matrix reformations = 2
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.707866e-07    2.462359e-10    0.000000e+00
	   energy              1.122529e-04    1.880205e-07    1.122529e-06
	   displacement        1.074287e+00    8.263089e-04    1.063553e-06
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213013

 3
 Nonlinear solution status: time= 0.366667
	stiffness updates             = 0
	right hand side evaluations   = 4
	stiffness matrix reformations = 3
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.707866e-07    2.046396e-09    0.000000e+00
	   energy              1.122529e-04    1.444244e-06    1.122529e-06
	   displacement        1.074287e+00    4.841934e-01    2.931426e-07
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213025

 4
 Nonlinear solution status: time= 0.366667
	stiffness updates             = 0
	right hand side evaluations   = 5
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.707866e-07    1.578827e-12    0.000000e+00
	   energy              1.122529e-04    5.379357e-09    1.122529e-06
	   displacement        1.074287e+00    1.241455e-03    2.890347e-07
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213025

 5
 Nonlinear solution status: time= 0.366667
	stiffness updates             = 0
	right hand side evaluations   = 6
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.707866e-07    9.431992e-15    0.000000e+00
	   energy              1.122529e-04    1.818381e-11    1.122529e-06
	   displacement        1.074287e+00    1.227983e-04    2.958813e-07
Reforming stiffness matrix: reformation #6

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213025

 6
 Nonlinear solution status: time= 0.366667
	stiffness updates             = 0
	right hand side evaluations   = 7
	stiffness matrix reformations = 6
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.707866e-07    2.893611e-21    0.000000e+00
	   energy              1.122529e-04    1.644347e-15    1.122529e-06
	   displacement        1.074287e+00    5.518177e-08    2.960180e-07

------- converged at time : 0.366667

 ]0;(37%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 12 : 0.4 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213025

 1
 Nonlinear solution status: time= 0.4
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            2.216941e-07    6.701758e-10    0.000000e+00
	   energy              1.415750e-04    4.749222e-06    1.415750e-06
	   displacement        1.229216e+00    1.229216e+00    1.229216e-06
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213025

 2
 Nonlinear solution status: time= 0.4
	stiffness updates             = 0
	right hand side evaluations   = 3
	stiffness matrix reformations = 2
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            2.216941e-07    2.601594e-10    0.000000e+00
	   energy              1.415750e-04    2.009445e-07    1.415750e-06
	   displacement        1.229216e+00    9.437576e-04    1.212249e-06
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213025

 3
 Nonlinear solution status: time= 0.4
	stiffness updates             = 0
	right hand side evaluations   = 4
	stiffness matrix reformations = 3
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            2.216941e-07    2.112998e-09    0.000000e+00
	   energy              1.415750e-04    1.163107e-06    1.415750e-06
	   displacement        1.229216e+00    5.231226e-01    3.570707e-07
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213025

 4
 Nonlinear solution status: time= 0.4
	stiffness updates             = 0
	right hand side evaluations   = 5
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            2.216941e-07    1.720060e-12    0.000000e+00
	   energy              1.415750e-04    9.289316e-09    1.415750e-06
	   displacement        1.229216e+00    1.898278e-03    3.284454e-07
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213025

 5
 Nonlinear solution status: time= 0.4
	stiffness updates             = 0
	right hand side evaluations   = 6
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            2.216941e-07    2.616556e-16    0.000000e+00
	   energy              1.415750e-04    7.059204e-12    1.415750e-06
	   displacement        1.229216e+00    4.027391e-05    3.286061e-07
Reforming stiffness matrix: reformation #6

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213025

 6
 Nonlinear solution status: time= 0.4
	stiffness updates             = 0
	right hand side evaluations   = 7
	stiffness matrix reformations = 6
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            2.216941e-07    1.721781e-24    0.000000e+00
	   energy              1.415750e-04    9.424528e-18    1.415750e-06
	   displacement        1.229216e+00    2.741057e-09    3.286195e-07

------- converged at time : 0.4

 ]0;(40%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 13 : 0.433333 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213025

 1
 Nonlinear solution status: time= 0.433333
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            2.638781e-07    6.975605e-10    0.000000e+00
	   energy              1.656773e-04    5.658930e-06    1.656773e-06
	   displacement        1.336078e+00    1.336078e+00    1.336078e-06
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213043

 2
 Nonlinear solution status: time= 0.433333
	stiffness updates             = 0
	right hand side evaluations   = 3
	stiffness matrix reformations = 2
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            2.638781e-07    2.959566e-10    0.000000e+00
	   energy              1.656773e-04    2.291120e-07    1.656773e-06
	   displacement        1.336078e+00    1.150361e-03    1.305538e-06
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213043

 3
 Nonlinear solution status: time= 0.433333
	stiffness updates             = 0
	right hand side evaluations   = 4
	stiffness matrix reformations = 3
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            2.638781e-07    3.974089e-09    0.000000e+00
	   energy              1.656773e-04    2.256191e-06    1.656773e-06
	   displacement        1.336078e+00    7.294356e-01    3.461434e-07
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213043

 4
 Nonlinear solution status: time= 0.433333
	stiffness updates             = 0
	right hand side evaluations   = 5
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            2.638781e-07    3.612961e-12    0.000000e+00
	   energy              1.656773e-04    3.683309e-09    1.656773e-06
	   displacement        1.336078e+00    3.730747e-03    3.020101e-07
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213043

 5
 Nonlinear solution status: time= 0.433333
	stiffness updates             = 0
	right hand side evaluations   = 6
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            2.638781e-07    1.008414e-15    0.000000e+00
	   energy              1.656773e-04    4.389079e-13    1.656773e-06
	   displacement        1.336078e+00    3.753640e-05    3.038782e-07
Reforming stiffness matrix: reformation #6

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213043

 6
 Nonlinear solution status: time= 0.433333
	stiffness updates             = 0
	right hand side evaluations   = 7
	stiffness matrix reformations = 6
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            2.638781e-07    7.337456e-24    0.000000e+00
	   energy              1.656773e-04    1.979025e-17    1.656773e-06
	   displacement        1.336078e+00    1.897991e-09    3.038552e-07

------- converged at time : 0.433333

 ]0;(43%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 14 : 0.466667 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213043

 1
 Nonlinear solution status: time= 0.466667
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            3.206976e-07    7.653125e-08    0.000000e+00
	   energy              1.980270e-04    9.457482e-06    1.980270e-06
	   displacement        1.448140e+00    1.448140e+00    1.448140e-06
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213037

 2
 Nonlinear solution status: time= 0.466667
	stiffness updates             = 0
	right hand side evaluations   = 3
	stiffness matrix reformations = 2
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            3.206976e-07    2.950085e-10    0.000000e+00
	   energy              1.980270e-04    2.273300e-07    1.980270e-06
	   displacement        1.448140e+00    1.104235e-03    1.416172e-06
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213031

 3
 Nonlinear solution status: time= 0.466667
	stiffness updates             = 0
	right hand side evaluations   = 4
	stiffness matrix reformations = 3
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            3.206976e-07    4.587226e-09    0.000000e+00
	   energy              1.980270e-04    2.527180e-06    1.980270e-06
	   displacement        1.448140e+00    8.399800e-01    3.489713e-07
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213037

 4
 Nonlinear solution status: time= 0.466667
	stiffness updates             = 0
	right hand side evaluations   = 5
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            3.206976e-07    6.645472e-12    0.000000e+00
	   energy              1.980270e-04    1.219801e-08    1.980270e-06
	   displacement        1.448140e+00    3.793743e-03    3.208923e-07
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213037

 5
 Nonlinear solution status: time= 0.466667
	stiffness updates             = 0
	right hand side evaluations   = 6
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            3.206976e-07    7.542034e-16    0.000000e+00
	   energy              1.980270e-04    4.826112e-12    1.980270e-06
	   displacement        1.448140e+00    6.367094e-05    3.258699e-07
Reforming stiffness matrix: reformation #6

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213037

 6
 Nonlinear solution status: time= 0.466667
	stiffness updates             = 0
	right hand side evaluations   = 7
	stiffness matrix reformations = 6
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            3.206976e-07    9.907955e-24    0.000000e+00
	   energy              1.980270e-04    3.259758e-17    1.980270e-06
	   displacement        1.448140e+00    1.823276e-08    3.259112e-07

------- converged at time : 0.466667

 ]0;(47%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 15 : 0.5 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213037

 1
 Nonlinear solution status: time= 0.5
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            3.728503e-07    1.471101e-07    0.000000e+00
	   energy              2.286149e-04    1.190188e-05    2.286149e-06
	   displacement        1.510182e+00    1.510182e+00    1.510182e-06
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213085

 2
 Nonlinear solution status: time= 0.5
	stiffness updates             = 0
	right hand side evaluations   = 3
	stiffness matrix reformations = 2
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            3.728503e-07    3.136562e-10    0.000000e+00
	   energy              2.286149e-04    2.409233e-07    2.286149e-06
	   displacement        1.510182e+00    1.161821e-03    1.463024e-06
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213085

 3
 Nonlinear solution status: time= 0.5
	stiffness updates             = 0
	right hand side evaluations   = 4
	stiffness matrix reformations = 3
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            3.728503e-07    7.484146e-09    0.000000e+00
	   energy              2.286149e-04    4.400595e-06    2.286149e-06
	   displacement        1.510182e+00    1.215512e+00    3.254018e-07
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213067

 4
 Nonlinear solution status: time= 0.5
	stiffness updates             = 0
	right hand side evaluations   = 5
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            3.728503e-07    1.296487e-11    0.000000e+00
	   energy              2.286149e-04    2.318047e-08    2.286149e-06
	   displacement        1.510182e+00    5.035079e-03    3.116526e-07
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213073

 5
 Nonlinear solution status: time= 0.5
	stiffness updates             = 0
	right hand side evaluations   = 6
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            3.728503e-07    6.497579e-15    0.000000e+00
	   energy              2.286149e-04    2.295312e-11    2.286149e-06
	   displacement        1.510182e+00    1.674747e-04    3.187171e-07
Reforming stiffness matrix: reformation #6

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213073

 6
 Nonlinear solution status: time= 0.5
	stiffness updates             = 0
	right hand side evaluations   = 7
	stiffness matrix reformations = 6
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            3.728503e-07    4.056192e-22    0.000000e+00
	   energy              2.286149e-04    4.476189e-16    2.286149e-06
	   displacement        1.510182e+00    2.836126e-08    3.188095e-07

------- converged at time : 0.5

 ]0;(50%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 16 : 0.533333 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213073

 1
 Nonlinear solution status: time= 0.533333
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            4.469649e-07    1.580456e-07    0.000000e+00
	   energy              2.668337e-04    1.142463e-05    2.668337e-06
	   displacement        1.543853e+00    1.543853e+00    1.543853e-06
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213085

 2
 Nonlinear solution status: time= 0.533333
	stiffness updates             = 0
	right hand side evaluations   = 3
	stiffness matrix reformations = 2
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            4.469649e-07    3.320991e-10    0.000000e+00
	   energy              2.668337e-04    2.456036e-07    2.668337e-06
	   displacement        1.543853e+00    1.233151e-03    1.492257e-06
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213085

 3
 Nonlinear solution status: time= 0.533333
	stiffness updates             = 0
	right hand side evaluations   = 4
	stiffness matrix reformations = 3
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            4.469649e-07    9.458590e-09    0.000000e+00
	   energy              2.668337e-04    5.699169e-06    2.668337e-06
	   displacement        1.543853e+00    1.453439e+00    3.393246e-07
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213085

 4
 Nonlinear solution status: time= 0.533333
	stiffness updates             = 0
	right hand side evaluations   = 5
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            4.469649e-07    4.002494e-11    0.000000e+00
	   energy              2.668337e-04    3.429632e-08    2.668337e-06
	   displacement        1.543853e+00    8.077145e-03    3.270075e-07
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213085

 5
 Nonlinear solution status: time= 0.533333
	stiffness updates             = 0
	right hand side evaluations   = 6
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            4.469649e-07    1.845526e-14    0.000000e+00
	   energy              2.668337e-04    5.534530e-11    2.668337e-06
	   displacement        1.543853e+00    1.266743e-04    3.325552e-07
Reforming stiffness matrix: reformation #6

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213085

 6
 Nonlinear solution status: time= 0.533333
	stiffness updates             = 0
	right hand side evaluations   = 7
	stiffness matrix reformations = 6
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            4.469649e-07    4.699693e-21    0.000000e+00
	   energy              2.668337e-04    2.563256e-16    2.668337e-06
	   displacement        1.543853e+00    2.764471e-08    3.326614e-07

------- converged at time : 0.533333

 ]0;(53%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 17 : 0.566667 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213085

 1
 Nonlinear solution status: time= 0.566667
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            5.164649e-07    1.691350e-07    0.000000e+00
	   energy              3.073271e-04    1.360410e-05    3.073271e-06
	   displacement        1.607752e+00    1.607752e+00    1.607752e-06
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213097

 2
 Nonlinear solution status: time= 0.566667
	stiffness updates             = 0
	right hand side evaluations   = 3
	stiffness matrix reformations = 2
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            5.164649e-07    3.397147e-10    0.000000e+00
	   energy              3.073271e-04    2.652612e-07    3.073271e-06
	   displacement        1.607752e+00    1.693274e-03    1.534816e-06
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213085

 3
 Nonlinear solution status: time= 0.566667
	stiffness updates             = 0
	right hand side evaluations   = 4
	stiffness matrix reformations = 3
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            5.164649e-07    1.133166e-08    0.000000e+00
	   energy              3.073271e-04    7.087921e-06    3.073271e-06
	   displacement        1.607752e+00    1.873128e+00    3.439827e-07
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213061

 4
 Nonlinear solution status: time= 0.566667
	stiffness updates             = 0
	right hand side evaluations   = 5
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            5.164649e-07    5.872384e-11    0.000000e+00
	   energy              3.073271e-04    4.208508e-08    3.073271e-06
	   displacement        1.607752e+00    1.262976e-02    3.844779e-07
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213073

 5
 Nonlinear solution status: time= 0.566667
	stiffness updates             = 0
	right hand side evaluations   = 6
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            5.164649e-07    7.201544e-14    0.000000e+00
	   energy              3.073271e-04    1.680682e-11    3.073271e-06
	   displacement        1.607752e+00    8.485439e-04    4.047043e-07
Reforming stiffness matrix: reformation #6

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213073

 6
 Nonlinear solution status: time= 0.566667
	stiffness updates             = 0
	right hand side evaluations   = 7
	stiffness matrix reformations = 6
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            5.164649e-07    1.261569e-20    0.000000e+00
	   energy              3.073271e-04    3.098698e-15    3.073271e-06
	   displacement        1.607752e+00    8.885229e-08    4.047335e-07

------- converged at time : 0.566667

 ]0;(57%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 18 : 0.6 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213073

 1
 Nonlinear solution status: time= 0.6
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            5.946723e-07    7.436999e-10    0.000000e+00
	   energy              3.476255e-04    9.396577e-06    3.476255e-06
	   displacement        1.623032e+00    1.623032e+00    1.623032e-06
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213103

 2
 Nonlinear solution status: time= 0.6
	stiffness updates             = 0
	right hand side evaluations   = 3
	stiffness matrix reformations = 2
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            5.946723e-07    3.656146e-10    0.000000e+00
	   energy              3.476255e-04    2.685210e-07    3.476255e-06
	   displacement        1.623032e+00    1.373272e-03    1.554086e-06
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213109

 3
 Nonlinear solution status: time= 0.6
	stiffness updates             = 0
	right hand side evaluations   = 4
	stiffness matrix reformations = 3
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            5.946723e-07    9.361997e-09    0.000000e+00
	   energy              3.476255e-04    6.452158e-06    3.476255e-06
	   displacement        1.623032e+00    1.659903e+00    2.382436e-07
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213109

 4
 Nonlinear solution status: time= 0.6
	stiffness updates             = 0
	right hand side evaluations   = 5
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            5.946723e-07    7.849580e-11    0.000000e+00
	   energy              3.476255e-04    4.550425e-08    3.476255e-06
	   displacement        1.623032e+00    1.745212e-02    3.142381e-07
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213109

 5
 Nonlinear solution status: time= 0.6
	stiffness updates             = 0
	right hand side evaluations   = 6
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            5.946723e-07    6.740035e-14    0.000000e+00
	   energy              3.476255e-04    5.539303e-10    3.476255e-06
	   displacement        1.623032e+00    3.205959e-03    2.977987e-07
Reforming stiffness matrix: reformation #6

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213103

 6
 Nonlinear solution status: time= 0.6
	stiffness updates             = 0
	right hand side evaluations   = 7
	stiffness matrix reformations = 6
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            5.946723e-07    4.483114e-20    0.000000e+00
	   energy              3.476255e-04    1.634773e-14    3.476255e-06
	   displacement        1.623032e+00    7.151215e-07    2.975707e-07
Reforming stiffness matrix: reformation #7

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213103

 7
 Nonlinear solution status: time= 0.6
	stiffness updates             = 0
	right hand side evaluations   = 8
	stiffness matrix reformations = 7
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            5.946723e-07    6.596943e-32    0.000000e+00
	   energy              3.476255e-04    1.415102e-23    3.476255e-06
	   displacement        1.623032e+00    9.651119e-13    2.975705e-07

------- converged at time : 0.6

 ]0;(60%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 19 : 0.633333 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213103

 1
 Nonlinear solution status: time= 0.633333
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            6.898723e-07    4.111334e-08    0.000000e+00
	   energy              3.986816e-04    1.143126e-05    3.986816e-06
	   displacement        1.665449e+00    1.665449e+00    1.665449e-06
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213169

 2
 Nonlinear solution status: time= 0.633333
	stiffness updates             = 0
	right hand side evaluations   = 3
	stiffness matrix reformations = 2
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            6.898723e-07    3.604032e-10    0.000000e+00
	   energy              3.986816e-04    2.703313e-07    3.986816e-06
	   displacement        1.665449e+00    1.533534e-03    1.591601e-06
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213157

 3
 Nonlinear solution status: time= 0.633333
	stiffness updates             = 0
	right hand side evaluations   = 4
	stiffness matrix reformations = 3
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            6.898723e-07    1.450413e-08    0.000000e+00
	   energy              3.986816e-04    8.400577e-06    3.986816e-06
	   displacement        1.665449e+00    2.063783e+00    3.375433e-07
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213151

 4
 Nonlinear solution status: time= 0.633333
	stiffness updates             = 0
	right hand side evaluations   = 5
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            6.898723e-07    4.179068e-11    0.000000e+00
	   energy              3.986816e-04    8.787582e-08    3.986816e-06
	   displacement        1.665449e+00    1.390203e-02    3.536467e-07
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213145

 5
 Nonlinear solution status: time= 0.633333
	stiffness updates             = 0
	right hand side evaluations   = 6
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            6.898723e-07    3.476383e-13    0.000000e+00
	   energy              3.986816e-04    1.399611e-10    3.986816e-06
	   displacement        1.665449e+00    2.285170e-03    3.883045e-07
Reforming stiffness matrix: reformation #6

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213133

 6
 Nonlinear solution status: time= 0.633333
	stiffness updates             = 0
	right hand side evaluations   = 7
	stiffness matrix reformations = 6
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            6.898723e-07    3.644636e-19    0.000000e+00
	   energy              3.986816e-04    7.343116e-14    3.986816e-06
	   displacement        1.665449e+00    3.994570e-07    3.879149e-07
Reforming stiffness matrix: reformation #7

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213133

 7
 Nonlinear solution status: time= 0.633333
	stiffness updates             = 0
	right hand side evaluations   = 8
	stiffness matrix reformations = 7
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            6.898723e-07    2.464733e-29    0.000000e+00
	   energy              3.986816e-04    1.478872e-21    3.986816e-06
	   displacement        1.665449e+00    3.367205e-11    3.879109e-07

------- converged at time : 0.633333

 ]0;(63%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 20 : 0.666667 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213133

 1
 Nonlinear solution status: time= 0.666667
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            7.596924e-07    6.957362e-08    0.000000e+00
	   energy              4.349323e-04    1.247068e-05    4.349323e-06
	   displacement        1.672292e+00    1.672292e+00    1.672292e-06
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213199

 2
 Nonlinear solution status: time= 0.666667
	stiffness updates             = 0
	right hand side evaluations   = 3
	stiffness matrix reformations = 2
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            7.596924e-07    3.653330e-10    0.000000e+00
	   energy              4.349323e-04    2.746494e-07    4.349323e-06
	   displacement        1.672292e+00    1.605669e-03    1.592267e-06
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213199

 3
 Nonlinear solution status: time= 0.666667
	stiffness updates             = 0
	right hand side evaluations   = 4
	stiffness matrix reformations = 3
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            7.596924e-07    1.629613e-08    0.000000e+00
	   energy              4.349323e-04    9.676033e-06    4.349323e-06
	   displacement        1.672292e+00    2.367911e+00    3.090217e-07
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213169

 4
 Nonlinear solution status: time= 0.666667
	stiffness updates             = 0
	right hand side evaluations   = 5
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            7.596924e-07    2.802255e-10    0.000000e+00
	   energy              4.349323e-04    6.065140e-08    4.349323e-06
	   displacement        1.672292e+00    3.008443e-02    4.228492e-07
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213151

 5
 Nonlinear solution status: time= 0.666667
	stiffness updates             = 0
	right hand side evaluations   = 6
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            7.596924e-07    4.622129e-13    0.000000e+00
	   energy              4.349323e-04    1.585922e-09    4.349323e-06
	   displacement        1.672292e+00    1.641088e-03    4.644722e-07
Reforming stiffness matrix: reformation #6

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213157

 6
 Nonlinear solution status: time= 0.666667
	stiffness updates             = 0
	right hand side evaluations   = 7
	stiffness matrix reformations = 6
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            7.596924e-07    1.971148e-15    0.000000e+00
	   energy              4.349323e-04    1.148573e-12    4.349323e-06
	   displacement        1.672292e+00    1.246273e-05    4.683815e-07
Reforming stiffness matrix: reformation #7

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213157

 7
 Nonlinear solution status: time= 0.666667
	stiffness updates             = 0
	right hand side evaluations   = 8
	stiffness matrix reformations = 7
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            7.596924e-07    5.274243e-23    0.000000e+00
	   energy              4.349323e-04    1.178296e-16    4.349323e-06
	   displacement        1.672292e+00    2.334453e-08    4.682251e-07

------- converged at time : 0.666667

 ]0;(67%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 21 : 0.7 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213157

 1
 Nonlinear solution status: time= 0.7
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            8.259344e-07    6.106471e-09    0.000000e+00
	   energy              4.746217e-04    1.142237e-05    4.746217e-06
	   displacement        1.688599e+00    1.688599e+00    1.688599e-06
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213199

 2
 Nonlinear solution status: time= 0.7
	stiffness updates             = 0
	right hand side evaluations   = 3
	stiffness matrix reformations = 2
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            8.259344e-07    3.689692e-10    0.000000e+00
	   energy              4.746217e-04    2.794234e-07    4.746217e-06
	   displacement        1.688599e+00    1.659807e-03    1.607109e-06
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213193

 3
 Nonlinear solution status: time= 0.7
	stiffness updates             = 0
	right hand side evaluations   = 9
	stiffness matrix reformations = 3
	step from line search         = 0.500000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            8.259344e-07    5.491784e-07    0.000000e+00
	   energy              4.746217e-04    5.615320e-06    4.746217e-06
	   displacement        1.688599e+00    1.030081e+00    2.001810e-07
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213187

 4
 Nonlinear solution status: time= 0.7
	stiffness updates             = 0
	right hand side evaluations   = 10
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            8.259344e-07    2.347932e-10    0.000000e+00
	   energy              4.746217e-04    3.340507e-07    4.746217e-06
	   displacement        1.688599e+00    3.645829e-01    2.967848e-07
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213181

 5
 Nonlinear solution status: time= 0.7
	stiffness updates             = 0
	right hand side evaluations   = 11
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            8.259344e-07    1.263661e-11    0.000000e+00
	   energy              4.746217e-04    2.059407e-09    4.746217e-06
	   displacement        1.688599e+00    2.554695e-02    4.497784e-07
Reforming stiffness matrix: reformation #6

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213181

 6
 Nonlinear solution status: time= 0.7
	stiffness updates             = 0
	right hand side evaluations   = 12
	stiffness matrix reformations = 6
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            8.259344e-07    1.033473e-16    0.000000e+00
	   energy              4.746217e-04    6.207235e-12    4.746217e-06
	   displacement        1.688599e+00    2.055348e-05    4.527569e-07
Reforming stiffness matrix: reformation #7

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213181

 7
 Nonlinear solution status: time= 0.7
	stiffness updates             = 0
	right hand side evaluations   = 13
	stiffness matrix reformations = 7
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            8.259344e-07    1.515421e-25    0.000000e+00
	   energy              4.746217e-04    7.758710e-19    4.746217e-06
	   displacement        1.688599e+00    6.113276e-10    4.527509e-07

------- converged at time : 0.7

 ]0;(70%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 22 : 0.733333 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213181

 1
 Nonlinear solution status: time= 0.733333
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            9.156849e-07    2.411403e-08    0.000000e+00
	   energy              5.236527e-04    1.238449e-05    5.236527e-06
	   displacement        1.725640e+00    1.725640e+00    1.725640e-06
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213205

 2
 Nonlinear solution status: time= 0.733333
	stiffness updates             = 0
	right hand side evaluations   = 3
	stiffness matrix reformations = 2
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            9.156849e-07    3.630648e-10    0.000000e+00
	   energy              5.236527e-04    2.800595e-07    5.236527e-06
	   displacement        1.725640e+00    1.679687e-03    1.641659e-06
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213187

 3
 Nonlinear solution status: time= 0.733333
	stiffness updates             = 0
	right hand side evaluations   = 4
	stiffness matrix reformations = 3
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            9.156849e-07    9.259396e-09    0.000000e+00
	   energy              5.236527e-04    5.441233e-06    5.236527e-06
	   displacement        1.725640e+00    2.358398e+00    2.156134e-07
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213193

 4
 Nonlinear solution status: time= 0.733333
	stiffness updates             = 0
	right hand side evaluations   = 5
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            9.156849e-07    4.548255e-11    0.000000e+00
	   energy              5.236527e-04    7.510378e-08    5.236527e-06
	   displacement        1.725640e+00    1.265844e-02    2.673127e-07
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213187

 5
 Nonlinear solution status: time= 0.733333
	stiffness updates             = 0
	right hand side evaluations   = 6
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            9.156849e-07    1.577011e-13    0.000000e+00
	   energy              5.236527e-04    2.876725e-10    5.236527e-06
	   displacement        1.725640e+00    6.638460e-04    2.859687e-07
Reforming stiffness matrix: reformation #6

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213193

 6
 Nonlinear solution status: time= 0.733333
	stiffness updates             = 0
	right hand side evaluations   = 7
	stiffness matrix reformations = 6
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            9.156849e-07    3.387326e-20    0.000000e+00
	   energy              5.236527e-04    1.423955e-14    5.236527e-06
	   displacement        1.725640e+00    4.827194e-07    2.863631e-07
Reforming stiffness matrix: reformation #7

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213193

 7
 Nonlinear solution status: time= 0.733333
	stiffness updates             = 0
	right hand side evaluations   = 8
	stiffness matrix reformations = 7
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            9.156849e-07    1.166651e-31    0.000000e+00
	   energy              5.236527e-04    6.070651e-24    5.236527e-06
	   displacement        1.725640e+00    9.373514e-13    2.863638e-07

------- converged at time : 0.733333

 ]0;(73%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 23 : 0.766667 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213193

 1
 Nonlinear solution status: time= 0.766667
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            9.868563e-07    7.922968e-10    0.000000e+00
	   energy              5.603849e-04    1.219929e-05    5.603849e-06
	   displacement        1.736672e+00    1.736672e+00    1.736672e-06
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213265

 2
 Nonlinear solution status: time= 0.766667
	stiffness updates             = 0
	right hand side evaluations   = 3
	stiffness matrix reformations = 2
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            9.868563e-07    3.614702e-10    0.000000e+00
	   energy              5.603849e-04    2.772042e-07    5.603849e-06
	   displacement        1.736672e+00    1.607049e-03    1.651779e-06
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213253

 3
 Nonlinear solution status: time= 0.766667
	stiffness updates             = 0
	right hand side evaluations   = 8
	stiffness matrix reformations = 3
	step from line search         = 0.500000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            9.868563e-07    3.146382e-06    0.000000e+00
	   energy              5.603849e-04    2.628457e-05    5.603849e-06
	   displacement        1.736672e+00    7.652071e-01    2.368076e-07
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213235

 4
 Nonlinear solution status: time= 0.766667
	stiffness updates             = 0
	right hand side evaluations   = 9
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            9.868563e-07    3.951181e-10    0.000000e+00
	   energy              5.603849e-04    1.023823e-07    5.603849e-06
	   displacement        1.736672e+00    5.864119e-01    2.380552e-07
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213229

 5
 Nonlinear solution status: time= 0.766667
	stiffness updates             = 0
	right hand side evaluations   = 10
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            9.868563e-07    2.207905e-12    0.000000e+00
	   energy              5.603849e-04    6.232642e-09    5.603849e-06
	   displacement        1.736672e+00    5.886529e-03    3.007870e-07
Reforming stiffness matrix: reformation #6

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213253

 6
 Nonlinear solution status: time= 0.766667
	stiffness updates             = 0
	right hand side evaluations   = 11
	stiffness matrix reformations = 6
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            9.868563e-07    2.568691e-15    0.000000e+00
	   energy              5.603849e-04    2.101706e-11    5.603849e-06
	   displacement        1.736672e+00    6.408155e-05    3.073847e-07
Reforming stiffness matrix: reformation #7

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213253

 7
 Nonlinear solution status: time= 0.766667
	stiffness updates             = 0
	right hand side evaluations   = 12
	stiffness matrix reformations = 7
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            9.868563e-07    2.227345e-23    0.000000e+00
	   energy              5.603849e-04    5.532399e-17    5.603849e-06
	   displacement        1.736672e+00    3.250193e-09    3.073569e-07

------- converged at time : 0.766667

 ]0;(77%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 24 : 0.8 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213253

 1
 Nonlinear solution status: time= 0.8
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.050724e-06    7.476929e-10    0.000000e+00
	   energy              5.936023e-04    1.275256e-05    5.936023e-06
	   displacement        1.730855e+00    1.730855e+00    1.730855e-06
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213289

 2
 Nonlinear solution status: time= 0.8
	stiffness updates             = 0
	right hand side evaluations   = 3
	stiffness matrix reformations = 2
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.050724e-06    3.692687e-10    0.000000e+00
	   energy              5.936023e-04    2.841839e-07    5.936023e-06
	   displacement        1.730855e+00    1.585770e-03    1.644070e-06
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213271

 3
 Nonlinear solution status: time= 0.8
	stiffness updates             = 0
	right hand side evaluations   = 4
	stiffness matrix reformations = 3
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.050724e-06    4.831887e-08    0.000000e+00
	   energy              5.936023e-04    8.479822e-06    5.936023e-06
	   displacement        1.730855e+00    2.630453e+00    2.059177e-07
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213283

 4
 Nonlinear solution status: time= 0.8
	stiffness updates             = 0
	right hand side evaluations   = 5
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.050724e-06    3.308929e-11    0.000000e+00
	   energy              5.936023e-04    6.780929e-08    5.936023e-06
	   displacement        1.730855e+00    5.501943e-03    2.151874e-07
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213289

 5
 Nonlinear solution status: time= 0.8
	stiffness updates             = 0
	right hand side evaluations   = 6
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.050724e-06    1.253669e-14    0.000000e+00
	   energy              5.936023e-04    1.026047e-10    5.936023e-06
	   displacement        1.730855e+00    3.225773e-04    2.072506e-07
Reforming stiffness matrix: reformation #6

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213289

 6
 Nonlinear solution status: time= 0.8
	stiffness updates             = 0
	right hand side evaluations   = 7
	stiffness matrix reformations = 6
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.050724e-06    2.785764e-22    0.000000e+00
	   energy              5.936023e-04    4.392474e-16    5.936023e-06
	   displacement        1.730855e+00    9.188515e-08    2.070373e-07

------- converged at time : 0.8

 ]0;(80%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 25 : 0.833333 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213289

 1
 Nonlinear solution status: time= 0.833333
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.115326e-06    7.403408e-10    0.000000e+00
	   energy              6.294743e-04    1.314353e-05    6.294743e-06
	   displacement        1.746046e+00    1.746046e+00    1.746046e-06
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213283

 2
 Nonlinear solution status: time= 0.833333
	stiffness updates             = 0
	right hand side evaluations   = 3
	stiffness matrix reformations = 2
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.115326e-06    3.658517e-10    0.000000e+00
	   energy              6.294743e-04    2.907942e-07    6.294743e-06
	   displacement        1.746046e+00    1.753737e-03    1.655337e-06
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213283

 3
 Nonlinear solution status: time= 0.833333
	stiffness updates             = 0
	right hand side evaluations   = 4
	stiffness matrix reformations = 3
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.115326e-06    6.187235e-09    0.000000e+00
	   energy              6.294743e-04    4.338126e-06    6.294743e-06
	   displacement        1.746046e+00    2.483498e+00    1.366664e-07
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213295

 4
 Nonlinear solution status: time= 0.833333
	stiffness updates             = 0
	right hand side evaluations   = 5
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.115326e-06    3.448779e-11    0.000000e+00
	   energy              6.294743e-04    8.725587e-08    6.294743e-06
	   displacement        1.746046e+00    3.454992e-03    1.420787e-07
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213289

 5
 Nonlinear solution status: time= 0.833333
	stiffness updates             = 0
	right hand side evaluations   = 6
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.115326e-06    3.631129e-14    0.000000e+00
	   energy              6.294743e-04    3.919452e-10    6.294743e-06
	   displacement        1.746046e+00    7.279609e-04    1.295359e-07
Reforming stiffness matrix: reformation #6

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213289

 6
 Nonlinear solution status: time= 0.833333
	stiffness updates             = 0
	right hand side evaluations   = 7
	stiffness matrix reformations = 6
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.115326e-06    1.470594e-20    0.000000e+00
	   energy              6.294743e-04    9.527523e-15    6.294743e-06
	   displacement        1.746046e+00    3.787133e-07    1.292221e-07
Reforming stiffness matrix: reformation #7

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213289

 7
 Nonlinear solution status: time= 0.833333
	stiffness updates             = 0
	right hand side evaluations   = 8
	stiffness matrix reformations = 7
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.115326e-06    2.603497e-32    0.000000e+00
	   energy              6.294743e-04    5.157936e-24    6.294743e-06
	   displacement        1.746046e+00    5.518767e-13    1.292217e-07

------- converged at time : 0.833333

 ]0;(83%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 26 : 0.866667 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213289

 1
 Nonlinear solution status: time= 0.866667
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.157880e-06    7.346577e-10    0.000000e+00
	   energy              6.528382e-04    1.335833e-05    6.528382e-06
	   displacement        1.758414e+00    1.758414e+00    1.758414e-06
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213337

 2
 Nonlinear solution status: time= 0.866667
	stiffness updates             = 0
	right hand side evaluations   = 3
	stiffness matrix reformations = 2
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.157880e-06    3.597153e-10    0.000000e+00
	   energy              6.528382e-04    2.864947e-07    6.528382e-06
	   displacement        1.758414e+00    1.648617e-03    1.668418e-06
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213337

 3
 Nonlinear solution status: time= 0.866667
	stiffness updates             = 0
	right hand side evaluations   = 4
	stiffness matrix reformations = 3
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.157880e-06    2.059590e-08    0.000000e+00
	   energy              6.528382e-04    3.803319e-06    6.528382e-06
	   displacement        1.758414e+00    2.264986e+00    8.031148e-08
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213355

 4
 Nonlinear solution status: time= 0.866667
	stiffness updates             = 0
	right hand side evaluations   = 5
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.157880e-06    1.137057e-11    0.000000e+00
	   energy              6.528382e-04    8.717141e-09    6.528382e-06
	   displacement        1.758414e+00    5.462048e-03    1.049281e-07
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213367

 5
 Nonlinear solution status: time= 0.866667
	stiffness updates             = 0
	right hand side evaluations   = 6
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.157880e-06    2.740297e-15    0.000000e+00
	   energy              6.528382e-04    2.852607e-11    6.528382e-06
	   displacement        1.758414e+00    7.835009e-05    1.010672e-07
Reforming stiffness matrix: reformation #6

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213367

 6
 Nonlinear solution status: time= 0.866667
	stiffness updates             = 0
	right hand side evaluations   = 7
	stiffness matrix reformations = 6
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.157880e-06    1.583359e-23    0.000000e+00
	   energy              6.528382e-04    2.543621e-17    6.528382e-06
	   displacement        1.758414e+00    3.384441e-09    1.010540e-07

------- converged at time : 0.866667

 ]0;(87%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 27 : 0.9 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213367

 1
 Nonlinear solution status: time= 0.9
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.204754e-06    7.131782e-10    0.000000e+00
	   energy              6.798651e-04    1.351517e-05    6.798651e-06
	   displacement        1.772364e+00    1.772364e+00    1.772364e-06
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213349

 2
 Nonlinear solution status: time= 0.9
	stiffness updates             = 0
	right hand side evaluations   = 3
	stiffness matrix reformations = 2
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.204754e-06    3.525225e-10    0.000000e+00
	   energy              6.798651e-04    2.852728e-07    6.798651e-06
	   displacement        1.772364e+00    1.780982e-03    1.679751e-06
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213349

 3
 Nonlinear solution status: time= 0.9
	stiffness updates             = 0
	right hand side evaluations   = 4
	stiffness matrix reformations = 3
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.204754e-06    5.624726e-09    0.000000e+00
	   energy              6.798651e-04    2.120289e-06    6.798651e-06
	   displacement        1.772364e+00    2.219345e+00    5.990189e-08
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213379

 4
 Nonlinear solution status: time= 0.9
	stiffness updates             = 0
	right hand side evaluations   = 5
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.204754e-06    3.208583e-12    0.000000e+00
	   energy              6.798651e-04    1.445346e-08    6.798651e-06
	   displacement        1.772364e+00    2.172710e-03    5.613579e-08
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213373

 5
 Nonlinear solution status: time= 0.9
	stiffness updates             = 0
	right hand side evaluations   = 6
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.204754e-06    3.080154e-16    0.000000e+00
	   energy              6.798651e-04    5.995981e-12    6.798651e-06
	   displacement        1.772364e+00    3.676920e-05    5.426544e-08
Reforming stiffness matrix: reformation #6

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213373

 6
 Nonlinear solution status: time= 0.9
	stiffness updates             = 0
	right hand side evaluations   = 7
	stiffness matrix reformations = 6
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.204754e-06    2.224938e-25    0.000000e+00
	   energy              6.798651e-04    1.674473e-18    6.798651e-06
	   displacement        1.772364e+00    7.795581e-10    5.425416e-08

------- converged at time : 0.9

 ]0;(90%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 28 : 0.933333 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213373

 1
 Nonlinear solution status: time= 0.933333
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.224107e-06    6.996194e-10    0.000000e+00
	   energy              6.916902e-04    1.364083e-05    6.916902e-06
	   displacement        1.778970e+00    1.778970e+00    1.778970e-06
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213385

 2
 Nonlinear solution status: time= 0.933333
	stiffness updates             = 0
	right hand side evaluations   = 3
	stiffness matrix reformations = 2
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.224107e-06    3.439316e-10    0.000000e+00
	   energy              6.916902e-04    2.783562e-07    6.916902e-06
	   displacement        1.778970e+00    1.596291e-03    1.689766e-06
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213385

 3
 Nonlinear solution status: time= 0.933333
	stiffness updates             = 0
	right hand side evaluations   = 4
	stiffness matrix reformations = 3
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.224107e-06    1.065034e-09    0.000000e+00
	   energy              6.916902e-04    8.494844e-07    6.916902e-06
	   displacement        1.778970e+00    1.973416e+00    2.159600e-08
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213415

 4
 Nonlinear solution status: time= 0.933333
	stiffness updates             = 0
	right hand side evaluations   = 5
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.224107e-06    2.080720e-09    0.000000e+00
	   energy              6.916902e-04    1.581733e-08    6.916902e-06
	   displacement        1.778970e+00    1.810895e-03    1.936015e-08
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213421

 5
 Nonlinear solution status: time= 0.933333
	stiffness updates             = 0
	right hand side evaluations   = 6
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.224107e-06    1.268600e-17    0.000000e+00
	   energy              6.916902e-04    1.090164e-12    6.916902e-06
	   displacement        1.778970e+00    1.045221e-05    1.902640e-08
Reforming stiffness matrix: reformation #6

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213421

 6
 Nonlinear solution status: time= 0.933333
	stiffness updates             = 0
	right hand side evaluations   = 7
	stiffness matrix reformations = 6
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.224107e-06    7.740268e-28    0.000000e+00
	   energy              6.916902e-04    3.941197e-20    6.916902e-06
	   displacement        1.778970e+00    2.517249e-10    1.902271e-08

------- converged at time : 0.933333

 ]0;(93%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 29 : 0.966667 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213421

 1
 Nonlinear solution status: time= 0.966667
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.246388e-06    7.104831e-10    0.000000e+00
	   energy              7.059279e-04    1.373043e-05    7.059279e-06
	   displacement        1.788400e+00    1.788400e+00    1.788400e-06
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213415

 2
 Nonlinear solution status: time= 0.966667
	stiffness updates             = 0
	right hand side evaluations   = 3
	stiffness matrix reformations = 2
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.246388e-06    3.379590e-10    0.000000e+00
	   energy              7.059279e-04    2.780517e-07    7.059279e-06
	   displacement        1.788400e+00    1.594455e-03    1.699543e-06
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213415

 3
 Nonlinear solution status: time= 0.966667
	stiffness updates             = 0
	right hand side evaluations   = 4
	stiffness matrix reformations = 3
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.246388e-06    3.486298e-10    0.000000e+00
	   energy              7.059279e-04    2.588966e-07    7.059279e-06
	   displacement        1.788400e+00    1.783181e+00    4.516959e-09
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213445

 4
 Nonlinear solution status: time= 0.966667
	stiffness updates             = 0
	right hand side evaluations   = 5
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.246388e-06    9.716767e-10    0.000000e+00
	   energy              7.059279e-04    1.410190e-08    7.059279e-06
	   displacement        1.788400e+00    1.930312e-03    5.330771e-09
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213445

 5
 Nonlinear solution status: time= 0.966667
	stiffness updates             = 0
	right hand side evaluations   = 6
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.246388e-06    1.889320e-18    0.000000e+00
	   energy              7.059279e-04    9.871580e-14    7.059279e-06
	   displacement        1.788400e+00    9.353745e-06    5.020421e-09
Reforming stiffness matrix: reformation #6

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213445

 6
 Nonlinear solution status: time= 0.966667
	stiffness updates             = 0
	right hand side evaluations   = 7
	stiffness matrix reformations = 6
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.246388e-06    9.069200e-30    0.000000e+00
	   energy              7.059279e-04    1.008252e-21    7.059279e-06
	   displacement        1.788400e+00    1.515636e-12    5.020401e-09

------- converged at time : 0.966667

 ]0;(97%) tempModel.feb - FEBio 2.9.0.0
===== beginning time step 30 : 1 =====
Reforming stiffness matrix: reformation #1

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213445

 1
 Nonlinear solution status: time= 1
	stiffness updates             = 0
	right hand side evaluations   = 2
	stiffness matrix reformations = 1
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.263066e-06    6.988052e-10    0.000000e+00
	   energy              7.158822e-04    1.379474e-05    7.158822e-06
	   displacement        1.794098e+00    1.794098e+00    1.794098e-06
Reforming stiffness matrix: reformation #2

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213421

 2
 Nonlinear solution status: time= 1
	stiffness updates             = 0
	right hand side evaluations   = 3
	stiffness matrix reformations = 2
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.263066e-06    3.351220e-10    0.000000e+00
	   energy              7.158822e-04    2.762095e-07    7.158822e-06
	   displacement        1.794098e+00    1.540716e-03    1.706511e-06
Reforming stiffness matrix: reformation #3

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213427

 3
 Nonlinear solution status: time= 1
	stiffness updates             = 0
	right hand side evaluations   = 4
	stiffness matrix reformations = 3
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.263066e-06    2.192954e-10    0.000000e+00
	   energy              7.158822e-04    9.035240e-08    7.158822e-06
	   displacement        1.794098e+00    1.700734e+00    1.661227e-09
Reforming stiffness matrix: reformation #4

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213457

 4
 Nonlinear solution status: time= 1
	stiffness updates             = 0
	right hand side evaluations   = 5
	stiffness matrix reformations = 4
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.263066e-06    3.513922e-14    0.000000e+00
	   energy              7.158822e-04    4.264011e-10    7.158822e-06
	   displacement        1.794098e+00    1.563879e-03    7.856778e-10
Reforming stiffness matrix: reformation #5

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213457

 5
 Nonlinear solution status: time= 1
	stiffness updates             = 0
	right hand side evaluations   = 6
	stiffness matrix reformations = 5
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.263066e-06    1.383808e-20    0.000000e+00
	   energy              7.158822e-04    4.525710e-15    7.158822e-06
	   displacement        1.794098e+00    5.809633e-07    7.691727e-10
Reforming stiffness matrix: reformation #6

===== reforming stiffness matrix:
	Nr of equations ........................... : 4939
	Nr of nonzeroes in stiffness matrix ....... : 213457

 6
 Nonlinear solution status: time= 1
	stiffness updates             = 0
	right hand side evaluations   = 7
	stiffness matrix reformations = 6
	step from line search         = 1.000000
	convergence norms :     INITIAL         CURRENT         REQUIRED
	   residual            1.263066e-06    1.240925e-32    0.000000e+00
	   energy              7.158822e-04    9.919115e-25    7.158822e-06
	   displacement        1.794098e+00    5.795736e-14    7.691773e-10

------- converged at time : 1

 ]0;(100%) tempModel.feb - FEBio 2.9.0.0

N O N L I N E A R   I T E R A T I O N   I N F O R M A T I O N

	Number of time steps completed .................... : 30

	Total number of equilibrium iterations ............ : 160

	Average number of equilibrium iterations .......... : 5.33333

	Total number of right hand evaluations ............ : 200

	Total number of stiffness reformations ............ : 160

	Time in linear solver: 0:00:07


 Elapsed time : 0:00:19


 N O R M A L   T E R M I N A T I O N

Waiting for log file...
Proceeding to check log file...04-Jun-2019 12:56:53
------- converged at time : 0.0333333
------- converged at time : 0.0666667
------- converged at time : 0.1
------- converged at time : 0.133333
------- converged at time : 0.166667
------- converged at time : 0.2
------- converged at time : 0.233333
------- converged at time : 0.266667
------- converged at time : 0.3
------- converged at time : 0.333333
------- converged at time : 0.366667
------- converged at time : 0.4
------- converged at time : 0.433333
------- converged at time : 0.466667
------- converged at time : 0.5
------- converged at time : 0.533333
------- converged at time : 0.566667
------- converged at time : 0.6
------- converged at time : 0.633333
------- converged at time : 0.666667
------- converged at time : 0.7
------- converged at time : 0.733333
------- converged at time : 0.766667
------- converged at time : 0.8
------- converged at time : 0.833333
------- converged at time : 0.866667
------- converged at time : 0.9
------- converged at time : 0.933333
------- converged at time : 0.966667
------- converged at time : 1
--- Done --- 04-Jun-2019 12:56:53

Import FEBio results

if 1%runFlag==1 %i.e. a succesful run

    % Importing nodal displacements from a log file
    [time_mat, N_disp_mat,~]=importFEBio_logfile(fullfile(savePath,febioLogFileName_disp)); %Nodal displacements
    time_mat=[0; time_mat(:)]; %Time

    N_disp_mat=N_disp_mat(:,2:end,:);
    sizImport=size(N_disp_mat);
    sizImport(3)=sizImport(3)+1;
    N_disp_mat_n=zeros(sizImport);
    N_disp_mat_n(:,:,2:end)=N_disp_mat;
    N_disp_mat=N_disp_mat_n;
    DN=N_disp_mat(:,:,end);
    DN_magnitude=sqrt(sum(DN(:,3).^2,2));
    V_def=V+DN;
    V_DEF=N_disp_mat+repmat(V,[1 1 size(N_disp_mat,3)]);
    X_DEF=V_DEF(:,1,:);
    Y_DEF=V_DEF(:,2,:);
    Z_DEF=V_DEF(:,3,:);
%     [CF]=vertexToFaceMeasure(Fb_all,DN_magnitude);

    %
    % Plotting the simulated results using |anim8| to visualize and animate
    % deformations

    % Create basic view and store graphics handle to initiate animation
    hf=cFigure; hold on;
    gtitle([febioFebFileNamePart,': Press play to animate']);
    hp1=gpatch(Fb_blob,V_def,DN_magnitude,'k',1); %Add graphics object to animate
    hp2=gpatch(F_probe,V_def,'kw','none',0.5); %Add graphics object to animate
    hp3=gpatch(F_plate,V_def,'kw','none',0.5); %Add graphics object to animate
%     gpatch(Fb_all,V,0.5*ones(1,3),'none',0.25); %A static graphics object

    axisGeom(gca,fontSize);
    colormap(gjet(250)); colorbar;
    caxis([0 max(DN_magnitude)]); caxis manual;
    axis([min(X_DEF(:)) max(X_DEF(:)) min(Y_DEF(:)) max(Y_DEF(:)) min(Z_DEF(:)) max(Z_DEF(:))]);
    camlight headlight;
    view(15,8);
    drawnow;
    % Set up animation features
    animStruct.Time=time_mat; %The time vector
    for qt=1:1:size(N_disp_mat,3) %Loop over time increments
        DN=N_disp_mat(:,:,qt); %Current displacement
        DN_magnitude=sqrt(sum(DN.^2,2)); %Current displacement magnitude
        V_def=V+DN; %Current nodal coordinates
%         [CF]=vertexToFaceMeasure(Fb_all,DN_magnitude); %Current color data to use

        %Set entries in animation structure
        animStruct.Handles{qt}=[hp1 hp1 hp2 hp3]; %Handles of objects to animate
        animStruct.Props{qt}={'Vertices','CData','Vertices','Vertices'}; %Properties of objects to animate
        animStruct.Set{qt}={V_def,DN_magnitude,V_def,V_def}; %Property values for to set in order to animate
    end
    anim8(hf,animStruct); %Initiate animation feature
    caxis([0 max(DN_magnitude)]); caxis manual;
    drawnow;

end

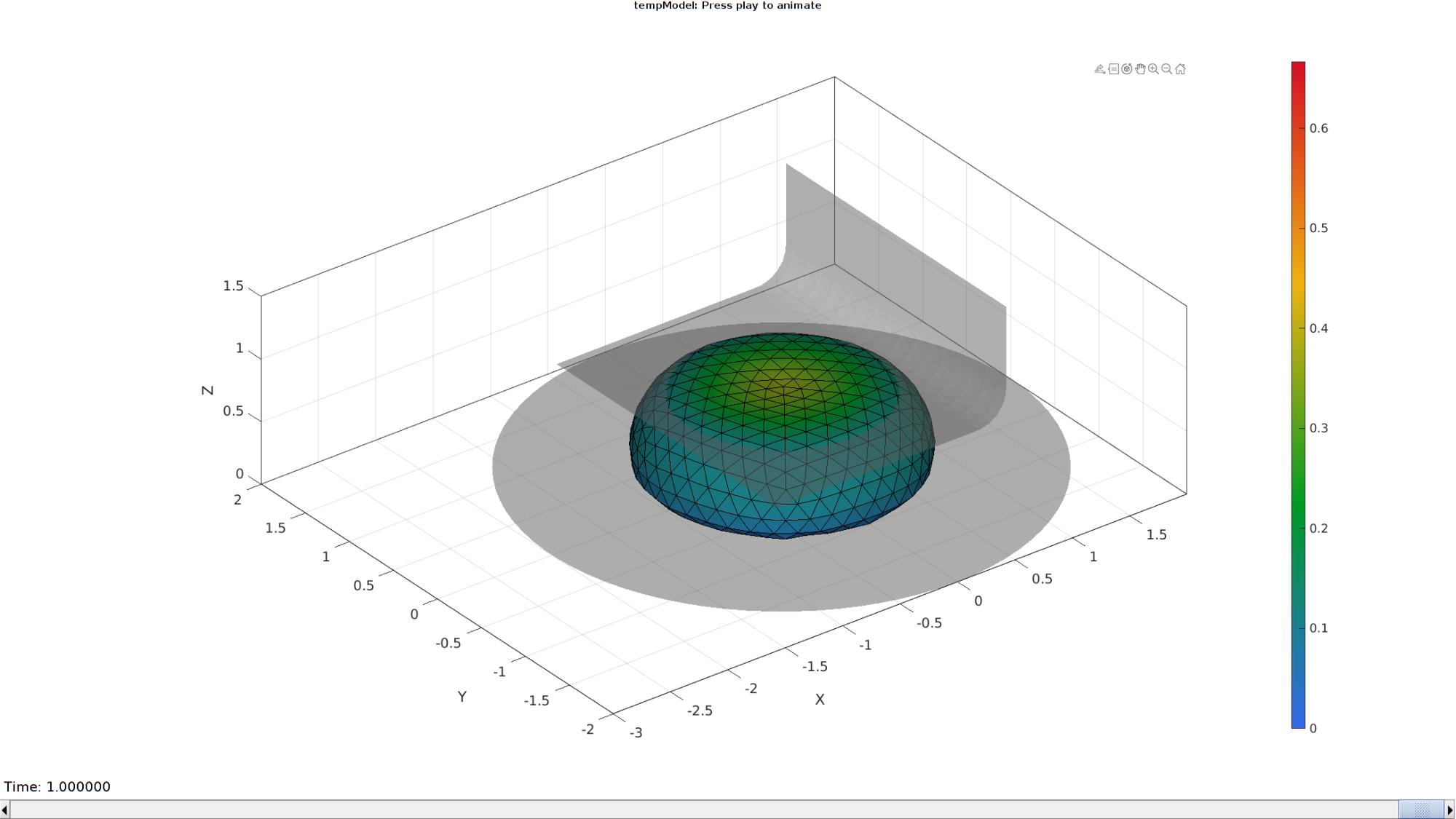

GIBBON www.gibboncode.org

Kevin Mattheus Moerman, [email protected]

GIBBON footer text

License: https://github.com/gibbonCode/GIBBON/blob/master/LICENSE

GIBBON: The Geometry and Image-based Bioengineering add-On. A toolbox for image segmentation, image-based modeling, meshing, and finite element analysis.

Copyright (C) 2019 Kevin Mattheus Moerman

This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program. If not, see http://www.gnu.org/licenses/.
