DEMO_aorta_build_passive_01

Below is a demonstration for:

Building geometry for a subject-specific aorta
Creating the FEA mesh
Coding the abaqus structure

Keywords
Directory
Control parameters
Access data structure components
Resampling aorta section contours
Smooth center line
Offsetting section curves outward if thickening is inward
Visualize offset curves
Perform main trunk loft
Material model
Main trunk
Load Iliac Branch Data
Resample curve to have same number of points as main trunk for loft
Perform Smoothing on Transition Region

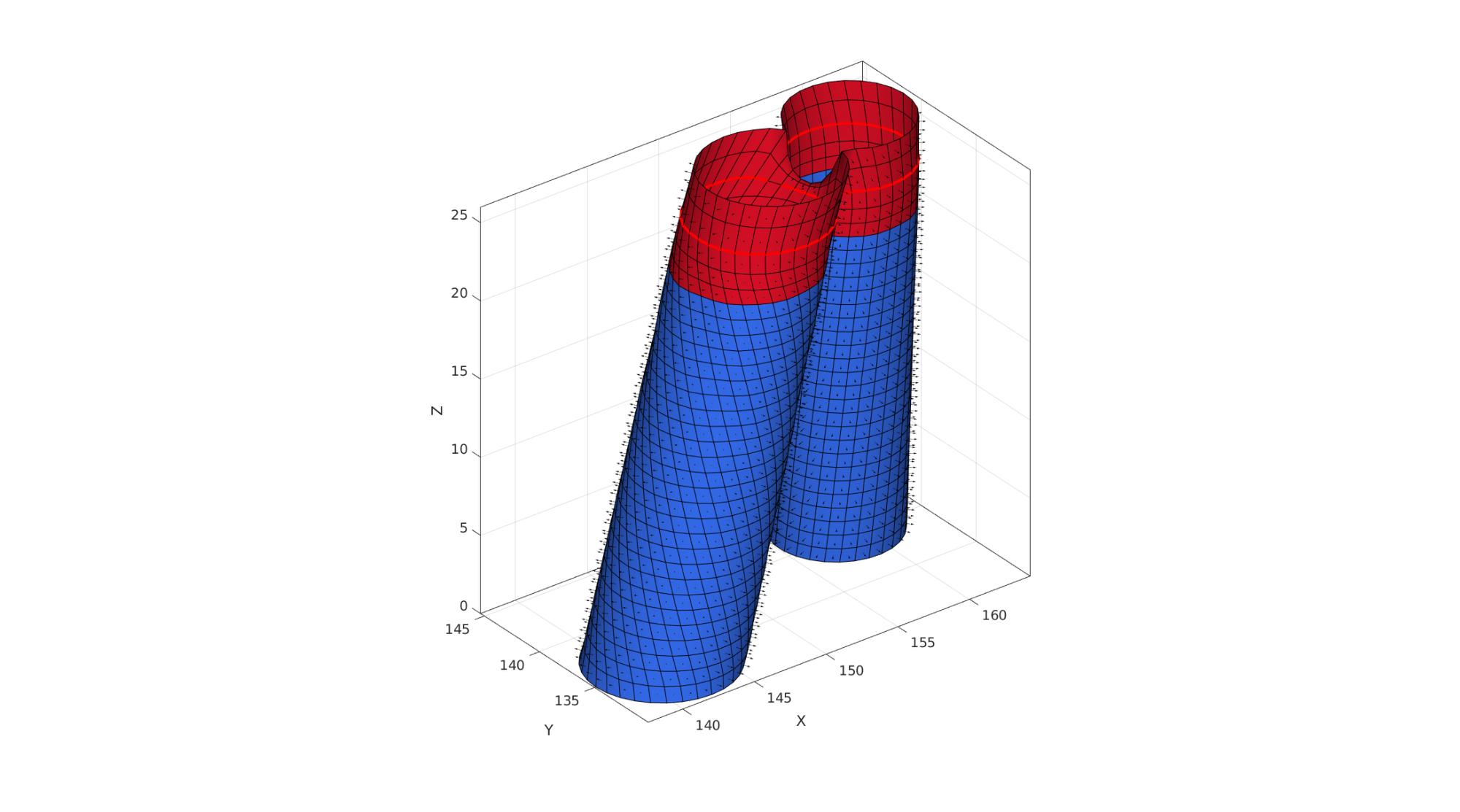

Pinched ellipse to two circle split
Ensure all points for curves are clockwise for loft

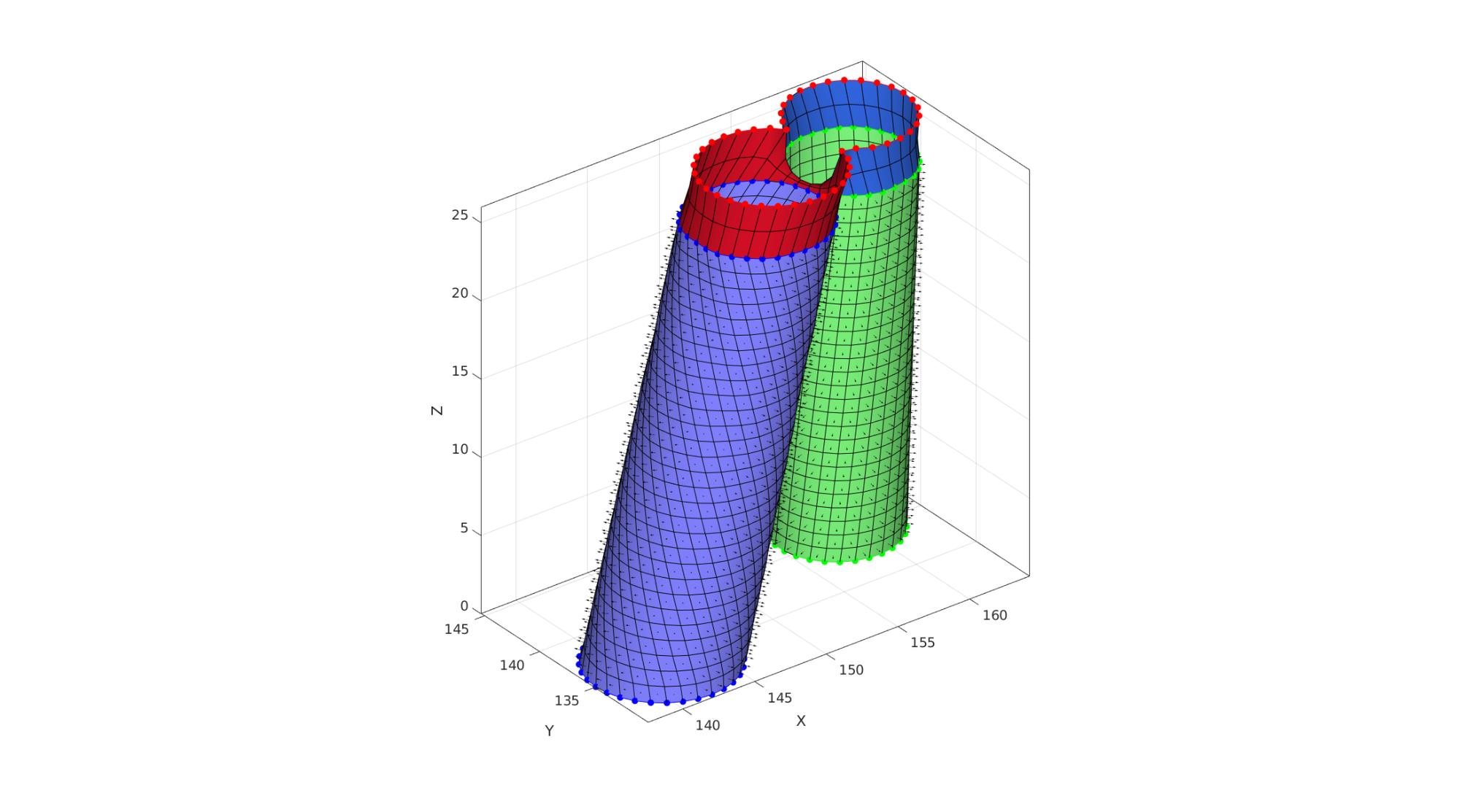

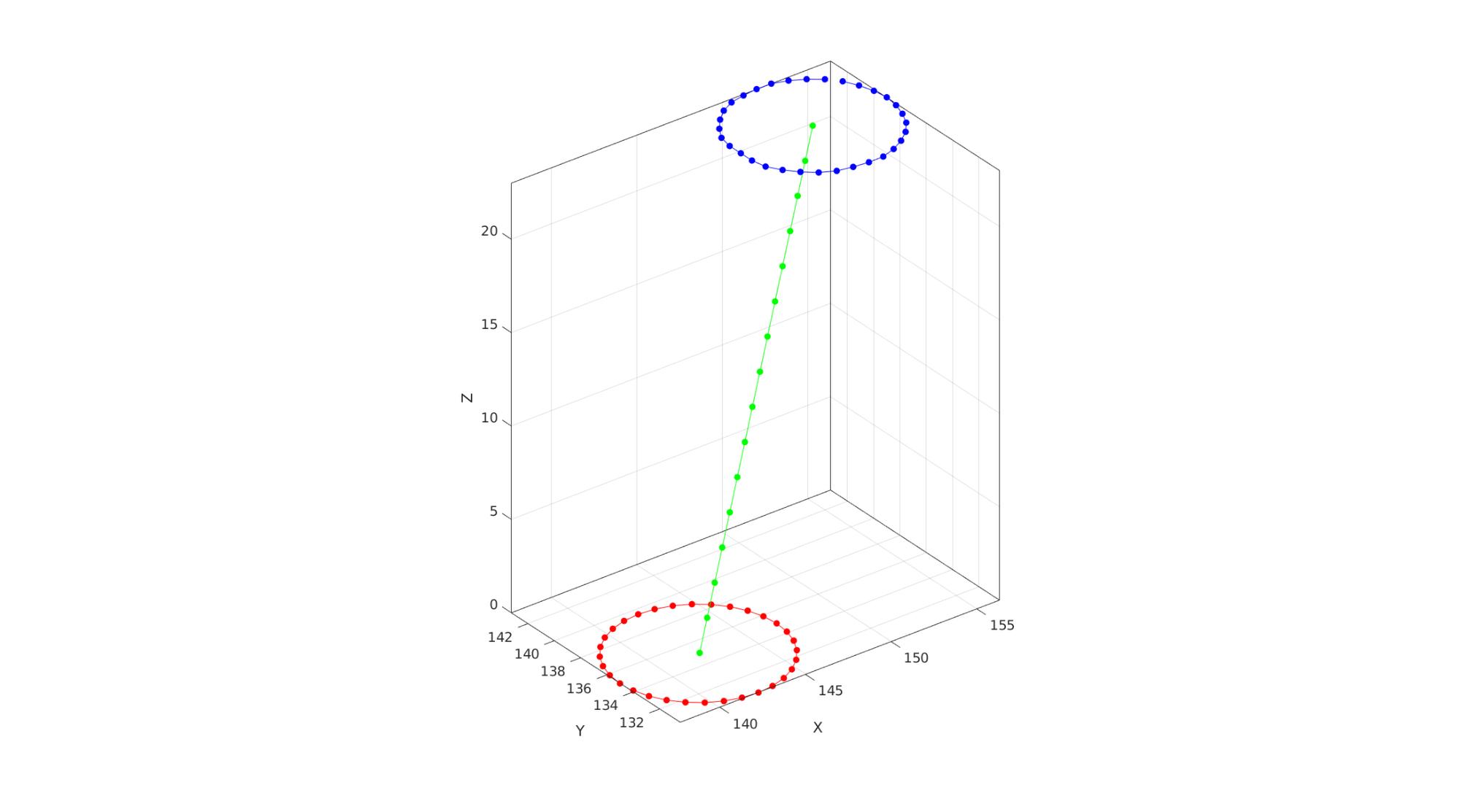

Define points for iliac extensions and Loft
Join Iliac extensions to Bifurcation

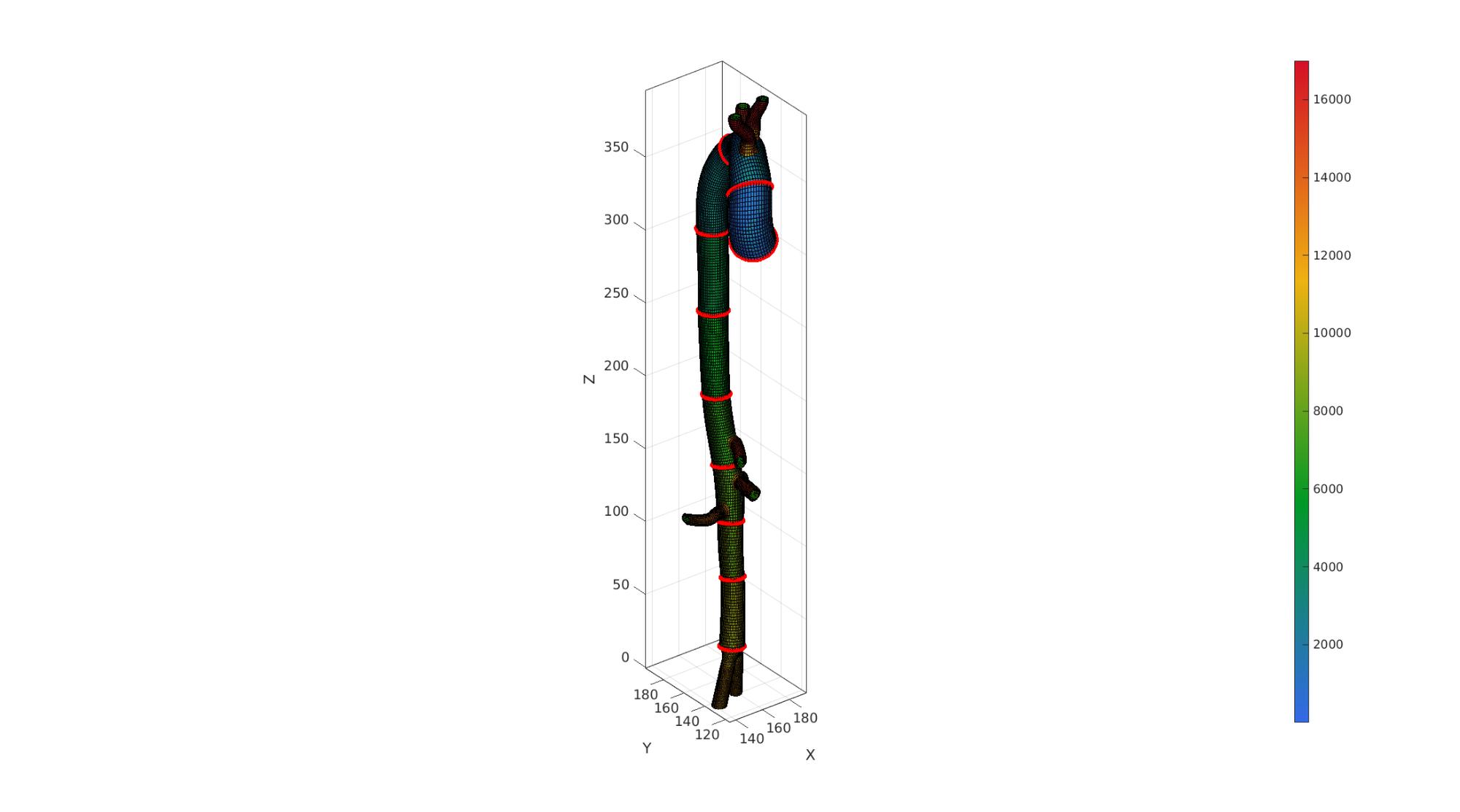

Load Branch data
Perform Extrude cut
Inverting offset direction
Thicken to create hexahedral elements
Retrieve segment curve indices
Grouping ring edges and offset so they are on the inside
Create color data for hex elements
Material Properties

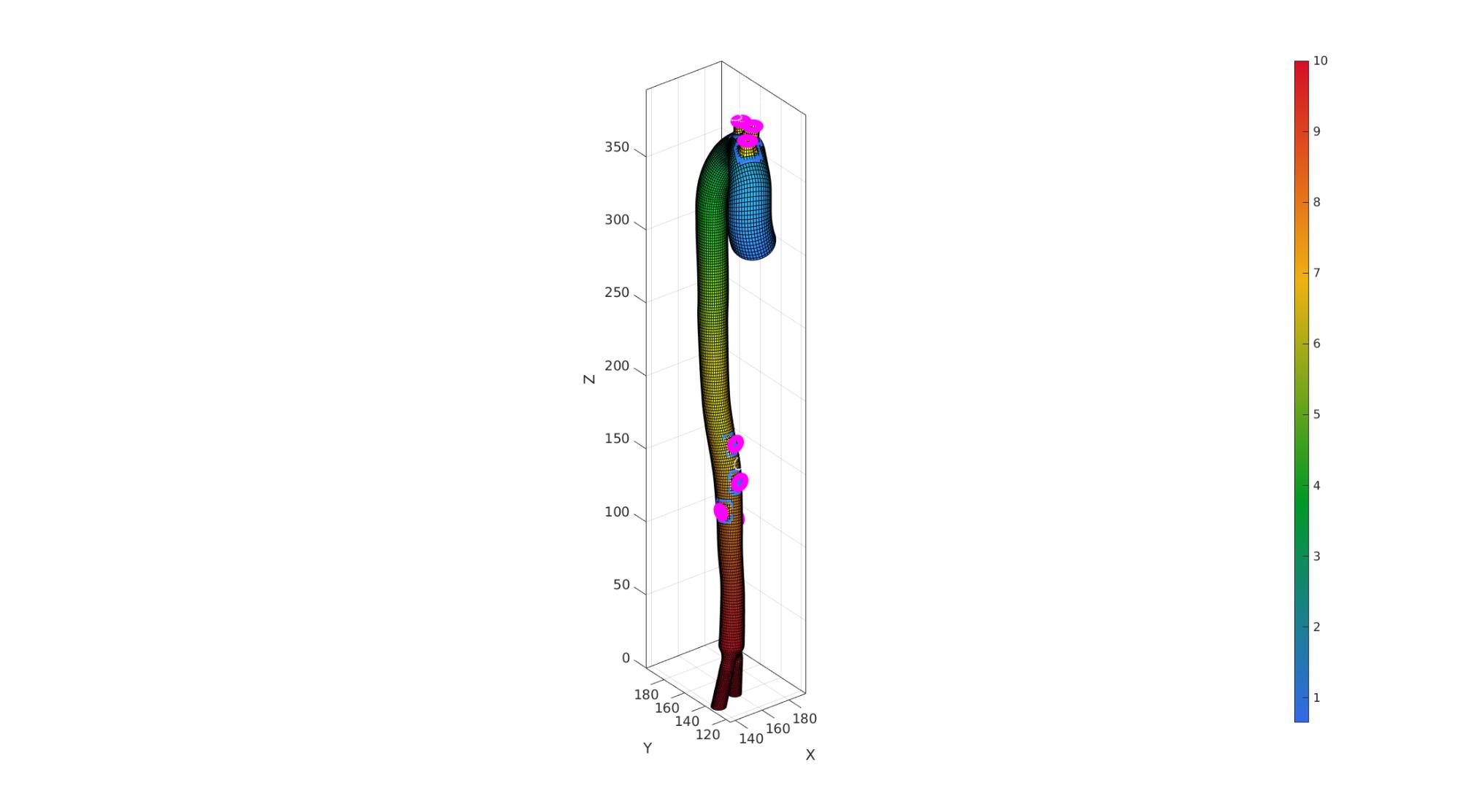

Define Branch Ends Set
Create ABAQUS structure
FUNCTIONS %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
Conver to triangles
Resample center line
Get mean of cut curve, project to surface
Loft
Constrained smoothing

Keywords

ABAQUS
aorta
hexahedral elements, hex8

clear; close all; clc;

Control parameters

%Define smoothing Parameters
pointSpacing=1.7; %
numThickenSteps=2;
smoothFactorCentreLine=0.01; %Cubic smooth spline parameter [0-1] use empty to turn off
smoothFactorSegments=0.01; %Cubic smooth spline parameter [0-1], 0=straight line, 1=cubic
trunkSegmentReduceFactor=1; %

numSmoothTrunk=100; %
numSmoothPants_LAP=100; %Number of Laplacian smoothing iterations for Iliacs
numSmoothPants_HC=100; %Number of HC smoothing iterations for Iliacs
numSmoothBranchAttachments=100; %Number of smoothing iterations for branch origins (50)
numSmoothBranches=100; %Number of smoothing iterations for rest of branches
numOffsetSteps=1; %Number of steps taken to offset mesh by wall thickness
numSmoothOffset=2; %
methodSmoothOffset='LAP'; %Smoothing method Laplacian=agressive
qualityMetricSmoothOffset=120; %
distSmoothGrowth=10; %
numHexSplit=1; %Split elements by factor
t=1; %Time value corresponding to phase in cardiac cycle
%Compressibility factor (Nolan, McGarry)
kfactor=8.56;
%Define thickness information
dataStruct.WallThickness=[1.425	0.9	1	1.025	0.833333333	0.891666667	0.95	0.975	0.9	0.825];
thicknessIndexTransitionRegion=10; %Index of thickness at Iliac bifurcation
thicknessIndexBifurcation=10; %Index of thickness distal to Iliac bifurcation
thicknessIndicesBranches=[8 8 7 7 7 7 7]; %R_Renal_Ori,L_Renal_Ori,SMA_Ori,COE_Ori,LSA_Ori,LCCA_Ori,V_BCA_Ori
wallThickness=dataStruct.WallThickness; %Raw data for wall thickness as a function of location
numThicknessLevels=numel(wallThickness);
%Define material parameter information (from segment fitting [1-10])
numMaterials=100;
materialIndicesSelect=linspace(1,10,10); %Plane indices to interpolate between
dataStruct.mu=0.02; %Constant
dataStruct.k1=0.0001; %Constant
dataStruct.k2=1; %Constant
dataStruct.kappa=0; %Constant
dataStruct.theta1=90; %Circumferential
dataStruct.theta2=-90; %Circumferential
dataStruct.sigact=0; %Constant
dataStruct.ke=0.1; %Constant
dataStruct.Ee=[0.82 0.74 0.63 0.5 0.45 0.4 0.35 0.28 0.27 0.27];
dataStruct.thetaE1=90; %Circumferential
dataStruct.thetaE2=-90; %Circumferential
dataStruct.iswitch=1; %[1=local; 2=global] %Constant
dataStruct.xeps=[0.34 0.31 0.28 0.28 0.25 0.20 0.18 0.20 0.20 0.20];
dataStruct.Vcol=[0.20 0.31 0.28 0.30 0.44 0.44 0.44 0.44 0.45 0.52];
dataStruct.Vela=[0.30 0.28 0.25 0.22 0.22 0.22 0.24	0.20 0.18 0.16];
dataStruct.Vsmc=[0.20 0.20 0.20	0.23 0.24 0.25 0.26	0.26 0.27 0.27];
%Acces data
mu_data=dataStruct.mu;
k1_data=dataStruct.k1;
k2_data=dataStruct.k2;
kappa_data=dataStruct.kappa;
theta1_data=dataStruct.theta1;
theta2_data=dataStruct.theta2;
sigact_data=dataStruct.sigact;
ke_data=dataStruct.ke;
Ee_data=dataStruct.Ee;
thetaE1_data=dataStruct.thetaE1;
thetaE2_data=dataStruct.thetaE2;
xeps_data=dataStruct.xeps;
Vcol_data=dataStruct.Vcol;
Vela_data=dataStruct.Vela;
Vsmc_data=dataStruct.Vsmc;
iswitch=dataStruct.iswitch;
%Define plot color (black or white background)
colorMode=1;
switch colorMode
    case 1
        figStruct.ColorDef='white';
        figStruct.Color='w';
    case 2
        figStruct.ColorDef='black';
        figStruct.Color='k';
end

Access data structure components

V_cent=dataStruct.Cent; %Centroid list
segmentCell=dataStruct.Points; %Lumen boundary coordinates

Resampling aorta section contours

%Resample boundary points so each plane has same number of points for lofting
%Find number of points to use based on biggest circumference
d=zeros(size(segmentCell,2),1);
for indNow=1:1:size(segmentCell,2)
    Vs_1=segmentCell{t,indNow}';
    d(indNow)=max(pathLength(Vs_1));
end
nSegment=round(max(d)/pointSpacing);
%Resample
segmentCellSmooth=segmentCell;
segmentCellMean=segmentCell;
w=ones(size(V_cent,1),1); %Cubic smoothing spline weights
indexPlanePoints_V_cent=zeros(1,size(segmentCell,2)); %Indices of centre line points at sections
for indNow=1:1:size(segmentCell,2)
    %Resample section contour
    Vs_1=segmentCell{t,indNow}'; %Current contour
    Vs_1_smooth=evenlySampleCurve(Vs_1,nSegment,smoothFactorSegments,1); %Resample evenly
    Vs_1_mean=mean(Vs_1_smooth,1);
    segmentCellSmooth{t,indNow}=Vs_1_smooth';
    segmentCellMean{t,indNow}=Vs_1_mean;
    %Prepare for center line smoothing by setting weight vector
    [~,indVertex_1]=min(sqrt(sum((V_cent-Vs_1_mean(ones(size(V_cent,1),1),:)).^2,2))); %Index closest to section
    w(indVertex_1)=1e9; %Heigh weight at contour sections
    indexPlanePoints_V_cent(indNow)=indVertex_1; %Store index of closets
end

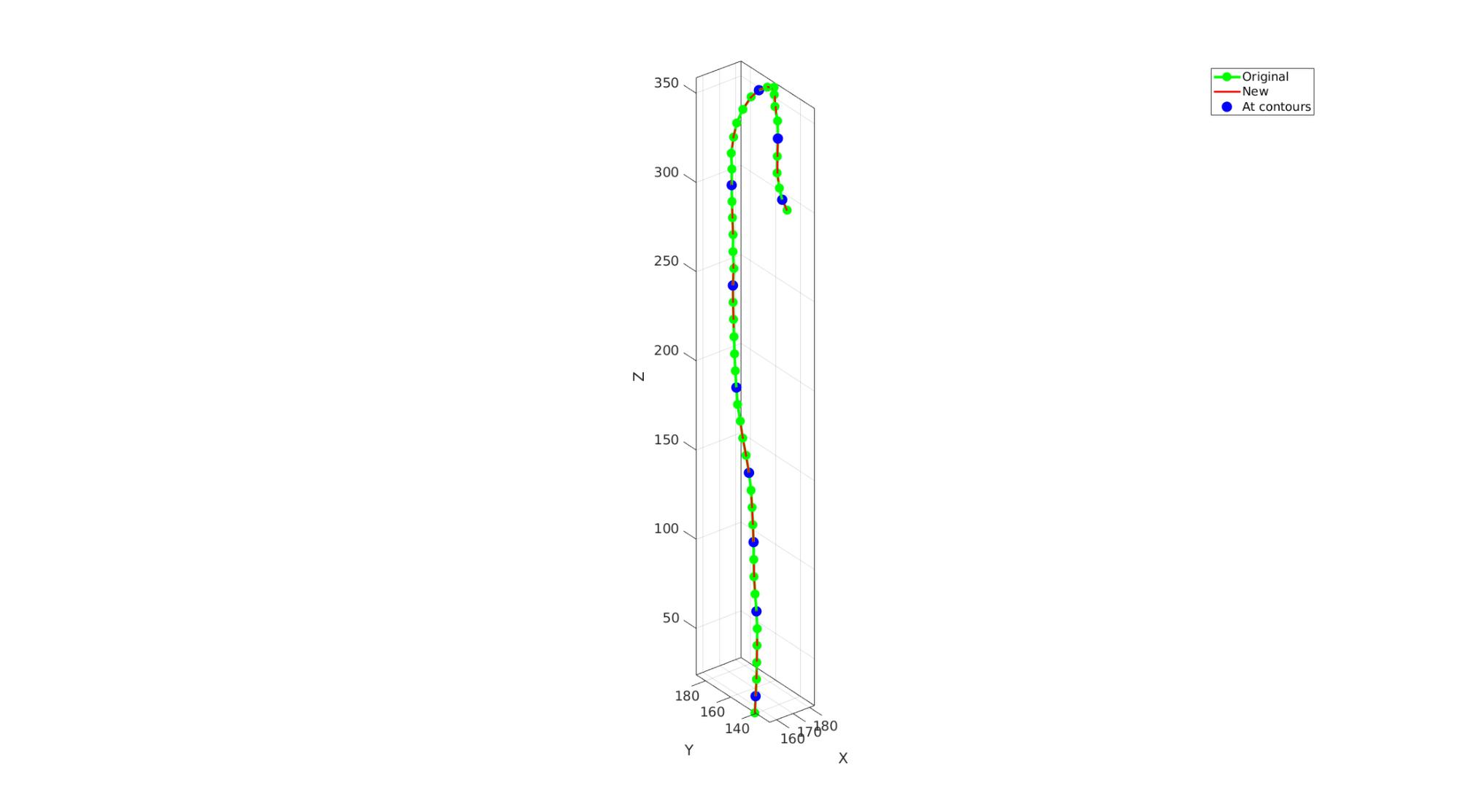

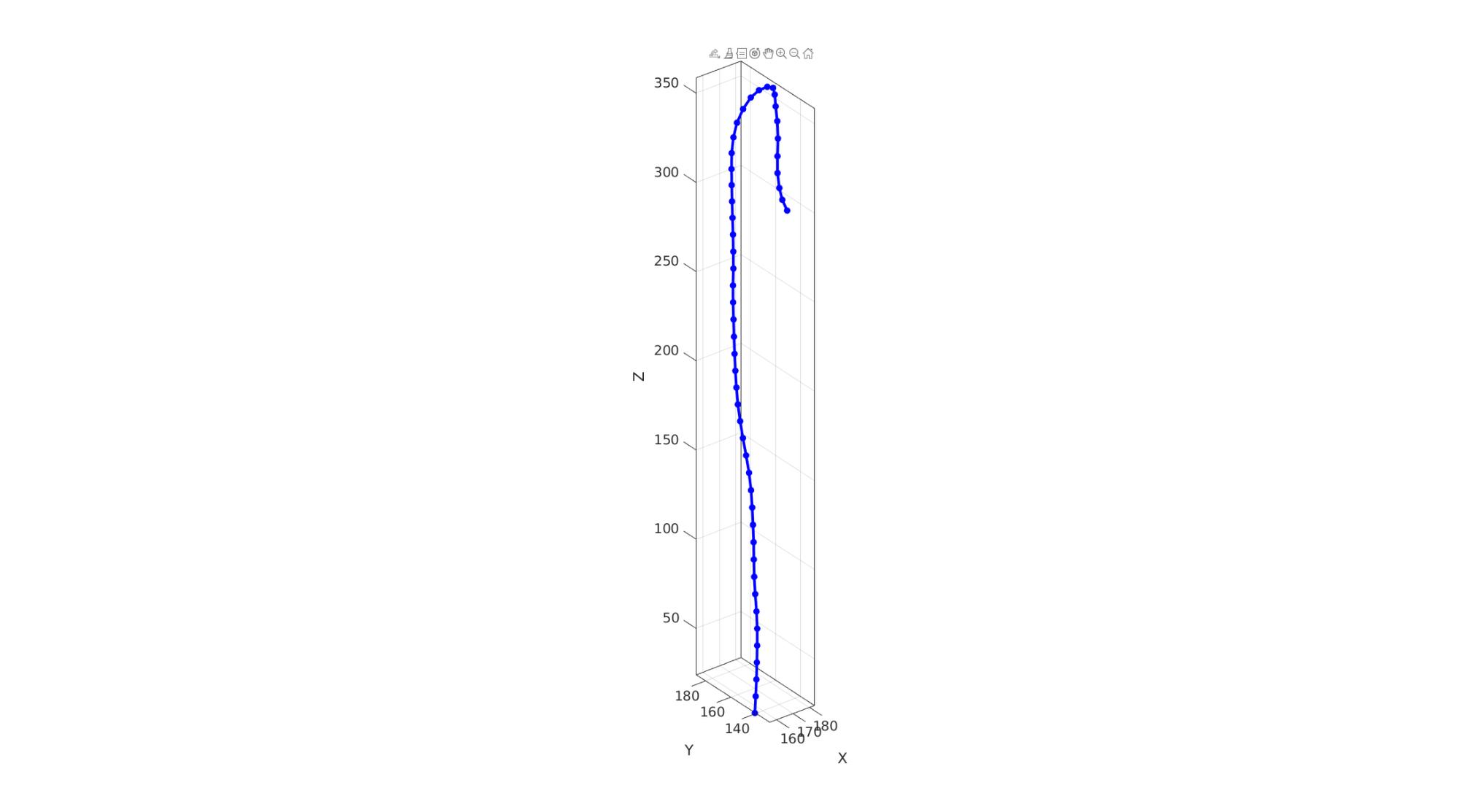

Smooth center line

%Fit smoothing spline through centreline points for loft
if ~isempty(smoothFactorCentreLine)
    V_cent_original=V_cent;
    d=pathLength(V_cent);
    V_cent = csaps(d,V_cent_original',smoothFactorCentreLine,d,w)'; %Smoothed
    cFigure(figStruct); hold on;
    h1=plotV(V_cent_original,'g.-','LineWidth',3,'MarkerSize',35);
    h2=plotV(V_cent,'r-','LineWidth',2,'MarkerSize',15);
    h3=plotV(V_cent(w==max(w),:),'b.','MarkerSize',40);
    legend([h1 h2 h3],{'Original','New','At contours'})
    axisGeom;
    drawnow;
end

Offsetting section curves outward if thickening is inward

segmentCellSmooth_pre=segmentCellSmooth;

for q=1:size(segmentCellSmooth,2)
    Vc=segmentCellSmooth{t,q}'; %Current curve vertices
    segmentCellSmooth{t,q}=curveOffset(Vc,wallThickness(q))';
end

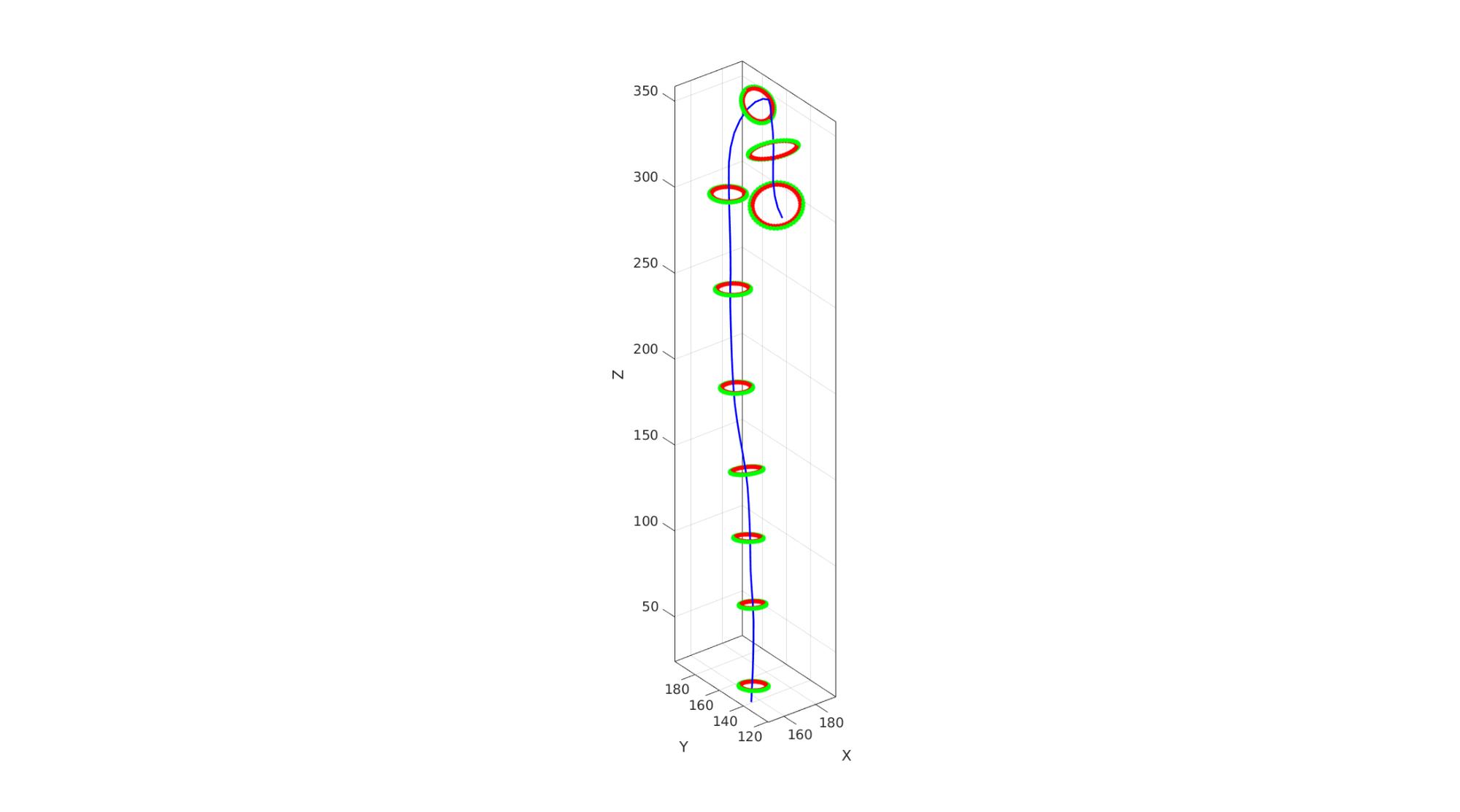

Visualize offset curves

cFigure(figStruct); hold on;
plotV(V_cent,'b-','LineWidth',2,'MarkerSize',15);
for q=1:size(segmentCellSmooth,2)
    plotV(segmentCellSmooth_pre{t,q}','r.-','LineWidth',3,'MarkerSize',15);
    plotV(segmentCellSmooth{t,q}','g.-','LineWidth',3,'MarkerSize',15);
end
axisGeom;
drawnow;

Perform main trunk loft

% Initialize figure with center line
hf1=cFigure(figStruct); hold on;
plotV(V_cent,'b.-','LineWidth',3,'markerSize',25);
axisGeom;
camlight headlight;
drawnow;
hp=gobjects(11,1);
F_main_cell=cell(1,size(segmentCell,2)-1); %Faces cell
V_main_cell=cell(1,size(segmentCell,2)-1); %Vertex cell
C_main_gradient_cell=cell(1,size(segmentCell,2)-1); %Color/label dataa
segmentCurve_cell=cell(1,size(segmentCell,2)); %
% Eb_main_cell=cell(1,size(segmentCell,2)-1);
logicBoundary=false(0,0);
maxC=0;
indAdd=0;
%Loft from one plane to next in loop along aorta
for indNow=1:1:(size(segmentCell,2)-1)

    Vs_1=segmentCell{t,indNow}';
    Vs_1=Vs_1(1:end-1,:);
    Vs_2=segmentCell{t,indNow+1}';
    Vs_2(1:end-1,:);
    Vs_1_smooth=segmentCellSmooth{t,indNow}';
    Vs_2_smooth=segmentCellSmooth{t,indNow+1}';
    Vs_1_mean=segmentCellMean{t,indNow};
    Vs_2_mean=segmentCellMean{t,indNow+1};
    d=pathLength(V_cent);
    %Get curve part for lofting
    [~,indVertex_1]=min(sqrt(sum((V_cent-Vs_1_mean(ones(size(V_cent,1),1),:)).^2,2))); %Start
    [~,indVertex_2]=min(sqrt(sum((V_cent-Vs_2_mean(ones(size(V_cent,1),1),:)).^2,2))); %End
    V_cent_part=V_cent(indVertex_1:indVertex_2,:);
    nPart=round(max(pathLength(V_cent_part))/pointSpacing);
    [V_cent_part_smooth] = evenlySampleCurve(V_cent_part,nPart,'spline',0);
    Vs_1_smooth=Vs_1_smooth-Vs_1_mean(ones(size(Vs_1_smooth,1),1),:);
    Vs_1_smooth=Vs_1_smooth+V_cent_part_smooth(ones(size(Vs_1_smooth,1),1),:);
    Vs_2_smooth=Vs_2_smooth-Vs_2_mean(ones(size(Vs_2_smooth,1),1),:);
    Vs_2_smooth=Vs_2_smooth+V_cent_part_smooth(size(V_cent_part_smooth,1)*ones(size(Vs_2_smooth,1),1),:);
    v1=vecnormalize(V_cent_part_smooth(2,:)-V_cent_part_smooth(1,:));
    [Q]=pointSetPrincipalDir(Vs_1_smooth-Vs_1_mean(ones(size(Vs_1_smooth,1),1),:));
    n1=Q(:,3)';
    if dot(v1,n1)<0
        n1=-n1;
    end
    v2=vecnormalize(V_cent_part_smooth(end,:)-V_cent_part_smooth(end-1,:));
    [Q]=pointSetPrincipalDir(Vs_2_smooth-Vs_2_mean(ones(size(Vs_2_smooth,1),1),:));
    n2=Q(:,3)';
    if dot(v2,n2)<0
        n2=-n2;
    end
    plotOn=0;
    nLoft=round(nPart/trunkSegmentReduceFactor);
    [Fs,Vs,Cs]=sweepLoft(Vs_1_smooth,Vs_2_smooth,n1,n2,V_cent_part_smooth,nLoft,0,plotOn);
    indLoftBottom=1:nLoft:size(Vs,1);
    indLoftTop=(nLoft:nLoft:size(Vs,1));
    segmentCurve_cell{indNow}=indLoftBottom+indAdd;
    if indNow==(size(segmentCell,2)-1)
        segmentCurve_cell{indNow+1}=indLoftTop+indAdd;
    end
    indAdd=indAdd+size(Vs,1);
    Eb=patchBoundary(Fs,Vs);
    logicBoundaryNow=false(size(Vs,1),1);
    logicBoundaryNow(unique(Eb(:)))=1;
    F_main_cell{indNow}=Fs;
    V_main_cell{indNow}=Vs;
    %Store color gradient information
    C_main_gradient_cell{indNow}=Cs+maxC;
    maxC=maxC+max(Cs);
    logicBoundary=[logicBoundary; logicBoundaryNow];

Warning: Second input (vertices) no longer required. Update code to avoid future
error.

Warning: Second input (vertices) no longer required. Update code to avoid future
error.

Warning: Second input (vertices) no longer required. Update code to avoid future
error.

Warning: Second input (vertices) no longer required. Update code to avoid future
error.

Warning: Second input (vertices) no longer required. Update code to avoid future
error.

Warning: Second input (vertices) no longer required. Update code to avoid future
error.

Warning: Second input (vertices) no longer required. Update code to avoid future
error.

Warning: Second input (vertices) no longer required. Update code to avoid future
error.

Warning: Second input (vertices) no longer required. Update code to avoid future
error.

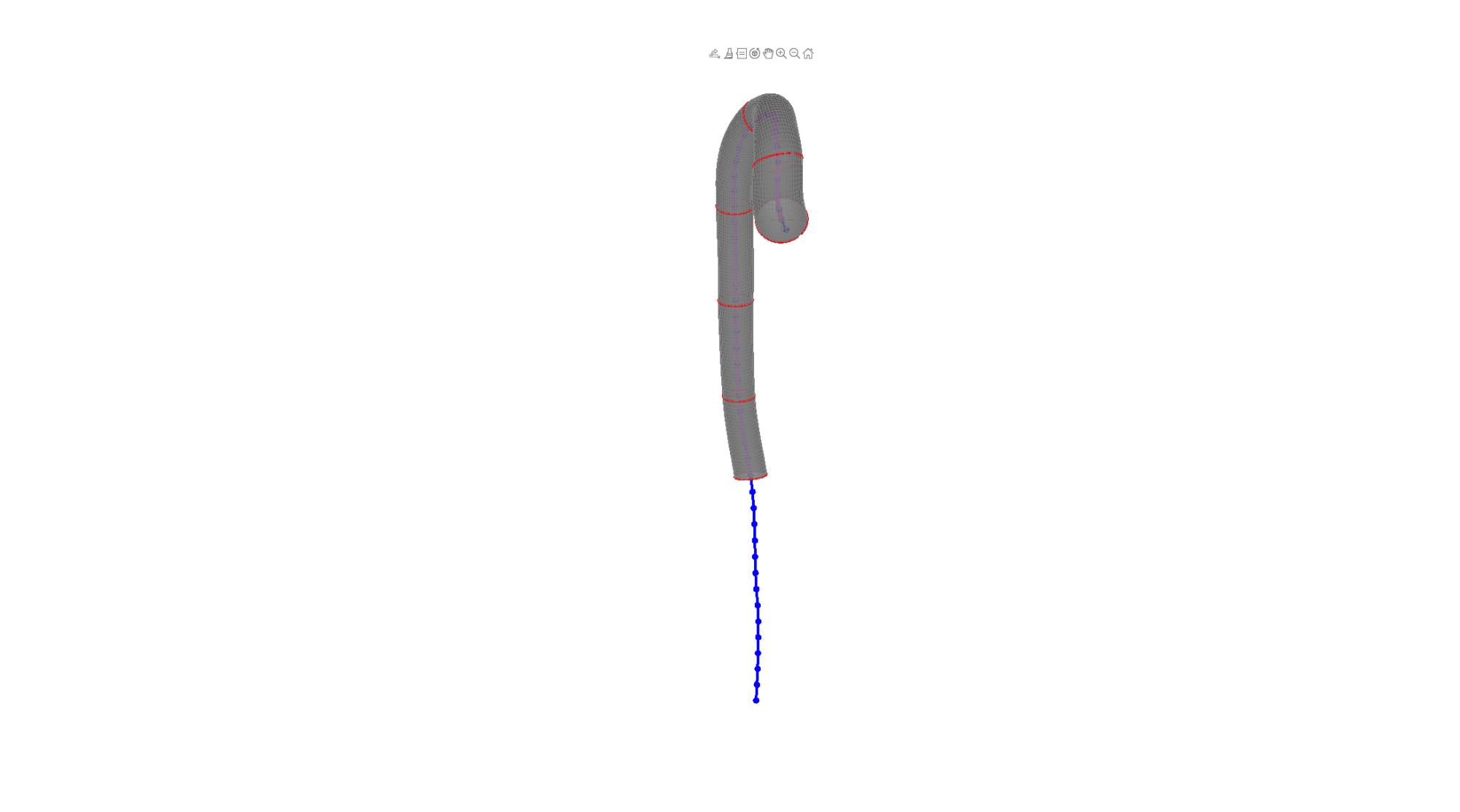

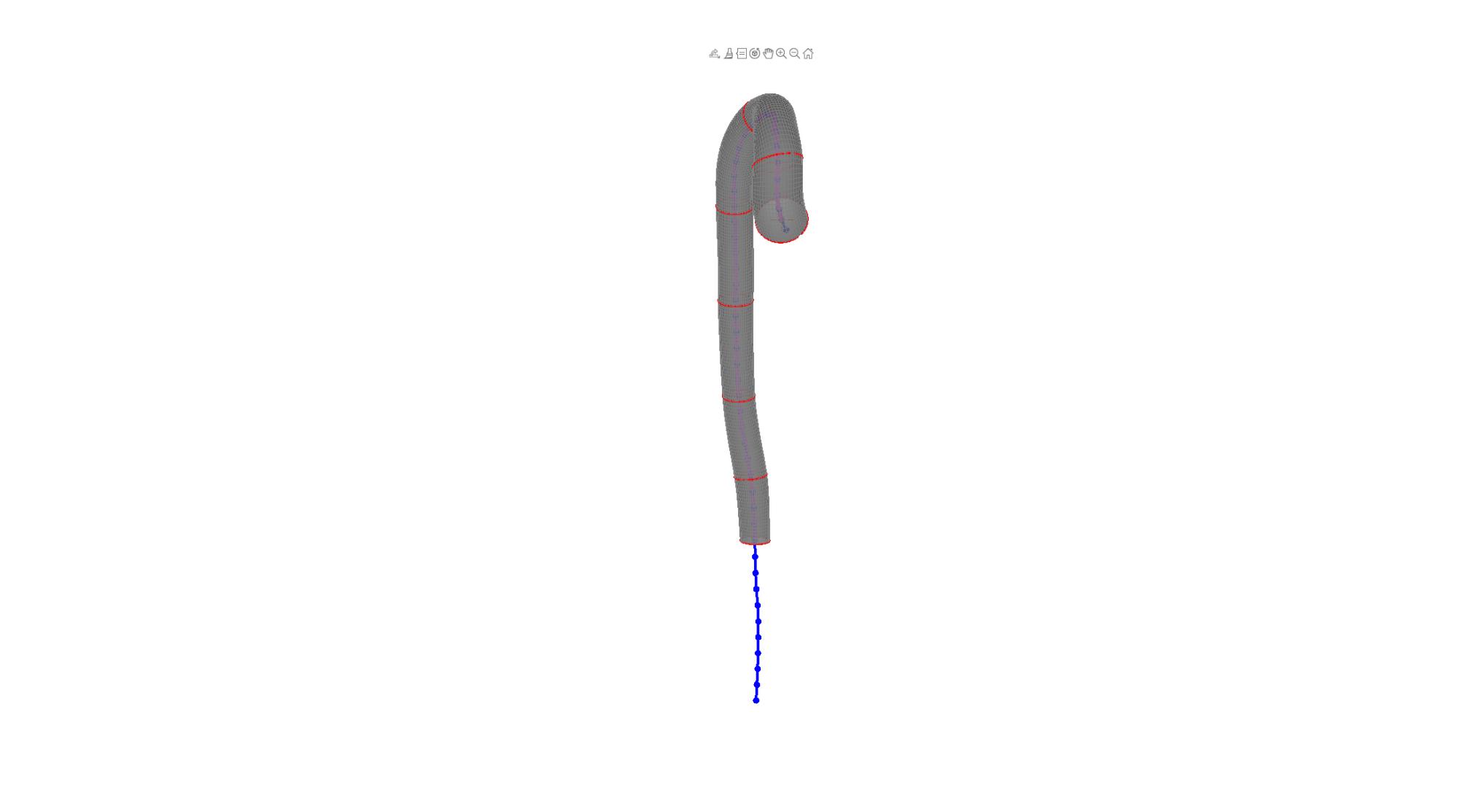

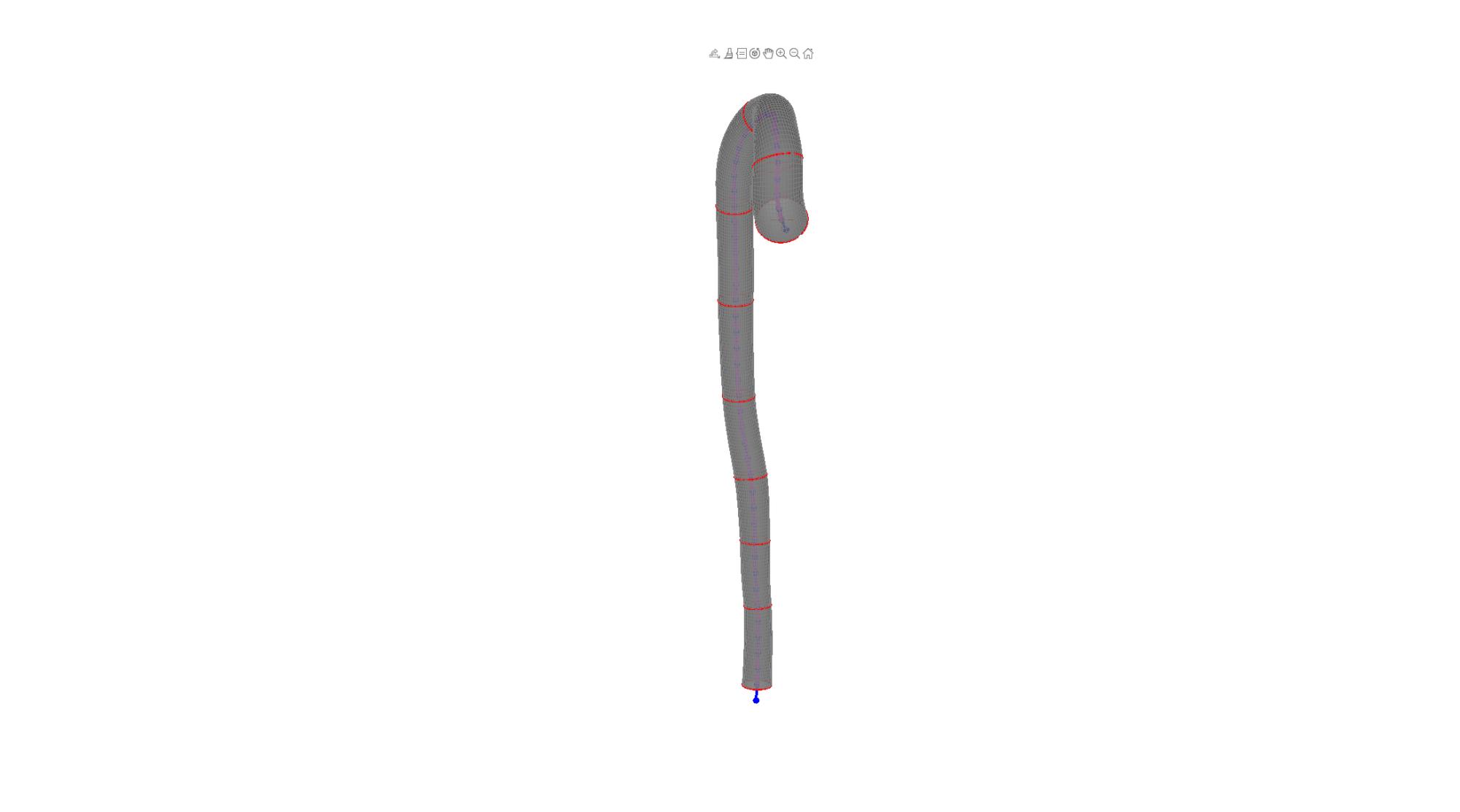

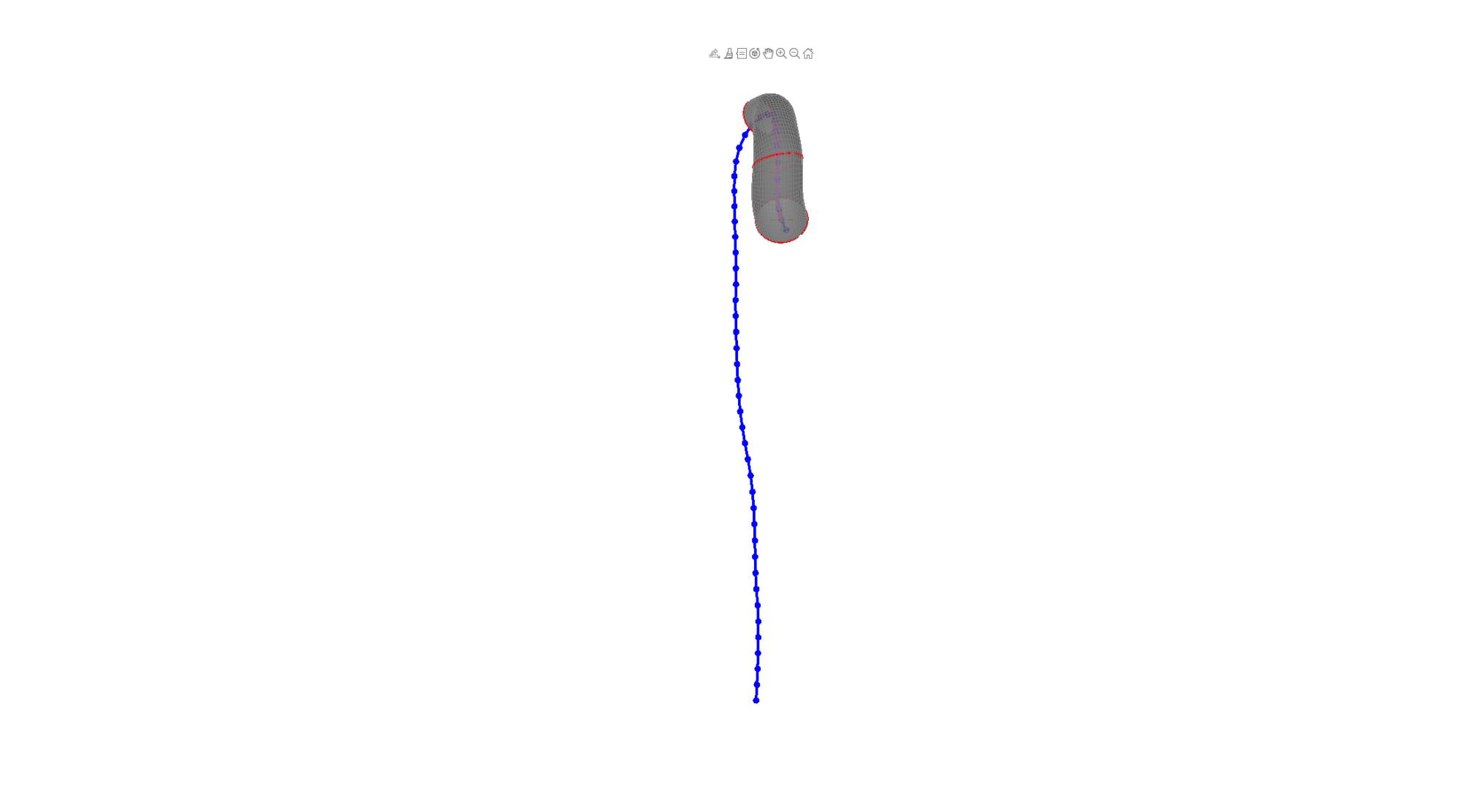

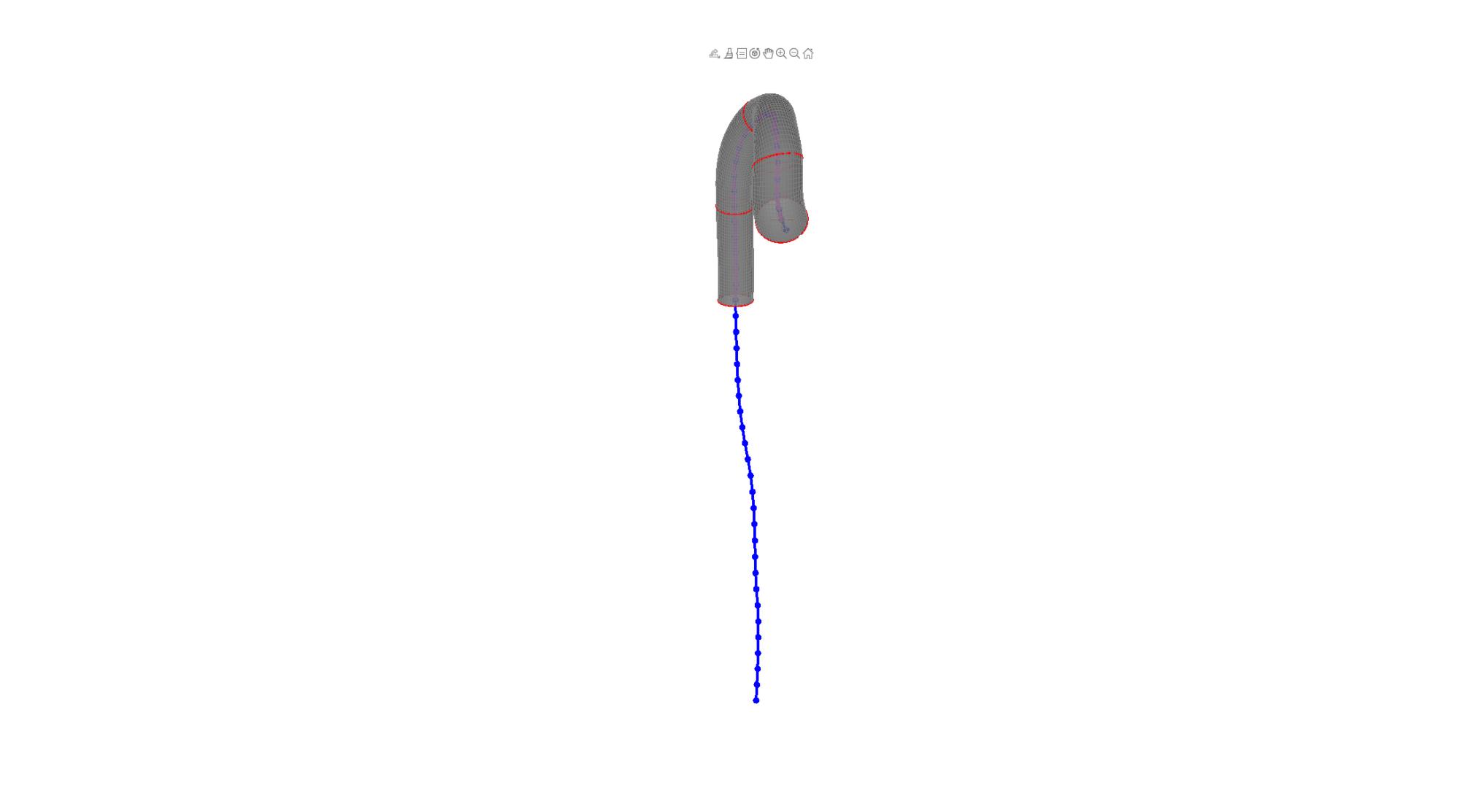

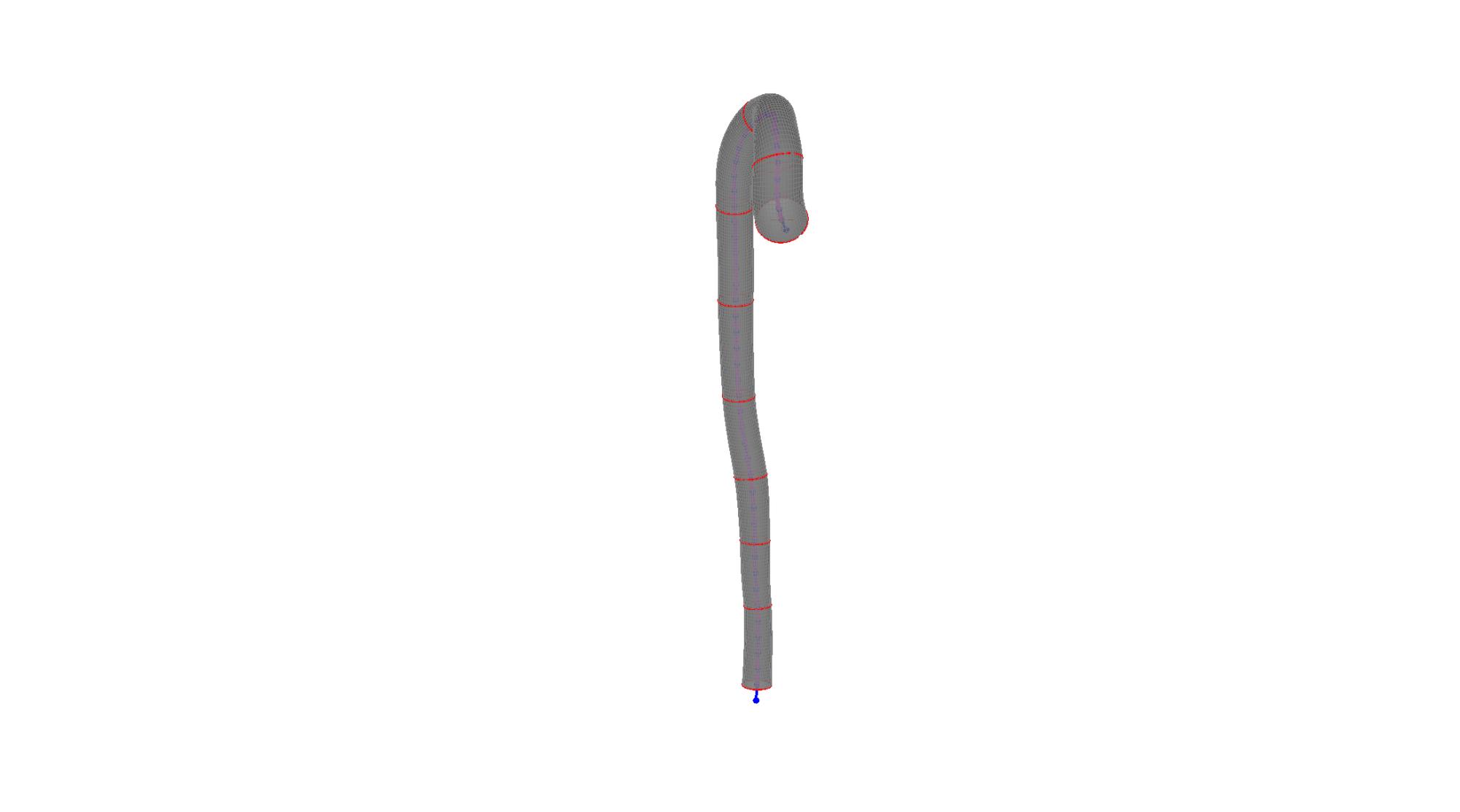

Plot Loft of main trunk

    figure(hf1);
    gpatch(Fs,Vs,'kw','kw',0.85);
    plotV(V_cent_part_smooth,'m.-','LineWidth',2,'markerSize',15);
    plotV(Vs_1_smooth,'r-','LineWidth',2);
    plotV(V_cent(indVertex_1,:),'r+','markerSize',25);
    plotV(Vs_2_smooth,'r-','LineWidth',2);
    axis off;
    xlim([140 200]); ylim([120 200]); zlim([20 370]);
    drawnow;

end

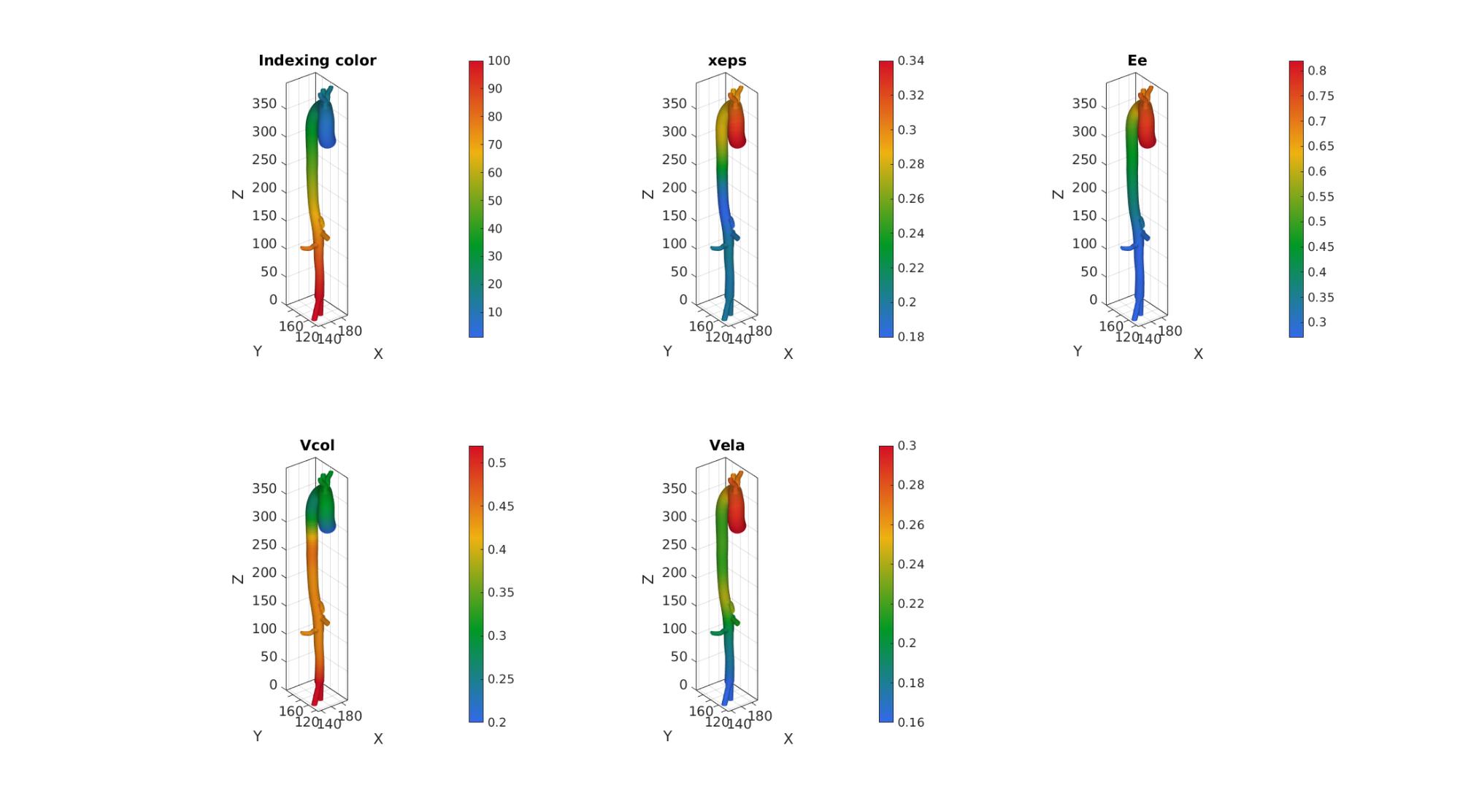

Material model

%linearly interpolate parameters between planes
% Get center line distance metric for each plane
V_cent_crop=V_cent(indexPlanePoints_V_cent(1):indexPlanePoints_V_cent(end),:);
indexPlanePoints_V_cent_crop=(indexPlanePoints_V_cent-indexPlanePoints_V_cent(1))+1;
d=pathLength(V_cent_crop);
d=d./max(d(:)); %Normalised curve length
curveLengthPlanePoints=d(indexPlanePoints_V_cent_crop);

%mu_data=interp1(curveLengthPlanePoints(materialIndicesSelect),mu_data(materialIndicesSelect),curveLengthPlanePoints,'linear');
Ee_data=interp1(curveLengthPlanePoints(materialIndicesSelect),Ee_data(materialIndicesSelect),curveLengthPlanePoints,'linear');
xeps_data=interp1(curveLengthPlanePoints(materialIndicesSelect),xeps_data(materialIndicesSelect),curveLengthPlanePoints,'linear');
Vcol_data=interp1(curveLengthPlanePoints(materialIndicesSelect),Vcol_data(materialIndicesSelect),curveLengthPlanePoints,'linear');
Vela_data=interp1(curveLengthPlanePoints(materialIndicesSelect),Vela_data(materialIndicesSelect),curveLengthPlanePoints,'linear');

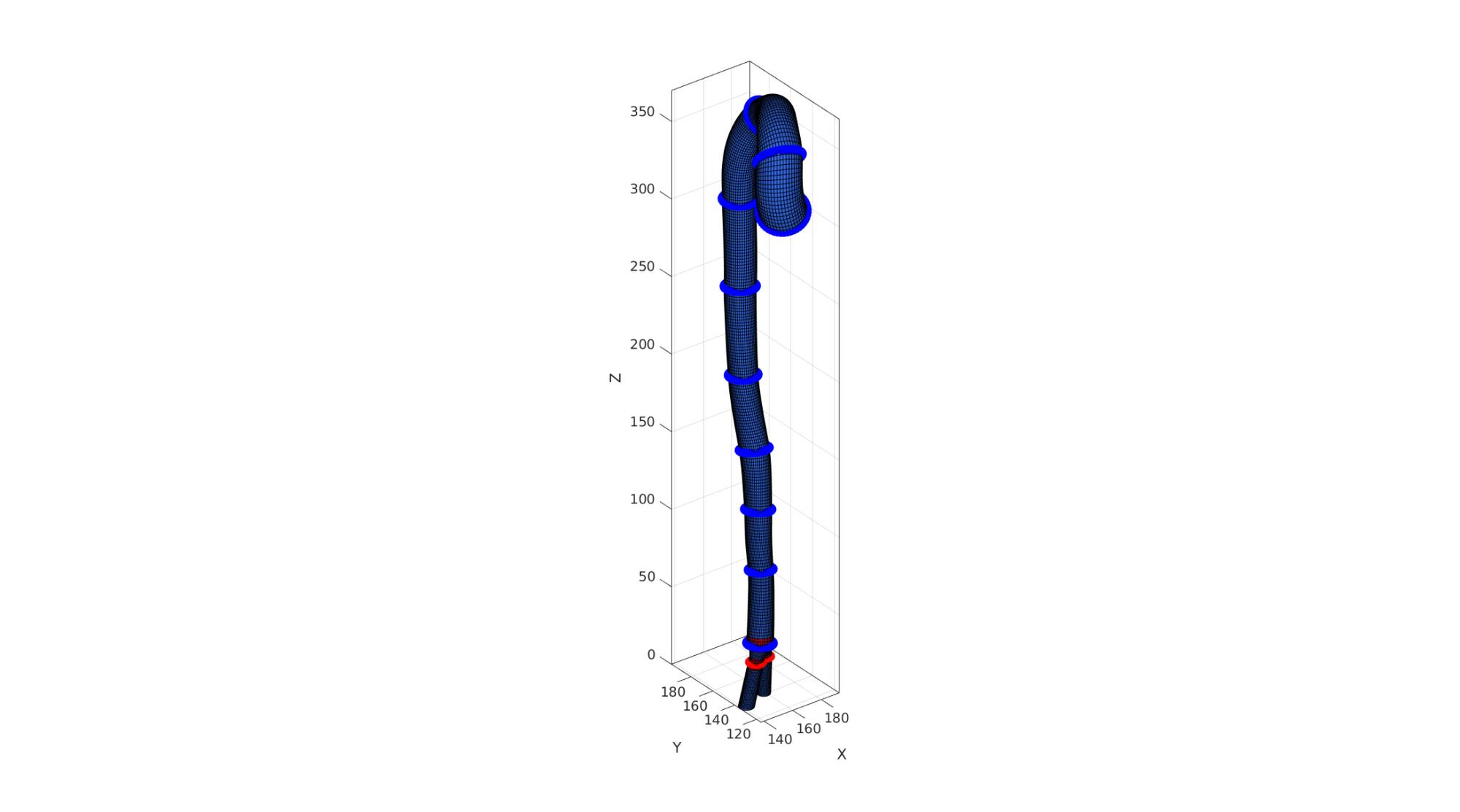

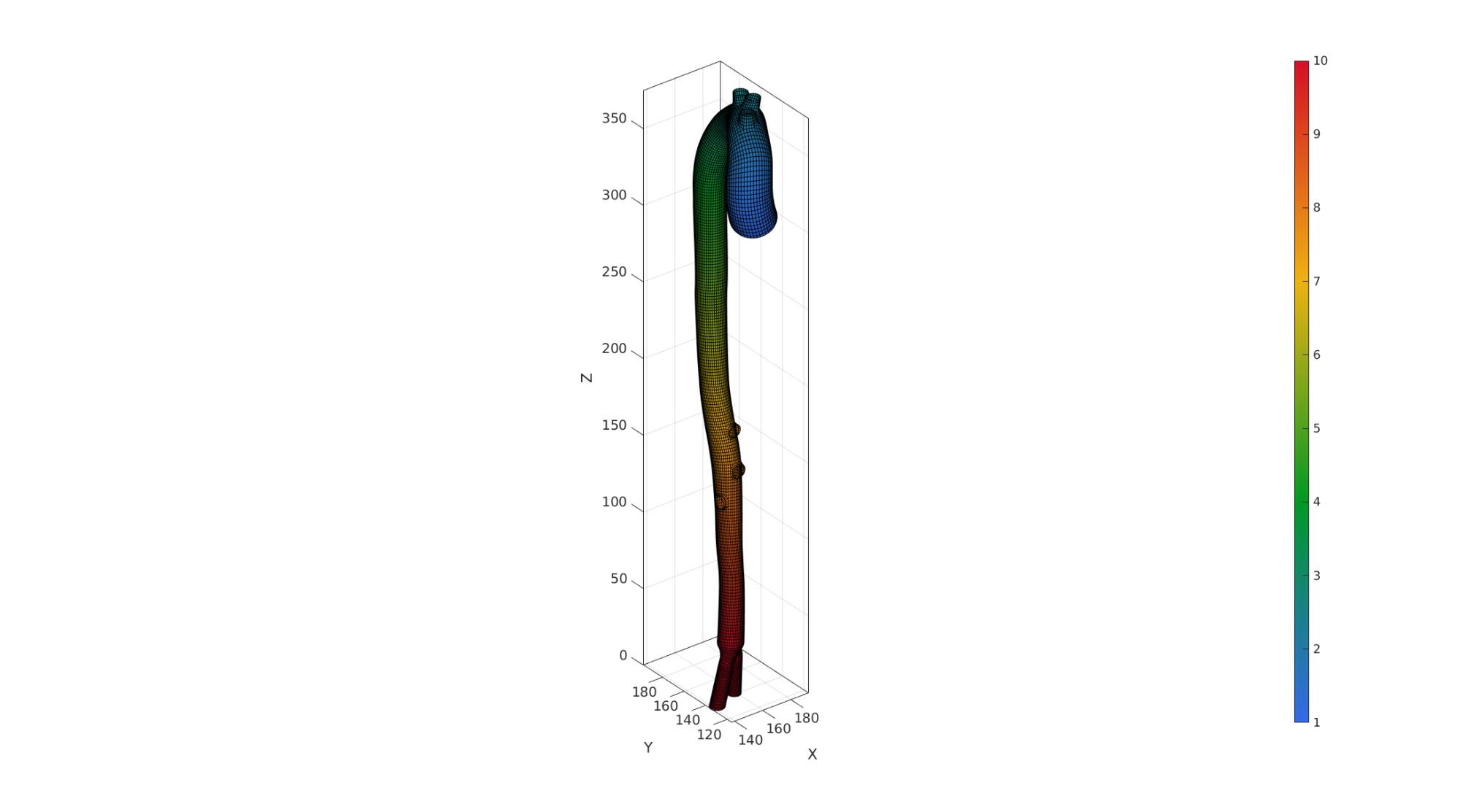

Main trunk

Join element sets to form main trunk and form colour information

C_main=[];
for q=1:1:numel(F_main_cell)
    C_main=[C_main; q*ones(size(F_main_cell{q},1),1)];
end
[F_main,V_main,C_path]=joinElementSets(F_main_cell,V_main_cell,C_main_gradient_cell);
%Scale color gradient for wall thickness interpolation
C_path = rescale(C_path,1,numThicknessLevels);
F_main=fliplr(F_main); %Invert orientation
[F_main,V_main,ind1,indFix]=mergeVertices(F_main,V_main);
for q=1:1:numel(segmentCurve_cell)
    segmentCurve_cell{q}=indFix(segmentCurve_cell{q});
end
logicBoundary=logicBoundary(ind1);

% Perform Smoothing on main trunk
controlParameter.n=numSmoothTrunk;
controlParameter.Method='HC';
controlParameter.RigidConstraints=find(logicBoundary); %Ensure smoothing cannot change coordinates of planes of interest
[V_main]=patchSmooth(F_main,V_main,[],controlParameter);

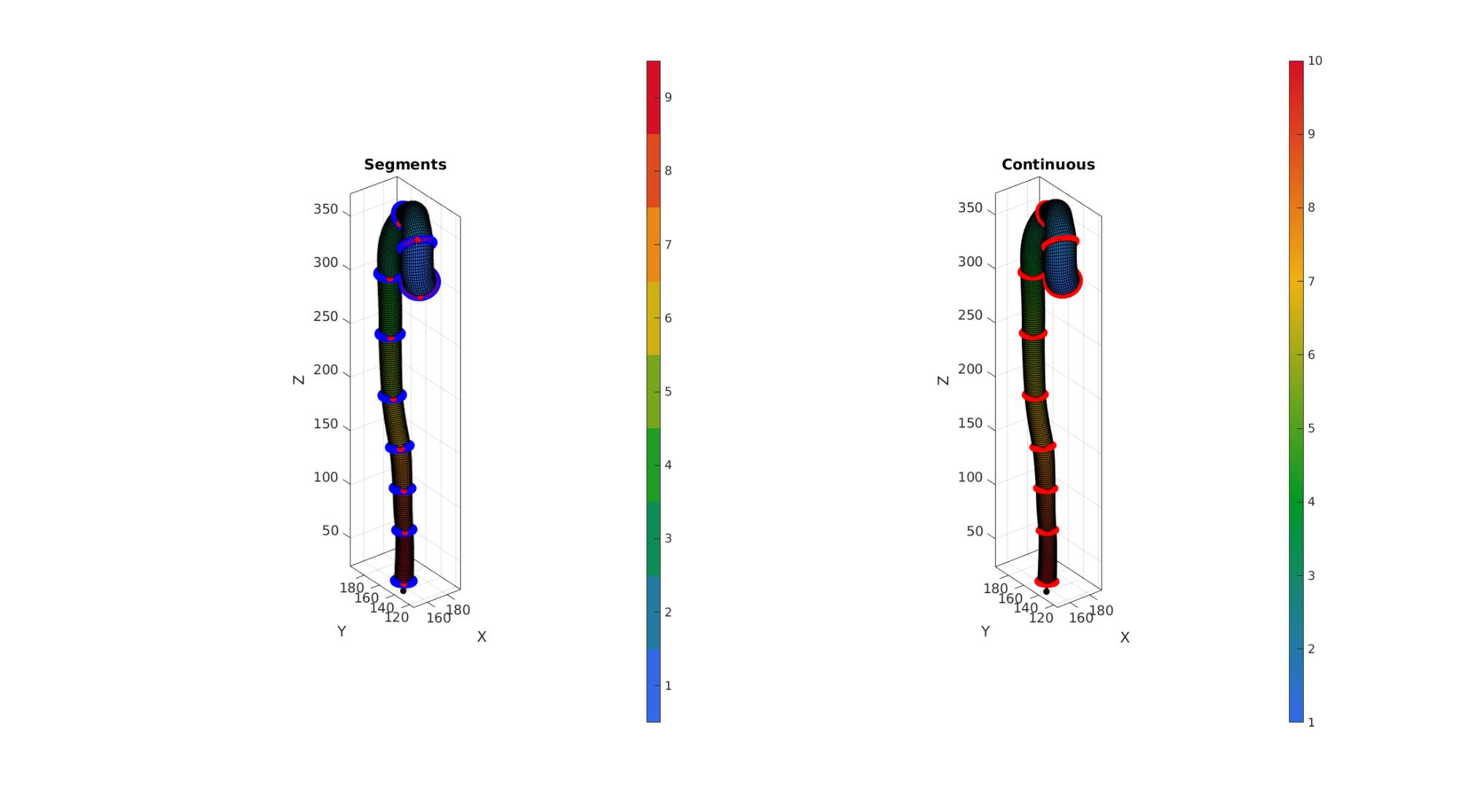

% Plot
cFigure(figStruct);
subplot(1,2,1); hold on;
title('Segments')
plotV(V_cent,'k.-','LineWidth',3,'markerSize',25);
gpatch(F_main,V_main,C_main,'k');
patchNormPlot(F_main,V_main,1,'v'); %Check normals of elements all facing outward
for q=1:1:numel(segmentCurve_cell)
    plotV(V_main(segmentCurve_cell{q},:),'b.-','LineWidth',5,'markerSize',35);
end
plotV(V_main(logicBoundary,:),'r.','markerSize',25);
axisGeom;
colormap(gca,gjet(250)); icolorbar;
camlight headlight;
lighting gouraud;
subplot(1,2,2); hold on;
title('Continuous')
plotV(V_cent,'k.-','LineWidth',3,'markerSize',25);
gpatch(F_main,V_main,C_path,'k');
plotV(V_main(logicBoundary,:),'r.','markerSize',25);
% patchNormPlot(F_main,V_main,1,'v');
axisGeom;
colormap(gca,gjet(250)); colorbar;
camlight headlight;
lighting gouraud;
drawnow;

E_rings=[F_main(:,[1 2]); fliplr(F_main(:,[3 4]))];
E_rings=uniqueIntegerRow(E_rings);

Load Iliac Branch Data

%Right Origin
V_R_ori=dataStruct.R_Ori(1:end-1,:);
V_R_ori=resampleCurve(V_R_ori,pointSpacing,1);
V_R_ori(:,1)=V_R_ori(:,1);
V_R_ori=curveOffset(V_R_ori,wallThickness(end));

%Left Origin
V_L_ori=dataStruct.L_Ori(1:end-1,:);
V_L_ori=resampleCurve(V_L_ori,pointSpacing,1);
V_L_ori(:,1)=V_L_ori(:,1)-1;
V_L_ori=curveOffset(V_L_ori,wallThickness(end));

%Left End
V_L_Iliac=dataStruct.L_Iliac(1:end-1,:);
V_L_Iliac=resampleCurve(V_L_Iliac,pointSpacing,1);
V_L_Iliac=curveOffset(V_L_Iliac,wallThickness(end));

%Right End
V_R_Iliac=dataStruct.R_Iliac(1:end-1,:);
V_R_Iliac=resampleCurve(V_R_Iliac,pointSpacing,1);
V_R_Iliac=curveOffset(V_R_Iliac,wallThickness(end));

%Bifurcation Data
V_bifurc=dataStruct.bifurc;
V_bifurc=curveOffset(V_bifurc,wallThickness(end));

Resample curve to have same number of points as main trunk for loft

Eb_all=patchBoundary(F_main,V_main);
Eb_lowerSegment=patchBoundary(F_main(C_main==max(C_main),:),V_main);
Eb_lower=Eb_lowerSegment(all(ismember(Eb_lowerSegment,Eb_all),2),:);
indLowerCurve=edgeListToCurve(Eb_lower);
indLowerCurve=indLowerCurve(1:end-1);
indLowerCurve=indLowerCurve(:);
V_main_lowerCurve=V_main(indLowerCurve,:);
if isPolyClockwise(V_bifurc)~=isPolyClockwise(V_main_lowerCurve)
    V_bifurc=flipud(V_bifurc);
end
V_bifurc=evenlySampleCurve(V_bifurc,size(V_main_lowerCurve,1),'spline',1); %resample
[~,indMin]=minDist(V_main_lowerCurve(1,:),V_bifurc);
if indMin>1
    V_bifurc=[V_bifurc(indMin:end,:); V_bifurc(1:indMin-1,:)];
end
% Mesh transition region
cPar.closeLoopOpt=1;
cPar.patchType='quad';
[F_add,V_add,indStart,indEndBifurc]=polyLoftLinear(V_main_lowerCurve,V_bifurc,cPar);
F_add=fliplr(F_add);
C_add=ones(size(F_add,1),1);
F_main=[F_main; F_add+size(V_main,1)];
indEndBifurc=indEndBifurc+size(V_main,1);
V_main=[V_main; V_add];
C_main=[C_main; C_add+max(C_main)];
C_path=[C_path; thicknessIndexTransitionRegion.*ones(size(C_add))];
[F_main,V_main,~,indFix]=mergeVertices(F_main,V_main);
indLowerCurve=indFix(indLowerCurve);
indEndBifurc=indFix(indEndBifurc);
E_rings=indFix(E_rings);
for q=1:1:numel(segmentCurve_cell)
    segmentCurve_cell{q}=indFix(segmentCurve_cell{q});
end

Warning: Second input (vertices) no longer required. Update code to avoid future
error.
Warning: Second input (vertices) no longer required. Update code to avoid future
error.

Perform Smoothing on Transition Region

indTouch=indLowerCurve(:);
numSmoothGrowSteps=3;
for q=1:1:numSmoothGrowSteps
    logicFacesTouch=any(ismember(F_main,indTouch),2);
    indTouch=F_main(logicFacesTouch,:);
end
smoothControlParameters.n=numSmoothPants_HC;
smoothControlParameters.Method='HC';
smoothControlParameters.RigidConstraints=[unique(F_main(~logicFacesTouch,:)); indLowerCurve];
[V_main]=patchSmooth(F_main,V_main,[],smoothControlParameters);

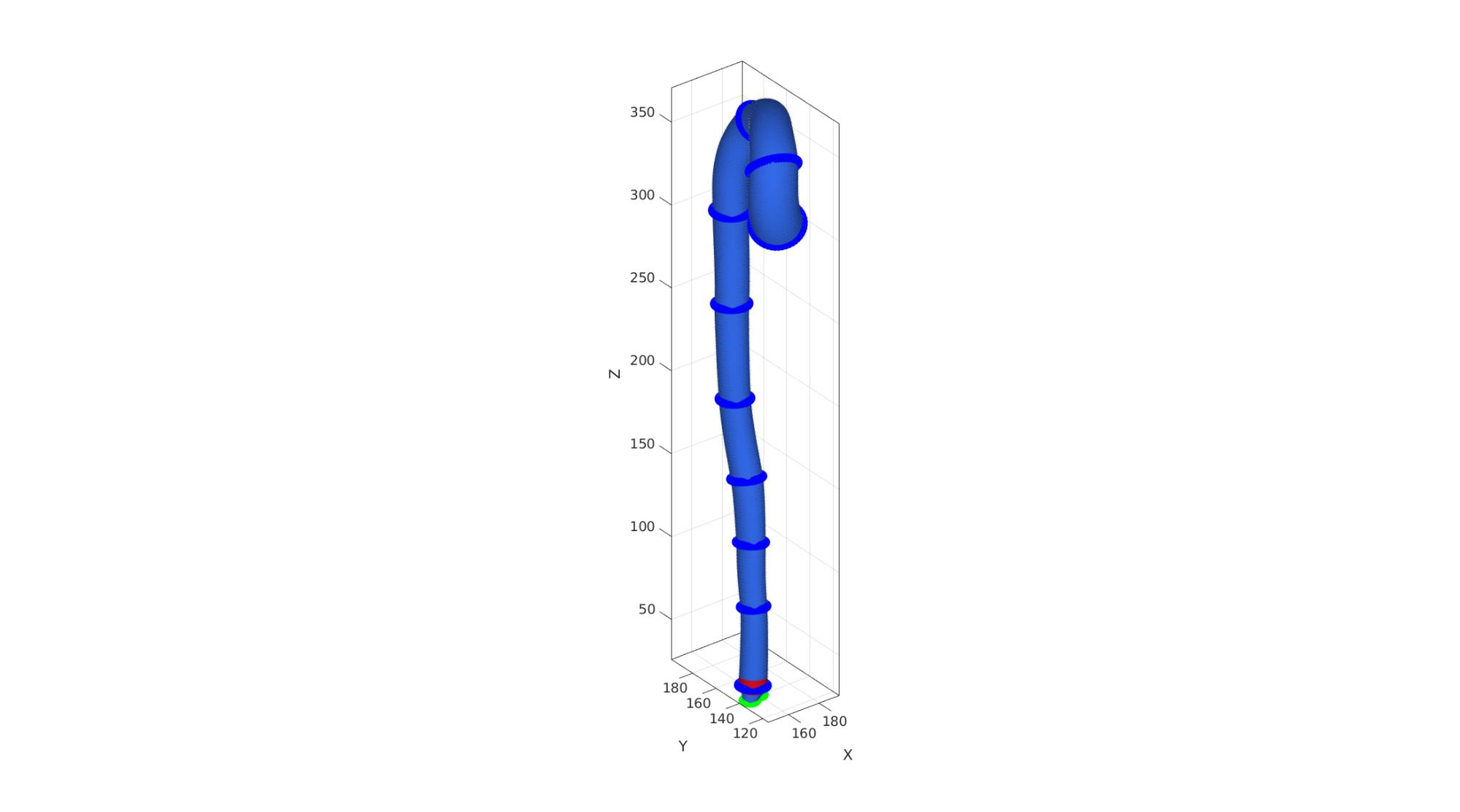

Plot Main and Transition Region

cFigure(figStruct); hold on;
gpatch(F_main,V_main,logicFacesTouch,'none');
patchNormPlot(F_main,V_main);
plotV(V_main(indLowerCurve,:),'r.-','markerSize',25);
plotV(V_main(indEndBifurc,:),'g.-','markerSize',25);
for q=1:1:numel(segmentCurve_cell)
    plotV(V_main(segmentCurve_cell{q},:),'b.-','LineWidth',5,'markerSize',35);
end
axisGeom;
colormap gjet;
camlight headlight;
lighting flat;
drawnow;

Pinched ellipse to two circle split

ns=ceil(abs(mean(V_main(indEndBifurc,3))-mean(V_R_ori(:,3)))/pointSpacing)+1;
V_cell={V_main(indEndBifurc,:),V_R_ori,V_L_ori};
patchType='quad';
splitMethod='nearMid';
controlParSmooth.Method='LAP';
controlParSmooth.n=numSmoothPants_LAP;
[F_split,V_split,curveIndices,C_split]=splitCurveSetMesh(V_cell,ns,patchType,controlParSmooth,splitMethod,1);

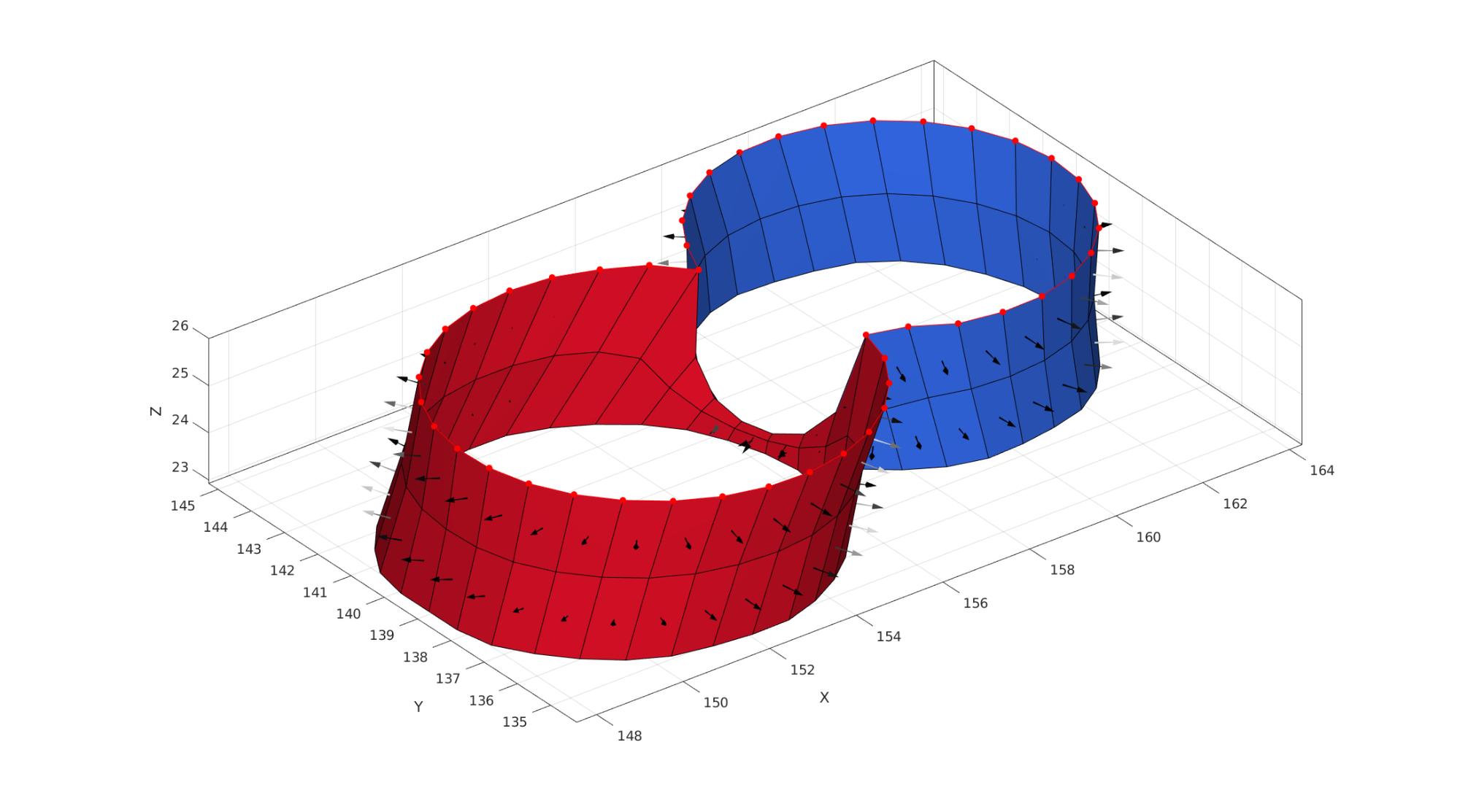

Plot

cFigure(figStruct); hold on;
% gpatch(F_main,V_main,'kw','k');
gpatch(F_split,V_split,C_split,'k');
patchNormPlot(F_split,V_split);
plotV(V_main(indEndBifurc,:),'r.-','markerSize',25);
% plotV(V_split(curveIndices{1},:),'g.-','markerSize',25);
axisGeom;
colormap gjet;
camlight headlight;
drawnow;

Ensure all points for curves are clockwise for loft

indEndBifurc_split=curveIndices{1}; indEndBifurc_split=indEndBifurc_split(:);
indBranch11=curveIndices{2}; indBranch11=indBranch11(:);
indBranch21=curveIndices{3}; indBranch21=indBranch21(:);
V_branch12=evenlySampleCurve(V_L_Iliac,numel(indBranch11),'spline',1);
V_branch22=evenlySampleCurve(V_R_Iliac,numel(indBranch21),'spline',1);
V_branch11=V_split(indBranch11,:);
if ~isPolyClockwise(V_branch11)
    indBranch11=flipud(indBranch11);
    V_branch11=V_split(indBranch11,:);
end
V_branch21=V_split(indBranch21,:);
if ~isPolyClockwise(V_branch21)
    indBranch21=flipud(indBranch21);
    V_branch21=V_split(indBranch21,:);
end
if ~isPolyClockwise(V_branch22)
    V_branch22=flipud(V_branch22);
end
if ~isPolyClockwise(V_branch12)
    V_branch12=flipud(V_branch12);
end
[~,indMin]=min(V_branch12(:,1));
if indMin>1
    V_branch12=[V_branch12(indMin:end,:); V_branch12(1:indMin-1,:)];
end
[~,indMin]=min(V_branch22(:,1));
if indMin>1
    V_branch22=[V_branch22(indMin:end,:); V_branch22(1:indMin-1,:)];
end

Define points for iliac extensions and Loft

V_loft_cell1{1}=V_branch11;
V_loft_cell2{1}=V_branch12;
V_loft_cell1{2}=V_branch21;
V_loft_cell2{2}=V_branch22;
V_loft_cent_cell{1}=dataStruct.Cent_I_R;
V_loft_cent_cell{2}=dataStruct.Cent_I_L;
F_iliac_cell=cell(1,2);
V_iliac_cell=cell(1,2);
for q=1:1:2

    V1=V_loft_cell1{q};
    V2=V_loft_cell2{q};
    Vc=V_loft_cent_cell{q};
    [~,indMin]=minDist(mean(V1,1),Vc);
    if indMin>1
        Vc=Vc(indMin:end,:);
    end
    Vc(1,:)=mean(V1,1); %Overide first point with mean of segment
    np=ceil(max(pathLength(Vc))/pointSpacing)+1;
    Vc = evenlySampleCurve(Vc,np,'spline',0);

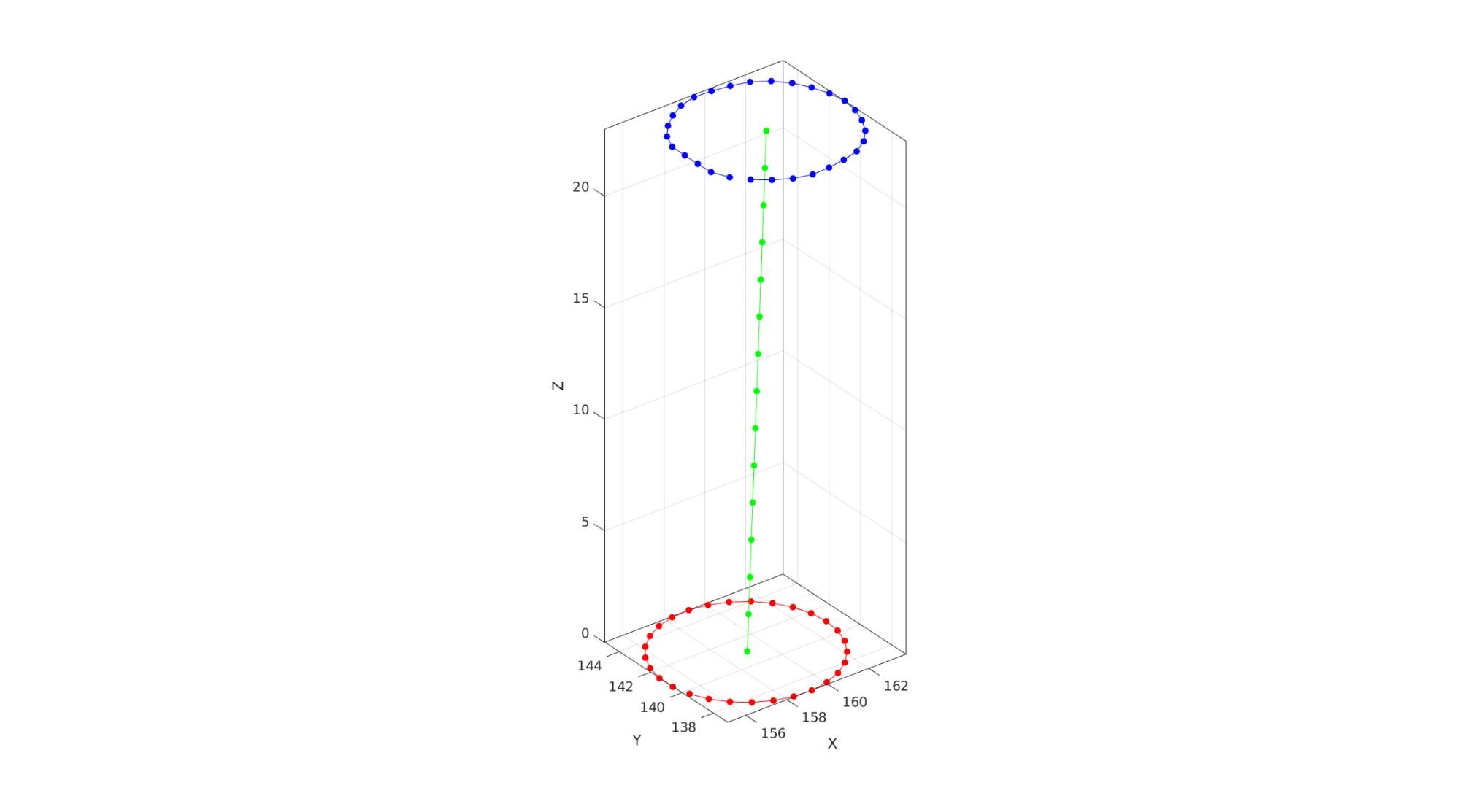

plot loft paths and profile

    cFigure(figStruct); hold on;
    plotV(V1,'b.-','markerSize',25);
    plotV(V2,'r.-','markerSize',25);
    plotV(Vc,'g.-','markerSize',25);
    axisGeom;
    colormap gjet;
    camlight headlight;
    lighting gouraud;
    drawnow;

    V2 = evenlySampleCurve(V2,size(V1,1),'spline',1);
    v1=vecnormalize(Vc(2,:)-Vc(1,:));
    [Q]=pointSetPrincipalDir(V1-Vc(ones(size(V1,1),1),:));
    n1=Q(:,3)';
    if dot(v1,n1)<0
        n1=-n1;
    end
    v2=vecnormalize(Vc(end,:)-Vc(end-1,:));
    [Q]=pointSetPrincipalDir(V2-Vc(size(Vc,1)*ones(size(V2,1),1),:));
    n2=Q(:,3)';
    if dot(v2,n2)<0
        n2=-n2;
    end
    pointSpacingNow=mean(diff(pathLength(V1)));
    np=ceil(max(pathLength(Vc))/pointSpacingNow);
    Vc = evenlySampleCurve(Vc,np,'spline',0);
    [F_loft,V_loft,C_loft]=sweepLoft(V1,V2,n1,n2,Vc,size(Vc,1),0,0);
    F_iliac_cell{q}=F_loft;
    V_iliac_cell{q}=V_loft;

end
F_branch1=F_iliac_cell{1};
V_branch1=V_iliac_cell{1};
F_branch2=F_iliac_cell{2};
V_branch2=V_iliac_cell{2};

Plot Iliac extension Loft

cFigure(figStruct); hold on;
% gpatch(F_main,V_main,C_main,'k');
% gpatch(F_main(C_main==max(C_main),:),V_main,'kw','none');
gpatch(F_split,V_split,C_split,'k');
gpatch(F_branch1,V_branch1,'gw');
patchNormPlot(F_branch1,V_branch1);
gpatch(F_branch2,V_branch2,'bw');
patchNormPlot(F_branch2,V_branch2);
plotV(V_main(indEndBifurc,:),'r.-','markerSize',25);
plotV(V_branch11,'g.-','markerSize',25);
plotV(V_branch12,'g.-','markerSize',25);
plotV(V_branch21,'b.-','markerSize',25);
plotV(V_branch22,'b.-','markerSize',25);
axisGeom;
colormap gjet;
camlight headlight;
lighting gouraud;
drawnow;

Join Iliac extensions to Bifurcation

[Fp,Vp,Cp]=joinElementSets({F_split,F_branch1,F_branch2},{V_split,V_branch1,V_branch2});
[Fp,Vp,~,indFix]=mergeVertices(Fp,Vp);
Eb_p=patchBoundary(Fp,Vp);
indEndBifurc_split=indFix(indEndBifurc_split);
indBranch11=indFix(indBranch11);
indBranch21=indFix(indBranch21);
%%Smooth Iliacs
indTouch=[indBranch11(:); indBranch21(:)];
numSmoothGrowSteps=3;
for q=1:1:numSmoothGrowSteps
    logicFacesTouch=any(ismember(Fp,indTouch),2);
    indTouch=Fp(logicFacesTouch,:);
end
smoothControlParameters.n=numSmoothPants_HC;
smoothControlParameters.Method='HC';
smoothControlParameters.RigidConstraints=[unique(Fp(~logicFacesTouch,:)); indEndBifurc_split];
[Vp]=patchSmooth(Fp,Vp,[],smoothControlParameters);

Warning: Second input (vertices) no longer required. Update code to avoid future
error.

Plot Iliacs

cFigure(figStruct); hold on;
gpatch(Fp,Vp,logicFacesTouch,'k');
patchNormPlot(Fp,Vp);
plotV(Vp(indBranch11,:),'r-','LineWidth',3)
plotV(Vp(indBranch21,:),'r-','LineWidth',3)
axisGeom;
colormap gjet;
camlight headlight;
lighting gouraud;
drawnow;

Add to main trunk

F_main=[F_main; Fp+size(V_main,1)];
indBranch11=indBranch11+size(V_main,1);
indBranch21=indBranch21+size(V_main,1);
V_main=[V_main; Vp];
C_main=[C_main; Cp+max(C_main)];
C_path=[C_path; thicknessIndexBifurcation.*ones(size(Cp))];
C_path_mat=C_path; %Copy over path color data for material assignments
[F_main,V_main,~,indFix]=mergeVertices(F_main,V_main);
indLowerCurve=indFix(indLowerCurve);
indBranch11=indFix(indBranch11);
indBranch21=indFix(indBranch21);
E_rings=indFix(E_rings);

for q=1:1:numel(segmentCurve_cell)
    segmentCurve_cell{q}=indFix(segmentCurve_cell{q});
end
%
indTouch=[indLowerCurve(:); indBranch11(:); indBranch21(:)];
nGrowthSteps=round(distSmoothGrowth/pointSpacing);
for q=1:1:numSmoothGrowSteps
    logicFacesTouch=any(ismember(F_main,indTouch),2);
    indTouch=F_main(logicFacesTouch,:);
end
ind1=F_main(~logicFacesTouch,:);
indRigid=unique([ind1(:); indBranch11(:); indBranch21(:)]);
smoothControlParameters.Tolerance=0.01;
smoothControlParameters.n=numSmoothPants_HC;
smoothControlParameters.Method='HC';
smoothControlParameters.RigidConstraints=indRigid;
[V_main]=patchSmooth(F_main,V_main,[],smoothControlParameters);
%
cFigure(figStruct); hold on;
gpatch(F_main,V_main,logicFacesTouch,'k');
% patchNormPlot(F_main,V_main);
plotV(V_main(indLowerCurve,:),'r.-','markerSize',25);
plotV(V_main(indBranch11,:),'r.-','markerSize',25);
plotV(V_main(indBranch21,:),'r.-','markerSize',25);
for q=1:1:numel(segmentCurve_cell)
    plotV(V_main(segmentCurve_cell{q},:),'b.-','LineWidth',5,'markerSize',35);
end
axisGeom;
colormap gjet;
camlight headlight;
lighting gouraud;
drawnow;

Load Branch data

%Other branches
V_L_Renal_Ori=dataStruct.L_Renal_Ori(1:end-1,:);
V_L_Renal_Ori=resampleCurve(V_L_Renal_Ori,pointSpacing,1);
V_L_Renal_Ori=curveOffset(V_L_Renal_Ori,wallThickness(7));
V_L_Renal=dataStruct.L_Renal(1:end-1,:);
V_L_Renal=resampleCurve(V_L_Renal,pointSpacing,1);
V_L_Renal=curveOffset(V_L_Renal,wallThickness(7));
V_Cent_L_Renal=dataStruct.Cent_Renal_L;
V_Cent_L_Renal=resampleCurve(V_Cent_L_Renal,pointSpacing,0);

V_R_Renal_Ori=dataStruct.R_Renal_Ori(1:end-1,:);
V_R_Renal_Ori=resampleCurve(V_R_Renal_Ori,pointSpacing,1);
V_R_Renal_Ori=curveOffset(V_R_Renal_Ori,wallThickness(7));

V_R_Renal=dataStruct.R_Renal(1:end-1,:);
V_R_Renal=resampleCurve(V_R_Renal,pointSpacing,1);
V_R_Renal=curveOffset(V_R_Renal,wallThickness(7));
V_Cent_R_Renal=dataStruct.Cent_Renal_R;
V_Cent_R_Renal=resampleCurve(V_Cent_R_Renal,pointSpacing,0);

V_SMA_Ori=dataStruct.SMA_O(1:end-1,:);
V_SMA_Ori=resampleCurve(V_SMA_Ori,pointSpacing,1);
V_SMA_Ori=curveOffset(V_SMA_Ori,wallThickness(7));

V_SMA=dataStruct.SMA(1:end-1,:);
V_SMA=resampleCurve(V_SMA,pointSpacing,1);
V_SMA=curveOffset(V_SMA,wallThickness(7));
V_Cent_SMA=dataStruct.Cent_SMA;
V_Cent_SMA=resampleCurve(V_Cent_SMA,pointSpacing,0);
V_COE_Ori=dataStruct.COE_O(1:end-1,:);
V_COE_Ori=resampleCurve(V_COE_Ori,pointSpacing,1);
V_COE_Ori=curveOffset(V_COE_Ori,wallThickness(7));
V_COE=dataStruct.COE(1:end-1,:);
V_COE=resampleCurve(V_COE,pointSpacing,1);
V_COE=curveOffset(V_COE,wallThickness(7));
V_Cent_COE=dataStruct.Cent_Coeliac;
V_Cent_COE=resampleCurve(V_Cent_COE,pointSpacing,0);
V_BCA_Ori=dataStruct.BCA_O(1:end-1,:);
V_BCA_Ori=resampleCurve(V_BCA_Ori,pointSpacing,1);
V_BCA_Ori=curveOffset(V_BCA_Ori,wallThickness(2));
V_BCA=dataStruct.BCA(1:end-1,:);
V_BCA=resampleCurve(V_BCA,pointSpacing,1);
V_BCA=curveOffset(V_BCA,wallThickness(2));
V_Cent_BCA=dataStruct.Cent_BCA;
V_Cent_BCA=resampleCurve(V_Cent_BCA,pointSpacing,0);
V_LCCA_Ori=dataStruct.LCCA_O(1:end-1,:);
V_LCCA_Ori=resampleCurve(V_LCCA_Ori,pointSpacing,1);
V_LCCA_Ori=curveOffset(V_LCCA_Ori,wallThickness(2));
V_LCCA=dataStruct.LCCA(1:end-1,:);
V_LCCA=resampleCurve(V_LCCA,pointSpacing,1);
V_LCCA=curveOffset(V_LCCA,wallThickness(2));
V_Cent_LCCA=dataStruct.Cent_LCCA;
V_Cent_LCCA=resampleCurve(V_Cent_LCCA,pointSpacing,0);
V_LSA_Ori=dataStruct.LSA_O(1:end-1,:);
V_LSA_Ori=resampleCurve(V_LSA_Ori,pointSpacing,1);
V_LSA_Ori=curveOffset(V_LSA_Ori,wallThickness(2));
V_LSA=dataStruct.LSA(1:end-1,:);
V_LSA=resampleCurve(V_LSA,pointSpacing,1);
V_LSA=curveOffset(V_LSA,wallThickness(2));
V_Cent_LSA=dataStruct.Cent_LSA;
V_Cent_LSA=resampleCurve(V_Cent_LSA,pointSpacing,0);

% Plot
cFigure(figStruct); hold on;
gpatch(F_main,V_main,C_main,0.65);
plotV(V_R_Renal_Ori,'r.-','markerSize',5);
plotV(V_R_Renal,'w.-','markerSize',5);
plotV(V_L_Renal_Ori,'g.-','markerSize',5);
plotV(V_L_Renal,'w.-','markerSize',5);
plotV(V_COE_Ori,'w.-','markerSize',5);
plotV(V_COE,'w.-','markerSize',5);
plotV(V_SMA_Ori,'w.-','markerSize',5);
plotV(V_SMA,'w.-','markerSize',5);
plotV(V_BCA_Ori,'w.-','markerSize',5);
plotV(V_BCA,'w.-','markerSize',5);
plotV(V_LCCA_Ori,'w.-','markerSize',5);
plotV(V_LCCA,'w.-','markerSize',5);
plotV(V_LSA_Ori,'w.-','markerSize',5);
plotV(V_LSA,'w.-','markerSize',5);
xlim([140 200]); ylim([120 200]); zlim([20 370]);
axisGeom;
colormap jet;
camlight headlight;
lighting gouraud;
drawnow;

Perform Extrude cut

Find Centroid of Ori and shoot vector in direction of nearest Centreline point. Apply same vector to each point on Ori and every element on the main trunk wall it touches is deleted. Loft then from deleted elements of main to each branch ori

V_cut=V_R_Renal_Ori;
V_cut_cell={V_R_Renal_Ori,V_L_Renal_Ori,V_SMA_Ori,V_COE_Ori,...
    V_LSA_Ori,V_LCCA_Ori,V_BCA_Ori};
%Loop over connections
smoothControlParameters.n=numSmoothBranchAttachments;
smoothControlParameters.Method='HC';
hw = waitbar(0,'Please wait...');
numSteps=numel(V_cut_cell);
V_endCurve_cell=cell(1,numSteps);
C_main_max=max(C_main)+1;
for q=1:1:numSteps
    waitbar(q/numSteps,hw,['Processing case ',num2str(q),' of ',num2str(numSteps)]);
    VF=patchCentre(F_main,V_main); %Face centre coordinates
    [~,indMin]=minDist(mean(V_cut_cell{q},1),VF);
    c=C_path(indMin);
    [F_main,V_main,C_main,indEnd,logicRemoveFaces,segmentCurve_cell,E_rings]=circleCutExtrude(F_main,V_main,C_main,V_cent,V_cut_cell{q},pointSpacing,0,smoothControlParameters,segmentCurve_cell,E_rings);
    numFacesNewFeature=nnz(C_main==max(C_main));
    C_path=[C_path(~logicRemoveFaces); thicknessIndicesBranches(q)*ones(numFacesNewFeature,1)];
    C_path_mat=[C_path_mat(~logicRemoveFaces); c*ones(numFacesNewFeature,1)];
    V_endCurve_cell{q}=V_main(indEnd,:);
end
close(hw);
% plot
cFigure(figStruct); hold on;
gpatch(F_main,V_main,C_path,'k',1);
for q=1:1:numel(V_endCurve_cell)
    plotV(V_endCurve_cell{q},'m.-','markerSize',25);
end
axisGeom;
colormap gjet; colorbar;
camlight headlight;
drawnow;
% plot
cFigure(figStruct); hold on;
gpatch(F_main,V_main,C_path_mat,'k',1);
axisGeom;
colormap gjet; colorbar;
camlight headlight;
drawnow;

% Resample branch ends and sweep
V_loft_cell1=V_endCurve_cell;
V_loft_cell2={V_R_Renal,V_L_Renal,V_SMA,V_COE,...
    V_LSA,V_LCCA,V_BCA};
V_loft_cent_cell={V_Cent_R_Renal,V_Cent_L_Renal,V_Cent_SMA,V_Cent_COE,V_Cent_LSA,V_Cent_LCCA,V_Cent_BCA};
F_branch_cell=cell(1,numel(V_endCurve_cell));
V_branch_cell=cell(1,numel(V_endCurve_cell));
indBranchTop_cell=cell(1,numel(V_endCurve_cell));
indBranchBottom_cell=cell(1,numel(V_endCurve_cell));
for q=1:1:numel(V_endCurve_cell)
    V1=V_loft_cell1{q};
    pointSpacingNow=mean(diff(pathLength(V1)));
    V2=V_loft_cell2{q};
    Vc=V_loft_cent_cell{q};
    np=ceil(max(pathLength(Vc))/pointSpacingNow);
    Vc = evenlySampleCurve(Vc,np,'spline',0);
    V2 = evenlySampleCurve(V2,size(V1,1),'spline',1);
    v1=vecnormalize(Vc(2,:)-Vc(1,:));
    [Q]=pointSetPrincipalDir(V1-Vc(ones(size(V1,1),1),:));
    n1=Q(:,3)';
    if dot(v1,n1)<0
        n1=-n1;
    end
    v2=vecnormalize(Vc(end,:)-Vc(end-1,:));
    [Q]=pointSetPrincipalDir(V2-Vc(size(Vc,1)*ones(size(V2,1),1),:));
    n2=Q(:,3)';
    if dot(v2,n2)<0
        n2=-n2;
    end
    b2=vecnormalize(V2(2,:)-V2(1,:));
    a2=vecnormalize(V2(1,:)-mean(V2,1));
    c2=cross(b2,a2);
    if dot(n2,c2)<0
        V2=flipud(V2);
    end
    [F_loft,V_loft,C_loft]=sweepLoft(V1,V2,n1,n2,Vc,size(Vc,1),0,0);
    F_loft=fliplr(F_loft);
    indLoftBottom=1:size(Vc,1):size(V_loft,1);
    indLoftTop=(size(Vc,1):size(Vc,1):size(V_loft,1));
    F_branch_cell{q}=F_loft;
    V_branch_cell{q}=V_loft;
    if q>1
        sizAll=cellfun(@(x) size(x,1),V_branch_cell);
        indBranchTop_cell{q}=indLoftTop+sum(sizAll(1:q-1));
        indBranchBottom_cell{q}=indLoftBottom+sum(sizAll(1:q-1));
    else
        indBranchTop_cell{q}=indLoftTop;
        indBranchBottom_cell{q}=indLoftBottom;
    end
    % The below plot highlights each loft path in a loop
    %     cFigure(figStruct); hold on;
    %     title(num2str(q))
    %     gpatch(F_main,V_main,'kw','none',0.5);
    %     gpatch(F_loft,V_loft,'rw','r',1);
    %     plotV(V_loft(indLoftBottom,:),'b.-','LineWidth',3);
    %     plotV(V_loft(indLoftTop,:),'g.-','LineWidth',3);
    % %     plotV(V1,'r.-','LineWidth',3);
    % %     plotV(V2,'b.-','LineWidth',3);
    % %     plotV(Vc,'k.-','LineWidth',3);
    % %     quiverVec(Vc(1,:),n1,10,'k');
    % %     quiverVec(Vc(end,:),n2,10,'k');
    %     axisGeom;
    %     camlight headlight;
    %     drawnow;
end
%Join branches together
VF=patchCentre(F_main,V_main);
%Joining branches
[F_branch,V_branch,C_branch]=joinElementSets(F_branch_cell,V_branch_cell);
%Adding branches to main thing
numVerticesInitial=size(V_main,1);
F_main=[F_main; F_branch+numVerticesInitial];
V_main=[V_main; V_branch];
C_main=[C_main; C_branch+max(C_main)];
C_path_branch=thicknessIndicesBranches(C_branch);
C_path=[C_path; C_path_branch(:)];

plot

cFigure(figStruct); hold on;
gpatch(F_main,V_main,'kw','none',0.5);
axisGeom;
colormap gjet; colorbar;
camlight headlight;
drawnow;
for q=1:1:numel(V_cut_cell)
    V_mean_now=mean(V_cut_cell{q},1);
    plotV(V_mean_now,'r.','markerSize',25);
    [~,indMin]=minDist(V_mean_now,VF);
    plotV(VF(indMin,:),'b.','markerSize',25);
    c=C_path_mat(indMin);
    C_path_mat=[C_path_mat; c*ones(size(F_branch_cell{q},1),1)];
end

%Fix curve indices for joining sets
for q=1:1:numel(indBranchBottom_cell)
    indBranchTop_cell{q}=indBranchTop_cell{q}+numVerticesInitial;
    indBranchBottom_cell{q}=indBranchBottom_cell{q}+numVerticesInitial;
end
%merging nodes together
[F_main,V_main,~,indFix]=mergeVertices(F_main,V_main);
%Fix curve indices for merging
for q=1:1:numel(indBranchBottom_cell)
    indBranchTop_cell{q}=indFix(indBranchTop_cell{q})';
    indBranchBottom_cell{q}=indFix(indBranchBottom_cell{q})';
end
for q=1:1:numel(segmentCurve_cell)
    segmentCurve_cell{q}=indFix(segmentCurve_cell{q});
end

E_rings=indFix(E_rings);

% Snapping material color data to number of materials
C_path_index=C_path_mat;
C_path_mat=round(rescale(C_path_mat,1,numMaterials));

plot

cFigure(figStruct); hold on;
gpatch(F_main,V_main,C_path,'k',1);
axisGeom;
colormap gjet; colorbar;
camlight headlight;
drawnow;

%Smoothing of Branches
indTouch=[indBranchBottom_cell{:}];
numSmoothGrowSteps=3;
for q=1:1:numSmoothGrowSteps
    logicFacesTouch=any(ismember(F_main,indTouch),2);
    indTouch=F_main(logicFacesTouch,:);
end

smoothControlParameters.n=numSmoothBranches;
smoothControlParameters.Method='HC';
smoothControlParameters.RigidConstraints=unique(F_main(~logicFacesTouch,:));
[V_main]=patchSmooth(F_main,V_main,[],smoothControlParameters);

% Interpolating thicknesses
thicknessData=dataStruct.WallThickness; %Thickness data
indexData=1:1:numel(thicknessData); %Index data for x-axis for interpolation
C_thickness=interp1(indexData,thicknessData,C_path,'spline');

plot

hf=cFigure(figStruct); hold on;
gtitle('Wall Thickness')
gpatch(F_main,V_main,C_thickness,'k',1);
axisGeom;
colormap(gjet(250)); colorbar;
camlight headlight;
drawnow;

Inverting offset direction

%Converting face thickness data to vertex data
nodalThickness=faceToVertexMeasure(F_main,V_main,C_thickness);
[~,~,N]=patchNormal(F_main,V_main);

plot

cFigure(figStruct); hold on;
gpatch(F_main,V_main,'kw','kw',0.5);

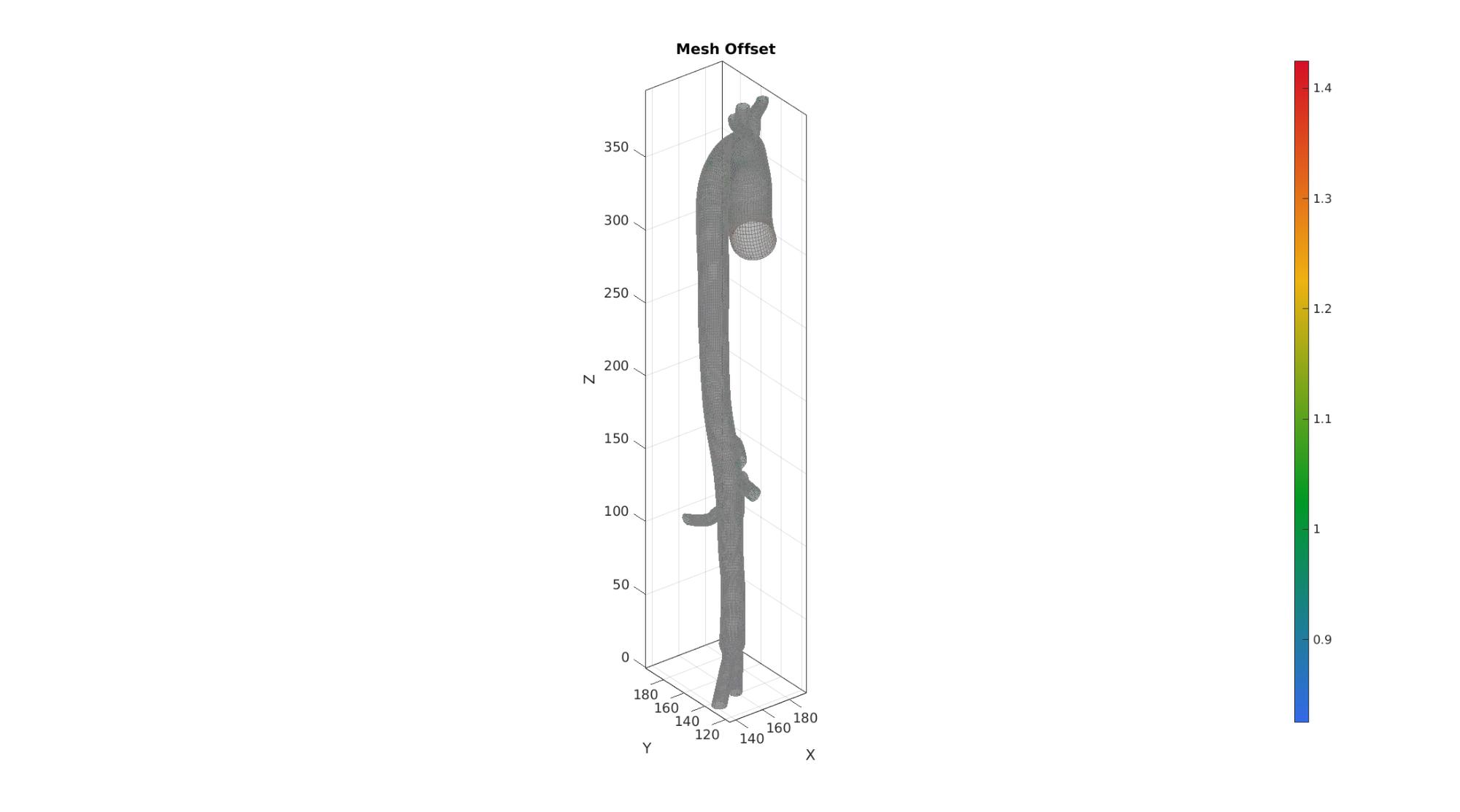

title('Mesh Offset')
quiverVec(V_main,-N.*nodalThickness,[],nodalThickness);
axisGeom;
colormap(gjet(250)); colorbar;
camlight headlight;
drawnow;

Thicken to create hexahedral elements

[ET,VT,Fp1,Fp2]=patchThick(F_main,V_main,-1,nodalThickness,numThickenSteps);
CT=repmat((1:1:size(F_main,1))',numThickenSteps,1);

ET=ET(:,[5:8 1:4]);
FT_inner=Fp2;
FT_outer=Fp1;

[~,logicPositive]=hexVol(ET,VT);
% logicPositive
if any(logicPositive==0)
    error('Negative hex volume found');
end

C_ET_path_mat_index=C_path_mat;
C_ET_path_index=C_path_index;
indicesNodesInner=unique(FT_inner(:));
% Find elements touching the branch ends
indBranchTopAll=[indBranchTop_cell{:}]; %+size(V_main,1)*numThickenSteps;
logicBranchEndElement=any(ismember(ET,indBranchTopAll),2);

Retrieve segment curve indices

segmentCurve_cell_outer=segmentCurve_cell;
for q=1:1:numel(segmentCurve_cell)
    segmentCurve_cell{q}=segmentCurve_cell{q}+size(V_main,1)*numThickenSteps;
end

[FT,CFT]=element2patch(ET,CT);

plot

cFigure(figStruct); hold on;
gpatch(FT,VT,CFT,'k',0.5);
gpatch(FT_inner,VT,'g','k',1);

for q=1:1:numel(segmentCurve_cell)
    plotV(VT(segmentCurve_cell{q},:),'g.-','LineWidth',5,'markerSize',15);
end

for q=1:1:numel(segmentCurve_cell)
    plotV(VT(segmentCurve_cell_outer{q},:),'r.-','LineWidth',5,'markerSize',15);
end

axisGeom;
colormap(gjet(250)); colorbar;
camlight headlight;
drawnow;

Grouping ring edges and offset so they are on the inside

%Offset indices inward
E_rings=E_rings+size(V_main,1)*numThickenSteps;

%Group indices to form rings
optionStruct.outputType='label';
G_rings=tesgroup(E_rings,optionStruct);

%Compose ring cell
ringCurve_cell=cell(1,max(G_rings));
for q=1:1:max(G_rings)
    indList=edgeListToCurve(E_rings(G_rings==q,:)); %1=Ring number
    indList=indList(1:end-1);
    ringCurve_cell{q}=indList;
end

plot

cFigure(figStruct); hold on;
gpatch(FT,VT,'kw','none',0.5);

plotColors=gjet(max(G_rings));
for q=1:1:max(G_rings)
    hp=plotV(VT(ringCurve_cell{q},:),'b.-','LineWidth',5,'markerSize',15);
%     hp.Color=plotColors(q,:);
end

axisGeom;
colormap(gjet(250)); colorbar;
camlight headlight;
drawnow;

Create color data for hex elements

C_ET_path_mat_index=C_ET_path_mat_index(CT);
C_ET_path_index=C_ET_path_index(CT);
logicBranchEndElement=logicBranchEndElement(CT); %Colors for original element indices (and sweeping steps)
%%Define Inner Surface Set
logicElementsInner=any(ismember(ET,indicesNodesInner),2);
indicesElementsInner=find(logicElementsInner);

plot

cFigure(figStruct); hold on;
gpatch(FT_inner,VT,'gw','none',0.5);
gpatch(FT_outer,VT,'rw','none',0.5);
patchNormPlot(FT_inner,VT)
axisGeom;
colormap(gjet(250)); colorbar;
camlight headlight;
drawnow;

Material Properties

Assign element material parameters Derive interpolatable parameters [Vcol,Vela,Ee,xeps,mu]

indexData=1:1:numel(xeps_data);
indexDataInterp=linspace(1,numel(xeps_data),numMaterials);
indexData_ET=1:1:numMaterials;

xeps_vector=interp1(indexData,xeps_data,indexDataInterp,'spline');
xeps_ET=interp1(indexData_ET,xeps_vector,C_ET_path_mat_index,'spline');
Ee_vector=interp1(indexData,Ee_data,indexDataInterp,'spline');
Ee_ET=interp1(indexData_ET,Ee_vector,C_ET_path_mat_index,'spline');
Vela_vector=interp1(indexData,Vela_data,indexDataInterp,'spline');
Vela_ET=interp1(indexData_ET,Vela_vector,C_ET_path_mat_index,'spline');
Vcol_vector=interp1(indexData,Vcol_data,indexDataInterp,'spline');
Vcol_ET=interp1(indexData_ET,Vcol_vector,C_ET_path_mat_index,'spline');
Vsmc_vector=interp1(indexData,Vsmc_data,indexDataInterp,'spline');
Vsmc_ET=interp1(indexData_ET,Vsmc_vector,C_ET_path_mat_index,'spline');

Define Branch Ends Set

[FT,CFT]=element2patch(ET,logicElementsInner);
[~,CFT_logicBranchEndElement]=element2patch(ET,logicBranchEndElement);
[~,CFT_path_mat]=element2patch(ET,C_ET_path_mat_index);
[~,xeps_FT]=element2patch(ET,xeps_ET);
[~,Ee_FT]=element2patch(ET,Ee_ET);
[~,Vela_FT]=element2patch(ET,Vela_ET);
[~,Vcol_FT]=element2patch(ET,Vcol_ET);
[~,Vsmc_FT]=element2patch(ET,Vsmc_ET);
indBoundary=tesBoundary(FT,VT);
Fb=FT(indBoundary,:);
F1=sort(ET(:,[1 2 3 4]),2);
F2=sort(ET(:,[5 6 7 8]),2);
FT_boundary=FT(indBoundary,:);
sizVirt=size(VT,1)*ones(1,size(FT,2));
indVirt_F1=sub2indn(sizVirt,F1);
indVirt_F2=sub2indn(sizVirt,F2);
indVirt_FT_boundary=sub2indn(sizVirt,sort(FT_boundary,2));
indVirt_FT=sub2indn(sizVirt,sort(FT,2));
CFT_logicBranchEndElement=CFT_logicBranchEndElement & ismember(indVirt_FT,indVirt_FT_boundary); %Only keep boundary members
CFT_logicBranchEndElement=CFT_logicBranchEndElement & ~ismember(indVirt_FT,indVirt_F1); %Cant be member of top
CFT_logicBranchEndElement=CFT_logicBranchEndElement & ~ismember(indVirt_FT,indVirt_F2); %Cant be member of bottom

%Nodes for boundary conditions
indNodesFix=FT(CFT_logicBranchEndElement,:);
indNodesFix=unique(indNodesFix(:));

Warning: Second input (vertices) no longer required. Update code to avoid future
error.

plot full mesh

cFigure(figStruct); hold on;
gpatch(FT,VT,CFT_logicBranchEndElement,'r',1);
xlim([140 200]); ylim([120 200]); zlim([20 370]);
axisGeom;
colormap(gjet(250)); colorbar;
camlight headlight;
drawnow;

plot interpolated parameters

cFigure(figStruct);
subplot(2,3,1);hold on;
title('Indexing color');
gpatch(FT(indBoundary,:),VT,CFT_path_mat(indBoundary,:),'none',1);
axisGeom;
colormap(gjet(250)); colorbar;
camlight headlight;

subplot(2,3,2);hold on;
title('xeps');
gpatch(FT(indBoundary,:),VT,xeps_FT(indBoundary,:),'none',1);
axisGeom;
colormap(gjet(250)); colorbar;
camlight headlight;

subplot(2,3,3);hold on;
title('Ee');
gpatch(FT(indBoundary,:),VT,Ee_FT(indBoundary,:),'none',1);
axisGeom;
colormap(gjet(250)); colorbar;
caxis([min(Ee_data) max(Ee_data)]);
camlight headlight;

subplot(2,3,4);hold on;
title('Vcol');
gpatch(FT(indBoundary,:),VT,Vcol_FT(indBoundary,:),'none',1);
axisGeom;
colormap(gjet(250)); colorbar;
camlight headlight;
%axis off

subplot(2,3,5);hold on;
title('Vela');
gpatch(FT(indBoundary,:),VT,Vela_FT(indBoundary,:),'none',1);
axisGeom;
colormap(gjet(250)); colorbar;
camlight headlight;
%axis off
drawnow;

%End of Model Generation steps

Create ABAQUS structure

Setup structure to define an Abaqus inp file

%%--> Heading
abaqus_spec.Heading.COMMENT{1}='Job name: AORTA';

%%--> Preprint
abaqus_spec.Preprint.ATTR.echo='NO';
abaqus_spec.Preprint.ATTR.model='NO';
abaqus_spec.Preprint.ATTR.history='NO';
abaqus_spec.Preprint.ATTR.contact='NO';

%--> Part

% Node
nodeIds=(1:1:size(VT,1))';
abaqus_spec.Part.COMMENT='This section defines the part geometry in terms of nodes and elements';
abaqus_spec.Part.ATTR.name='Aorta';
abaqus_spec.Part.Node={nodeIds,VT};

% Element
elementIds=(1:1:size(ET,1))';
abaqus_spec.Part.Element{1}.ATTR.type='C3D8';
abaqus_spec.Part.Element{1}.VAL={elementIds,ET};

% Element sets
for q=1:1:numMaterials
    elementIdsSetNow=find(C_ET_path_mat_index==q);
    abaqus_spec.Part.Elset{q}.ATTR.elset=['MatSet-',num2str(q)];
    abaqus_spec.Part.Elset{q}.VAL=elementIdsSetNow';
end

surfaceElementSetName='elementSetInnerSurface';
abaqus_spec.Part.Elset{numMaterials+1}.ATTR.elset=surfaceElementSetName;
abaqus_spec.Part.Elset{numMaterials+1}.ATTR.internal=''; %Remains hidden uppon import
abaqus_spec.Part.Elset{numMaterials+1}.VAL=indicesElementsInner(:)';

% Surfaces
sidePick=1;
abaqus_spec.Part.Surface{1}.ATTR.type='ELEMENT';
abaqus_spec.Part.Surface{1}.ATTR.name=[surfaceElementSetName,'_side',num2str(sidePick)];
abaqus_spec.Part.Surface{1}.VAL={surfaceElementSetName,['S',num2str(sidePick)]};

% Sections
for q=1:1:numMaterials
    elementIdsSetNow=find(C_ET_path_mat_index==q);
    abaqus_spec.Part.Solid_section{q}.ATTR.elset=['MatSet-',num2str(q)];
    abaqus_spec.Part.Solid_section{q}.ATTR.material=['Mat_',num2str(q)];
end

%--> Assembly
abaqus_spec.Assembly.ATTR.name='Assembly-1';
abaqus_spec.Assembly.Instance.ATTR.name='Aorta-assembly';
abaqus_spec.Assembly.Instance.ATTR.part='Aorta';

abaqus_spec.Assembly.Nset{1}.ATTR.nset='NSet_Inner';
abaqus_spec.Assembly.Nset{1}.ATTR.instance=abaqus_spec.Assembly.Instance.ATTR.name;
abaqus_spec.Assembly.Nset{1}.VAL=indicesNodesInner;

%Add segment curve node sets
for q=1:1:numel(segmentCurve_cell)
    indNow=numel(abaqus_spec.Assembly.Nset)+1;
    abaqus_spec.Assembly.Nset{indNow}.ATTR.nset=['Segment',num2str(q)];
    abaqus_spec.Assembly.Nset{indNow}.ATTR.instance=abaqus_spec.Assembly.Instance.ATTR.name;
    abaqus_spec.Assembly.Nset{indNow}.VAL=segmentCurve_cell{q};
end

%Add ring curve node sets
for q=1:1:numel(ringCurve_cell)
    indNow=numel(abaqus_spec.Assembly.Nset)+1;
    abaqus_spec.Assembly.Nset{indNow}.ATTR.nset=['Ring',num2str(q)];
    abaqus_spec.Assembly.Nset{indNow}.ATTR.instance=abaqus_spec.Assembly.Instance.ATTR.name;
    abaqus_spec.Assembly.Nset{indNow}.VAL=ringCurve_cell{q};
end

%Add fix node set
% indNow=numel(abaqus_spec.Assembly.Nset)+1;
% setNameFix=['Set-',num2str(indNow)];
% abaqus_spec.Assembly.Nset{indNow}.ATTR.nset=setNameFix;
% abaqus_spec.Assembly.Nset{indNow}.ATTR.instance=abaqus_spec.Assembly.Instance.ATTR.name;
% abaqus_spec.Assembly.Nset{indNow}.VAL=indNodesFix';

%%--> Material
for q=1:1:numMaterials
    abaqus_spec.Material{q}.ATTR.name=['mat_',num2str(q)];
    abaqus_spec.Material{q}.Depvar.VAL=13;
    abaqus_spec.Material{q}.User_Material.ATTR.constants=17;
    %Define material parameters
    mu_now=mu_data;
    k_now=mu_now*kfactor;
    D_now=2/k_now;
    k1_now=k1_data;
    k2_now=k2_data;
    kappa_now=kappa_data;
    theta1_now=theta1_data;
    theta2_now=theta2_data;
    sigact_now=sigact_data;
    ke_now=ke_data;
    Ee_now=Ee_vector(q);
    thetaE1_now=thetaE1_data;
    thetaE2_now=thetaE2_data;
    iswitch_now=iswitch;
    xeps_now=xeps_vector(q);
    Vcol_now=Vcol_vector(q);
    Vela_now=Vela_vector(q);
    Vsmc_now=Vsmc_vector(q);
    t=vec2strIntDouble([mu_now/2 D_now k1_now k2_now kappa_now theta1_now theta2_now sigact_now ke_now Ee_now thetaE1_now thetaE2_now iswitch_now xeps_now Vcol_now Vela_now Vsmc_now],'%6.7e');
    t=strwrap(t,8,', '); %Wrap to max width of 8 entries
    %abaqus_spec.User_Material{q}.VAL=t;
    abaqus_spec.Material{q}.User_Material.VAL=t;
end
%%--> Step
abaqus_spec.Step.ATTR.name='Step-1';
abaqus_spec.Step.ATTR.nlgeom='YES';
abaqus_spec.Step.Static=[0.01 1 1e-6 0.01];

% Boundary
% setNameFix=abaqus_spec.Assembly.Nset{indNow}.ATTR.nset;
% abaqus_spec.Step.Boundary{1}.VAL={setNameFix,[1,1]};
% abaqus_spec.Step.Boundary{2}.VAL={setNameFix,[2,2]};
% abaqus_spec.Step.Boundary{3}.VAL={setNameFix,[3,3]};

%Output
% abaqus_spec.Step.Restart.ATTR.write='';
% abaqus_spec.Step.Restart.ATTR.frequency=0;
%
% abaqus_spec.Step.Output{1}.ATTR.field='';
% abaqus_spec.Step.Output{1}.ATTR.variable='PRESELECT';
% abaqus_spec.Step.Output{2}.ATTR.history='';
% abaqus_spec.Step.Output{2}.ATTR.variable='PRESELECT';
% abaqus_spec.Step.Node_print.ATTR.nset='all';
% abaqus_spec.Step.Node_print.ATTR.frequency = 1;
% abaqus_spec.Step.Node_print.VAL='COORD';
% abaqus_spec.Step.El_print{1}.VAL='S';
% abaqus_spec.Step.El_print{2}.VAL='E';

% Creating the INP file
% You can use |abaqusStruct2inp| to write the structure data to a file.

if saveOn==1
    % Export INP file
    abaqusStruct2inp(abaqus_spec,abaqusInpFileName);

    saveStruct.ET=ET;
    saveStruct.FT=FT;
    saveStruct.VT=VT;
    saveStruct.Fb=Fb;
    saveStruct.segmentCurve_cell=segmentCurve_cell;
    saveStruct.abaqus_spec=abaqus_spec;
    save(matfileSaveName,'-struct','saveStruct');

    disp('inp file write complete')
end

FUNCTIONS %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

function [Fs,Vs,Cs,indEnd,logicRemoveFaces,segmentCurve_cell,E_rings]=circleCutExtrude(F,V,C,V_cent,V_cut,pointSpacing,plotOn,smoothControlParameters,segmentCurve_cell,E_rings)

Conver to triangles

Ft=[F(:,[1 2 3]);F(:,[3 4 1])];

Resample center line

np=round(max(pathLength(V_cent))/pointSpacing);
V_cent = evenlySampleCurve(V_cent,np,'spline',0);

Get mean of cut curve, project to surface

V_cut_mean=mean(V_cut,1);

rMax=max(sqrt(sum((V_cut-V_cut_mean(ones(size(V_cut,1),1),:)).^2,2)));

[~,indMin]=minDist(V_cut_mean,V_cent);

v=V_cent(indMin,:)-V_cut_mean;

optStruct.eps      = 1e-6;
optStruct.triangle = 'one sided';
optStruct.ray      = 'ray';
optStruct.border   = 'normal';

[V_intersect,L_intersect,~] = triangleRayIntersection(V_cut_mean(ones(size(Ft,1),1),:),v(ones(size(Ft,1),1),:),V,Ft,optStruct);

V_intersect=V_intersect(L_intersect,:);

D=minDist(V,V_intersect);

logicRemoveVertices=D<=rMax;

logicRemoveFaces=any(logicRemoveVertices(F),2);

Eb_cut=patchBoundary(F(logicRemoveFaces,:),V);
indCurveCut=edgeListToCurve(Eb_cut);
indCurveCut=indCurveCut(1:end-1);
indCurveCut=indCurveCut(:);

logicFlip=~any((Eb_cut(:,1)==indCurveCut(1))&(Eb_cut(:,2)==indCurveCut(2)));
if logicFlip
    indCurveCut=flipud(indCurveCut);
end

V_curve_cut=V(indCurveCut,:);

%Resample so they have the same amount of points
np=size(V_curve_cut,1);
V_cut = evenlySampleCurve(V_cut,np,'spline',1);

%Get appropriate start point
[~,indMin]=minDist(V_cut(1,:),V_curve_cut);
if indMin>1
    V_curve_cut=[V_curve_cut(indMin:end,:); V_curve_cut(1:indMin-1,:)];
end

V_curve_cut_mean=mean(V_curve_cut,1);
V_cut_mean=mean(V_cut,1);

% Check order again
nq=round(0.25*np);
a1=dot(V_cut(nq,:)-V_cut_mean,V_curve_cut(nq,:)-V_curve_cut_mean);

V_cut_test=flipud(V_cut);
a2=dot(V_cut_test(nq,:)-V_cut_mean,V_curve_cut(nq,:)-V_curve_cut_mean);

if a2>a1
    V_cut=V_cut_test;
end

%Get appropriate start point
[~,indMin]=minDist(V_cut(1,:),V_curve_cut);
if indMin>1
    V_curve_cut=[V_curve_cut(indMin:end,:); V_curve_cut(1:indMin-1,:)];
end

%Minimize twist
SSQD=zeros(np,1);
for q=1:1:np
    if q>1
        indSort=[q:np 1:q-1];
    else
        indSort=1:np;
    end
    V_curve_cut_test=V_curve_cut(indSort,:);
    SSQD(q)=sum(sqrt(sum((V_curve_cut_test-V_cut).^2,2)).^2);
end

%Get sort order
[~,q]=min(SSQD);
if q>1
    indSort=[q:np 1:q-1];
    V_curve_cut=V_curve_cut(indSort,:);
end

Warning: This function is depricated, it is recommended to update your code to
use triSurfRayTrace instead
Warning: Second input (vertices) no longer required. Update code to avoid future
error.

Warning: This function is depricated, it is recommended to update your code to
use triSurfRayTrace instead
Warning: Second input (vertices) no longer required. Update code to avoid future
error.

Warning: This function is depricated, it is recommended to update your code to
use triSurfRayTrace instead
Warning: Second input (vertices) no longer required. Update code to avoid future
error.

Warning: This function is depricated, it is recommended to update your code to
use triSurfRayTrace instead
Warning: Second input (vertices) no longer required. Update code to avoid future
error.

Warning: This function is depricated, it is recommended to update your code to
use triSurfRayTrace instead
Warning: Second input (vertices) no longer required. Update code to avoid future
error.

Warning: This function is depricated, it is recommended to update your code to
use triSurfRayTrace instead
Warning: Second input (vertices) no longer required. Update code to avoid future
error.

Warning: This function is depricated, it is recommended to update your code to
use triSurfRayTrace instead
Warning: Second input (vertices) no longer required. Update code to avoid future
error.

F=F(~logicRemoveFaces,:);
C=C(~logicRemoveFaces);

Loft

cPar.closeLoopOpt=1;
cPar.patchType='quad';

[F_merge,V_merge,~,indEnd]=polyLoftLinear(V_curve_cut,V_cut,cPar);
C_merge=max(C(:))+ones(size(F_merge,1),1);

% if plotOn==1
%     cFigure(figStruct); hold on;
%     gpatch(F,V,C,'k',0.5);
%     gpatch(F_merge,V_merge,'g','k',1);
%     plotV(V_cent,'g.-','LineWidth',3,'markerSize',25);
%     plotV(V_cut,'r.-','LineWidth',3,'markerSize',25);
%     plotV(V_cut_mean,'r.','markerSize',50);
%     plotV(V_curve_cut,'b.-','LineWidth',3);
%     plotV(V_intersect,'b.','markerSize',50);
%     quiverVec(V_cut_mean,v,[],'r');
%     axisGeom;
%     colormap gjet;
%     camlight headlight;
%     drawnow;
% end

[Fs,Vs,Cs]=joinElementSets({F,F_merge},{V,V_merge},{C,C_merge});
indEnd=indEnd+size(V,1);

Constrained smoothing

nGrowthSteps=2;
logicSmooth=any(ismember(Fs,indCurveCut),2);
for q=1:1:nGrowthSteps-1
    indTouch=unique(Fs(logicSmooth,:));
    logicSmooth=any(ismember(Fs,indTouch),2);
end

logicSmooth=logicSmooth | Cs==max(Cs(:));

[Fs,Vs,~,indFix]=mergeVertices(Fs,Vs); %Merging points
indEnd=indFix(indEnd);

for q=1:1:numel(segmentCurve_cell)
    indSegment=segmentCurve_cell{q};
    indSegment=indSegment(indSegment>0);
    segmentCurve_cell{q}=indFix(indSegment);
end
E_rings=indFix(E_rings);

[Fs,Vs,indFix]=patchCleanUnused(Fs,Vs); %removing unused at hole
indEnd=indFix(indEnd);
E_rings=indFix(E_rings);
E_rings=E_rings(all(E_rings>0,2),:);

for q=1:1:numel(segmentCurve_cell)
    indSegment=segmentCurve_cell{q};
    indSegment=indSegment(indSegment>0);
    segmentCurve_cell{q}=indFix(indSegment);
end

indRigid=unique(Fs(~logicSmooth,:));
indRigid=unique([indRigid(:);indEnd(:)]);

Eb=patchBoundary(Fs,Vs);
smoothControlParameters.RigidConstraints=unique([indRigid(:);Eb(:)]);
[Vs]=patchSmooth(Fs,Vs,[],smoothControlParameters);

Warning: Second input (vertices) no longer required. Update code to avoid future
error.

Warning: Second input (vertices) no longer required. Update code to avoid future
error.

Warning: Second input (vertices) no longer required. Update code to avoid future
error.

Warning: Second input (vertices) no longer required. Update code to avoid future
error.

Warning: Second input (vertices) no longer required. Update code to avoid future
error.

Warning: Second input (vertices) no longer required. Update code to avoid future
error.

Warning: Second input (vertices) no longer required. Update code to avoid future
error.

if plotOn==1
    cFigure(figStruct); hold on;
    gpatch(Fs,Vs,logicSmooth,'k',1);
    patchNormPlot(Fs,Vs);
    plotV(Vs(indRigid,:),'b.','markerSize',25);
    axisGeom;
    colormap gjet;
    camlight headlight;
    drawnow;
end

end

function V=resampleCurve(V,pointSpacing,closeLoopOpt)

np=ceil(max(pathLength(V))/pointSpacing);
V = evenlySampleCurve(V,np,'spline',closeLoopOpt);

end

function [Vn]=curveOffset(V,wallThickness)
p1=mean(V,1); %Curve center

vf=-vecnormalize(V-[V(2:end,:);V(1,:)]); %Allong curve path vectors
vb=vecnormalize(V-[V(end,:);V(1:end-1,:)]); %Allong curve path vectors
v=(vf+vb)/2;

r=vecnormalize(V-p1); %Position vector wrt mean
v1=vecnormalize(cross(v,r)); %perimeter quasi Z-vectors
n=vecnormalize(cross(v1(ones(size(v,1),1),:),v)); %Outward normal vectors
Vn=(V+n*wallThickness); %Offset to create new curve

% cFigure;
% plotV(V,'k.-');
% quiverVec(V,vf,3,'r');
% quiverVec(V,vb,3,'b');
% quiverVec(V,v,3,'g');
% axisGeom
% drawnow;
end

GIBBON footer text

License: https://github.com/gibbonCode/GIBBON/blob/master/LICENSE

GIBBON: The Geometry and Image-based Bioengineering add-On. A toolbox for image segmentation, image-based modeling, meshing, and finite element analysis.

This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program. If not, see http://www.gnu.org/licenses/.

DEMO_aorta_build_passive_01

Contents

Keywords

Directory

Control parameters

Access data structure components

Resampling aorta section contours

Smooth center line

Offsetting section curves outward if thickening is inward

Visualize offset curves

Perform main trunk loft

Material model

Main trunk

Load Iliac Branch Data

Resample curve to have same number of points as main trunk for loft

Perform Smoothing on Transition Region

Pinched ellipse to two circle split

Ensure all points for curves are clockwise for loft

Define points for iliac extensions and Loft

Join Iliac extensions to Bifurcation

Load Branch data

Perform Extrude cut

Inverting offset direction

Thicken to create hexahedral elements

Retrieve segment curve indices

Grouping ring edges and offset so they are on the inside

Create color data for hex elements

Material Properties

Define Branch Ends Set

Create ABAQUS structure

FUNCTIONS %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

Conver to triangles

Resample center line

Get mean of cut curve, project to surface

Loft

Constrained smoothing
