tri2quadGroupSplit

Below is a demonstration of the features of the tri2quadGroupSplit function

Contents

clear; close all; clc;

Syntax

[F_quad,V_quad,F_tri_remain,V_tri_remain]=tri2quadGroupSplit(F_tri,V_tri,optionStruct);

Description

The tri2quadGroupSplit function converts the triangulated input data F_tri (faces) and V_tri (vertices) to quadrilateral elements F_quad (faces) and V_quad (vertices). Quadrilateral elements are formed by grouping adjacent triangles. Once a maximum number of quadrilateral elements are formes some triagles may remain. If desired these can also be converted to quadrilateral elements through splitting. If splitting is used the grouped quadrilaterals also require splitting to create a mesh with shared nodal connectivity. Splitting based conversion can be turned off. The remaining triangle set can also be obtained if desired through the optional outputs F_tri_remain (faces) and V_tri_remain (vertices). The third input is the option structure optionStruct with the fields:

optionStruct.maxAngleDeviation=60*(pi/180); %The maximum angle used for optionStruct.selectionMethod='best'; % or 'random' optionStruct.triangleConvert=0; %Convert the remaining triangles (1) or not (0)

Examples

Plot settings

plotColors=gjet(4);

Create test data set

[F_tri,V_tri]=geoSphere(3,1);

Convert adjacent triangles by picking the best candidates, keeping unconverted triangles

optionStruct.maxAngleDeviation=60*(pi/180);
optionStruct.selectionMethod='best';
optionStruct.triangleConvert=0;
optionStruct.fourConnectConvert=0;
[FQ,VQ,indIni]=tri2quadGroupSplit(F_tri,V_tri,optionStruct);

%Create color data for visualization
if iscell(FQ)
    CQ=FQ;
    for q=1:1:numel(FQ)
       CQ{q}=q*ones(size(FQ{q},1),1);
    end
end

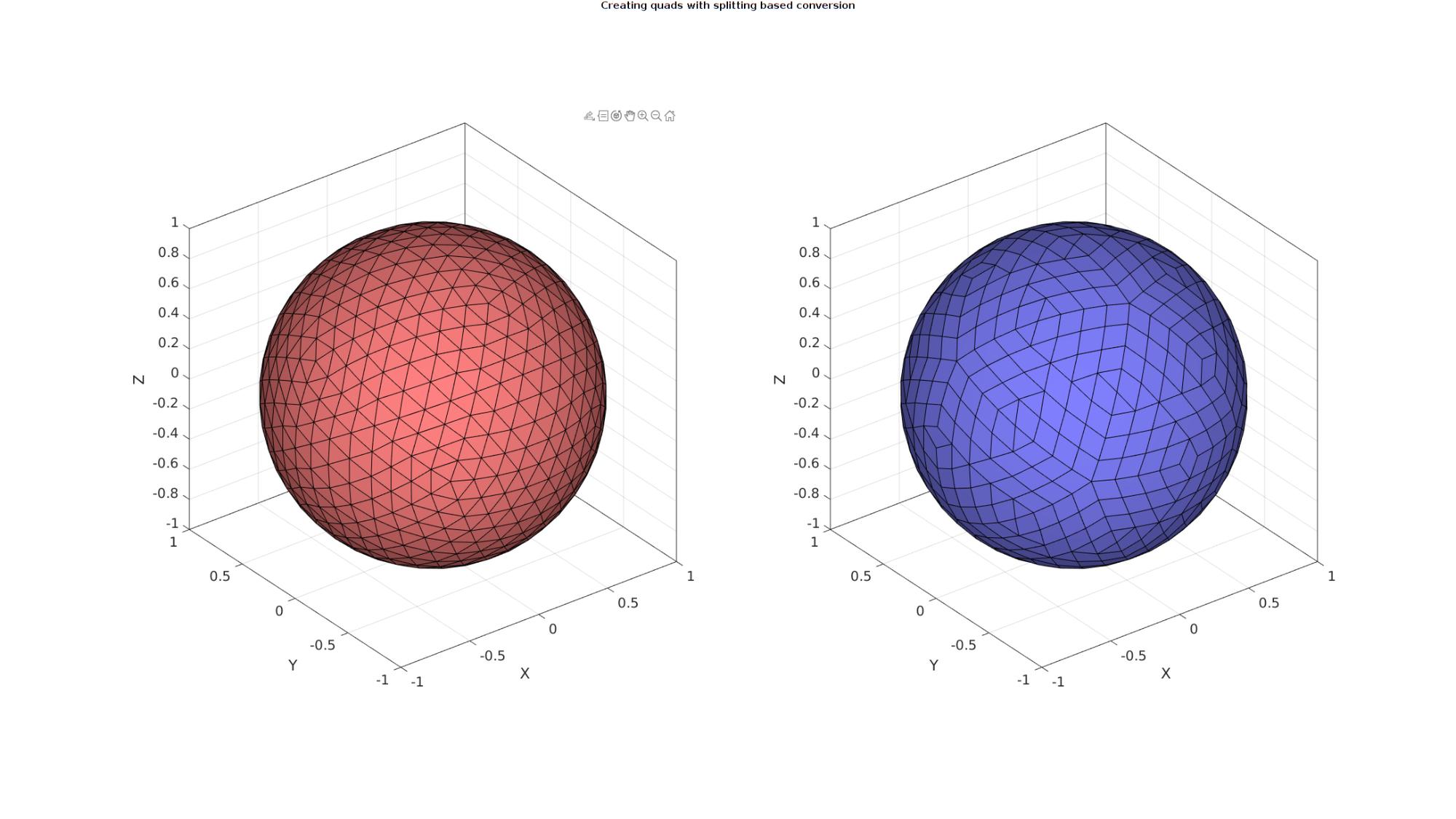

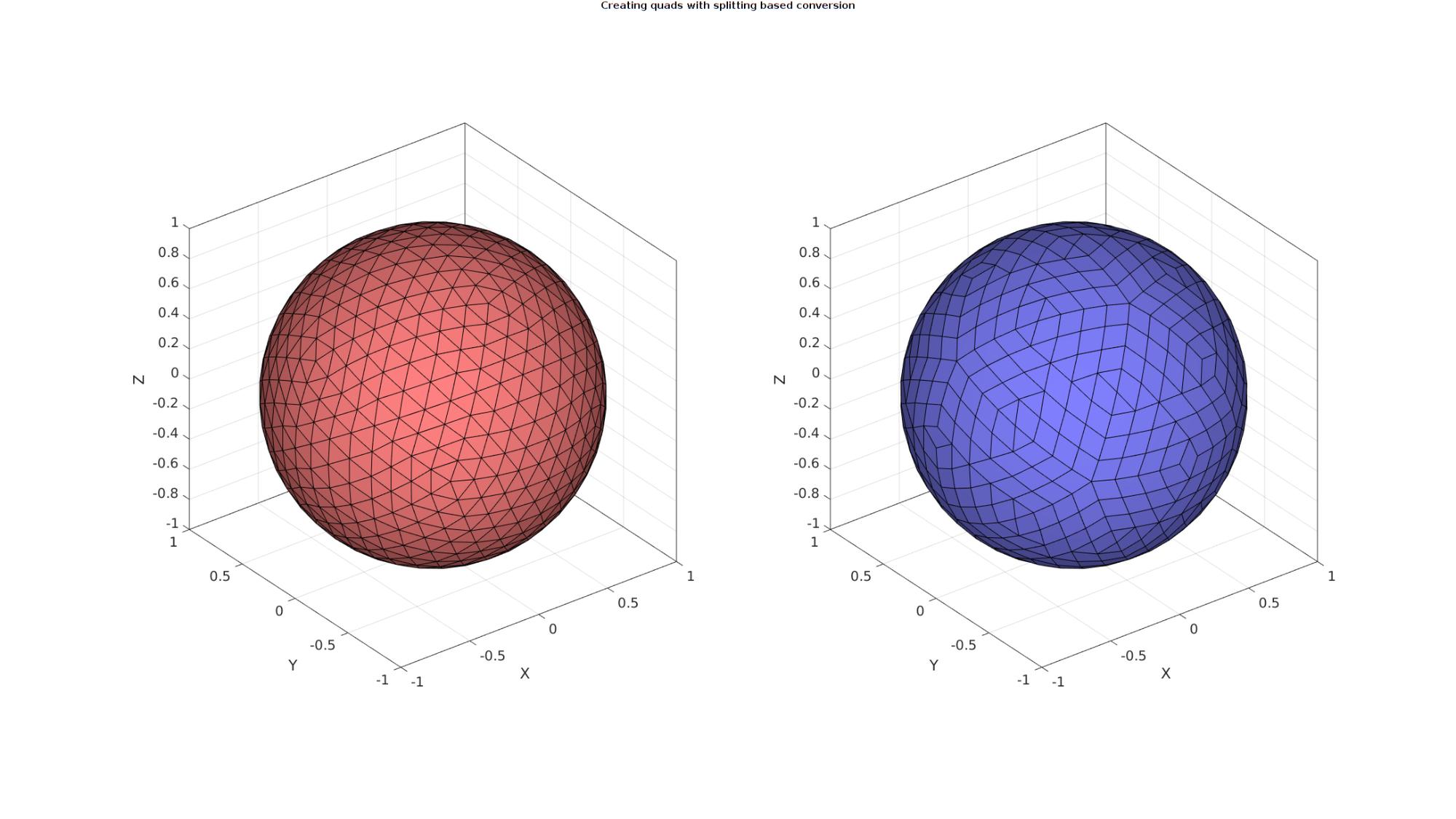

Visualize results

cFigure;
gtitle('Creating quads with splitting based conversion');
subplot(1,2,1); hold on;
gpatch(F_tri,V_tri,'rw','k',1);
axisGeom;
camlight headlight;

subplot(1,2,2); hold on;
gpatch(FQ,VQ,'bw','k');
axisGeom;
camlight headlight;
drawnow;

Convert adjacent triangles by picking best candidates, converting remaining triangles by splitting

Create test data set

[F_tri,V_tri]=stanford_bunny;

optionStruct.maxAngleDeviation=60*(pi/180);
optionStruct.selectionMethod='best';
optionStruct.triangleConvert=1;
optionStruct.fourConnectConvert=0;
[FQ,VQ,indIni]=tri2quadGroupSplit(F_tri,V_tri,optionStruct);

Since subTriDual outputs indIni which are the indices for the initial nodes in the unrefined mesh, smoothing can be performed while holding on to these nodes, i.e. only the newly introduces nodes will be adjusted during smoothing.

%Smoothen newly introduced nodes
cPar.Method='HC'; %Smoothing method
cPar.n=50; %Number of iterations
cPar.RigidConstraints=indIni; %Constrained points
[VQ]=tesSmooth(FQ,VQ,[],cPar);

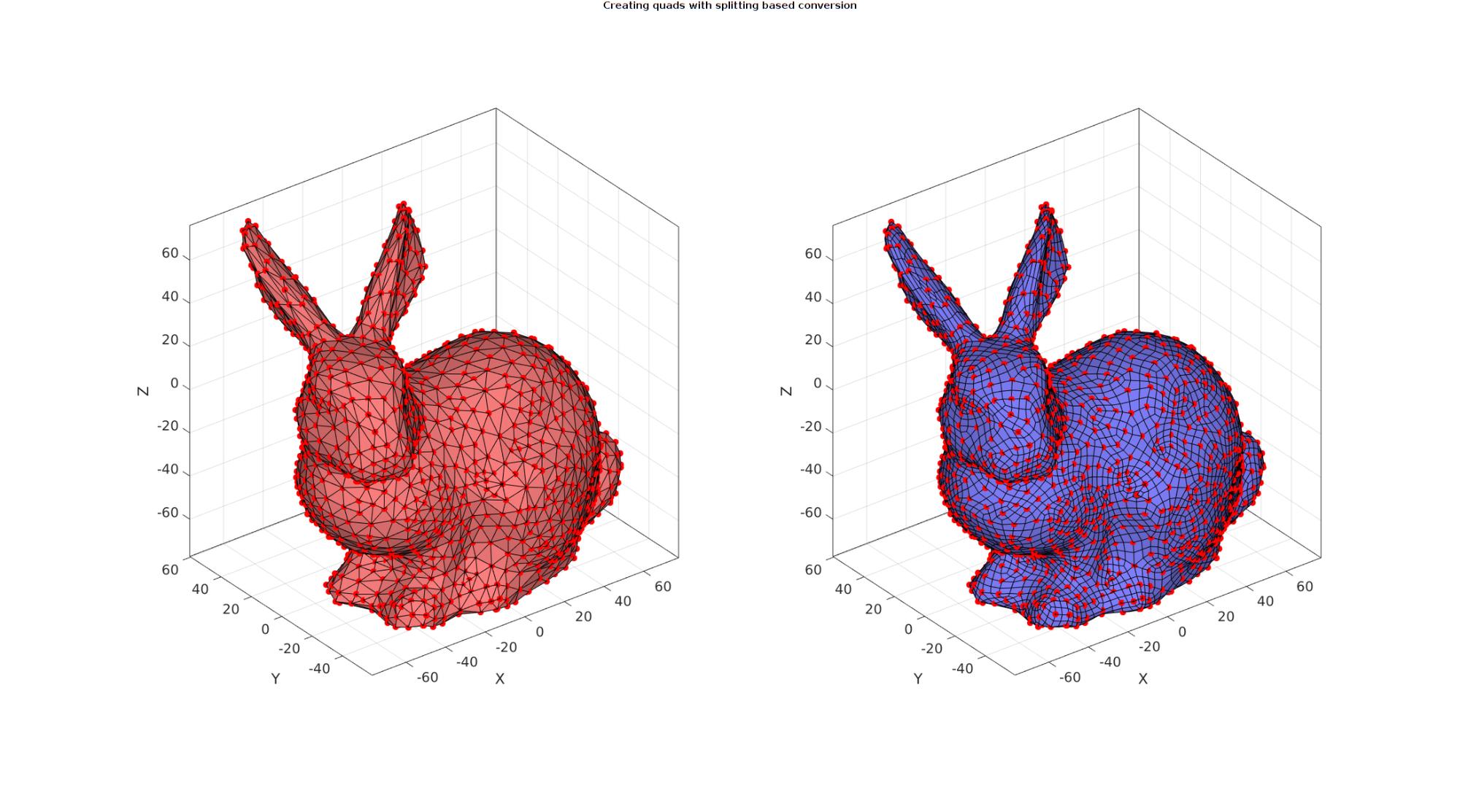

Visualize results

cFigure;
gtitle('Creating quads with splitting based conversion');
subplot(1,2,1); hold on;
gpatch(F_tri,V_tri,'rw','k',1);
plotV(VQ(indIni,:),'r.','MarkerSize',25);
axisGeom;
camlight headlight;

subplot(1,2,2); hold on;
gpatch(FQ,VQ,'bw','k');
plotV(VQ(indIni,:),'r.','MarkerSize',25);
axisGeom;
camlight headlight;
drawnow;

Convert adjacent triangles by picking random candidates

Random picking may be useful if the smallest amount of remaining triangles is of interest. E.g. one could randomly pick the next quad such that different results are obtained each time. This way one could keep the results yielding the smallest number of remaining triangles.

Create test data set

[F_tri,V_tri]=parasaurolophus;

numAttempts=6;
F_cell=cell(1,numAttempts);
F_tri_cell=cell(1,numAttempts);
V_cell=cell(1,numAttempts);
numTrianglesRemaining=nan(1,numAttempts);
for q=1:1:numAttempts
    optionStruct.maxAngleDeviation=45*(pi/180);
    optionStruct.selectionMethod='random';
    optionStruct.triangleConvert=1;
    optionStruct.fourConnectConvert=0;
    [FQ,VQ]=tri2quadGroupSplit(F_tri,V_tri,optionStruct);
    if iscell(FQ)
        numTrianglesRemaining(q)=numel(FQ{2});
    else
        numTrianglesRemaining(q)=0;
    end
    F_cell{q}=FQ;
    V_cell{q}=VQ;
end

[~,indMin]=min(numTrianglesRemaining);

FQ=F_cell{indMin};
VQ=V_cell{indMin};

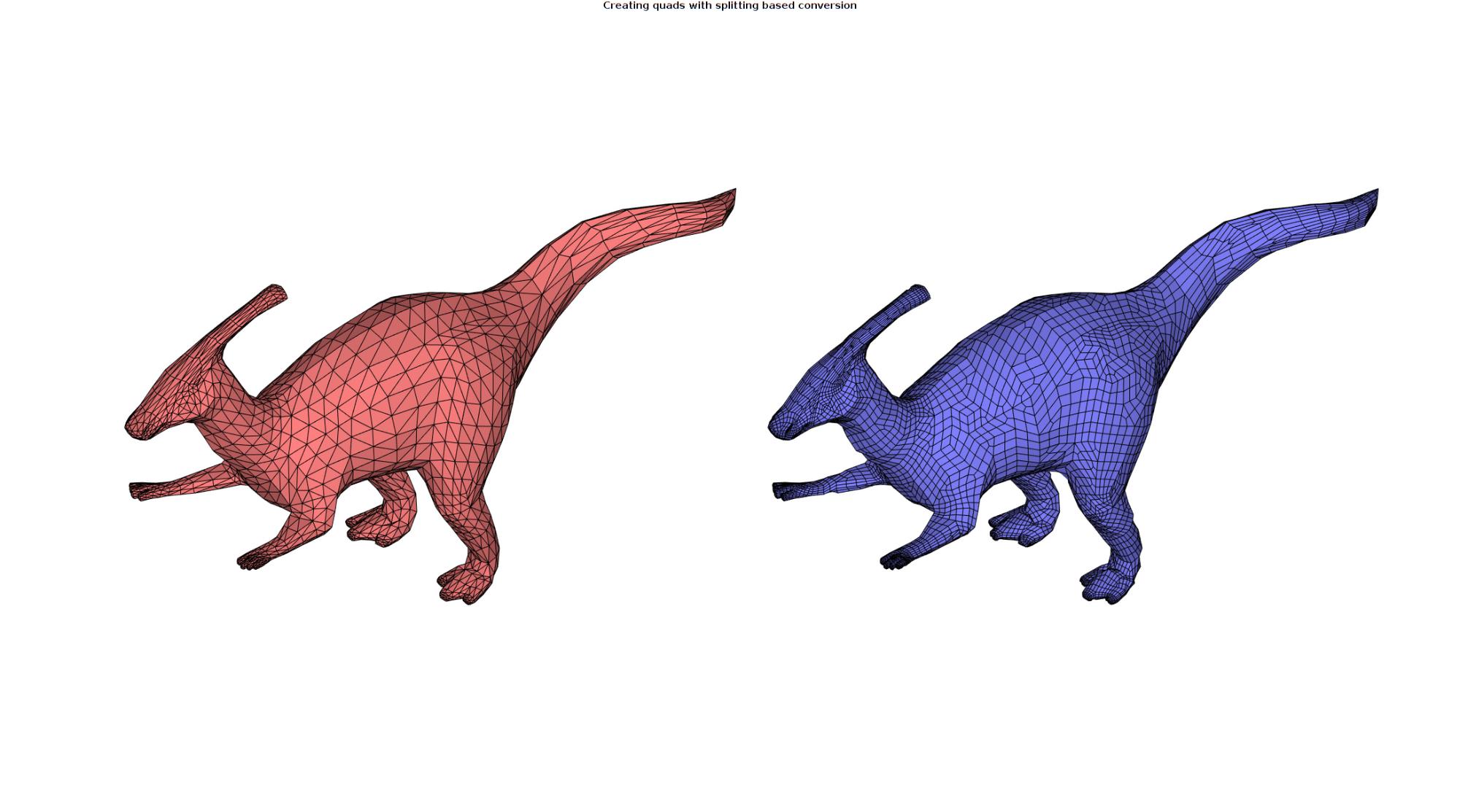

Visualize results

cFigure;
gtitle('Creating quads with splitting based conversion');
subplot(1,2,1); hold on;
gpatch(F_tri,V_tri,'rw','k',1);
axisGeom; axis off;
camlight headlight;
zoom(1.5);

subplot(1,2,2); hold on;
gpatch(FQ,VQ,'bw','k');
axisGeom; axis off;
camlight headlight;
zoom(1.5);
drawnow;

Create test data set

[X,Y,Z]=peaks(15);
Z=Z/4;
[Fq,Vq,~]=surf2patch(X,Y,Z,Z);
[F_tri,V_tri]=quad2tri(Fq,Vq,'x');

optionStruct.maxAngleDeviation=60*(pi/180);
optionStruct.selectionMethod='best';
optionStruct.triangleConvert=0;
optionStruct.fourConnectConvert=1;

[FQ,VQ]=tri2quadGroupSplit(F_tri,V_tri,optionStruct);

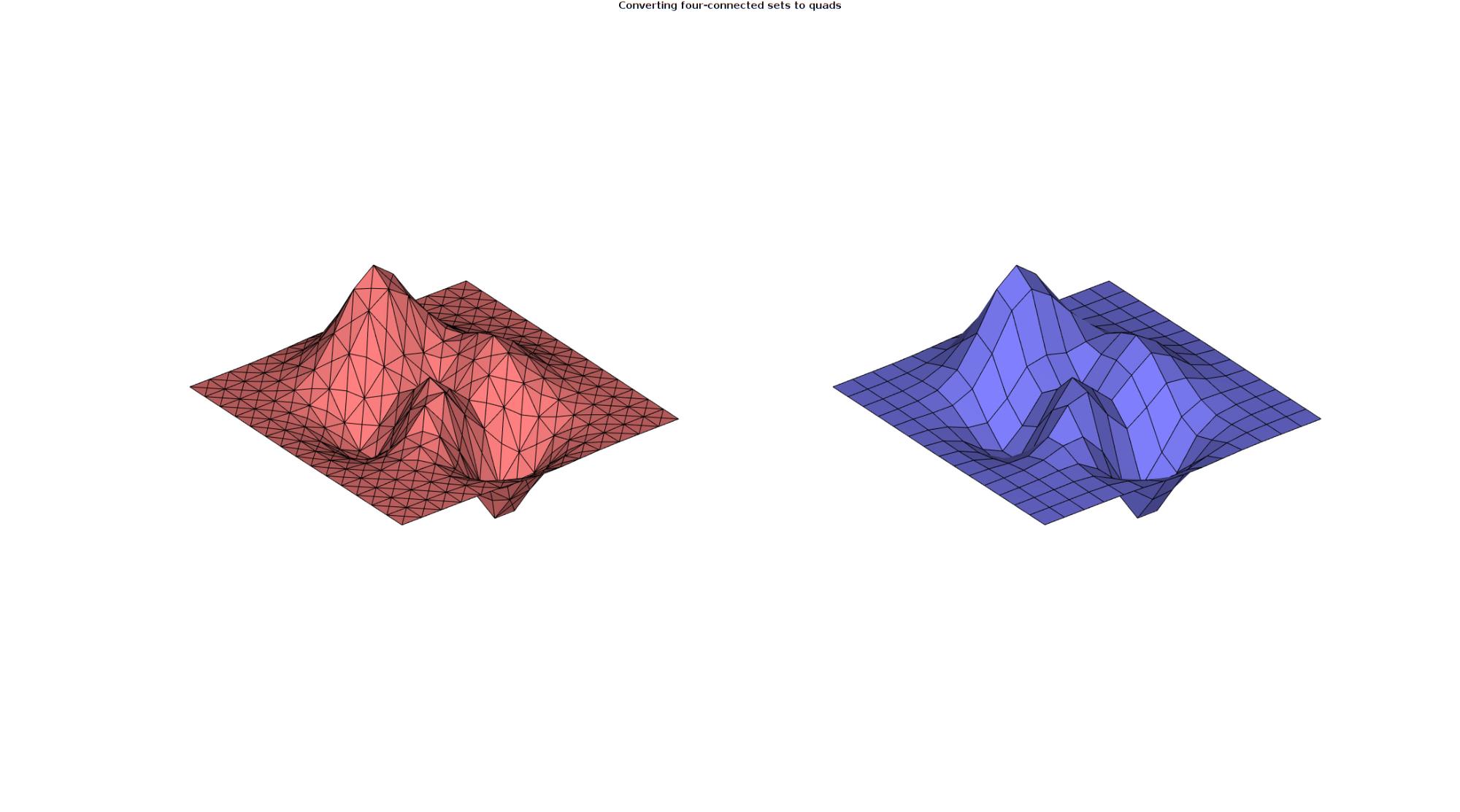

Visualize results

cFigure;
gtitle('Converting four-connected sets to quads');
subplot(1,2,1); hold on;
gpatch(F_tri,V_tri,'rw','k',1);
axisGeom; axis off;
camlight headlight;

subplot(1,2,2); hold on;
gpatch(FQ,VQ,'bw','k');
axisGeom; axis off;
camlight headlight;
drawnow;
