subtri

Below is a demonstration of the features of the subtri function

Contents

Syntax

[Fs,Vs]=subtri(F,V,n,uniqueOpt);

Description

The subtri function enables refinement of triangulated data

Examples

clear; close all; clc;

Plot Settings

fontSize=15;
faceAlpha=1;
edgeColor=0.2*ones(1,3);
edgeWidth=1.5;
markerSize=35;
markerSize2=20;

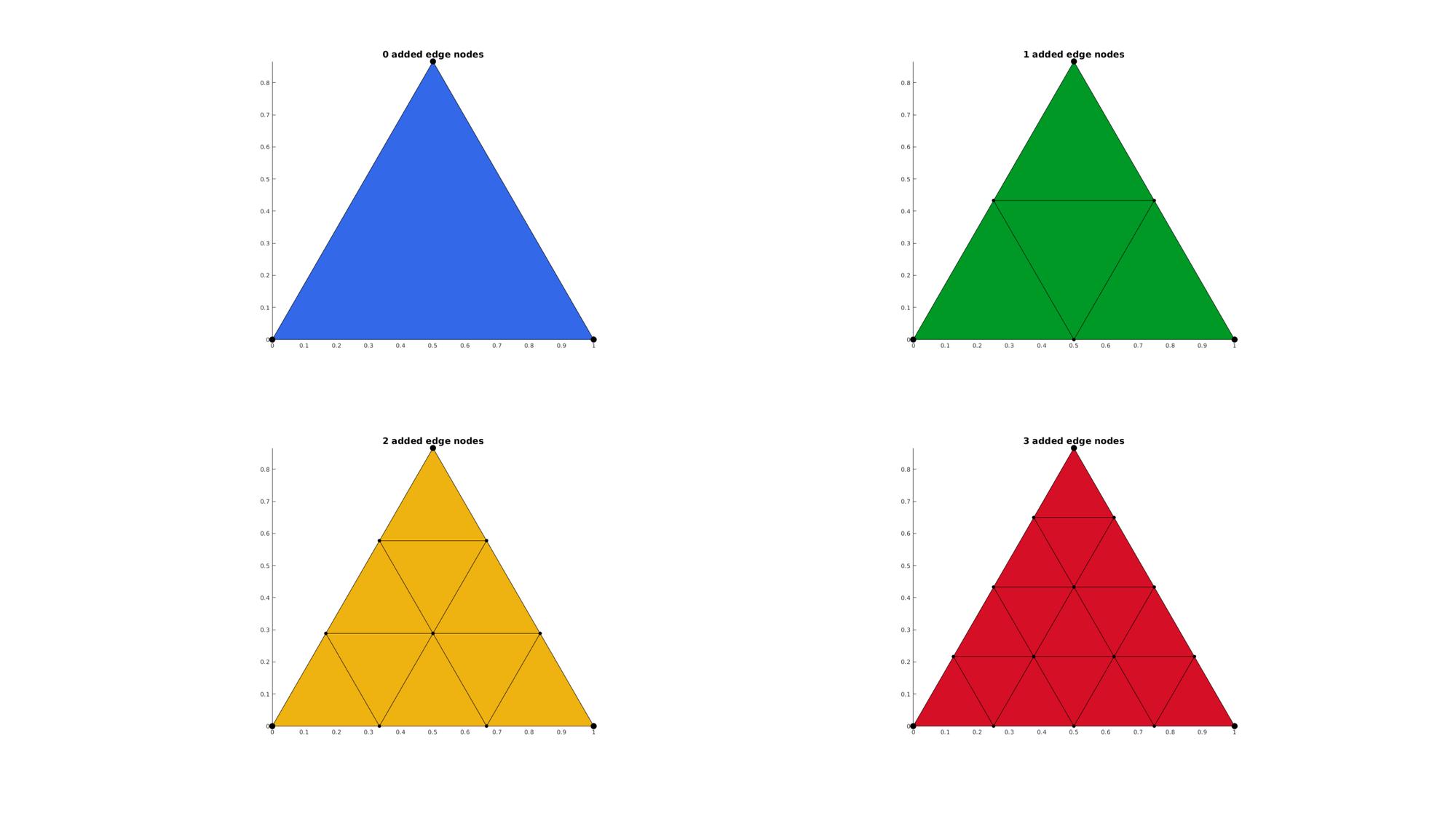

Refining a triangle

V=[0 0 0; 1 0 0; 0.5 sqrt(3)/2 0];
F=[1 2 3];

n=0:1:3; %Number of added edge nodes
pColors=gjet(numel(n));

cFigure;
for q=1:1:numel(n)
    [Fs,Vs]=subtri(F,V,n(q));
    subplot(2,2,q); hold on;
    title([num2str(n(q)),' added edge nodes'],'FontSize',fontSize);
    gpatch(Fs,Vs,pColors(q,:),'k');
    plotV(Vs,'k.','markerSize',markerSize2);
    plotV(V,'k.','markerSize',markerSize);

    axis equal; axis tight; view(2);
end
drawnow;

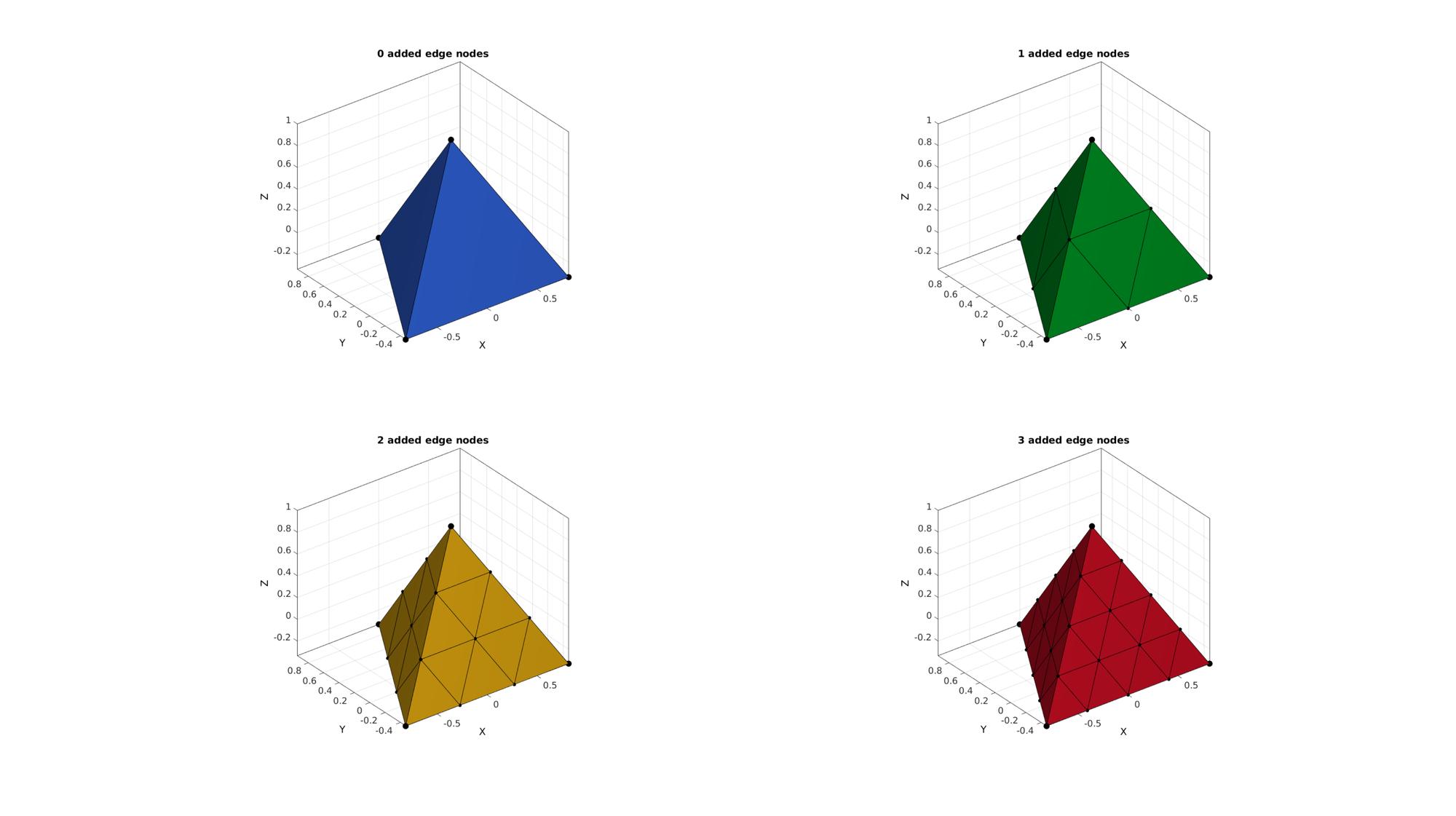

Refining a tetrahedron

[V,F]=platonic_solid(1,1);

n=0:1:3; %Number of added edge nodes
pColors=gjet(numel(n));

cFigure;
for q=1:1:numel(n)
    [Fs,Vs]=subtri(F,V,n(q));
    subplot(2,2,q); hold on;
    title([num2str(n(q)),' added edge nodes'],'FontSize',fontSize);
    gpatch(Fs,Vs,pColors(q,:),'k');
    plotV(Vs,'k.','markerSize',markerSize2);
    plotV(V,'k.','markerSize',markerSize);
    axisGeom(gca,fontSize);
    camlight headlight;
end
drawnow;

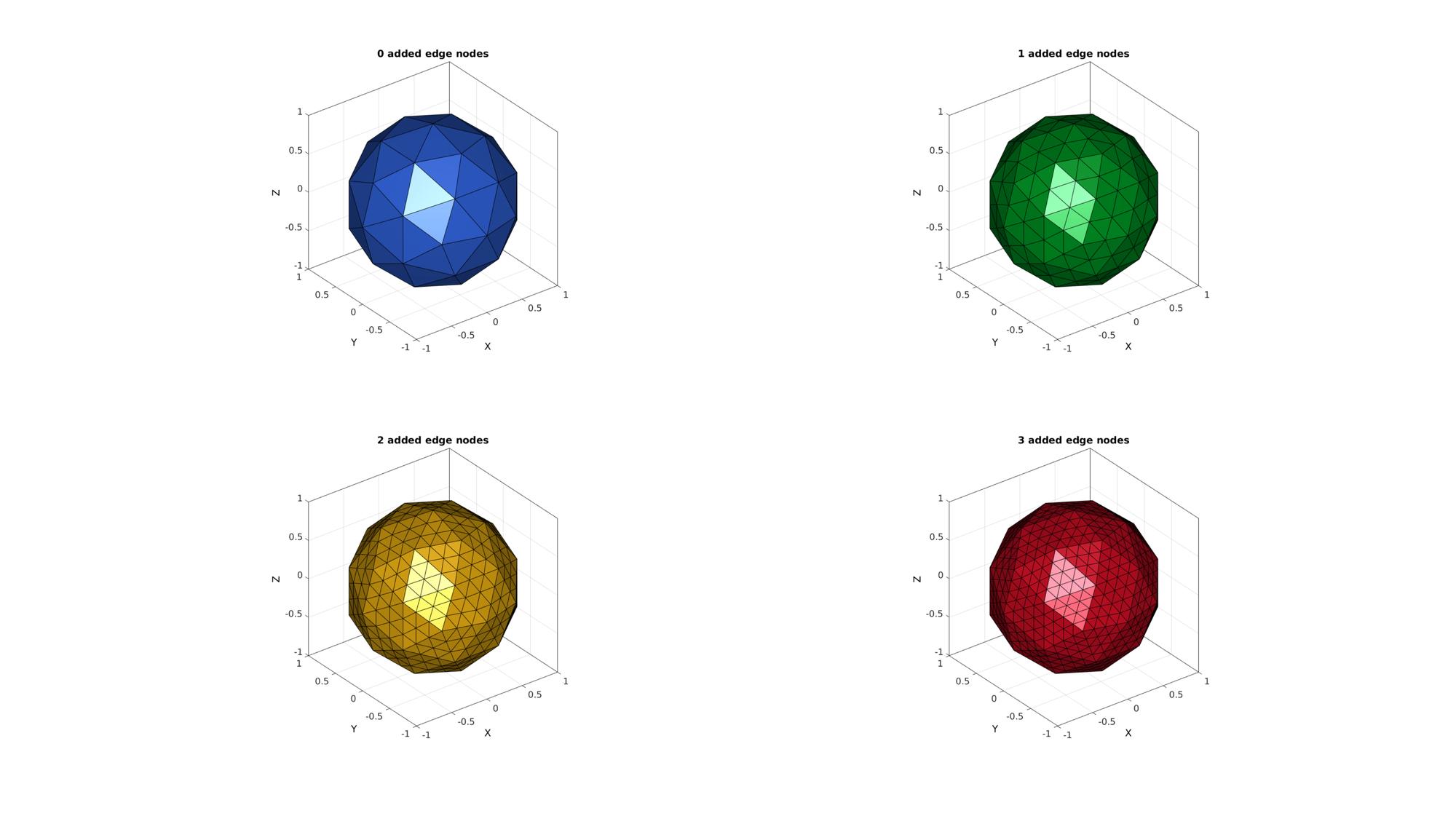

Refining triangulated surfaces in general

[F,V]=geoSphere(1,1);

n=[0 1 2 3]; %Number of added edge nodes
pColors=gjet(numel(n));

cFigure;
for q=1:1:numel(n)
    [Fs,Vs]=subtri(F,V,n(q));
    subplot(2,2,q); hold on;
    title([num2str(n(q)),' added edge nodes'],'FontSize',fontSize);
    gpatch(Fs,Vs,pColors(q,:),'k');
    axisGeom(gca,fontSize);
    camlight headlight;
end
drawnow;
