subTriCentre

Below is a demonstration of the features of the subTriCentre function

Contents

Syntax

[Fn,Vn]=subTriCentre(F,V,L);

Description

The subTriCentre function splits the faces defined by L up into three by introducing a central node.

Examples

clear; close all; clc;

Plot settings

fontSize=10;
faceAlpha=1;
edgeColor=0.3*ones(1,3);
edgeWidth=1.5;

Example: Splitting a selection of triangles

Building example patch data

[V,F]=platonic_solid(4,1);

Create logic for faces to split

L=false(size(F,1),1);
L(6:8)=1; %e.g. the first 3 faces

Splitting selected triangles

[Fn,Vn]=subTriCentre(F,V,L);

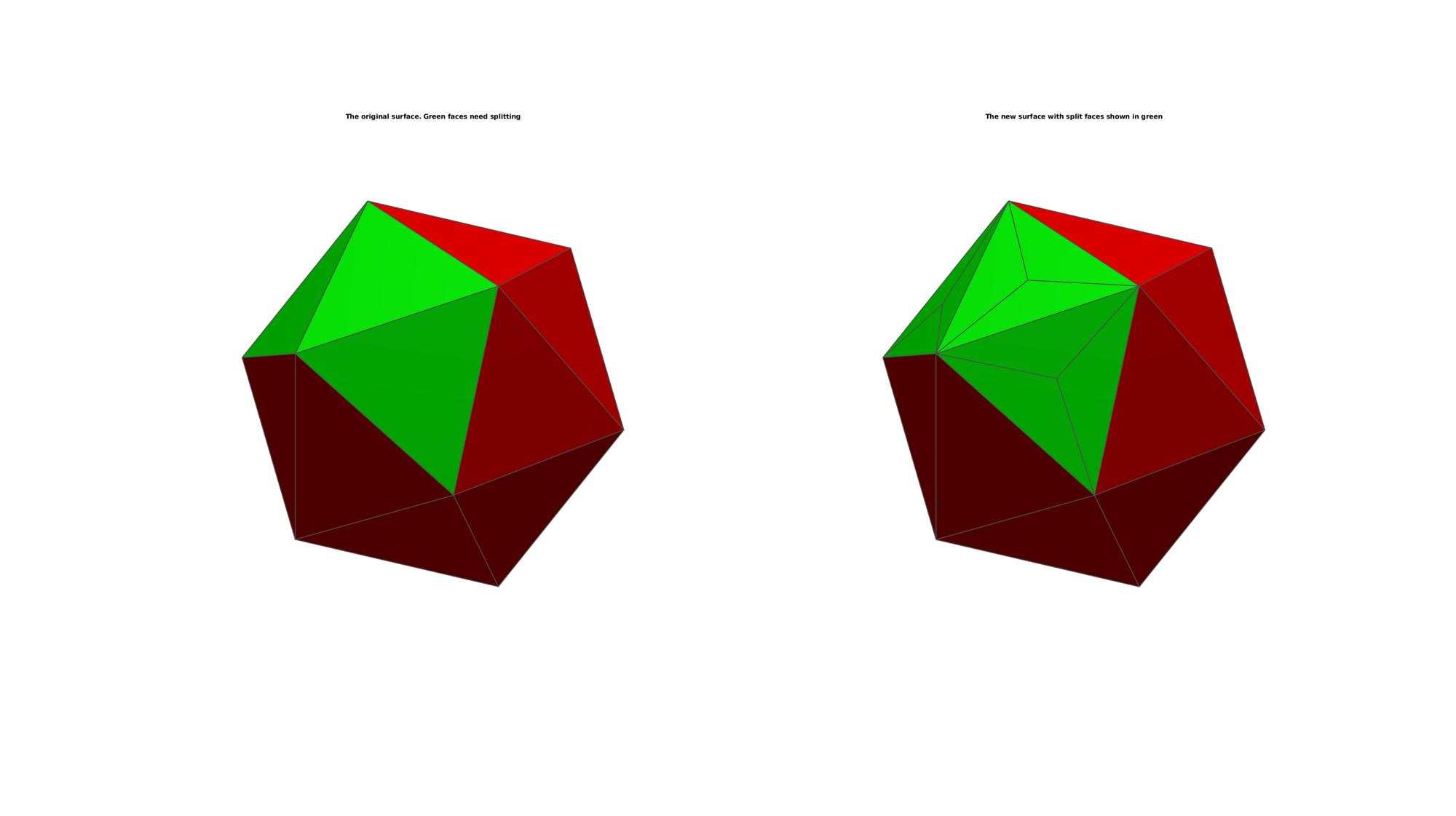

Plotting results

C=[ones(size(F,1),1) zeros(size(F,1),1) zeros(size(F,1),1)];
C(L,1)=0;
C(L,2)=1;

hf=cFigure;
subplot(1,2,1);
title('The original surface. Green faces need splitting','FontSize',fontSize);
xlabel('X','FontSize',fontSize); ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize);
hp=patch('Faces',F,'Vertices',V,'FaceColor','flat','FaceVertexCData',C,'FaceAlpha',faceAlpha,'lineWidth',edgeWidth,'edgeColor',edgeColor);

camlight headlight;
set(gca,'FontSize',fontSize);
view(3); axis tight;  axis equal;
axis off;
drawnow;

C=[ones(size(Fn,1),1) zeros(size(Fn,1),1) zeros(size(Fn,1),1)];
C(end-(3*nnz(L)-1):end,1)=0;
C(end-(3*nnz(L)-1):end,2)=1;

subplot(1,2,2);
title('The new surface with split faces shown in green','FontSize',fontSize);
xlabel('X','FontSize',fontSize); ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize);
hp=patch('Faces',Fn,'Vertices',Vn,'FaceColor','flat','FaceVertexCData',C,'FaceAlpha',faceAlpha,'lineWidth',edgeWidth,'edgeColor',edgeColor);
% [hp]=patchNormPlot(F,V,0.25);
camlight headlight;
set(gca,'FontSize',fontSize);
view(3); axis tight;  axis equal;
axis off;
drawnow;

EXAMPLE SURFACE AREA BASED RESAMPLING

Load example patch data

[F,V]=parasaurolophus;

Split large triangles according to area threshold

[A]=patch_area(F,V); % Calculate triangle surface areas
max_A=mean(A(:))+2*std(A(:)); %Set a max treshold

%Loop until all are within treshold
An=A;
Vn=V;
Fn=F;
Ln=false(size(Fn,1),1);
while 1
    L=An>max_A;
    Ln(L)=1;
    if nnz(L)>0
        [Fn,Vn]=subTriCentre(Fn,Vn,L);
        [An]=patch_area(Fn,Vn);
    else
        break
    end
end

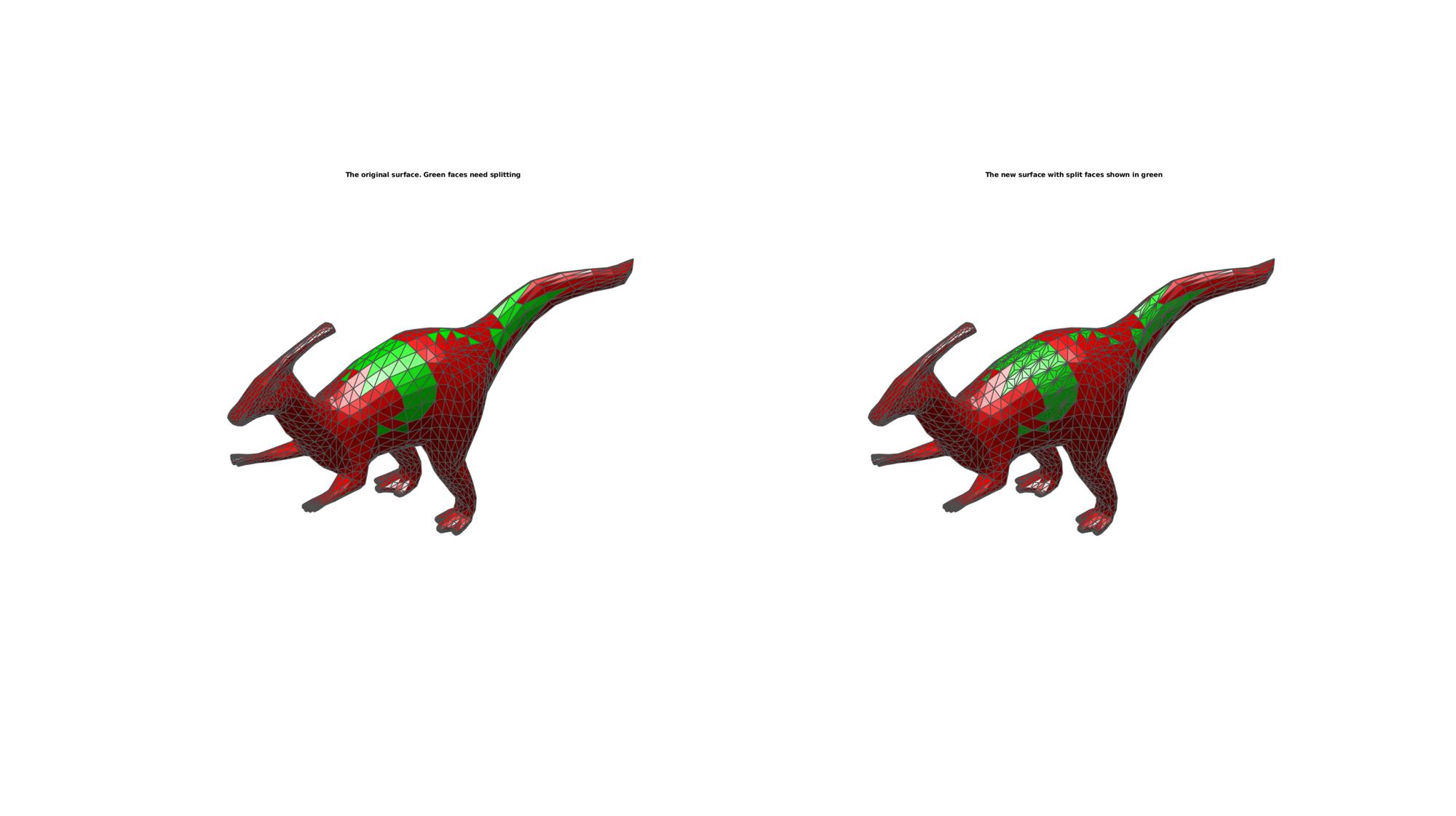

Plotting results

C=[ones(size(F,1),1) zeros(size(F,1),1) zeros(size(F,1),1)];
C(Ln,1)=0;
C(Ln,2)=1;

hf=cFigure;
subplot(1,2,1);
title('The original surface. Green faces need splitting','FontSize',fontSize);
xlabel('X','FontSize',fontSize); ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize);
hp=patch('Faces',F,'Vertices',V,'FaceColor','flat','FaceVertexCData',C,'FaceAlpha',faceAlpha,'lineWidth',edgeWidth,'edgeColor',edgeColor);

camlight headlight;
set(gca,'FontSize',fontSize);
view(3); axis tight;  axis equal;
axis off;
drawnow;

C=[ones(size(Fn,1),1) zeros(size(Fn,1),1) zeros(size(Fn,1),1)];
C(end-(3*nnz(Ln)-1):end,1)=0;
C(end-(3*nnz(Ln)-1):end,2)=1;

subplot(1,2,2);
title('The new surface with split faces shown in green','FontSize',fontSize);
xlabel('X','FontSize',fontSize); ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize);
hp=patch('Faces',Fn,'Vertices',Vn,'FaceColor','flat','FaceVertexCData',C,'FaceAlpha',faceAlpha,'lineWidth',edgeWidth,'edgeColor',edgeColor);
% [hp]=patchNormPlot(F,V,0.25);
camlight headlight;
set(gca,'FontSize',fontSize);
view(3); axis tight;  axis equal;
axis off;
drawnow;

Calculate new surface areas

[An]=patch_area(Fn,Vn);

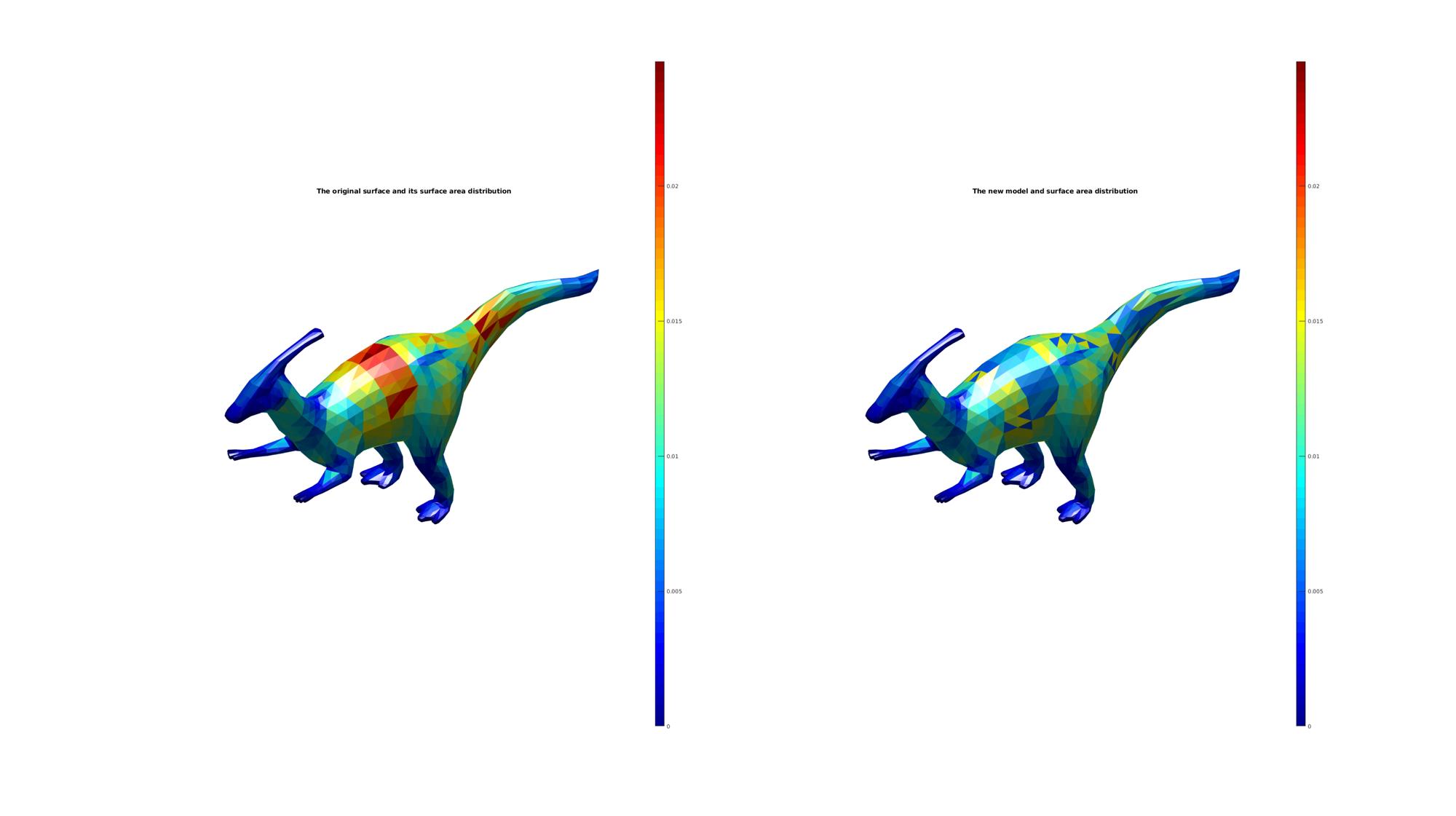

Plotting model

hf=cFigure;
subplot(1,2,1);
title('The original surface and its surface area distribution','FontSize',fontSize);
xlabel('X','FontSize',fontSize); ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize);
hp=patch('Faces',F,'Vertices',V,'FaceColor','flat','CData',A,'FaceAlpha',faceAlpha,'edgeColor','none');
colormap jet; colorbar; caxis([0 max(A(:))]);
camlight headlight;
set(gca,'FontSize',fontSize);
view(3); axis tight;  axis equal;
axis off;
drawnow;

subplot(1,2,2);
title('The new model and surface area distribution','FontSize',fontSize);
xlabel('X','FontSize',fontSize); ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize);
hp=patch('Faces',Fn,'Vertices',Vn,'FaceColor','flat','CData',An,'FaceAlpha',faceAlpha,'edgeColor','none');

colormap jet; colorbar; caxis([0 max(A(:))]);
camlight headlight;
set(gca,'FontSize',fontSize);
view(3); axis tight;  axis equal;
axis off;
drawnow;
