subTet

Below is a demonstration of the features of the subTet function

Contents

Syntax

[Es,Vs]=subTet(E,V,splitMethod);

Description

Examples

clear; close all; clc;

Plot settings

fontSize=15;
faceColor1='g';
faceColor2='r';
faceAlpha1=0.3;
faceAlpha2=1;
edgeColor=0.*ones(1,3);
edgeWidth=2;
markerSize=2;
cMap=gjet(250);

Create a test tesselation

r=1; %Radius of tetrahedron circumsphere
[V,~]=platonic_solid(1,r);
E=[1:4];

Example creating sub-tetrahedrons

%Method 1
[E1,V1]=subTet(E,V,1);

%Method 2
[E2,V2]=subTet(E,V,2);

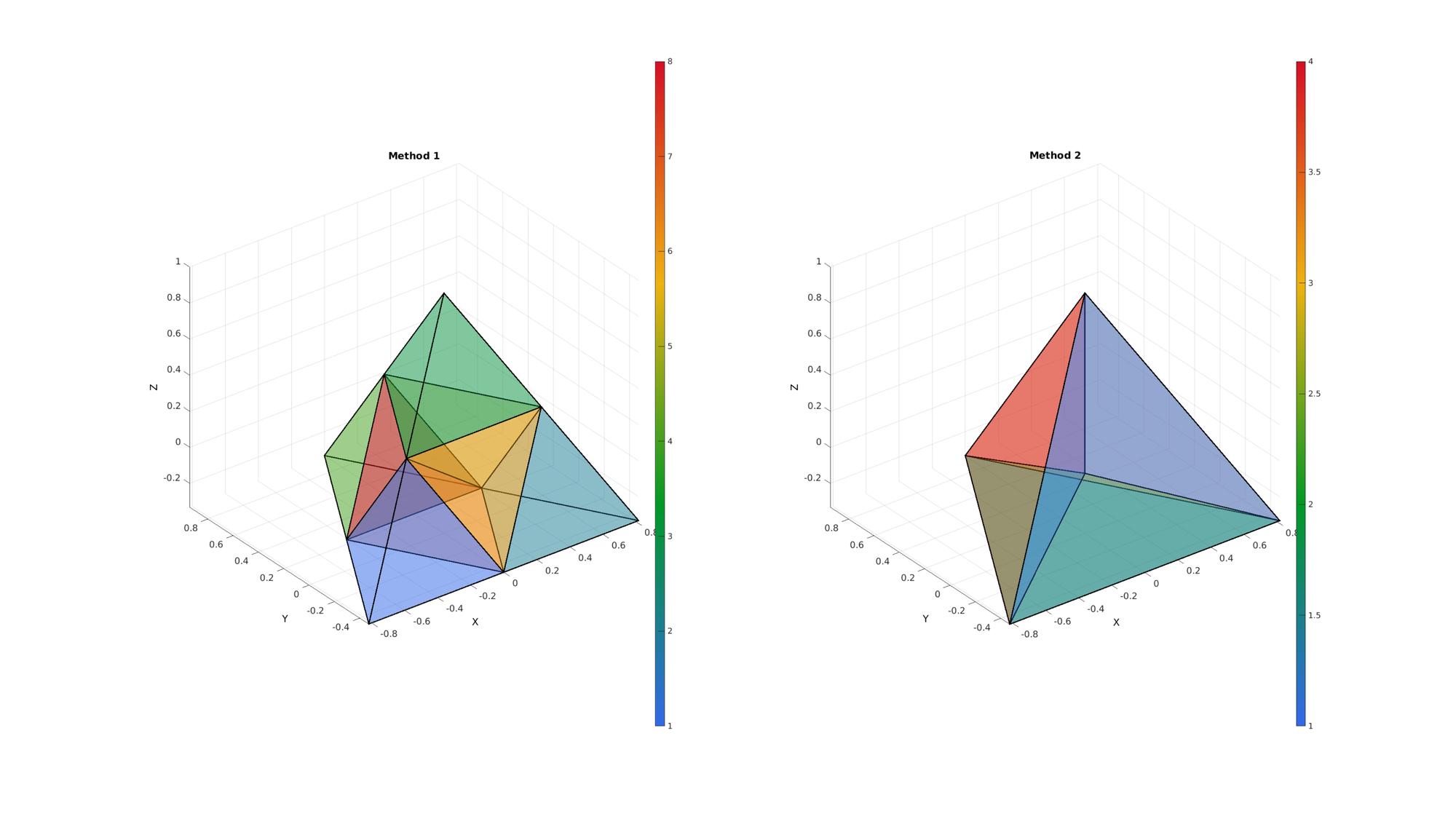

Visualization

C1=(1:size(E1,1))'; %Element colors
[F1,CF1]=element2patch(E1,C1); %Patch data for plotting

C2=(1:size(E2,1))'; %Element colors
[F2,CF2]=element2patch(E2,C2);  %Patch data for plotting

cFigure;
subplot(1,2,1);
title('Method 1','FontSize',fontSize);
xlabel('X','FontSize',fontSize); ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize);
hold on;

patch('Faces',F1,'Vertices',V1,'FaceColor','flat','CData',CF1,'EdgeColor',edgeColor,'FaceAlpha',faceAlpha1,'lineWidth',edgeWidth);

colormap(cMap); colorbar;
view(3); grid on; axis equal; axis tight;
set(gca,'FontSize',fontSize);

subplot(1,2,2);
title('Method 2','FontSize',fontSize);
xlabel('X','FontSize',fontSize); ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize);
hold on;

patch('Faces',F2,'Vertices',V2,'FaceColor','flat','CData',CF2,'EdgeColor',edgeColor,'FaceAlpha',faceAlpha1,'lineWidth',edgeWidth);

colormap(cMap); colorbar;
view(3); grid on; axis equal; axis tight;
set(gca,'FontSize',fontSize);

drawnow;
