subHex

Below is a demonstration of the features of the subHex function

Contents

Syntax

[Es,Vs]=subHex(E,V,n);

Description

Example:s

clear; close all; clc;

Plot settings

fontSize=15;
faceColor1='g';
faceColor2='r';
faceAlpha1=0.3;
faceAlpha2=1;
edgeColor=0.*ones(1,3);
edgeWidth=2;
markerSize=2;
cMap=gjet(250);

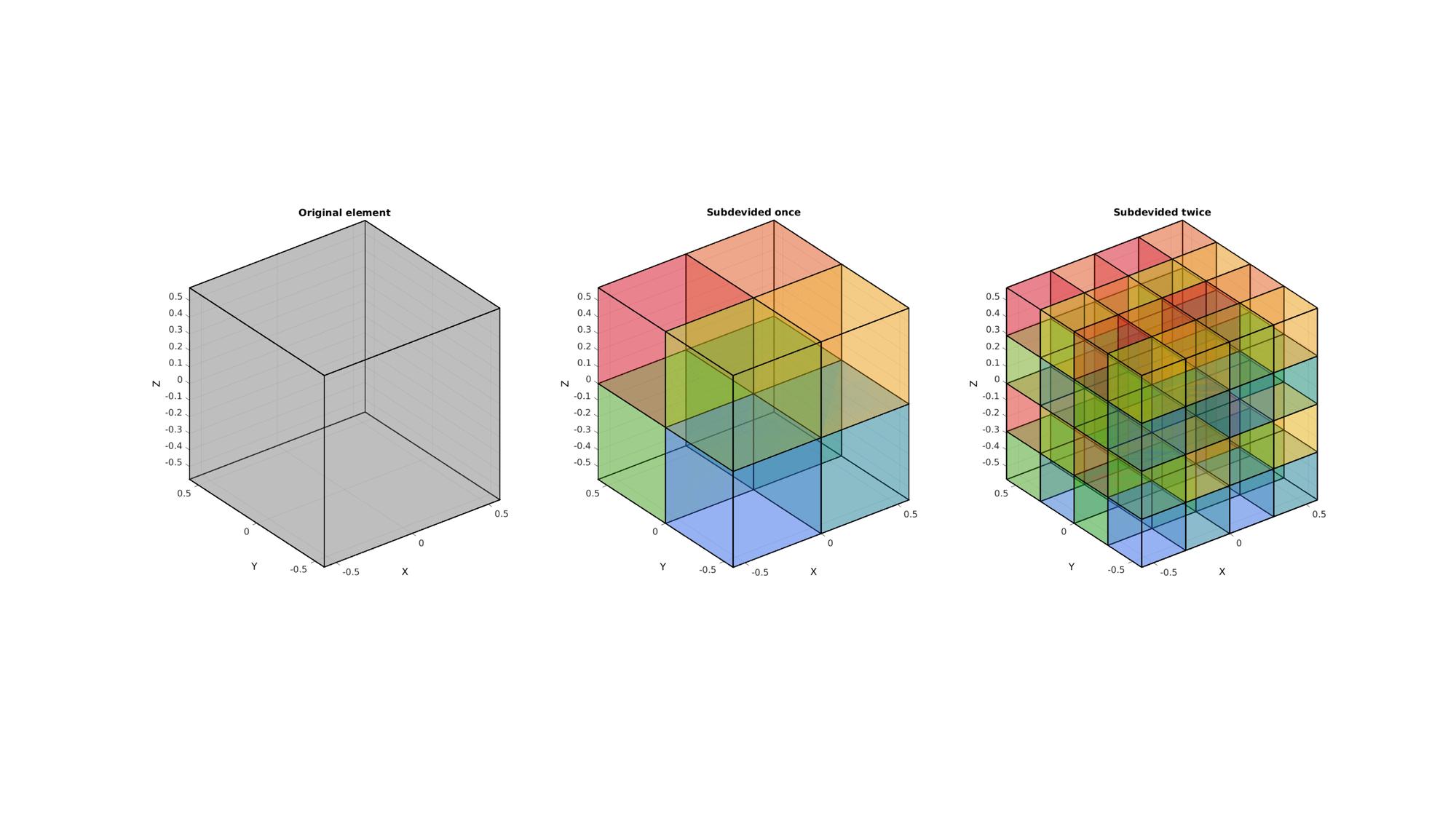

Example: Subdeviding a hexahedron

Creating an example hexahedron

[V,~]=platonic_solid(2,1);
E=[1:8];

Subdeviding the hexahedral element

[Es,Vs]=subHex(E,V,1);

[E2s,V2s]=subHex(E,V,2);

Visualization

[F]=element2patch(E);  %Patch data for plotting

Cs=(1:1:size(Es,1))';
[Fs,CFs]=element2patch(Es,Cs); %Patch data for plotting

C2s=(1:1:size(E2s,1))';
[F2s,CF2s]=element2patch(E2s,C2s); %Patch data for plotting

cFigure;
subplot(1,3,1);
title('Original element','FontSize',fontSize);
xlabel('X','FontSize',fontSize); ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize);
hold on;

patch('Faces',F,'Vertices',V,'FaceColor',0.5*ones(1,3),'EdgeColor',edgeColor,'FaceAlpha',faceAlpha1,'lineWidth',edgeWidth);
view(3); grid on; axis equal; axis tight;
set(gca,'FontSize',fontSize);

subplot(1,3,2);
title('Subdevided once','FontSize',fontSize);
xlabel('X','FontSize',fontSize); ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize);
hold on;

patch('Faces',Fs,'Vertices',Vs,'FaceColor','flat','CData',CFs,'EdgeColor',edgeColor,'FaceAlpha',faceAlpha1,'lineWidth',edgeWidth);

colormap(cMap);
view(3); grid on; axis equal; axis tight;
set(gca,'FontSize',fontSize);

subplot(1,3,3);
title('Subdevided twice','FontSize',fontSize);
xlabel('X','FontSize',fontSize); ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize);
hold on;

patch('Faces',F2s,'Vertices',V2s,'FaceColor','flat','CData',CF2s,'EdgeColor',edgeColor,'FaceAlpha',faceAlpha1,'lineWidth',edgeWidth);

colormap(cMap);
view(3); grid on; axis equal; axis tight;
set(gca,'FontSize',fontSize);
drawnow;

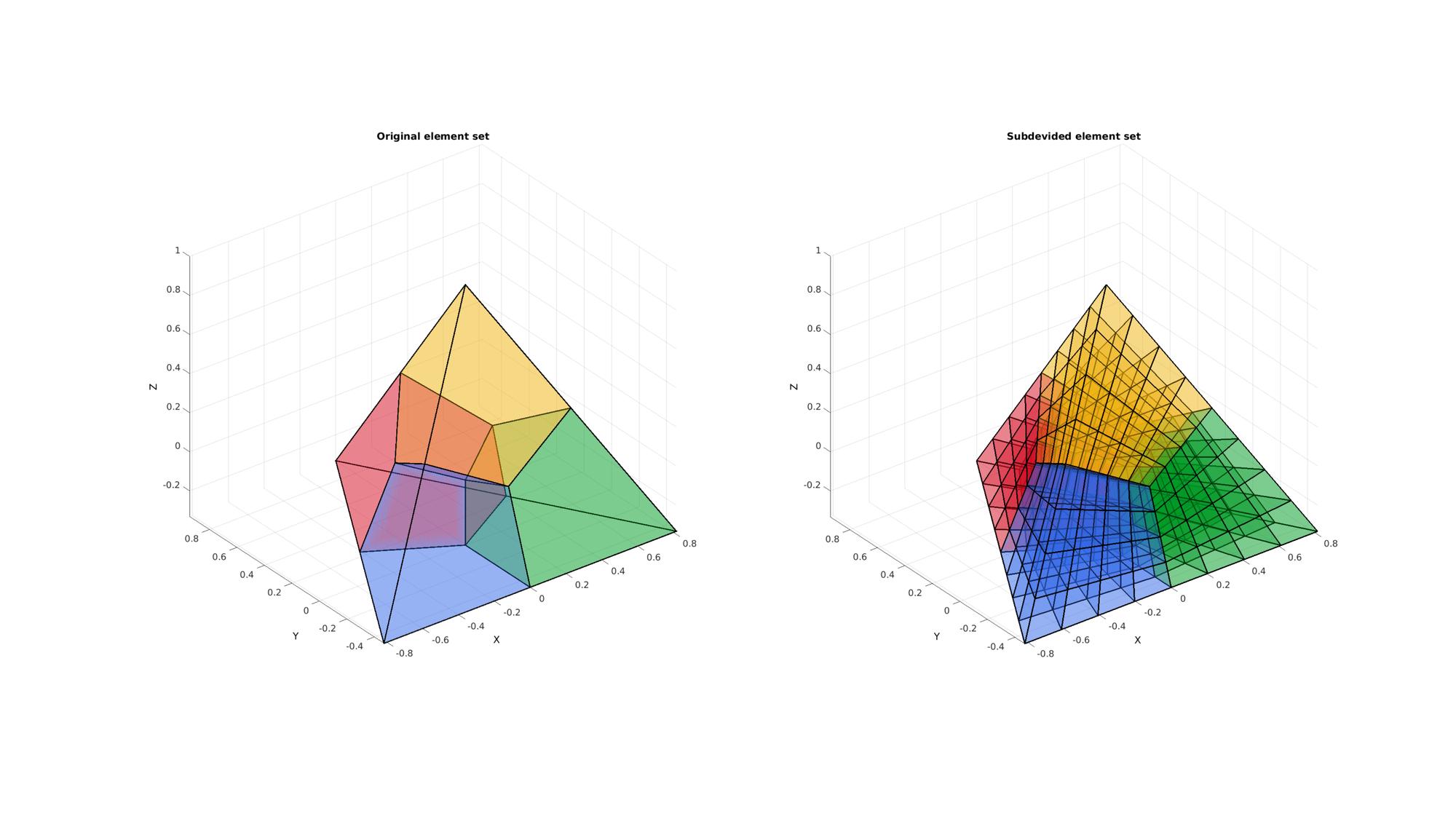

Example: Subdeviding a set of hexahedrons

Creating an example set of hexahedrons

[V,~]=platonic_solid(1,1);
E=[1:4];
[E,V]=tet2hex(E,V);
C=(1:1:size(E,1))';

Subdeviding the hexahedral element

[Es,Vs,Cs]=subHex(E,V,2);

Visualization

[F,CF]=element2patch(E,C);  %Patch data for plotting

[Fs,CFs]=element2patch(Es,Cs); %Patch data for plotting

cFigure;
subplot(1,2,1);
title('Original element set','FontSize',fontSize);
xlabel('X','FontSize',fontSize); ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize);
hold on;

patch('Faces',F,'Vertices',V,'FaceColor','flat','CData',CF,'EdgeColor',edgeColor,'FaceAlpha',faceAlpha1,'lineWidth',edgeWidth);

view(3); grid on; axis equal; axis tight;
set(gca,'FontSize',fontSize);

subplot(1,2,2);
title('Subdevided element set','FontSize',fontSize);
xlabel('X','FontSize',fontSize); ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize);
hold on;

patch('Faces',Fs,'Vertices',Vs,'FaceColor','flat','CData',CFs,'EdgeColor',edgeColor,'FaceAlpha',faceAlpha1,'lineWidth',edgeWidth);

colormap(cMap);
view(3); grid on; axis equal; axis tight;
set(gca,'FontSize',fontSize);

drawnow;

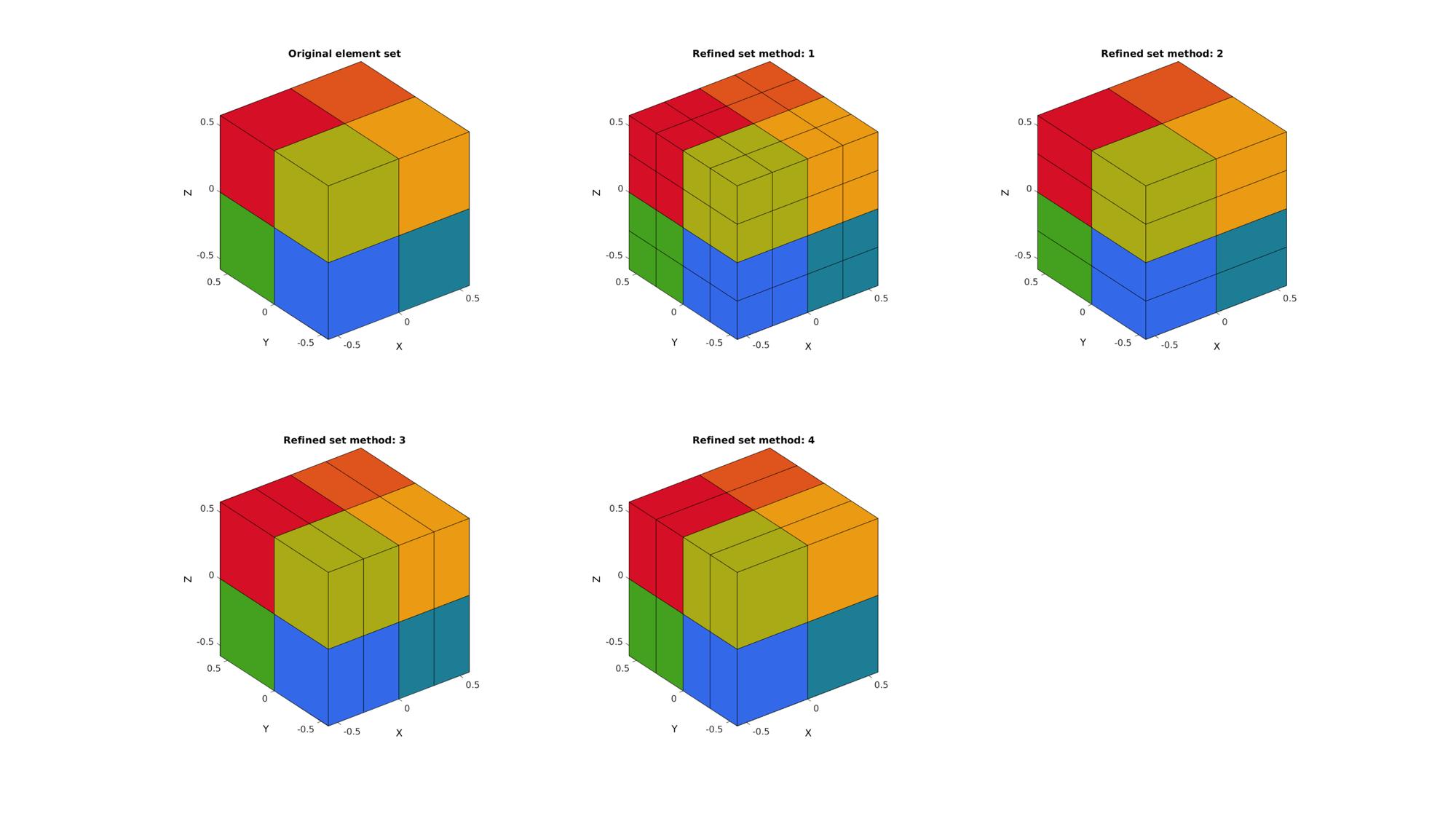

Example: Subdeviding in 1 direction by specifying splitMethod

The hexahedral elements can also be split in a single direction. If an additional input splitMethod is provided. By setting splitMethod=1 the element is split in the top-bottom direction, by setting splitMethod=2 the element is split in the left-right direction, by setting splitMethod=1 the element is split in the front-back direction. The actual orientations depend on the mesh. What is referred to here as top are the first 4 nodes in the element description, the last 4 nodes are the bottom. These splitting methods produce conforming meshes for structured hexahedral meshes as the element orientations may not match up for unstructured hexahedral meshes.

Creating an example hexahedral mesh with stretched elements in z-direction. After splitting in this direction the elements are more homogeneous in shape.

[V,~]=platonic_solid(2,1);
E=[1:8];
[E,V]=subHex(E,V,1);
C=(1:1:size(E,1))';

nRefine=1;

[F,CF]=element2patch(E,C);  %Patch data for plotting

cFigure;
subplot(2,3,1); hold on;
title('Original element set','FontSize',fontSize);
gpatch(F,V,CF,'k',1);
% patchNormPlot(F,V);
colormap(cMap);
axisGeom(gca,fontSize);

for q=1:1:4

    % Subdeviding the hexahedral element
    splitMethod=q;
    [Es,Vs,Cs]=subHex(E,V,nRefine,splitMethod);
    [Fs,CFs]=element2patch(Es,Cs); %Patch data for plotting

    subplot(2,3,q+1); hold on;
    title(['Refined set method: ',num2str(q)],'FontSize',fontSize);
    gpatch(Fs,Vs,CFs,'k',1);
    % patchNormPlot(Fs,Vs);

    colormap(cMap);
    axisGeom(gca,fontSize);
end
drawnow;
