rigidTransformationMatrixDirect

Below is a demonstration of the features of the rigidTransformationMatrixDirect function

Contents

clear; close all; clc;

Syntax

[M]=rigidTransformationMatrixDirect(V1,V2);

Description

This function computes the rigid transformation matrix (translation, and rotation). For the two point matches input sets V1 and V2.

Examples

Plot settings

fontSize=15;
faceAlpha=1;
edgeColor='k';

Example:

Determine the rigid transformation to overlay two surfaces

Below is a demonstration of the features of the rigidTransformationMatrixDirect function

% Load example patch data
[F,Vd]=parasaurolophus;

%Translation
OR=[-1 2 -3]; %Translations
T  = [1 0 0 OR(1);...
      0 1 0 OR(2);...
      0 0 1 OR(3);...
      0 0 0 1];
%Rotation
a=[-0.25*pi 0.75*pi 0.1*pi]; %Euler angles
R  = eye(4,4); R(1:3,1:3)=euler2DCM(a);

%Scaling
v=[2 3 1]; %Scaling factors
S  = [v(1) 0    0    0;...
      0    v(2) 0    0;...
      0    0    v(3) 0;...
      0    0    0    1];

M_true  = T * R; %The true transformation matrix

%Point set 1
V1=Vd+0.5;

%Point set 2
V2=tform(M_true,V1);

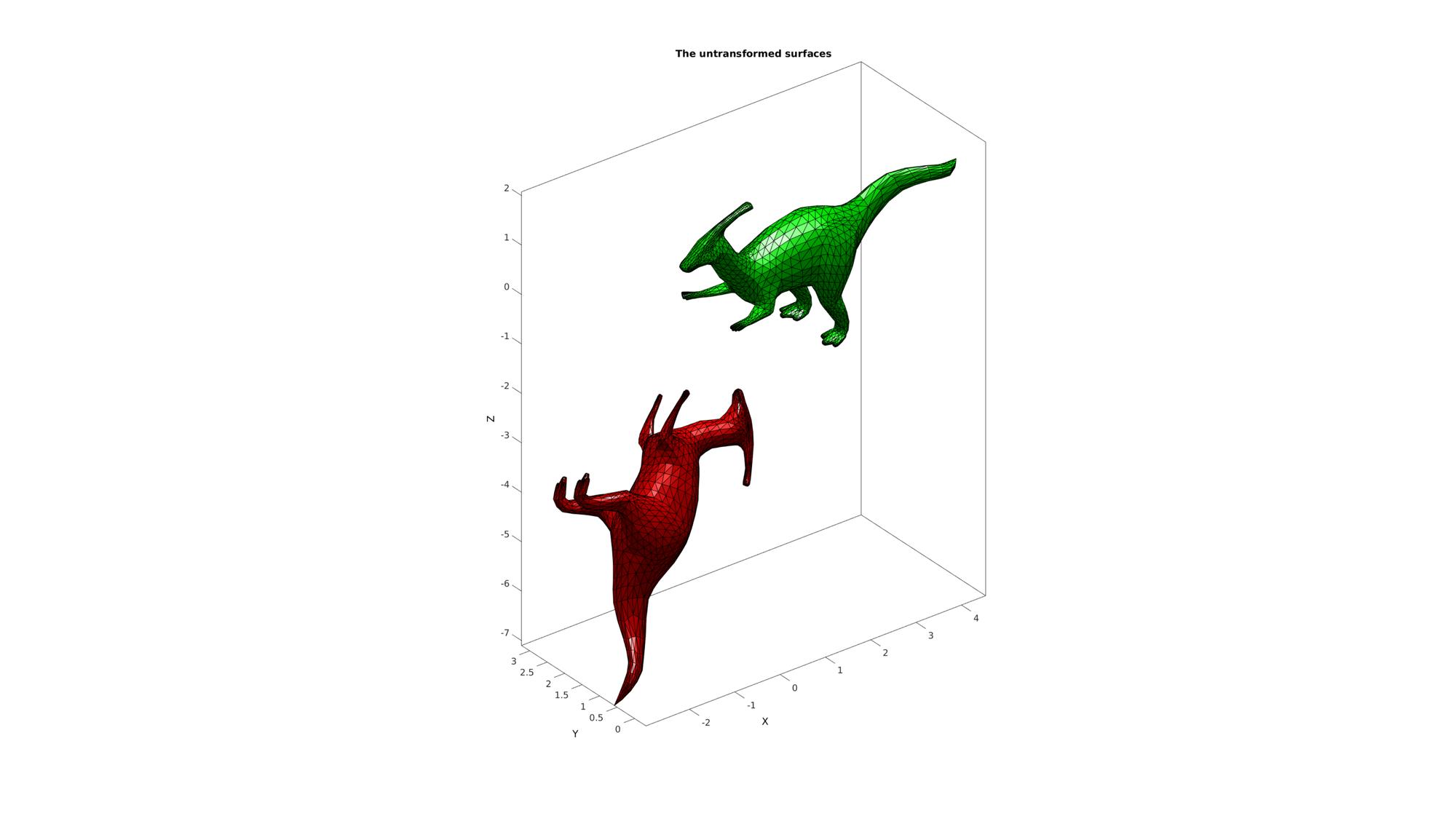

Plotting input data

hf=cFigure;
title('The untransformed surfaces','FontSize',fontSize);
xlabel('X','FontSize',fontSize); ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize);

hp=patch('Faces',F,'Vertices',V1,'FaceColor','g','FaceAlpha',faceAlpha);

hp=patch('Faces',F,'Vertices',V2,'FaceColor','r','FaceAlpha',faceAlpha,'edgeColor',edgeColor);

camlight headlight;
set(gca,'FontSize',fontSize);
view(3); axis tight;  axis equal; box on;
drawnow;

Get the transformation matrix for the point matched data using rigidTransformationMatrixDirect

[M_fit]=rigidTransformationMatrixDirect(V1,V2);

V1f=tform((M_fit),V1);

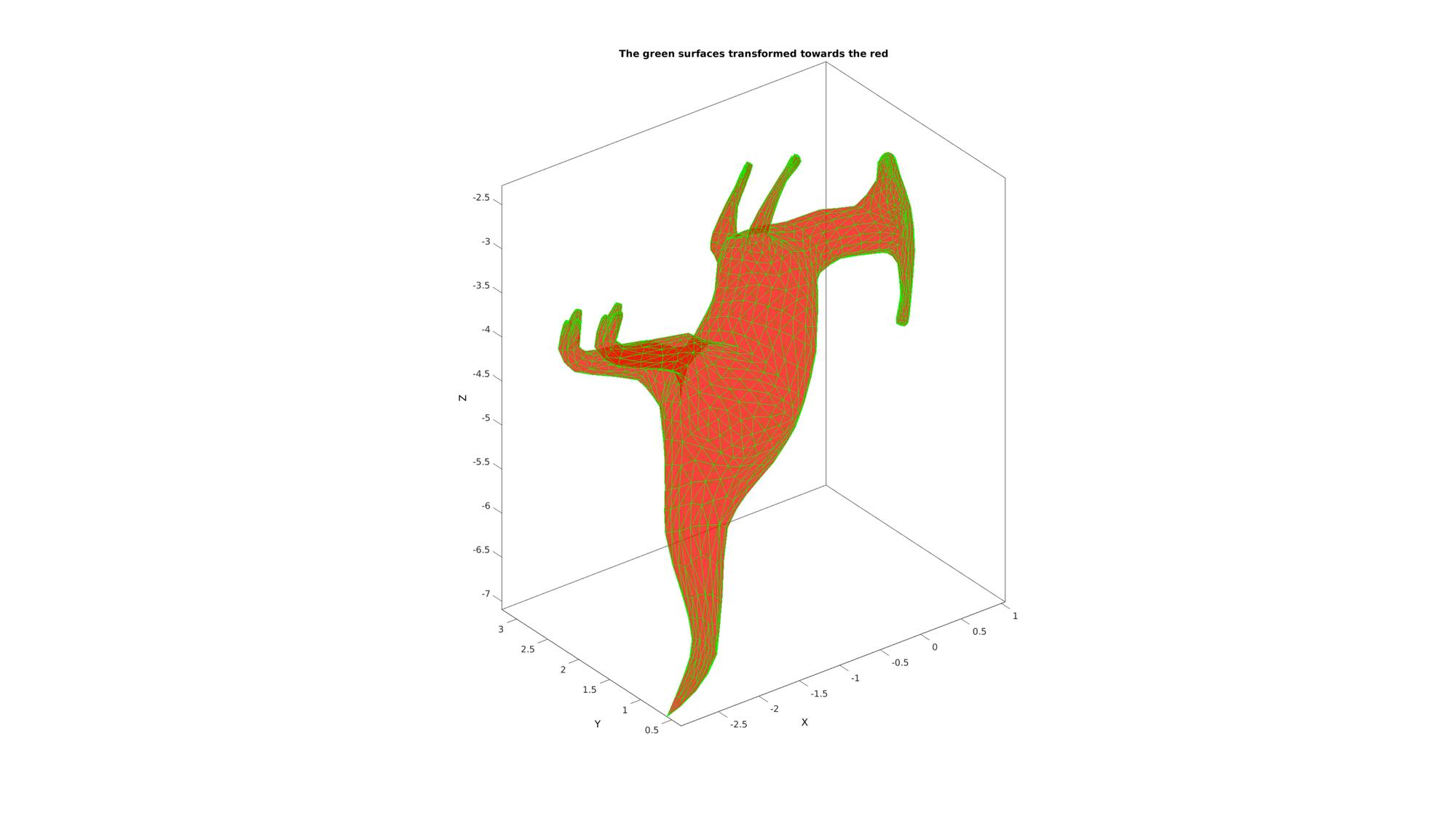

Plotting results

hf=cFigure;
title('The green surfaces transformed towards the red','FontSize',fontSize);
xlabel('X','FontSize',fontSize); ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize);

hp=patch('Faces',F,'Vertices',V2,'FaceColor','r','FaceAlpha',0.5,'edgeColor',edgeColor);

hp=patch('Faces',F,'Vertices',V1f,'FaceColor','none','FaceAlpha',0.5,'edgeColor','g');
% hp=patch('Faces',F,'Vertices',V2ff,'FaceColor','none','FaceAlpha',0.5*2,'edgeColor','b');

set(gca,'FontSize',fontSize);
view(3); axis tight;  axis equal; box on;
drawnow;
