plotContours

Below is a demonstration of the features of the plotContours function

Syntax
Description
Import image data for this demo
Example: Visualize a segmented contour
Example: Visualize a set of segmented contours

clear; close all; clc;

Syntax

[handleCell]=plotContours(contourSet,optionStruct);

Description

This function plots segmented contours

Import image data for this demo

defaultFolder = fileparts(fileparts(mfilename('fullpath'))); %Set main folder
pathNameImageData=fullfile(defaultFolder,'data','DICOM','0001_human_calf');
loadNameImageData=fullfile(pathNameImageData,'IMDAT','IMDAT.mat');
IMDAT_struct=load(loadNameImageData); %The image data structure
G = IMDAT_struct.G; %Geometric/spatial information
v=G.v; %The voxel size
M= IMDAT_struct.type_1; %The image data

Example: Visualize a segmented contour

In this example the contour data is first loaded and then the plotting is done.

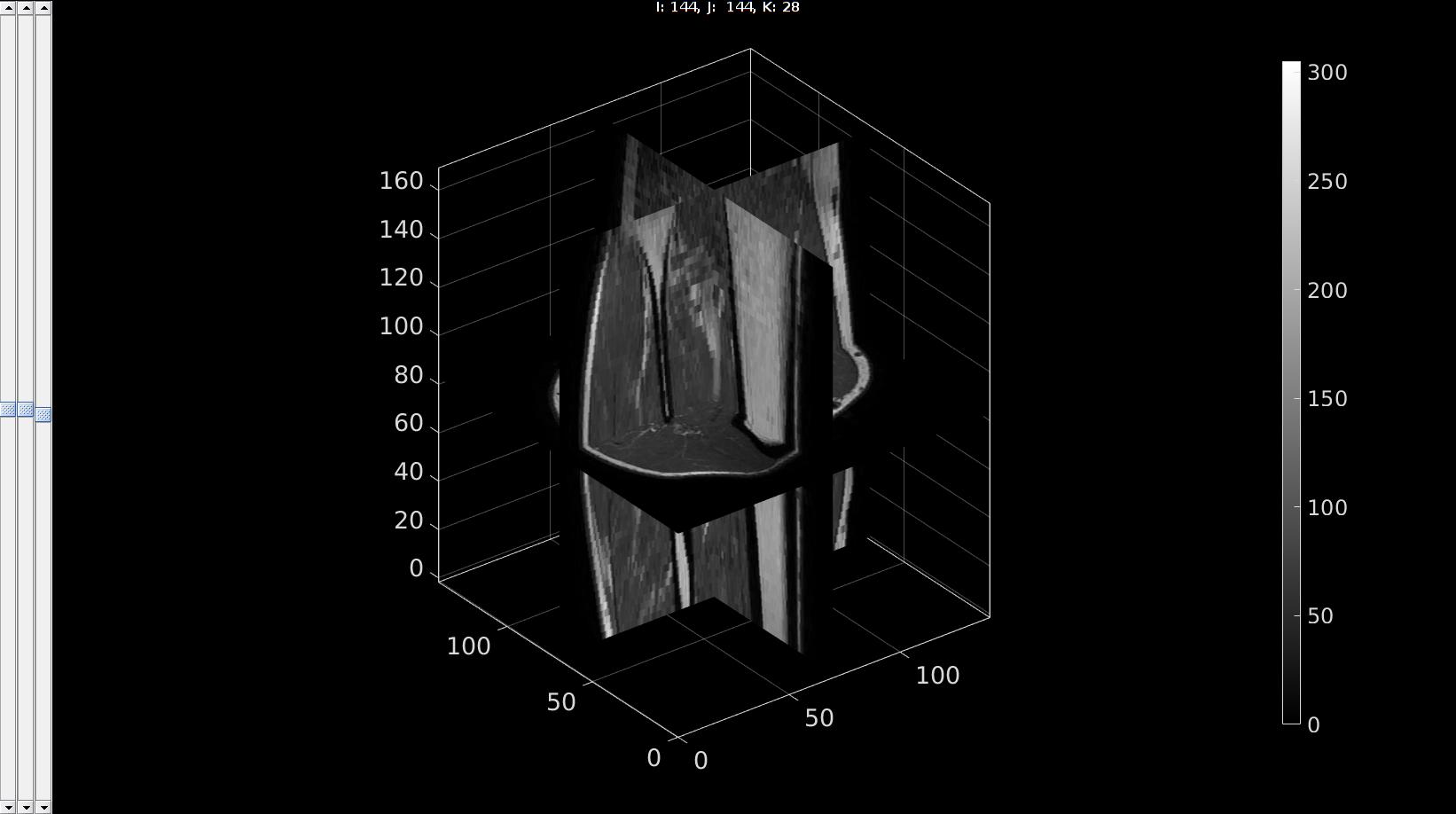

Visualize image data

sv3(M,v);
drawnow;

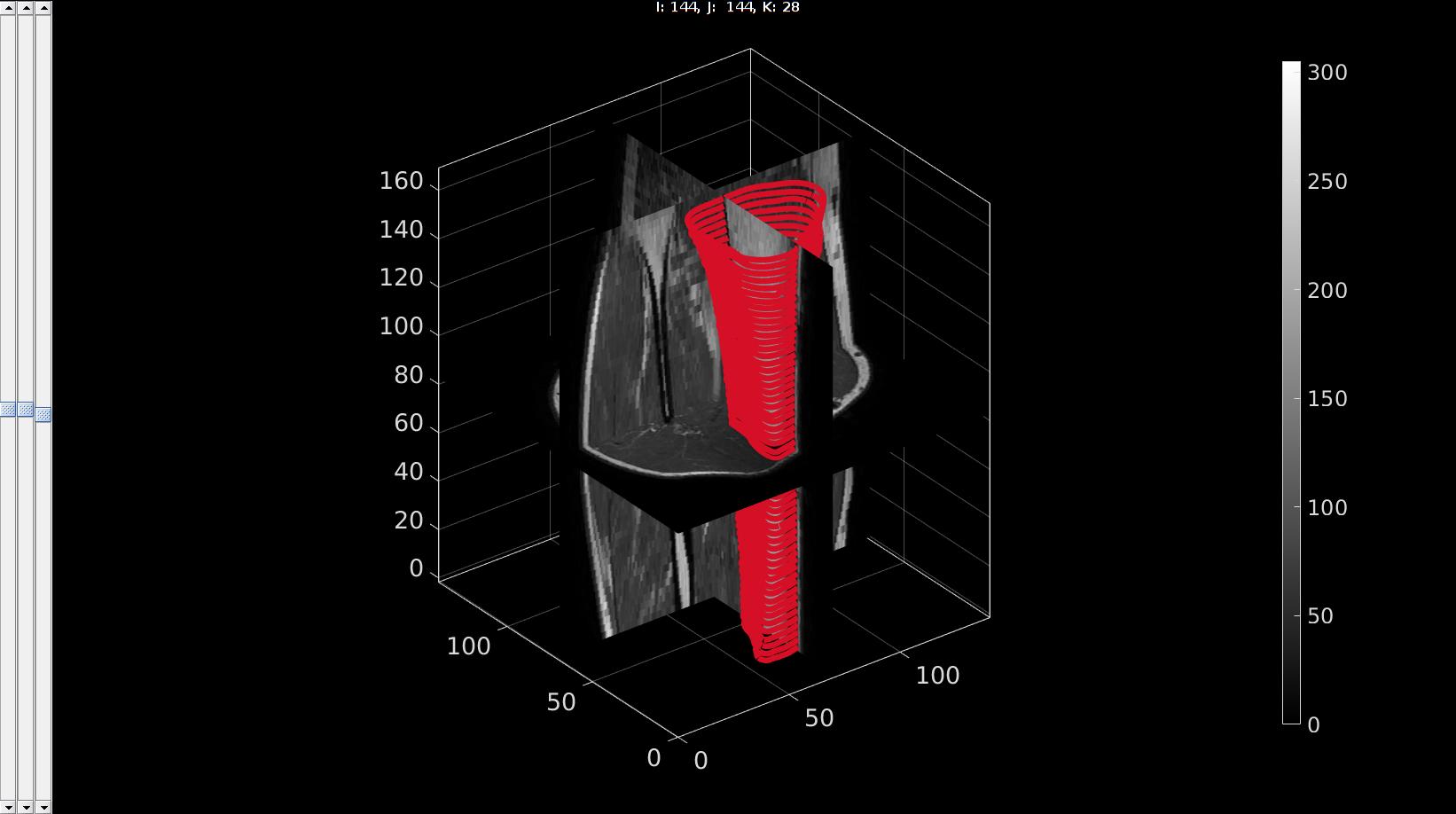

Add contour plots

contourName='imseg_calf_tibia'; %Contour name
optionStruct.pathName=fullfile(defaultFolder,'data','imseg'); %Folder name for contours

%Plot contours
plotContours(contourName,optionStruct);

Example: Visualize a set of segmented contours

In this example the contour data is loaded by the plotting function. Only contour file and path names are passed to the plot function.

Visualize image data

sv3(M,v);
drawnow;

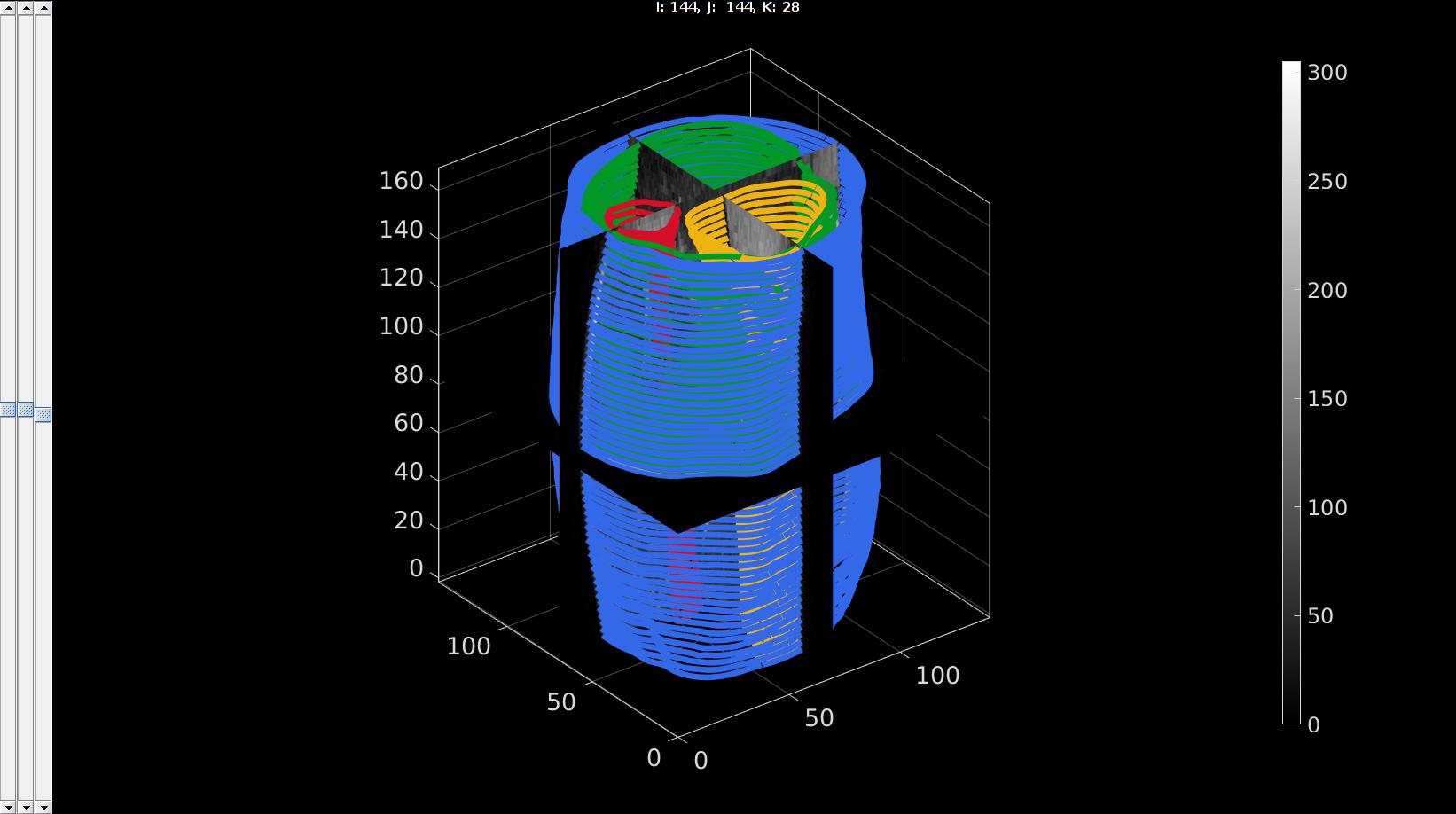

Add contour plots

%Contour names
contourSet={'imseg_calf_skin',...
            'imseg_calf_muscle_fat',...
            'imseg_calf_tibia',...
            'imseg_calf_fibula'};

%Fill option structure
optionStruct.LineWidth=5; %Line width
optionStruct.Color=gjet(numel(contourSet));
optionStruct.pathName=fullfile(defaultFolder,'data','imseg'); %Folder name for contours
optionStruct.hAxis=gca; %Axis to plot in

%Plot contours
handleCell=plotContours(contourSet,optionStruct);
