platonic_solid

Below is a demonstration of the features of the platonic_solid function

clear; close all; clc;

Plot settings

fig_color='w'; fig_colordef='white';
fontSize=15;
faceColor='b';
faceAlpha=0.75;
edgeColor='k';
edgeWidth=2;
markerSize=5;
hf=figuremax(fig_color,fig_colordef); % Open figure for plotting
pColor=jet(5);

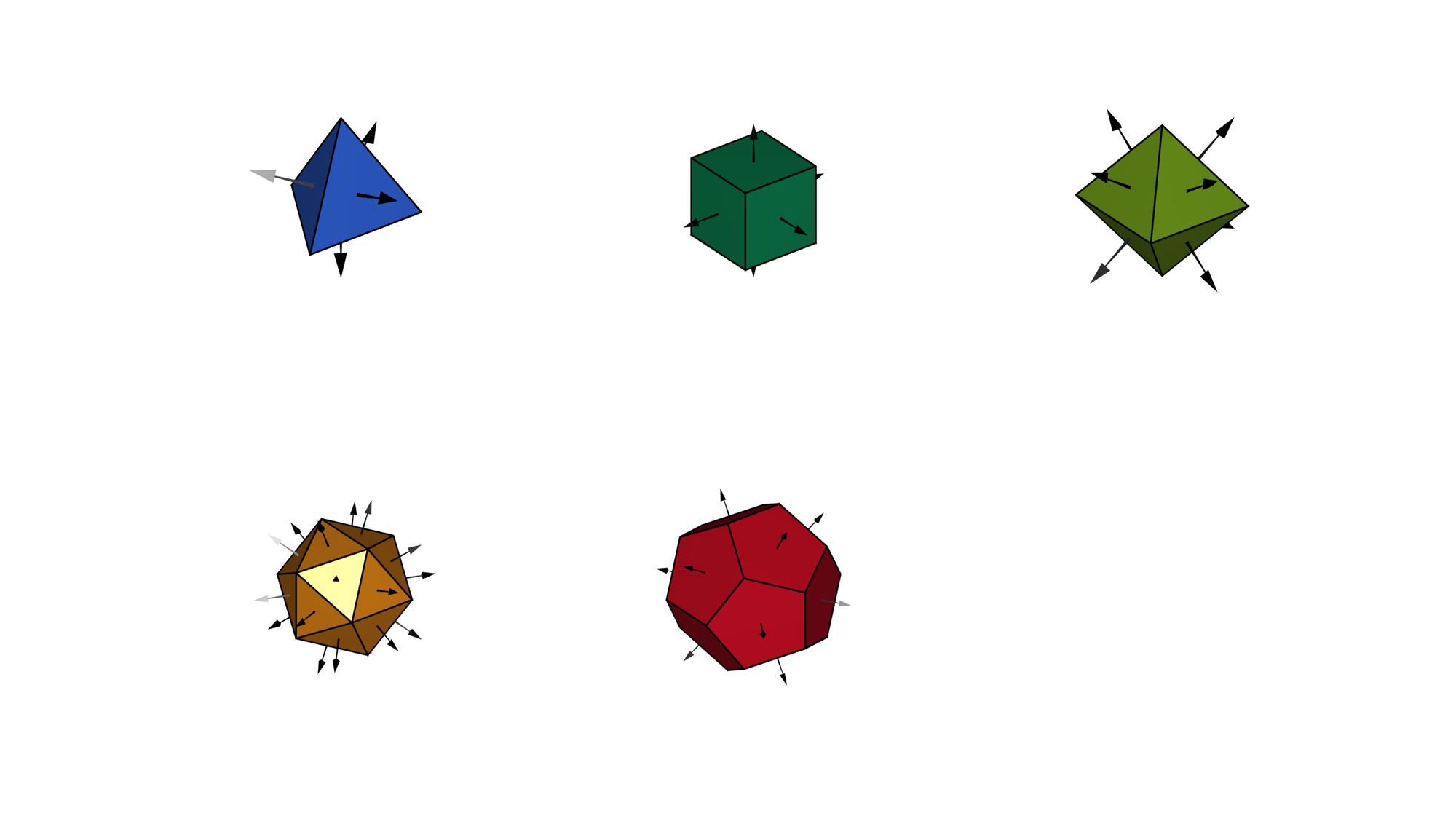

for q=1:1:5
    %Defining the faces (F) and vertices (V) of a platonic solid
    [V,F]=platonic_solid(q,1); %q indicates solid type, r is the radius

    subplot(2,3,q); hold on;

    hp=gpatch(F,V,pColor(q,:),'k',faceAlpha);

    %Plotting face normals
    [hn]=patchNormPlot(F,V);

    axisGeom(gca,fontSize);
    camlight('headlight'); lighting flat;
    axis off;
end
drawnow;
