patch2obj

Below is a demonstration of the features of the patch2obj function

Contents

clear; close all; clc;

Syntax

patch2obj(objFileName,F,V); patch2obj(objFileName,F,V,C); patch2obj(objFileName,F,V,C,cMap); patch2obj(objFileName,F,V,C,cMap,cLim); patch2obj(objFileName,F,V,C,cMap,cLim,mtlStruct);

Description

This function exports the patch data defined by the faces (F), vertices (V) and the color data (C) to the OBJ (Wavefront .obj) format. The function generates a .obj file, a .mtl file, and a .jpg image file. The .obj file contains the geometry information and texture/color coordinates to use. The .mtl file contains the material information and refers to the image to use to look up the colors based on the texture coordinates in the .obj file. The color data C should ideally define either the vertex or face colors in the form of an nx1 array. If face colors are provided these are re-sampled (averaged) to vertex colors which is the required format for OBJ files. Colors are obtained from the input color map as well as the color limits. The input structure mtlStruct defines the MTL file components. With the default entries:

mtlStruct.Ka=[1 1 1]; %Ambient color mtlStruct.Kd=[1 1 1]; %Diffuse color mtlStruct.Ks=[0 0 0]; %Specular color, black=off mtlStruct.Ns=0; %Specular component [0-1000] mtlStruct.Ni=1.45; %Optical density/index of refraction mtlStruct.d=1; %"dissolved"/transparancy [0-1] mtlStruct.Tr=0; %1 - d, used instead of d by some software mtlStruct.illum=1; %Illumination model

Illumination models: 0. Color on and Ambient off 1. Color on and Ambient on 2. Highlight on 3. Reflection on and Ray trace on 4. Transparency: Glass on, Reflection: Ray trace on 5. Reflection: Fresnel on and Ray trace on 6. Transparency: Refraction on, Reflection: Fresnel off and Ray trace on 7. Transparency: Refraction on, Reflection: Fresnel on and Ray trace on 8. Reflection on and Ray trace off 9. Transparency: Glass on, Reflection: Ray trace off 10. Casts shadows onto invisible surfaces

For more information on the OBJ file format see: https://en.wikipedia.org/wiki/Wavefront_.obj_file http://paulbourke.net/dataformats/obj/minobj.html

EXAMPLES

clear; close all; clc;

Example 1: Export colored patch data to the OBJ format

%Define patch data
testCase=1;
switch testCase
    case 1 %David
        [F,V]=graphicsModels(9);
        t=V(:,1)-min(V(:,1));
        t=t./max(t(:));
        C=sin(2*t*2*pi);
        C=abs(C);
        cMap=gjet(250); %Define colormap
    case 2
        [X,Y,Z]=peaks(25);
        [F,V,~]=grid2patch(X,Y,Z,Z);
        C=V(:,3);
        cMap=turbo(250); %Define colormap
    case 3 %Femur
        [F,V]=graphicsModels(5);
        C=V(:,1);
        cMap=turbo(250); %Define colormap
    case 4
        [F,V]=stanford_bunny;
        C=V(:,1);
        cMap=viridis(250); %Define colormap
end




%Define file name
gibbonFolder = fileparts(fileparts(mfilename('fullpath')));
savePath=fullfile(gibbonFolder,'data','OBJ');

fileName=fullfile(savePath,'test.obj');

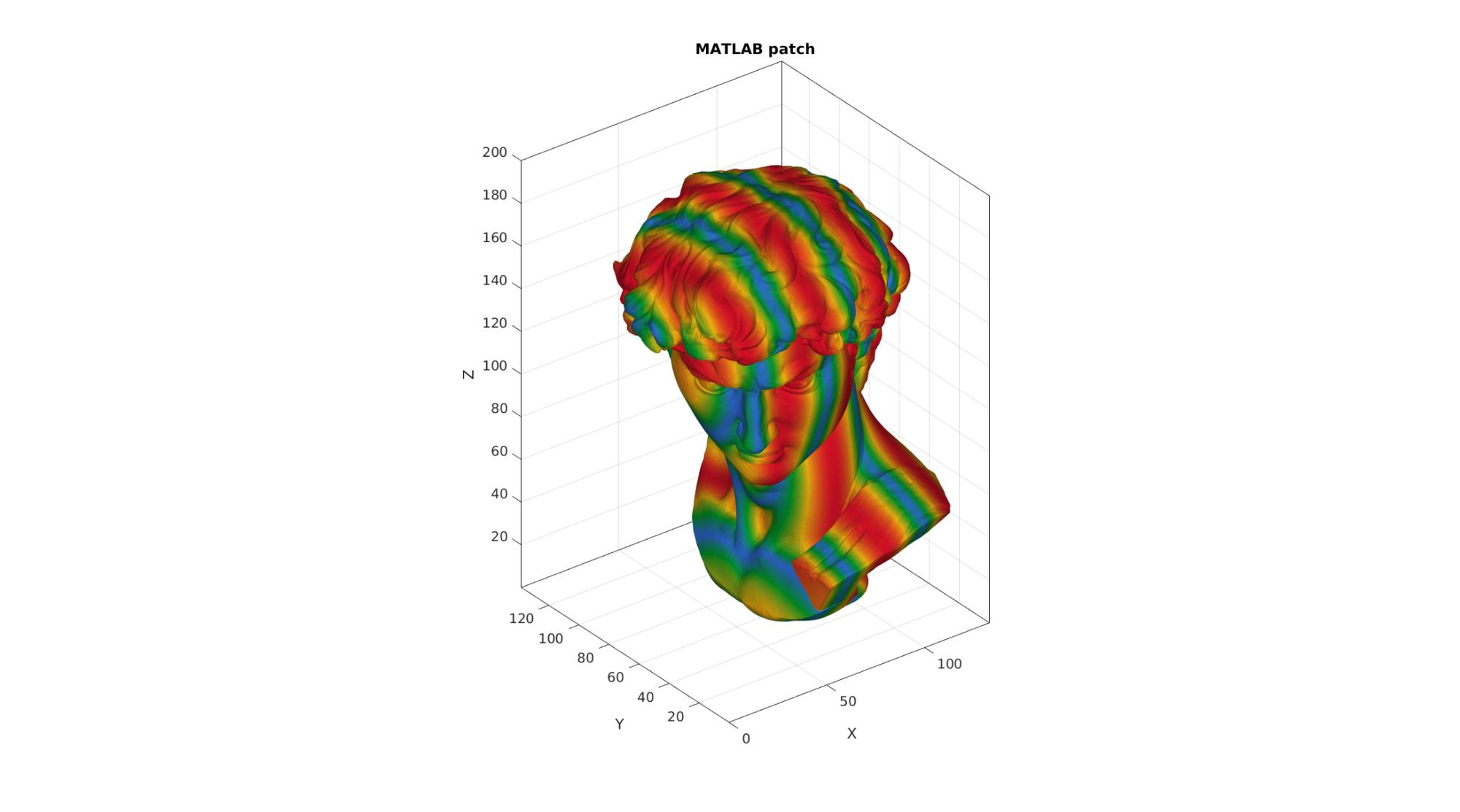

Visualiza patch data

cFigure; hold on;
title('MATLAB patch','FontSize',25);
hp=gpatch(F,V,C,'none'); hp.FaceColor='interp';
axisGeom;
colormap(cMap);
camlight headlight;
gdrawnow;

Export to obj

patch2obj(fileName,F,V,C,cMap);
