minDist

Below is a demonstration of the features of the minDist function

EXAMPLE FOR POINT CLOUD OR SURFACE DISTANCE COMPUTATION
EXAMPLE FOR NEAREST NEIGHBOUR SEARCH AND INTERPOLATION

clear; close all; clc;

PLOT SETTINGS

fontSize=10;
cmap=gray(250);
faceAlpha1=0.5;
faceAlpha2=1;

EXAMPLE FOR POINT CLOUD OR SURFACE DISTANCE COMPUTATION

Building test surfaces

%Defining shape 1 as a sphere
[F1,V1,~]=geoSphere(2,1);

%Defining shape 2 as a deformed sphere
[F2,V2,Vs]=geoSphere(3,1);
freqDef=3;
ampDef=0.25;
ampDefDiff=0.25;
n1=Vs(:,3)+(ampDef-ampDefDiff)+ampDef*sin(freqDef*Vs(:,1));
[V2(:,1),V2(:,2),~]=sph2cart(Vs(:,1),Vs(:,2),n1);

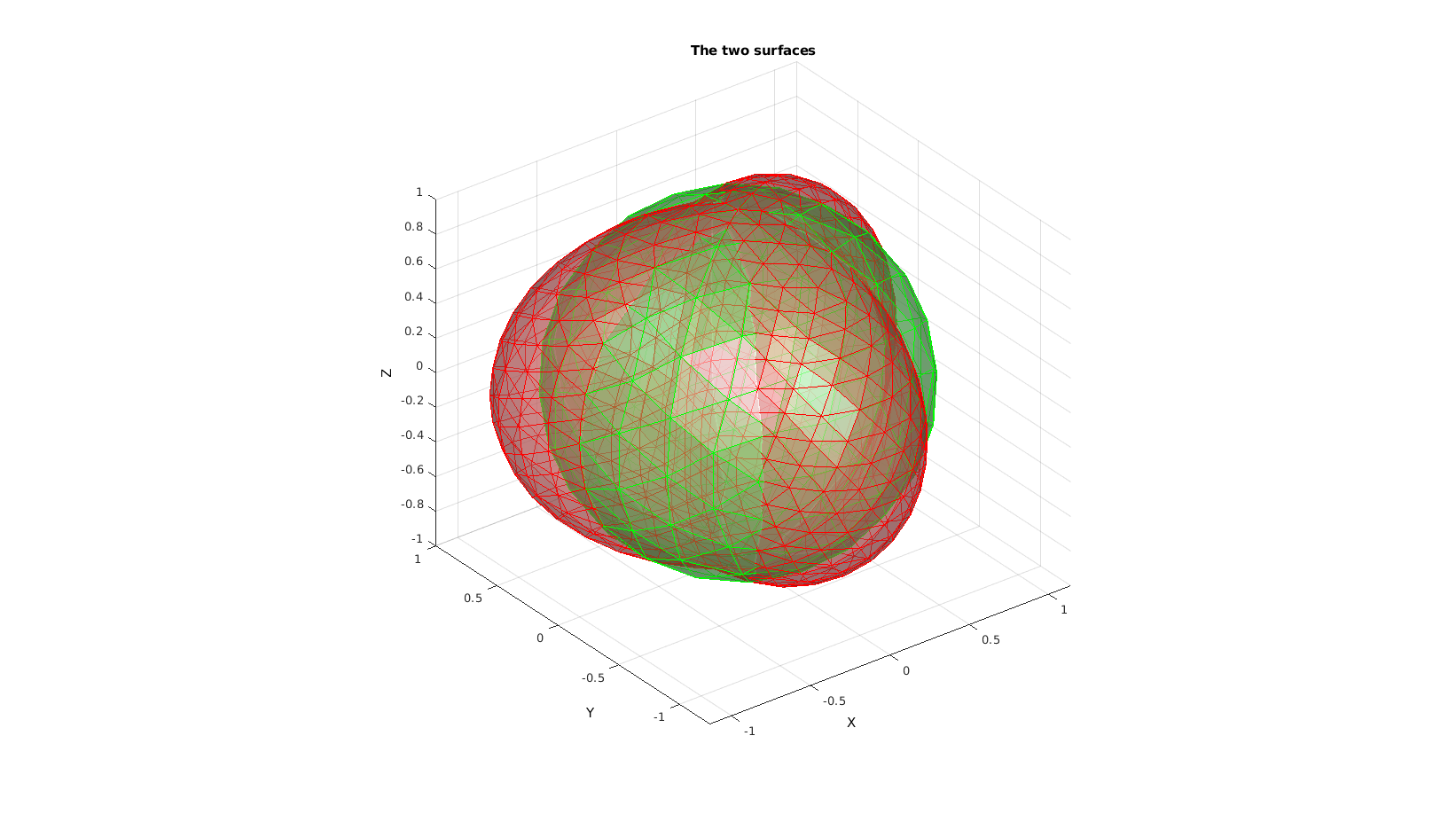

Plotting surfaces

hf1=cFigure;
title('The two surfaces','FontSize',fontSize);
xlabel('X','FontSize',fontSize);ylabel('Y','FontSize',fontSize);zlabel('Z','FontSize',fontSize);
hold on;
gpatch(F1,V1,'gw','g',faceAlpha1);
gpatch(F2,V2,'rw','r',faceAlpha1);

axis equal; view(3); axis tight; grid on;
set(gca,'FontSize',fontSize);
camlight headlight;
drawnow;

Get closest point based distance metric

D2=minDist(V2,V1);

On this type of use see also the triSurfSetDist function

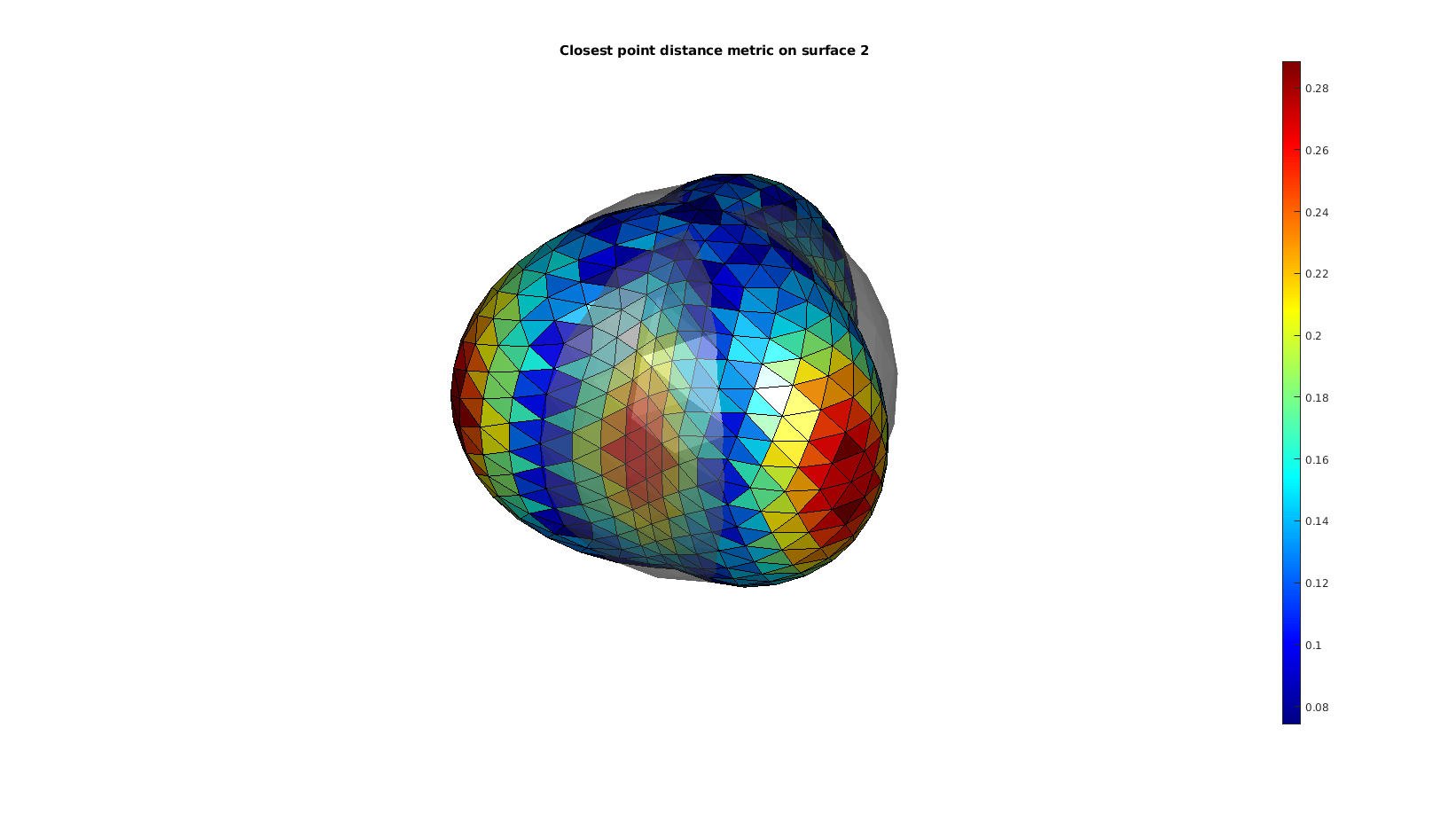

Plotting results

[CF]=vertexToFaceMeasure(F2,D2);

hf2=cFigure;
title('Closest point distance metric on surface 2','FontSize',fontSize);
xlabel('X','FontSize',fontSize);ylabel('Y','FontSize',fontSize);zlabel('Z','FontSize',fontSize);
hold on;
patch('faces',F2,'vertices',V2,'FaceColor','flat','CData',CF);
patch('faces',F1,'vertices',V1,'FaceColor',0.5.*ones(1,3),'FaceAlpha',faceAlpha1,'EdgeColor','None');

colormap jet; colorbar;
axis equal; view(3); axis tight; axis off;
set(gca,'FontSize',fontSize);
camlight headlight;
drawnow;

EXAMPLE FOR NEAREST NEIGHBOUR SEARCH AND INTERPOLATION

Building test surfaces

%Defining shape 1 as a sphere
[F1,V1,~]=geoSphere(2,1);

%Defining shape 2 as a denser sphere
[F2,V2,Vs]=geoSphere(4,1);

%Simulate some kind of result on the coarse sphere
C1=triplyPeriodicMinimal(6.*V1,'g');

Find nearest neighbours

[~,indMin]=minDist(V2,V1);

Interpolation now reduces to simple indexing into the array

C2=C1(indMin);

Get "true" color to compare

C2_true=triplyPeriodicMinimal(6.*V2,'g');

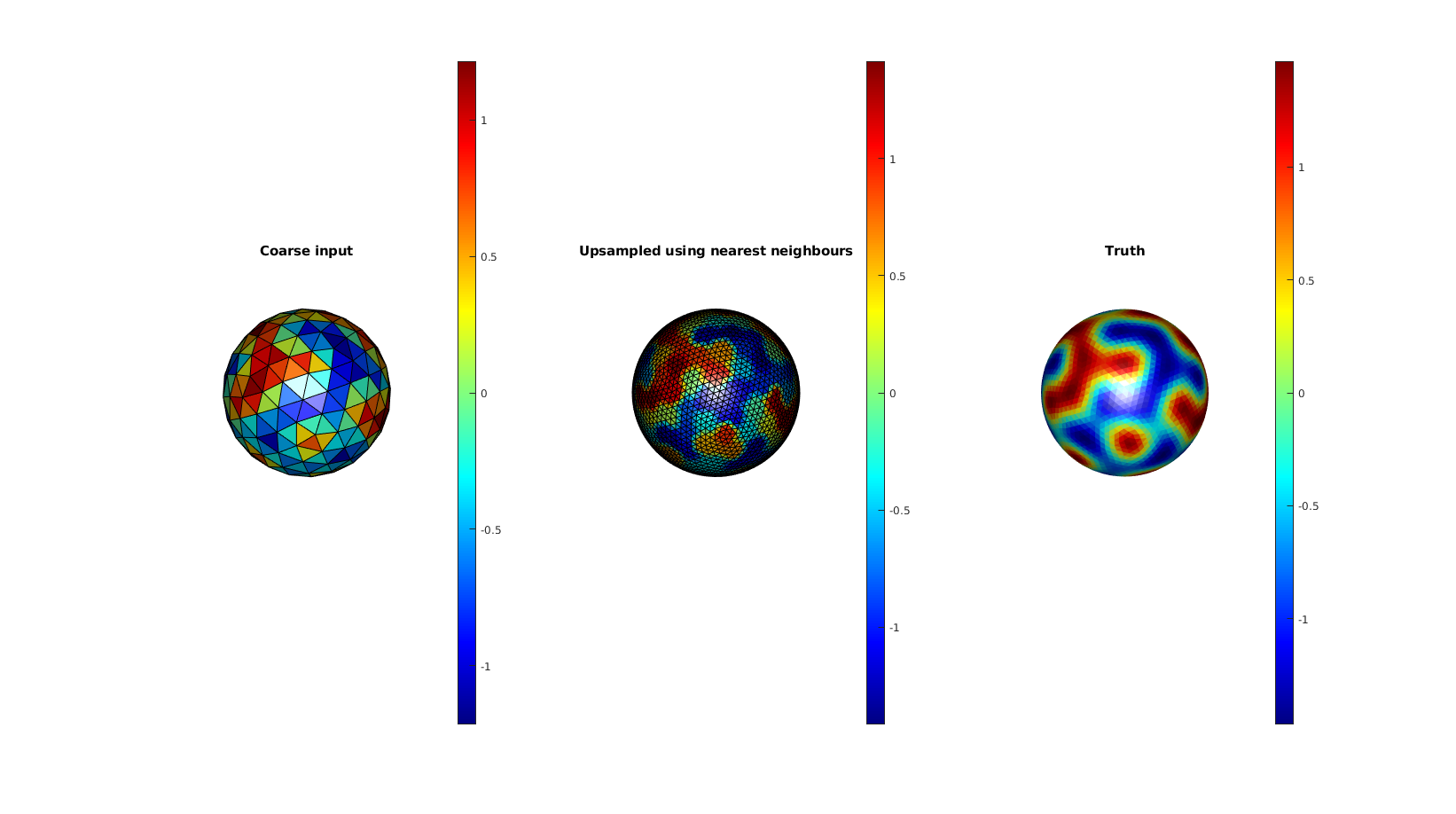

Plotting surfaces

[CF1]=vertexToFaceMeasure(F1,C1);
[CF2]=vertexToFaceMeasure(F2,C2);
[CF2_true]=vertexToFaceMeasure(F2,C2_true);

hf2=cFigure;
subplot(1,3,1);
title('Coarse input','FontSize',fontSize);
xlabel('X','FontSize',fontSize);ylabel('Y','FontSize',fontSize);zlabel('Z','FontSize',fontSize);
hold on;
patch('faces',F1,'vertices',V1,'FaceColor','flat','CData',CF1,'FaceAlpha',faceAlpha2,'EdgeColor','k');

colormap jet; colorbar;
axis equal; view(3); axis tight; axis off;
set(gca,'FontSize',fontSize);
camlight headlight;

subplot(1,3,2);
title('Upsampled using nearest neighbours','FontSize',fontSize);
xlabel('X','FontSize',fontSize);ylabel('Y','FontSize',fontSize);zlabel('Z','FontSize',fontSize);
hold on;
patch('faces',F2,'vertices',V2,'FaceColor','flat','CData',CF2,'FaceAlpha',faceAlpha2,'EdgeColor','k');

colormap jet; colorbar;
axis equal; view(3); axis tight; axis off;
set(gca,'FontSize',fontSize);
camlight headlight;

subplot(1,3,3);
title('Truth','FontSize',fontSize);
xlabel('X','FontSize',fontSize);ylabel('Y','FontSize',fontSize);zlabel('Z','FontSize',fontSize);
hold on;
patch('faces',F2,'vertices',V2,'FaceColor','flat','CData',CF2_true,'FaceAlpha',faceAlpha2,'EdgeColor','none');

colormap jet; colorbar;
axis equal; view(3); axis tight; axis off;
set(gca,'FontSize',fontSize);
camlight headlight;

drawnow;
