hexMeshSphere

Below is a demonstration of the features of the hexMeshSphere function

Contents

clear; close all; clc;

Plot settings

figColor='w'; figColorDef='white';
fontSize=15;
faceAlpha1=1;
edgeColor=0.25*ones(1,3);
edgeWidth=2;

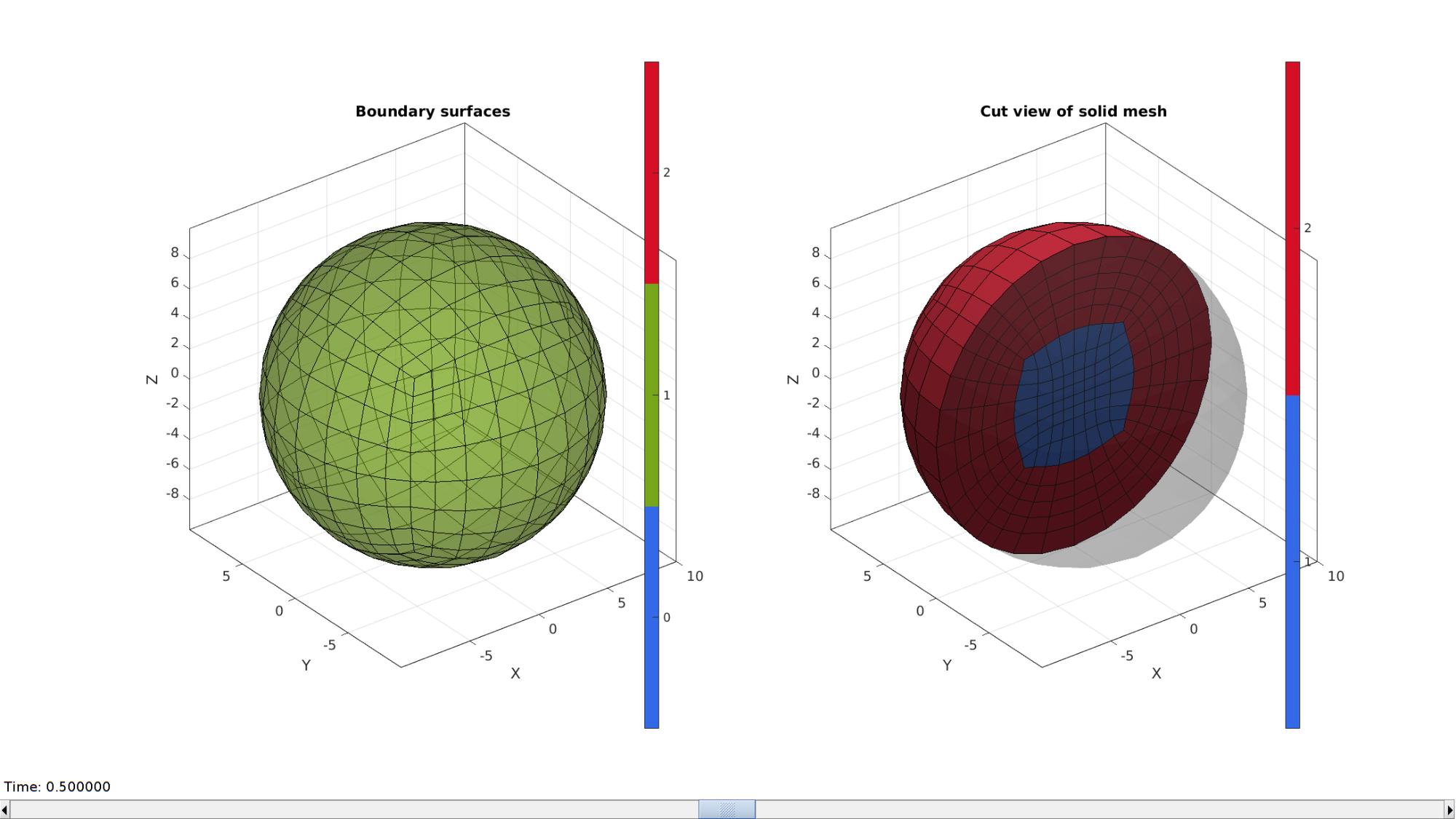

Creating a hollow hexahedral mesh sphere

Creating a solid hexahedral mesh sphere

%Control settings
cPar.sphereRadius=10;
cPar.coreRadius=5;
cPar.numElementsMantel=5;
cPar.numElementsCore=8;
cPar.makeHollow=0;

%Creating sphere
[meshStruct]=hexMeshSphere(cPar);

%Access ouput
E=meshStruct.E; %The elements
V=meshStruct.V; %The vertices
Fb=meshStruct.Fb; %The boundary faces

Plotting sphere model

hf=figuremax(figColor,figColorDef);
subplot(1,2,1);
title('The hexahedral mesh sphere','FontSize',fontSize);
xlabel('X','FontSize',fontSize); ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize);
hold on;
patch('Faces',Fb,'Vertices',V,'FaceColor','r','FaceAlpha',faceAlpha1,'lineWidth',edgeWidth,'edgeColor',edgeColor);
set(gca,'FontSize',fontSize);
view(3); axis tight;  axis equal;  grid on;
camlight headlight;

subplot(1,2,2);
title('Cut-view of the mesh','FontSize',fontSize);

%Create cut view
Y=V(:,2); YE=mean(Y(E),2);
L=YE>mean(Y);
[Fs,~]=element2patch(E(L,:),[],'hex8');
patch('Faces',Fs,'Vertices',V,'FaceColor','b','FaceAlpha',faceAlpha1,'lineWidth',edgeWidth,'edgeColor',edgeColor);

set(gca,'FontSize',fontSize);
view(3); axis tight;  axis equal;  grid on;
camlight headlight;

drawnow;

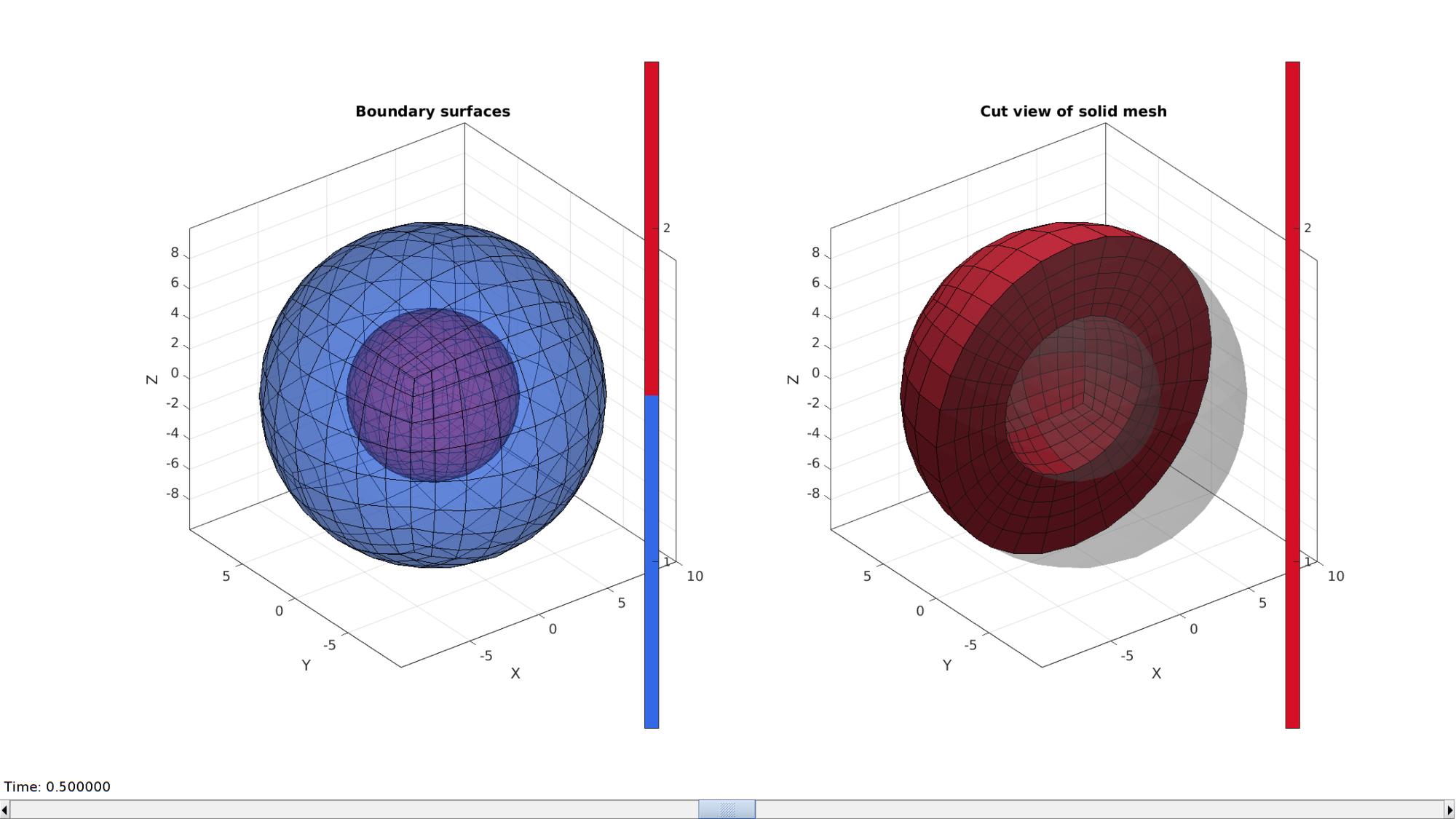

Creating a solid hexahedral mesh sphere

Creating a solid hexahedral mesh sphere

%Control settings
cPar.sphereRadius=10;
cPar.coreRadius=5;
cPar.numElementsMantel=5;
cPar.numElementsCore=8;
cPar.makeHollow=1;

%Creating sphere
[meshStruct]=hexMeshSphere(cPar);

%Access ouput
E=meshStruct.E; %The elements
V=meshStruct.V; %The vertices
Fb=meshStruct.Fb; %The boundary faces

Plotting sphere model

hf=figuremax(figColor,figColorDef);
subplot(1,2,1);
title('The hexahedral mesh sphere','FontSize',fontSize);
xlabel('X','FontSize',fontSize); ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize);
hold on;
patch('Faces',Fb,'Vertices',V,'FaceColor','r','FaceAlpha',faceAlpha1,'lineWidth',edgeWidth,'edgeColor',edgeColor);
set(gca,'FontSize',fontSize);
view(3); axis tight;  axis equal;  grid on;
camlight headlight;

subplot(1,2,2);
title('Cut-view of the mesh','FontSize',fontSize);

%Create cut view
Y=V(:,2); YE=mean(Y(E),2);
L=YE>mean(Y);
[Fs,~]=element2patch(E(L,:),[],'hex8');
patch('Faces',Fs,'Vertices',V,'FaceColor','b','FaceAlpha',faceAlpha1,'lineWidth',edgeWidth,'edgeColor',edgeColor);

set(gca,'FontSize',fontSize);
view(3); axis tight;  axis equal;  grid on;
camlight headlight;

drawnow;
