hemiSphereMesh

Below is a demonstration of the features of the hemiSphereMesh function

Contents

clear; close all; clc;

Syntax

[F,V,C]=hemiSphereMesh(nRefineSteps,sphereRadius,closeOpt);

Description

Creates the patch data (faces F, vertices V, and colordata C) for a hemisphere with a radius equal to sphereRadius. The hemisphere is refined nRefineSteps times and is closed if closeOpt==1

Examples

nRefineSteps=2; %Number of refinement steps
sphereRadius=1; %Radius
closeOpt=1; %Option to close bottom of hemisphere

[F,V,C]=hemiSphereMesh(nRefineSteps,sphereRadius,closeOpt); %Construct hemi-shere mesh

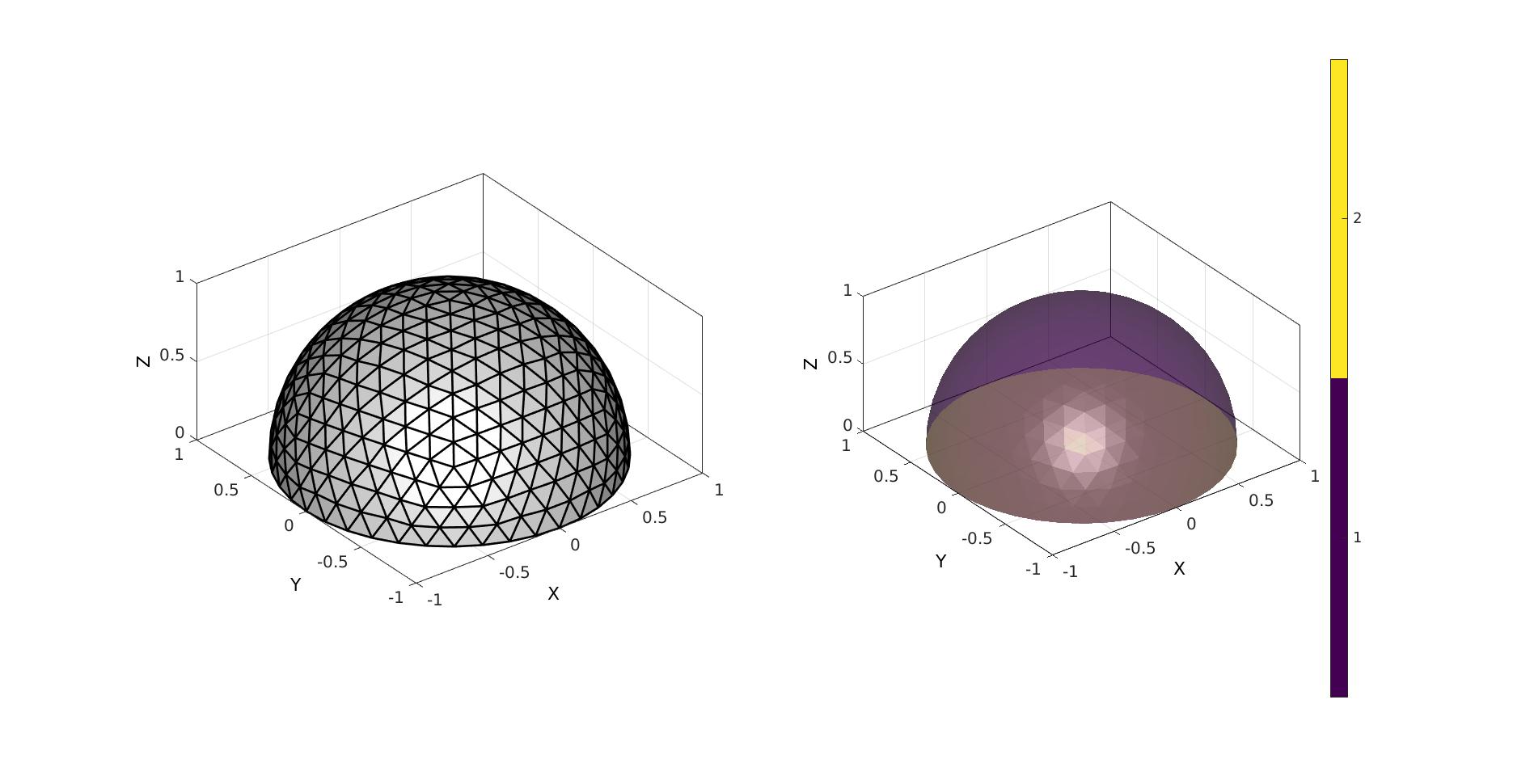

Visualize mesh

cFigure;
subplot(1,2,1); hold on;
gpatch(F,V,'w','k',1,2);
axisGeom;
camlight headlight;

subplot(1,2,2); hold on;
gpatch(F,V,C,'none',0.5);
axisGeom;
camlight headlight;
colormap viridis; icolorbar;

drawnow;
