getInnerPoint

Below is a demonstration of the features of the getInnerPoint function

Syntax
Description
Examples
Example 1: Basic use to find an arbitrary point inside the input geometry
Example: using full input/output set

clear; close all; clc;

Syntax

%|[V_inner,M,G,ML,voxelSize]=getInnerPoint(F,V,searchRadius,voxelSize,plotOn)|
% |[varargout]=getInnerPoint(varargin);|

Description

This function computes an arbitrary interior point for the input geometry. The function uses patch2Im to convert the geometry to an image description. Next the interior voxel set is convolution with a spherical kernel of a desired size. An interior point is then chosen based on the location with the maximum output in the convoluted image. In plainer English this means that an attempt is made to find a point that is inside the geometry and approximately the spherical kernel radius offset inwards from the boundary. Input consists of the faces F, the vertices V, the searchRadius (kernel radius), the voxelSize, and a plotting option plotOn. The voxel size should be shall enough such that interior (and not just boundary) voxels can be found. Interior voxels and fully inside the geometry and do not touch the boundary.

Plot settings

markerSize=50;

Examples

Example 1: Basic use to find an arbitrary point inside the input geometry

Create example geometry

testCase=3;
switch testCase
    case 1
        [F,V]=geoSphere(1,1);
    case 2
        [F,V]=stanford_bunny;
    case 3
        [F,V]=graphicsModels(4);
end

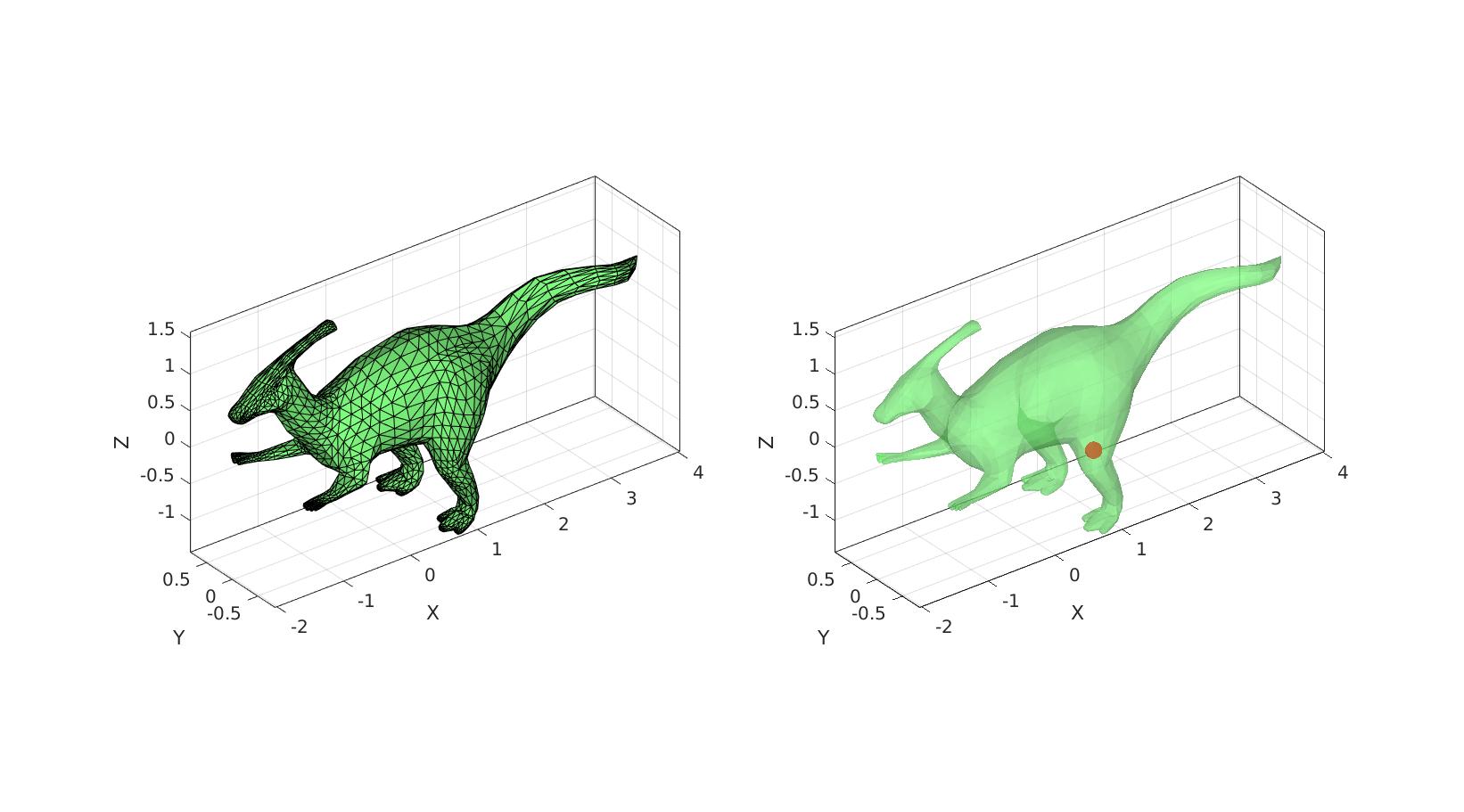

Find interior point using default settings

V_in=getInnerPoint(F,V);

cFigure;
subplot(1,2,1); hold on;
gpatch(F,V,'gw');
axisGeom; camlight headlight;

subplot(1,2,2); hold on;
gpatch(F,V,'gw','none',0.5);
plotV(V_in,'r.','MarkerSize',markerSize)
axisGeom; camlight headlight;
drawnow;

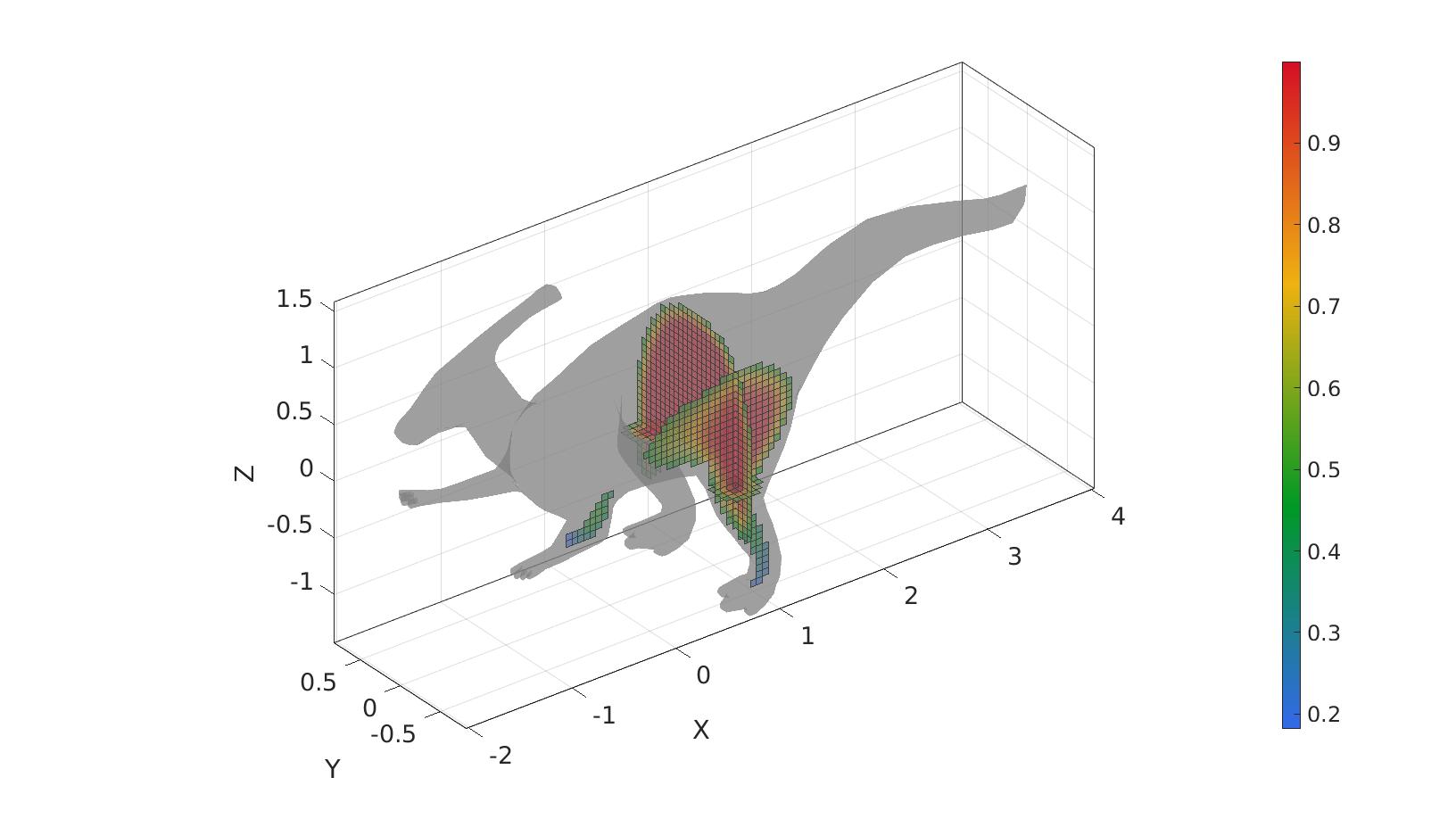

Example: using full input/output set

D=patchEdgeLengths(F,V); %Get edge lengths
voxelSize=mean(D)/2; %Set voxel size as half of the mean edge length
searchRadius=3*voxelSize; %Use 3 voxel search radius
plotOn=1;
[V_in,M,G,ML,voxelSize]=getInnerPoint(F,V,searchRadius,voxelSize,plotOn);

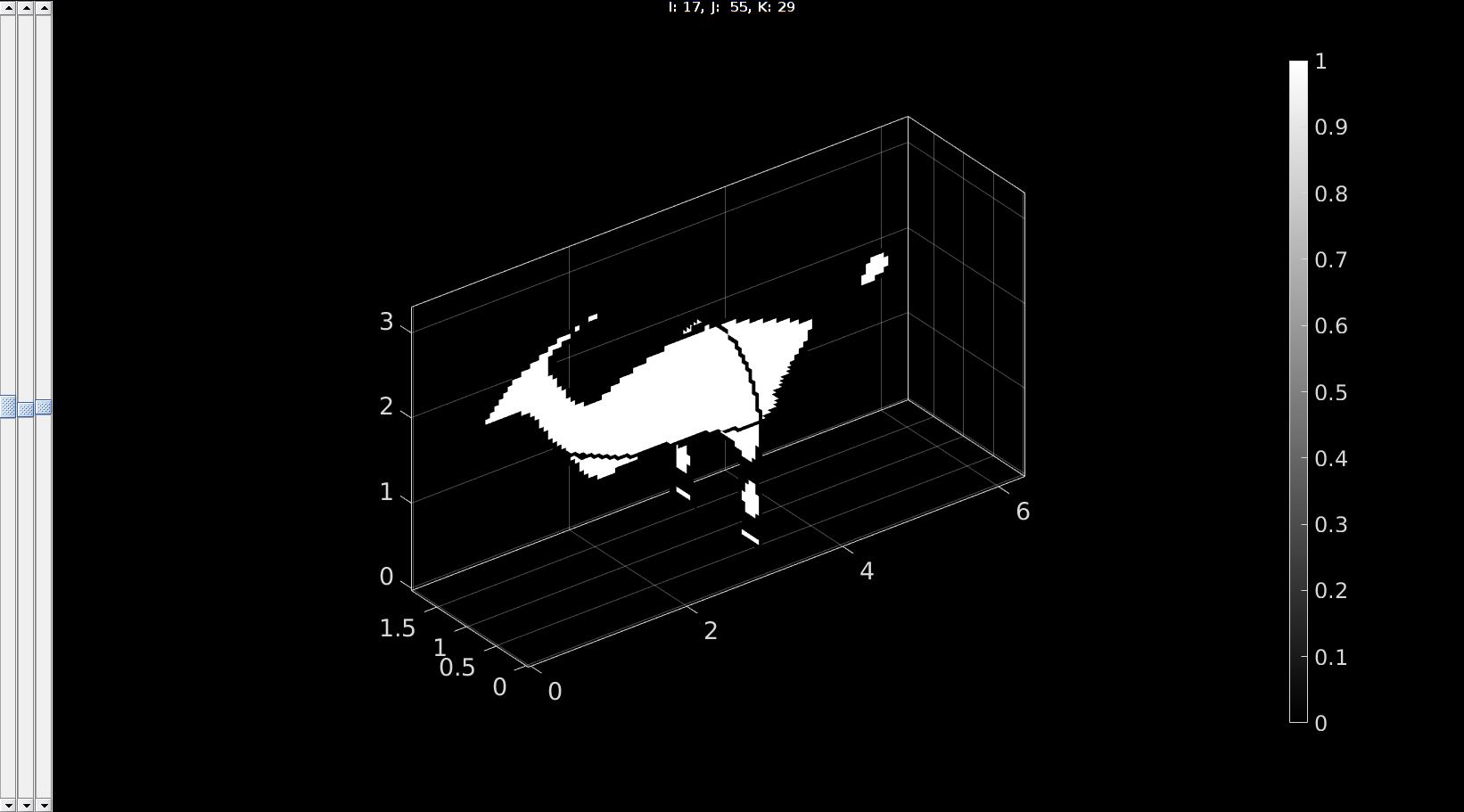

Visualize geometry interior/boundary label image

sv3(M,voxelSize);

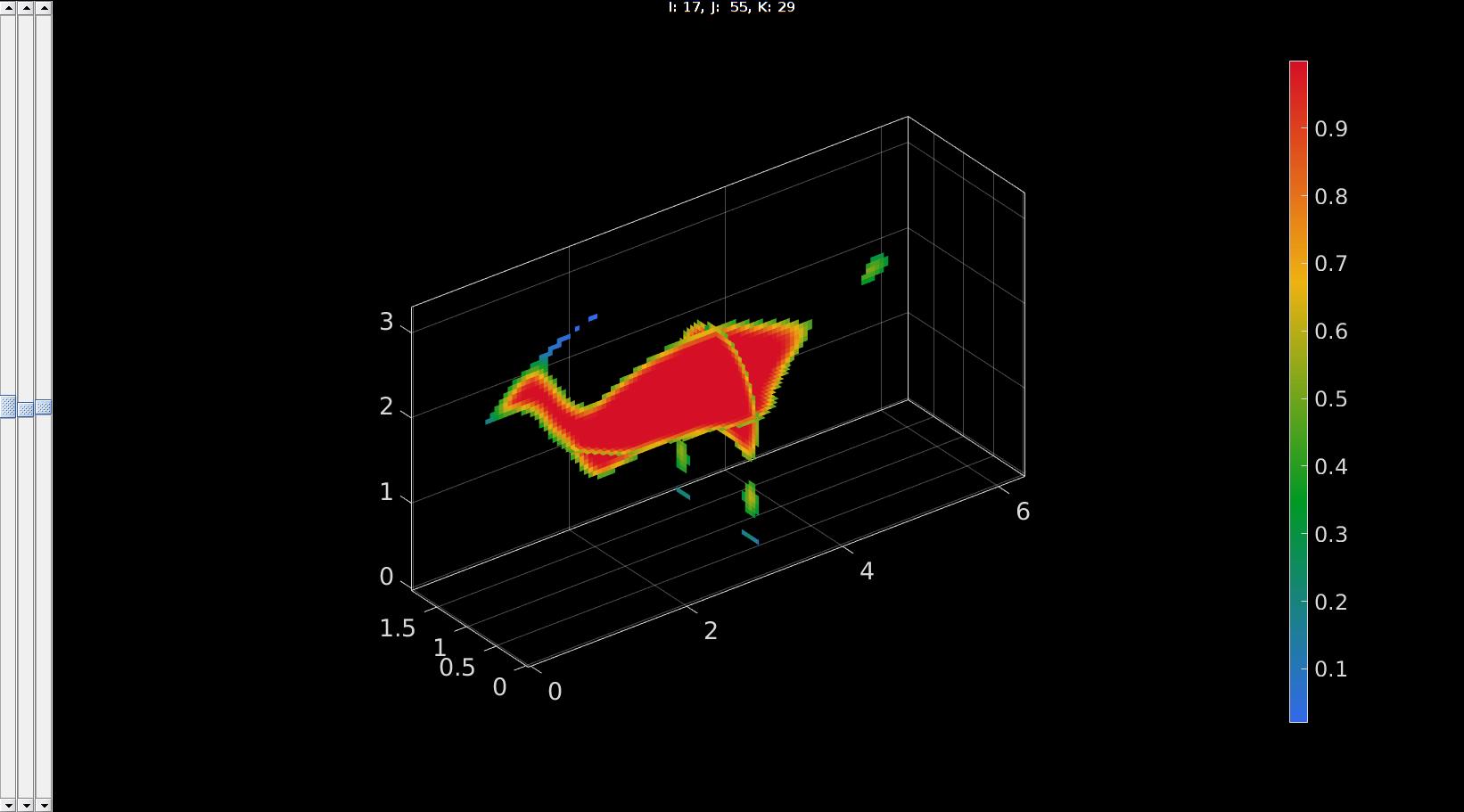

Visualize geometry convoluted interior image

sv3(ML,voxelSize); colormap gjet;
