dualLattice

Below is a demonstration of the features of the dualLattice function

Contents

Syntax

[FT,VT,CT]=dualLattice(E,V,shrinkFactor,cladOpt);

Description

Work in progress

Examples

clear; close all; clc;

Example geometry

testCase=3;

switch testCase
    case 1 %Box
        featureSize=0.5;
        pointSpacing=6;
        shrinkFactor=featureSize/pointSpacing;
        boxDim=[36 36 36]; %Width in each direction
        [meshStruct]=tetMeshBox(boxDim,pointSpacing);
        F=meshStruct.faces;
        V=meshStruct.nodes;
        C=meshStruct.boundaryMarker;
    case 2 %Bunny
        [F,V]=stanford_bunny('g');
        C=ones(size(F,1),1);
        faceBoundaryMarker=ones(size(F,1),1);
        [V_regions]=getInnerPoint(F,V);
        V_holes=[];
        [regionA]=tetVolMeanEst(F,V); %Volume for regular tets
        stringOpt='-pq1.2AaYQ';
        inputStruct.stringOpt=stringOpt;
        inputStruct.Faces=fliplr(F);
        inputStruct.Nodes=V;
        inputStruct.holePoints=V_holes;
        inputStruct.faceBoundaryMarker=faceBoundaryMarker; %Face boundary markers
        inputStruct.regionPoints=V_regions; %region points
        inputStruct.regionA=regionA;
        inputStruct.minRegionMarker=2; %Minimum region marker
        [meshStruct]=runTetGen(inputStruct); %Run tetGen

        pointSpacing=mean(patchEdgeLengths(F,V));
        featureSize=pointSpacing/15;
        shrinkFactor=featureSize/pointSpacing;
    case 3 %Sprocket

        defaultFolder = fileparts(fileparts(mfilename('fullpath')));
        pathName=fullfile(defaultFolder,'data','libSurf');

        dataStruct=load(fullfile(pathName,'sprocket.mat'));
        F=dataStruct.F;
        V=dataStruct.V;
        C=dataStruct.C;

        faceBoundaryMarker=ones(size(F,1),1);
        [V_regions]=getInnerPoint(F,V);
        V_holes=[];
        [regionA]=tetVolMeanEst(F,V); %Volume for regular tets
        stringOpt='-pq1.2AaYQ';
        inputStruct.stringOpt=stringOpt;
        inputStruct.Faces=fliplr(F);
        inputStruct.Nodes=V;
        inputStruct.holePoints=V_holes;
        inputStruct.faceBoundaryMarker=faceBoundaryMarker; %Face boundary markers
        inputStruct.regionPoints=V_regions; %region points
        inputStruct.regionA=regionA;
        inputStruct.minRegionMarker=2; %Minimum region marker
        [meshStruct]=runTetGen(inputStruct); %Run tetGen

        pointSpacing=mean(patchEdgeLengths(F,V));
        featureSize=pointSpacing/10;
        shrinkFactor=featureSize/pointSpacing;
    case 4
        defaultFolder = fileparts(fileparts(mfilename('fullpath')));
        pathName=fullfile(defaultFolder,'data','libSurf');

        dataStruct=load(fullfile(pathName,'enginePart_p1.mat'));
        F=dataStruct.F;
        V=dataStruct.V;
        C=dataStruct.C;

        faceBoundaryMarker=ones(size(F,1),1);
        [V_regions]=getInnerPoint(F,V);
        V_holes=[];
        [regionA]=tetVolMeanEst(F,V); %Volume for regular tets
        stringOpt='-pq1.2AaYQ';
        inputStruct.stringOpt=stringOpt;
        inputStruct.Faces=fliplr(F);
        inputStruct.Nodes=V;
        inputStruct.holePoints=V_holes;
        inputStruct.faceBoundaryMarker=faceBoundaryMarker; %Face boundary markers
        inputStruct.regionPoints=V_regions; %region points
        inputStruct.regionA=regionA;
        inputStruct.minRegionMarker=2; %Minimum region marker
        [meshStruct]=runTetGen(inputStruct); %Run tetGen

        pointSpacing=mean(patchEdgeLengths(F,V));
        featureSize=pointSpacing/10;
        shrinkFactor=featureSize/pointSpacing;
    case 5
        defaultFolder = fileparts(fileparts(mfilename('fullpath')));
        pathName=fullfile(defaultFolder,'data','libSurf');

        dataStruct=load(fullfile(pathName,'ConnectingRod.mat'));
        F=dataStruct.F;
        V=dataStruct.V;
        C=dataStruct.C;

        faceBoundaryMarker=ones(size(F,1),1);
        [V_regions]=getInnerPoint(F,V);
        V_holes=[];
        [regionA]=tetVolMeanEst(F,V); %Volume for regular tets
        stringOpt='-pq1.2AaYQ';
        inputStruct.stringOpt=stringOpt;
        inputStruct.Faces=fliplr(F);
        inputStruct.Nodes=V;
        inputStruct.holePoints=V_holes;
        inputStruct.faceBoundaryMarker=faceBoundaryMarker; %Face boundary markers
        inputStruct.regionPoints=V_regions; %region points
        inputStruct.regionA=regionA;
        inputStruct.minRegionMarker=2; %Minimum region marker
        [meshStruct]=runTetGen(inputStruct); %Run tetGen

        pointSpacing=mean(patchEdgeLengths(F,V));
        featureSize=pointSpacing/10;
        shrinkFactor=featureSize/pointSpacing;
end

%%inputStruct.modelName=modelName;
% Access mesh data

E=meshStruct.elements;
Fb=meshStruct.facesBoundary;
V=meshStruct.nodes;


%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
--- TETGEN Tetrahedral meshing --- 20-Jun-2019 14:45:56

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
--- Writing SMESH file --- 20-Jun-2019 14:45:56
----> Adding node field
----> Adding facet field
----> Adding holes specification
----> Adding region specification
--- Done --- 20-Jun-2019 14:45:56
--- Running TetGen to mesh input boundary--- 20-Jun-2019 14:45:56
Opening /mnt/data/MATLAB/GIBBON/data/temp/temp.smesh.
--- Done --- 20-Jun-2019 14:45:57

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
--- Importing TetGen files --- 20-Jun-2019 14:45:57
--- Done --- 20-Jun-2019 14:45:57

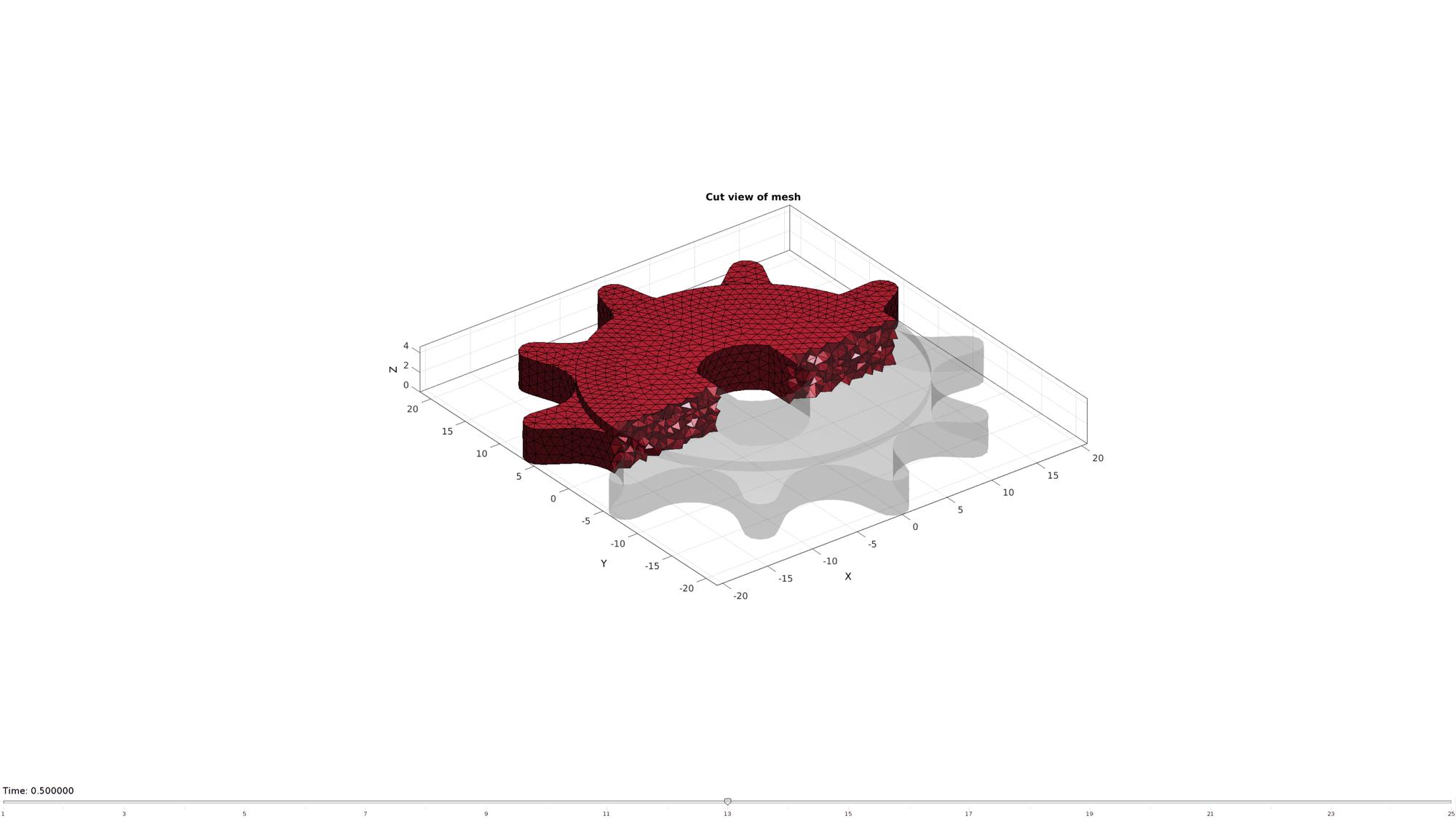

Visualize input geometry

meshView(meshStruct);

Example: Create a dual lattice mesh with outer surface cladding

See also: dualClad

cladOpt=1;
[FT,VT,CT]=dualLattice(E,V,shrinkFactor,cladOpt);

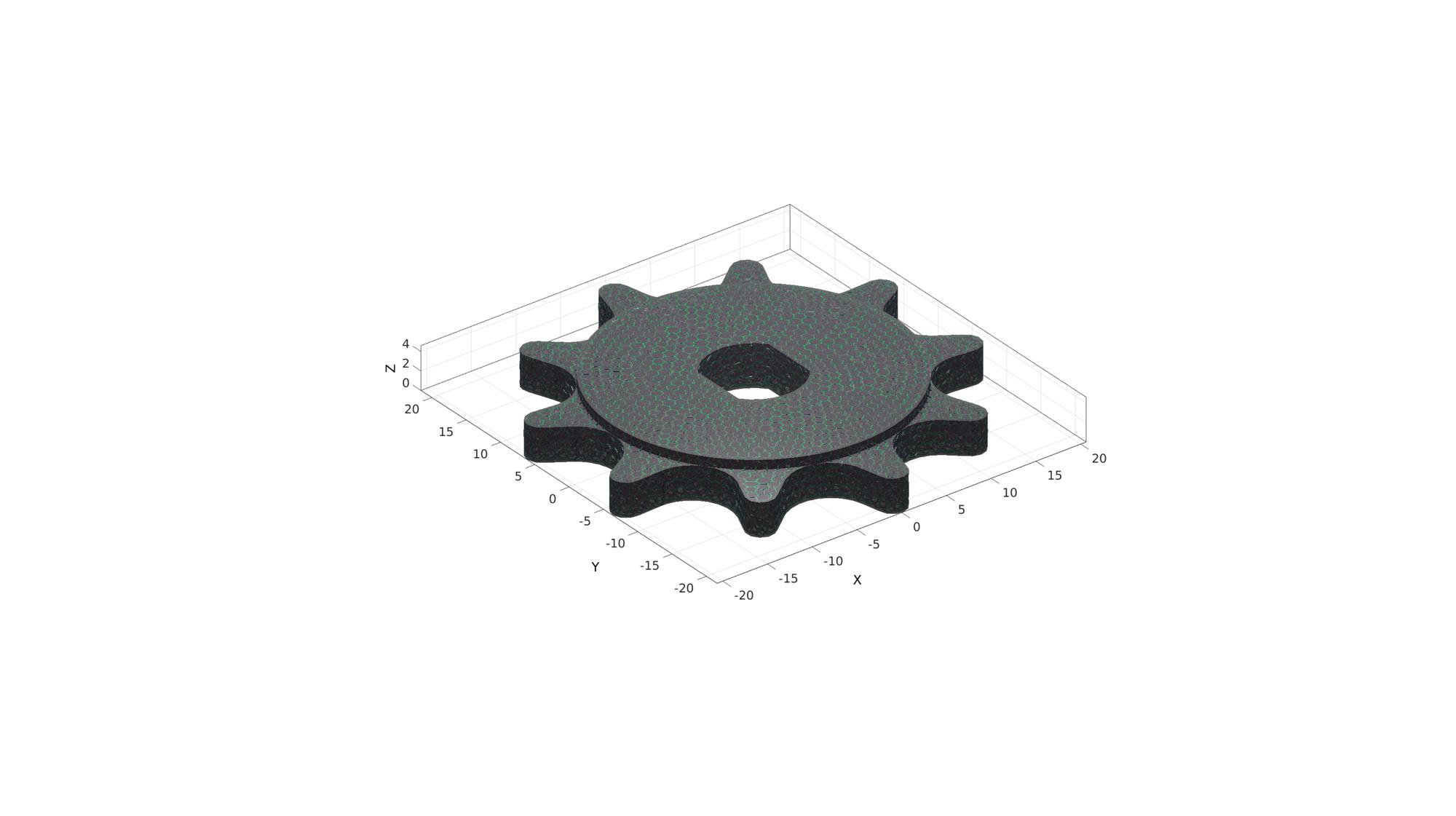

Visualize results

cFigure; hold on;
gpatch(FT,VT,CT,'none',1);
% patchNormPlot(FT,VT);
colormap(viridis(4)); icolorbar;
camlight headlight;
axisGeom;
drawnow;

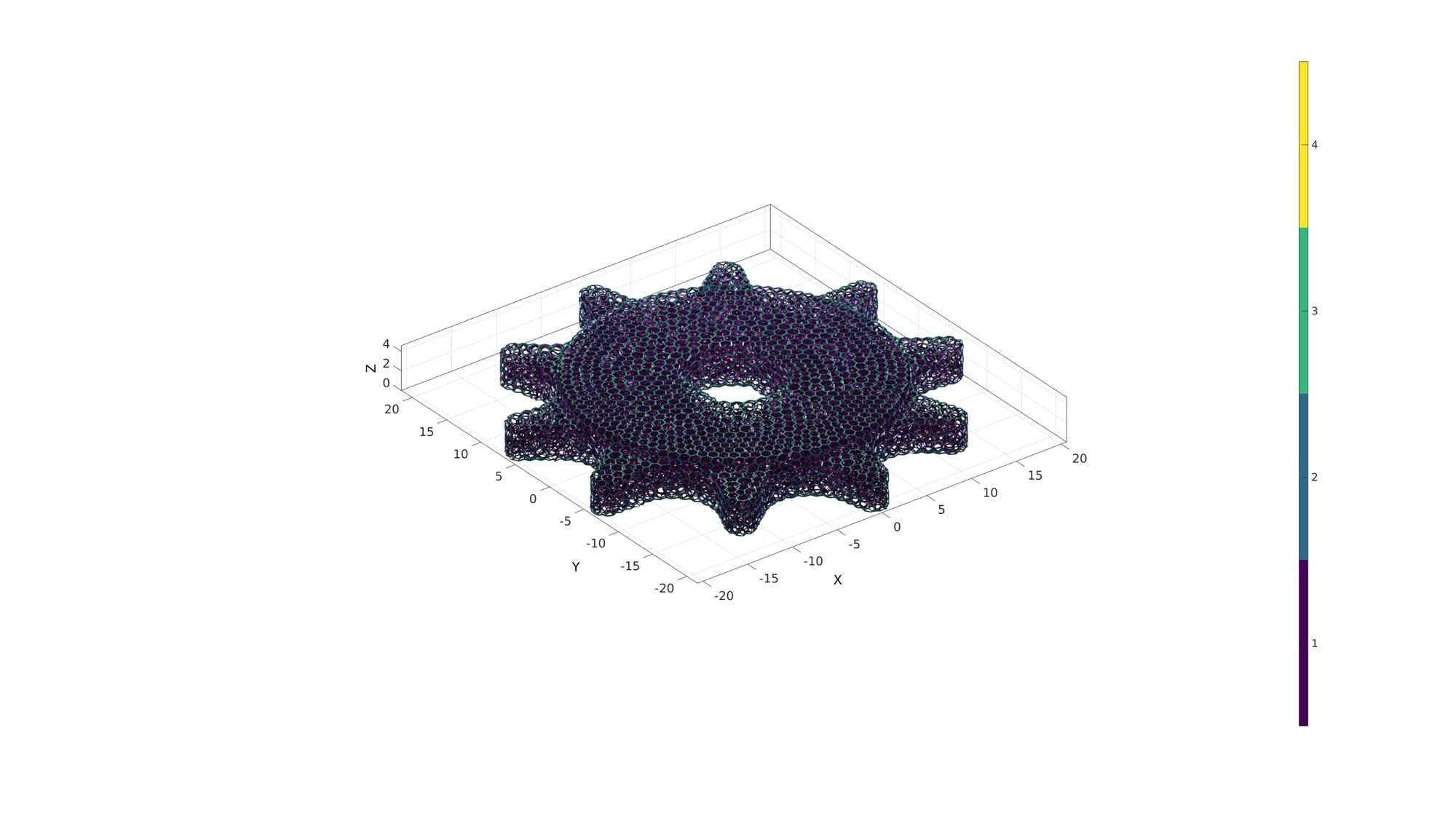

cFigure; hold on;
hp1=gpatch(FT,VT,CT,'none',1);
hp2=gpatch(F,V,'kw','none',0.8);
% patchNormPlot(FT,VT);
colormap(viridis(4)); %icolorbar;
camlight headlight;
axisGeom;
drawnow;

Example: Create a dual lattice mesh without outer surface cladding

cladOpt=0;
[FT,VT,CT]=dualLattice(E,V,shrinkFactor,cladOpt);

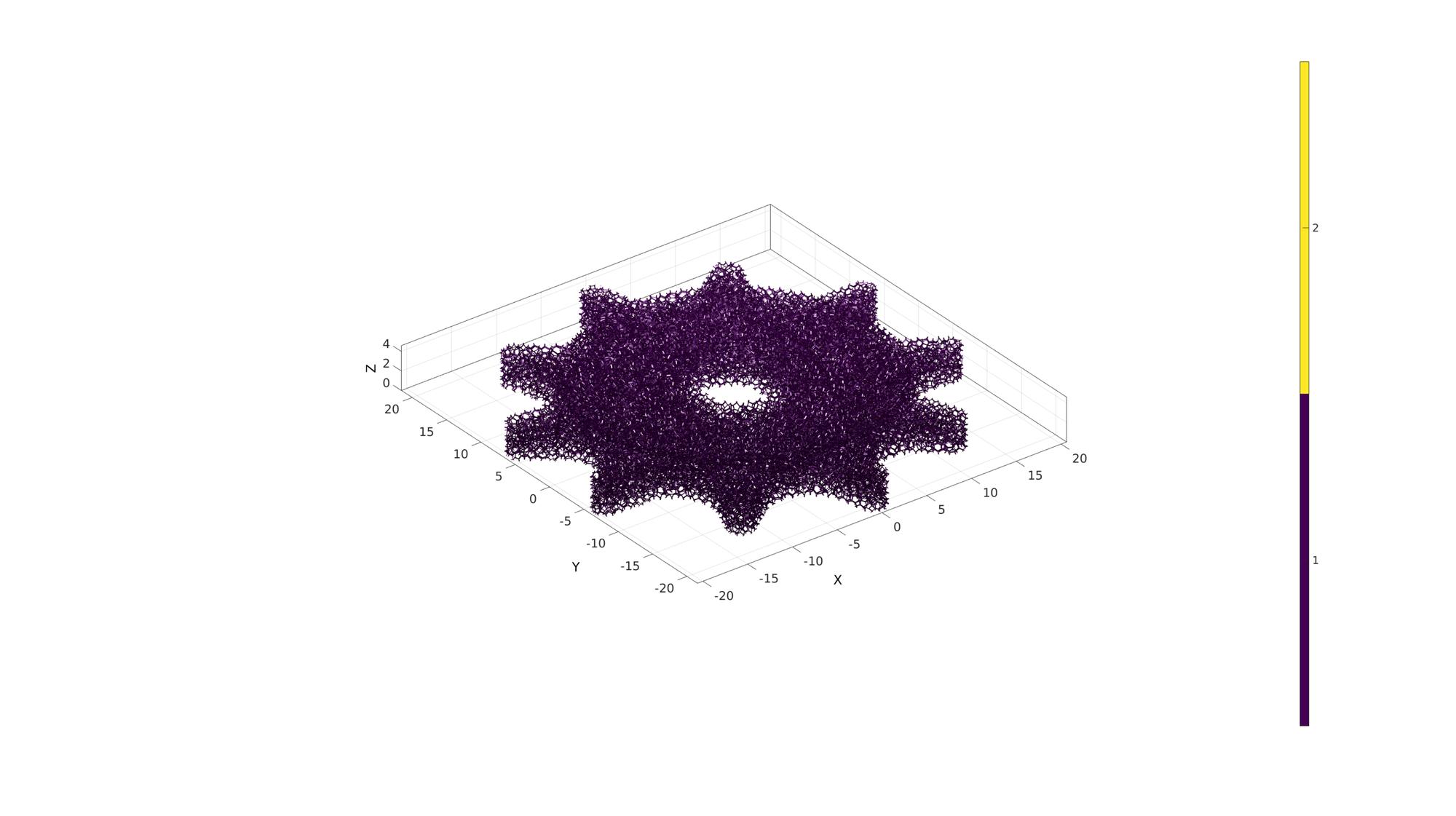

Visualize results

cFigure; hold on;
gpatch(FT,VT,CT,'none',1);
% patchNormPlot(FT,VT);
camlight headlight;
colormap(viridis(4)); icolorbar;
axisGeom;
drawnow;
