cap_patchCylinder

Below is a demonstration of the features of the cap_patchCylinder function

Contents

Syntax

[Fm,Vm]=cap_patchcylinder(F,V,F,V2,nr,nz);

Description

The cap_patchCylinder function closes (or caps) the patch data from a set of cylinders.

Examples

clear; close all; clc;

Plot settings

figColor='w';
figColorDef='white';
fontSize=10;
faceAlpha1=0.4;

Example: Creating input geometry

Construct regular cylinder

r=10;
nr=40;
h=35;
nz=35;
ptype='tri';
[F,V]=patchcylinder(r,nr,h,nz,ptype);

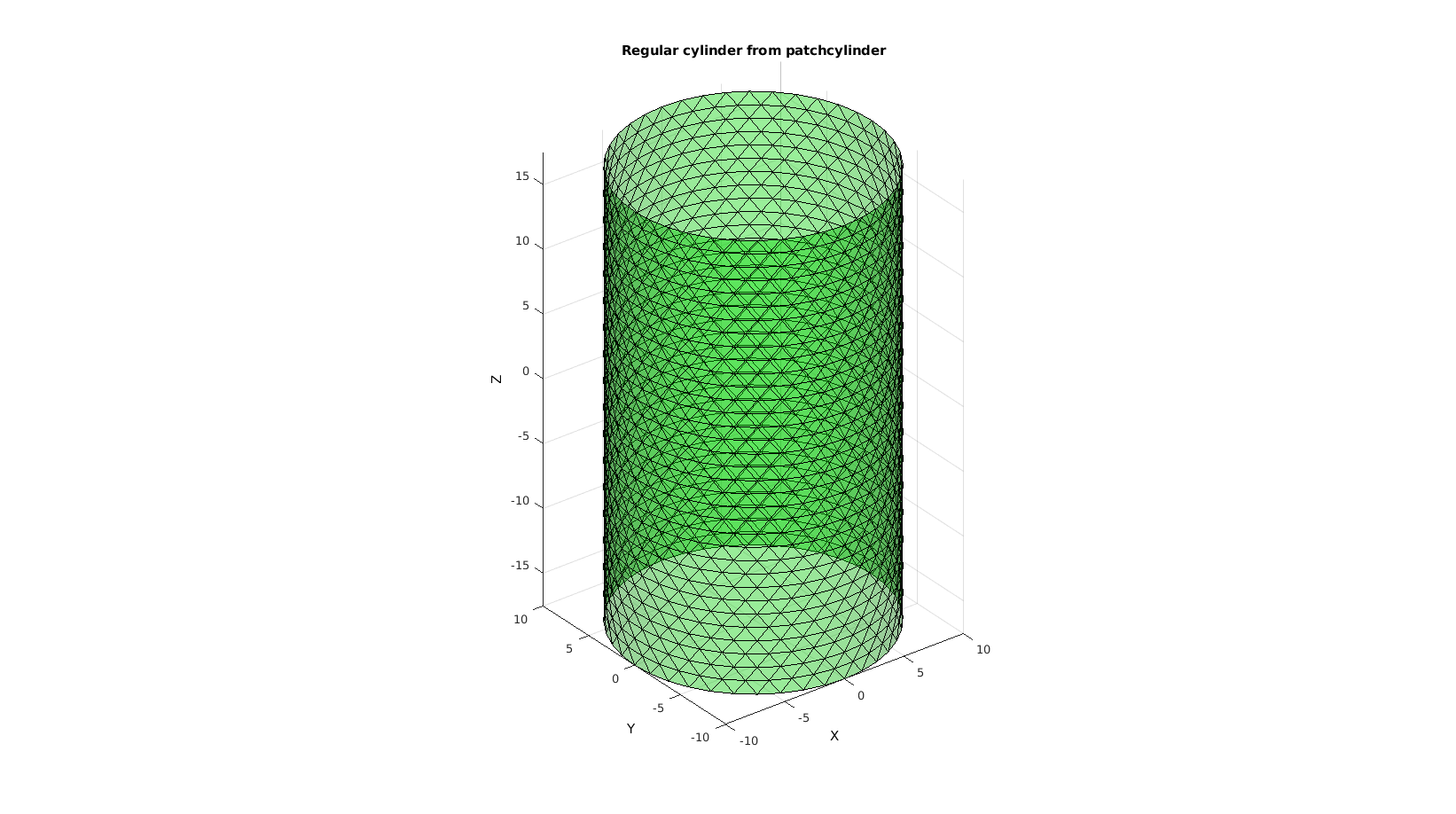

Plottting model

hf1=figuremax(figColor,figColorDef);
title('Regular cylinder from patchcylinder','FontSize',fontSize);
xlabel('X','FontSize',fontSize);ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize);
hold on;
hpm=patch('Faces',F,'Vertices',V,'EdgeColor','k','FaceColor','g','FaceAlpha',faceAlpha1);
axis equal; view(3); axis tight;  grid on;
camlight headlight;
set(gca,'FontSize',fontSize);
drawnow;

Deforming regular cylinder to create outer wall

[T,R,Z]=cart2pol(V(:,1),V(:,2),V(:,3));
R_add=2.*cos(2*pi.*V(:,3).*2.*(1/(h)));
R=R+R_add;
[V(:,1),V(:,2),V(:,3)]=pol2cart(T,R,Z);
X_add=3.*sin(2*pi.*V(:,3).*1.*(1/(h)));
Y_add=3.*cos(2*pi.*V(:,3).*1.*(1/(h)));
V(:,1)=V(:,1)+X_add;
V(:,2)=V(:,2)+Y_add;

Creating inner wall

[T,R,Z]=cart2pol(V(:,1),V(:,2),V(:,3));
a=0.5; b=2;
R_sub=b+(a+a.*cos(2*pi.*V(:,3).*3.*(1/(h))));
R2=R-R_sub;
V2=V;
[V2(:,1),V2(:,2),V2(:,3)]=pol2cart(T,R2,Z);

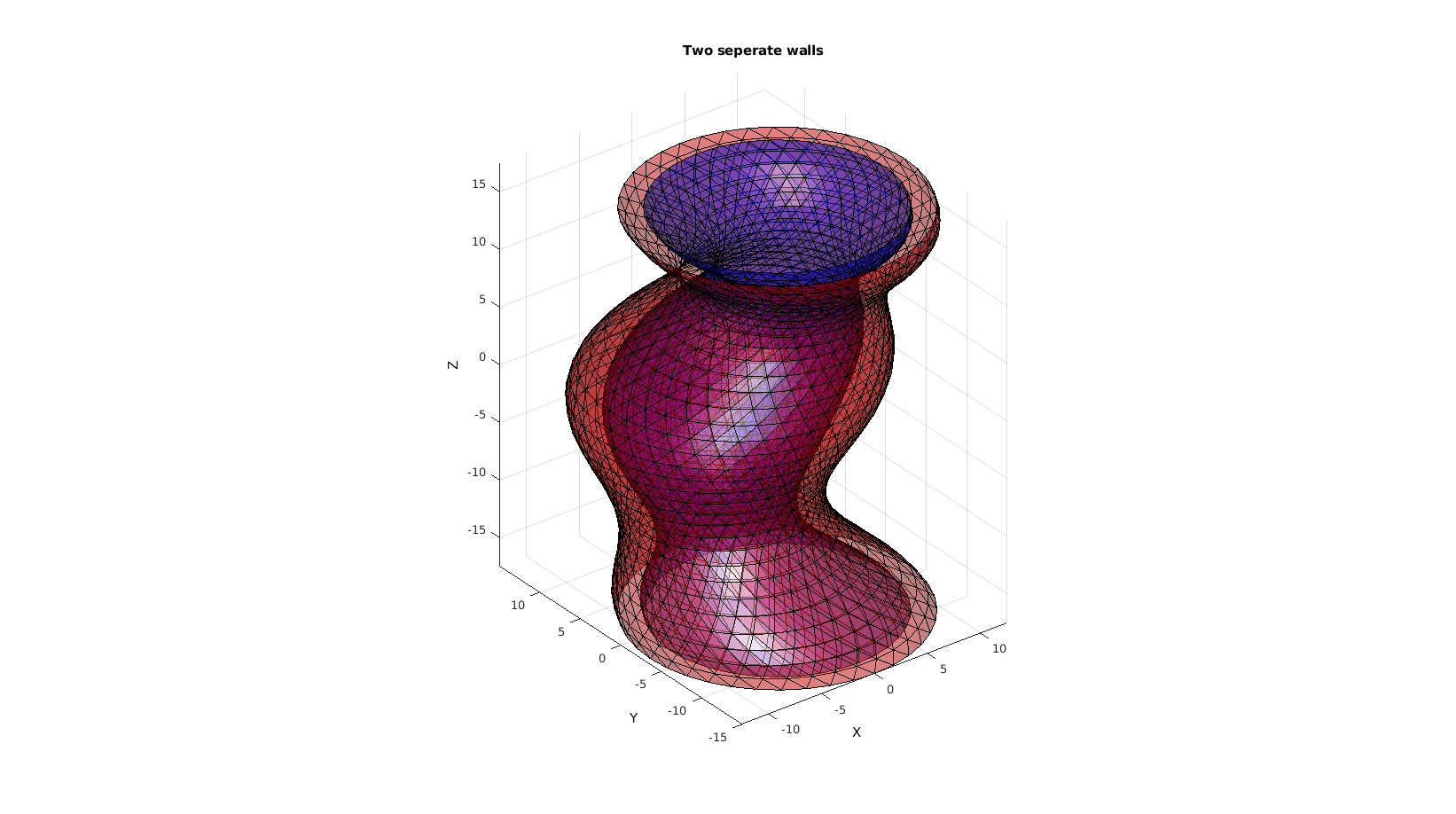

Plotting walls

hf2=figuremax(figColor,figColorDef);
title('Two seperate walls','FontSize',fontSize);
xlabel('X','FontSize',fontSize);ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize);
hold on;
hpm1=patch('Faces',F,'Vertices',V,'EdgeColor','k','FaceColor','r','FaceAlpha',0.5);
hpm2=patch('Faces',F,'Vertices',V2,'EdgeColor','k','FaceColor','b','FaceAlpha',0.5);
axis equal; view(3); axis tight;  grid on;
set(gca,'FontSize',fontSize);
camlight headlight;
drawnow;

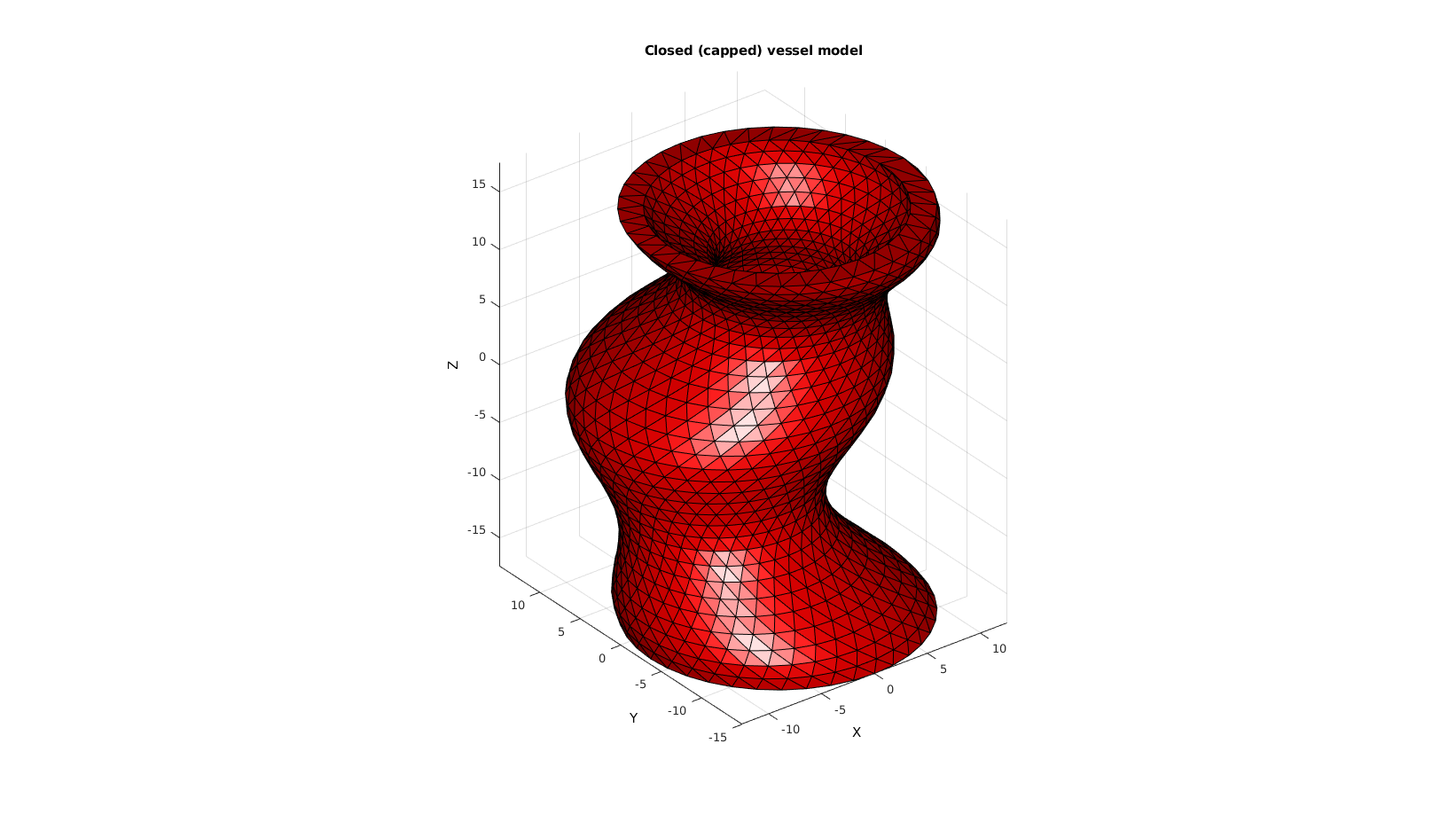

Example: Capping the cylinder geometry

[Fm,Vm]=cap_patchcylinder(F,V,F,V2,nr,nz);

hf3=figuremax(figColor,figColorDef);
title('Closed (capped) vessel model','FontSize',fontSize);
xlabel('X','FontSize',fontSize);ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize);
hold on;
hpm3=patch('Faces',Fm,'Vertices',Vm,'EdgeColor','k','FaceColor','r','FaceAlpha',1);
axis equal; view(3); axis tight;  grid on; set(gca,'FontSize',fontSize);
lighting flat; camlight('headlight');
drawnow;
